Product Details
Introduction

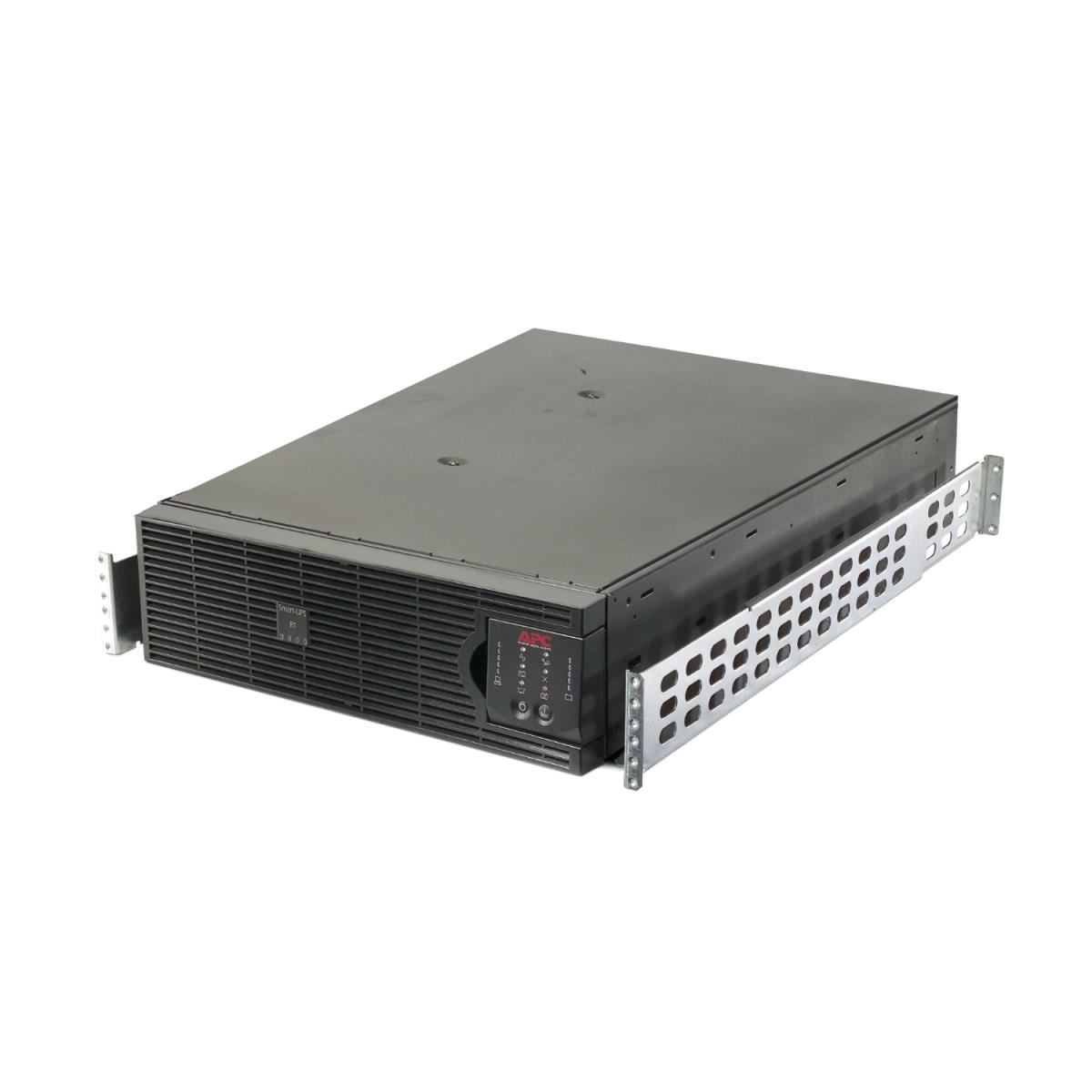

APC Smart-UPS On-Line, 2100 Watts / 3000 VA, Input 230V / Output 230V , Interface Port RJ-45 Serial, Smart-Slot , Extended runtime model , Rack Height 3 U
Includes: CD with software, Smart UPS signalling RS-232 cable, User Manual
Standard Lead Time: Usually in Stock
Features
Output power capacity
3 kVA
Output power
2100 W
Input operation voltage (min)
100 V
Input operation voltage (max)
280 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Efficiency
92%
Crest factor
3:1
Emergency Power Off (EPO)
Y
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Ports & interfaces
AC outlet types
C13 coupler, C19 coupler
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
Ethernet LAN (RJ-45) ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
2.5 h
Design
Form factor
Rackmount
Rack capacity
3U
Cable length
2.44 m
Product colour
Black
LED indicators
Y
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainability certificates
RoHS
Weight & dimensions
Width
130 mm
Depth
660 mm
Height
432 mm
Weight
54.5 kg
Package weight
63.6 kg
Other features
Dimensions (WxDxH)
130 x 660 x 432 mm
Nominal output voltage
230 V
Nominal input voltage
230 V
Package dimensions (WxDxH)
603 x 980 x 347 mm
Information
| Part Number: | SURTD3000XLIM |
