Product Details
Introduction

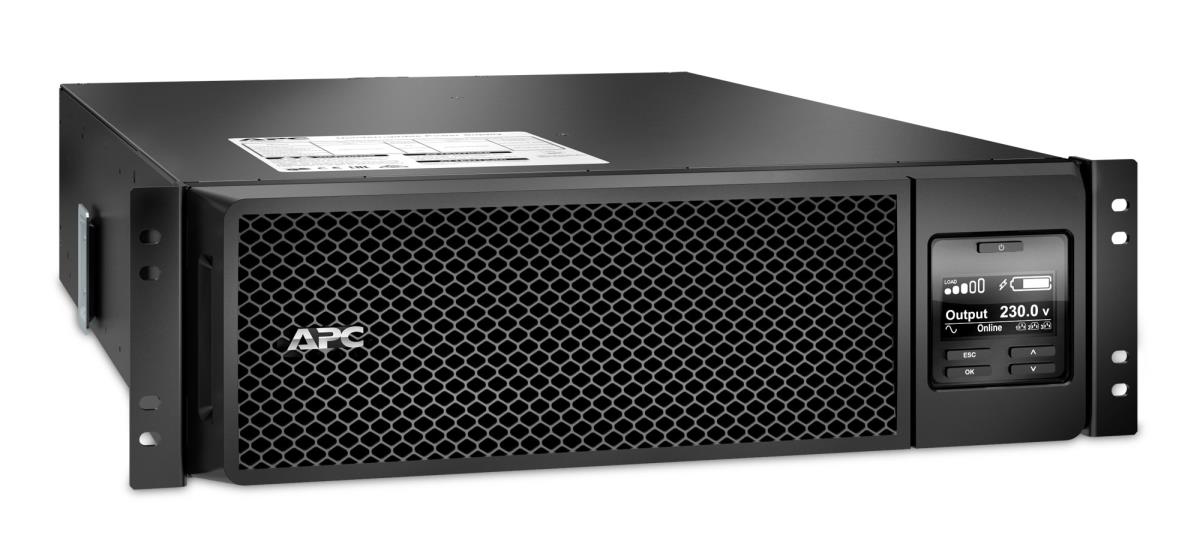

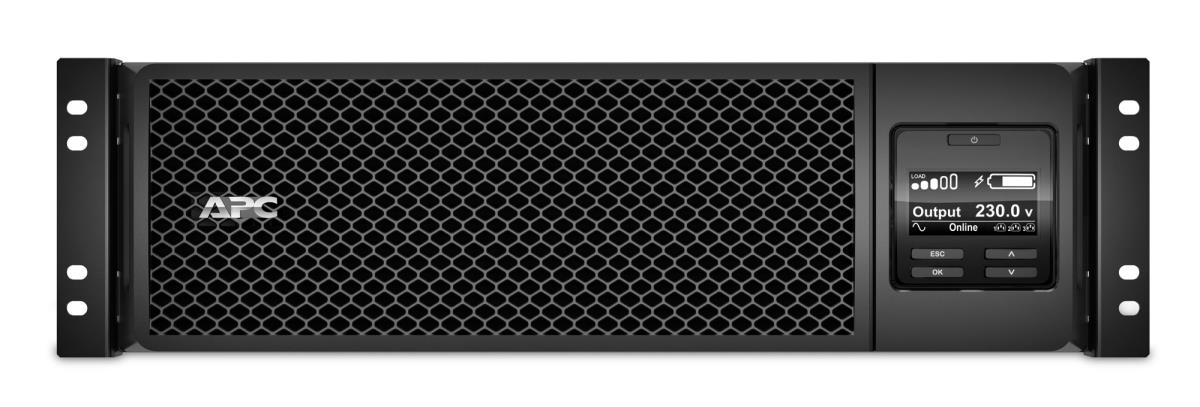

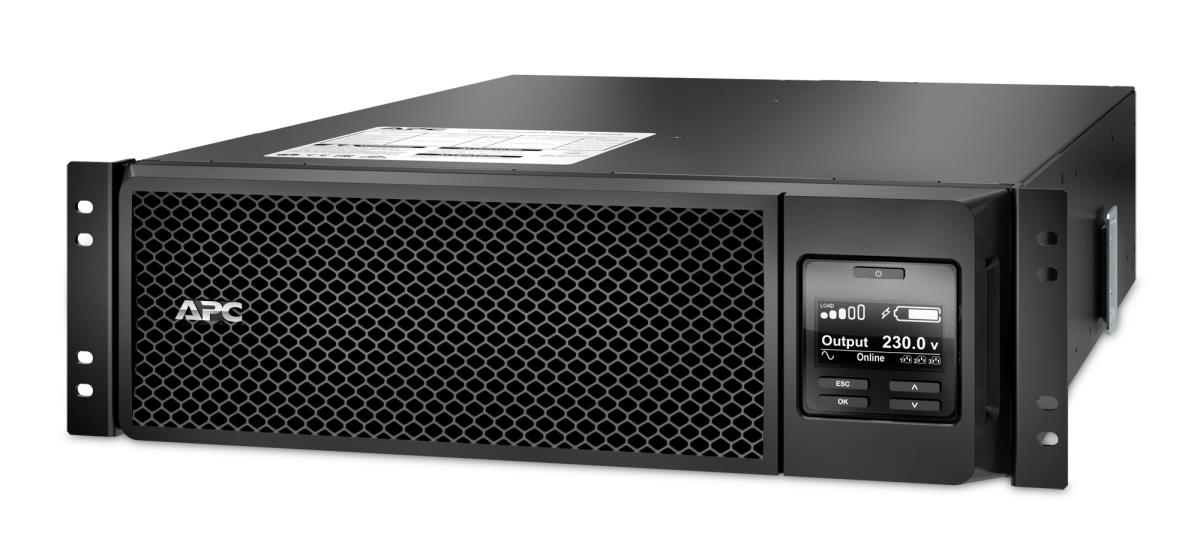

APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Includes: Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, Warranty card
Technical details
Total carbon footprint (kg of CO2e)
8408.59
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS, ENERGY STAR
Ports & interfaces
SmartConnect port
No

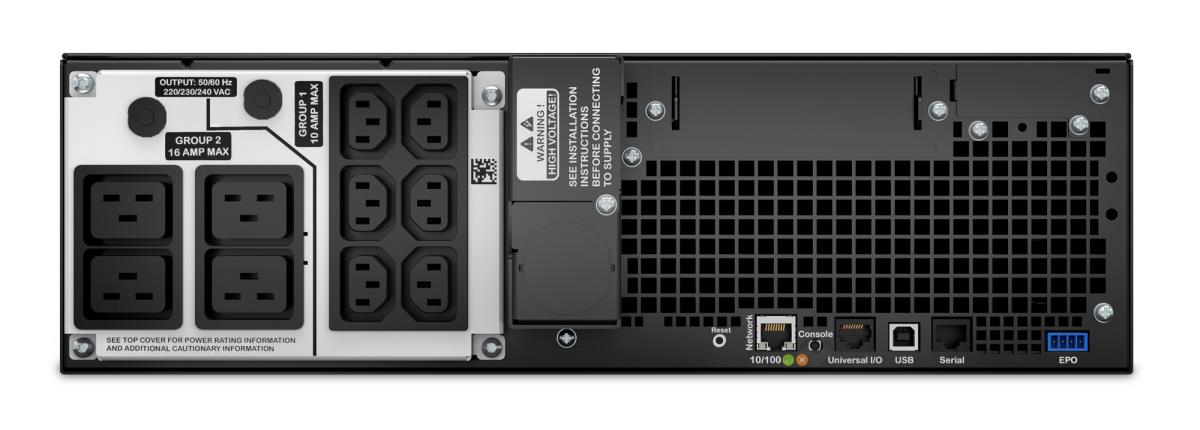

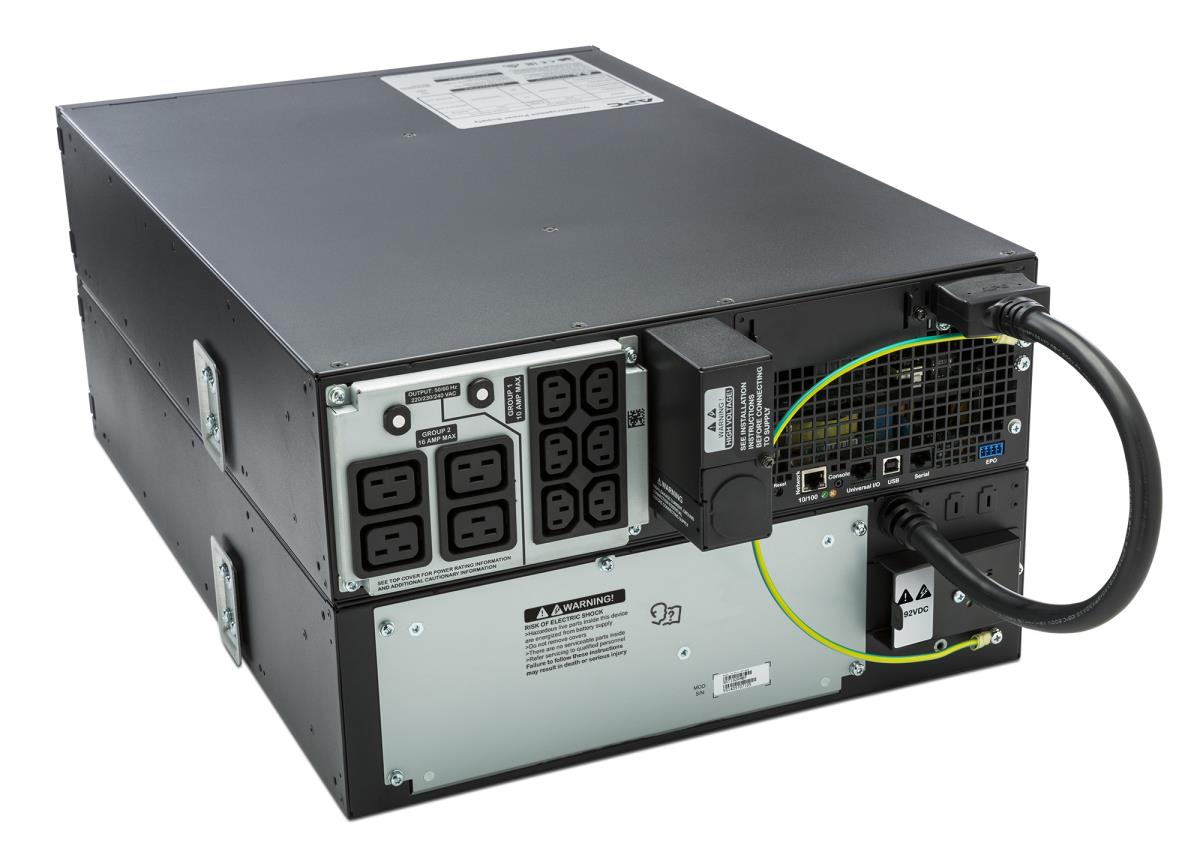

AC outlet types
C13 coupler, C19 coupler
Power plug
Terminal
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
USB port
Y
Serial interface
Y
Serial interface type
RJ-45
SmartSlot
Y
Packaging content
Management card included
Yes
Features
UPS topology
Double-conversion (Online)
Output power capacity
5 kVA
Output power
4500 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Surge energy rating
480 J
Efficiency
94.1%
Crest factor
3:1
Emergency Power Off (EPO)
Y
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Surge protection
Y
Audible alarm(s)
Y
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
845 VAh

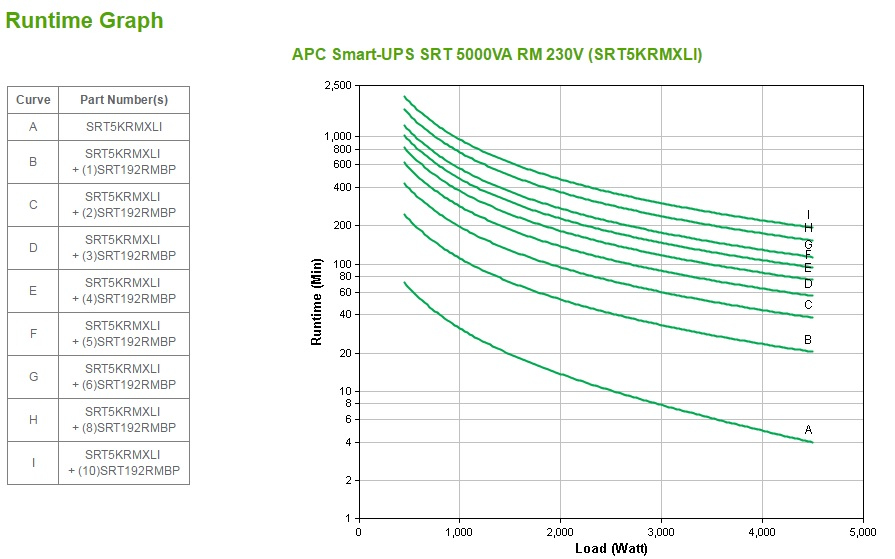

Typical backup time at full load
4 min
Typical backup time at half load
11.8 min
Battery life (max)
5 year(s)
Battery recharge time
1.5 h

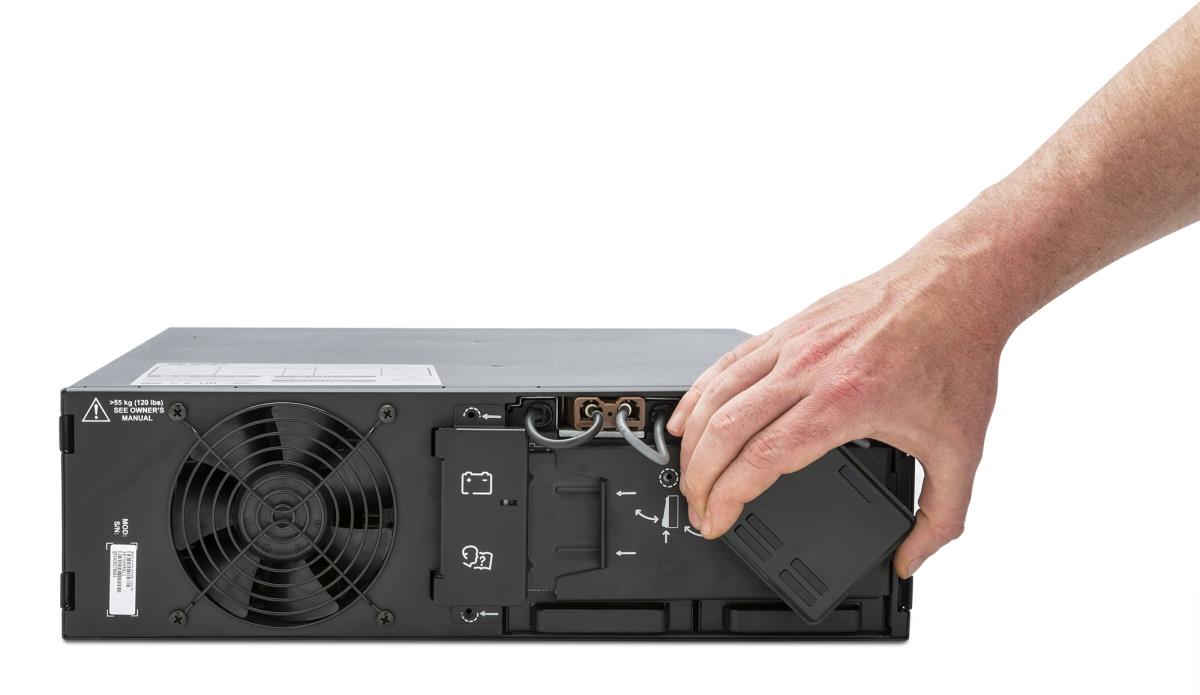

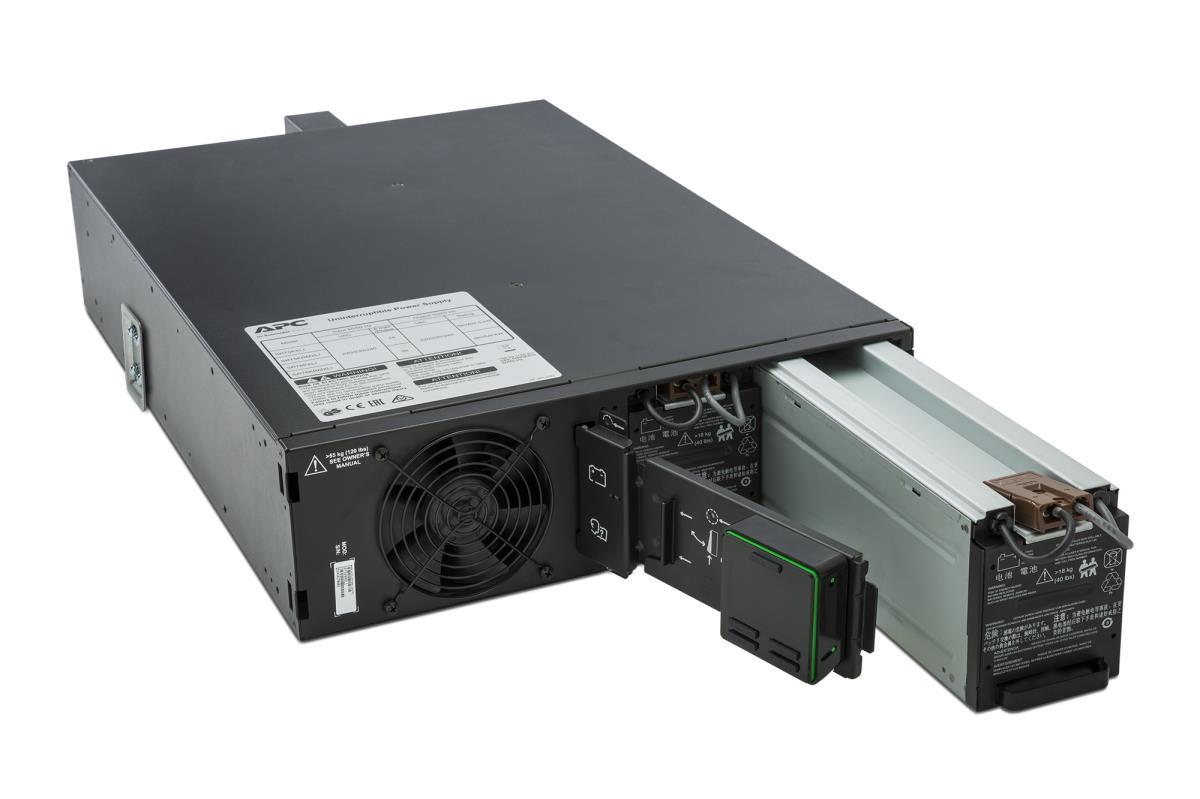

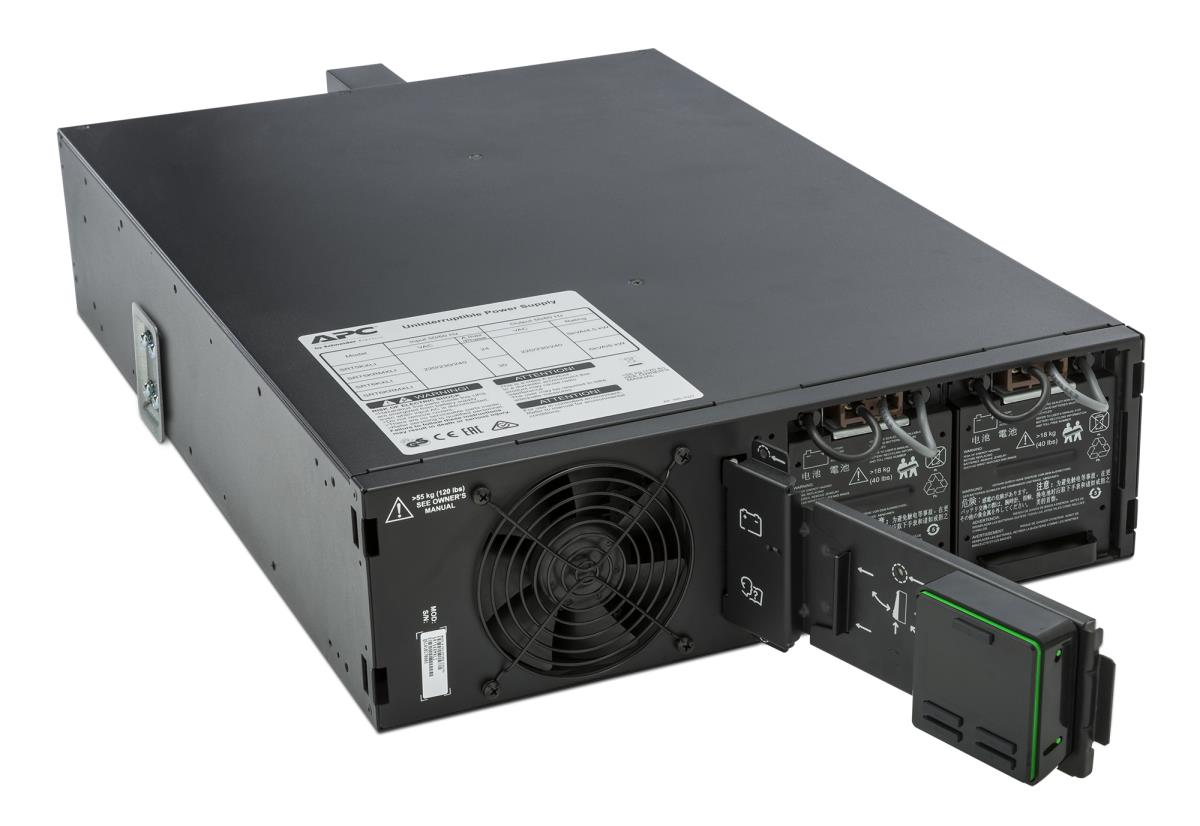

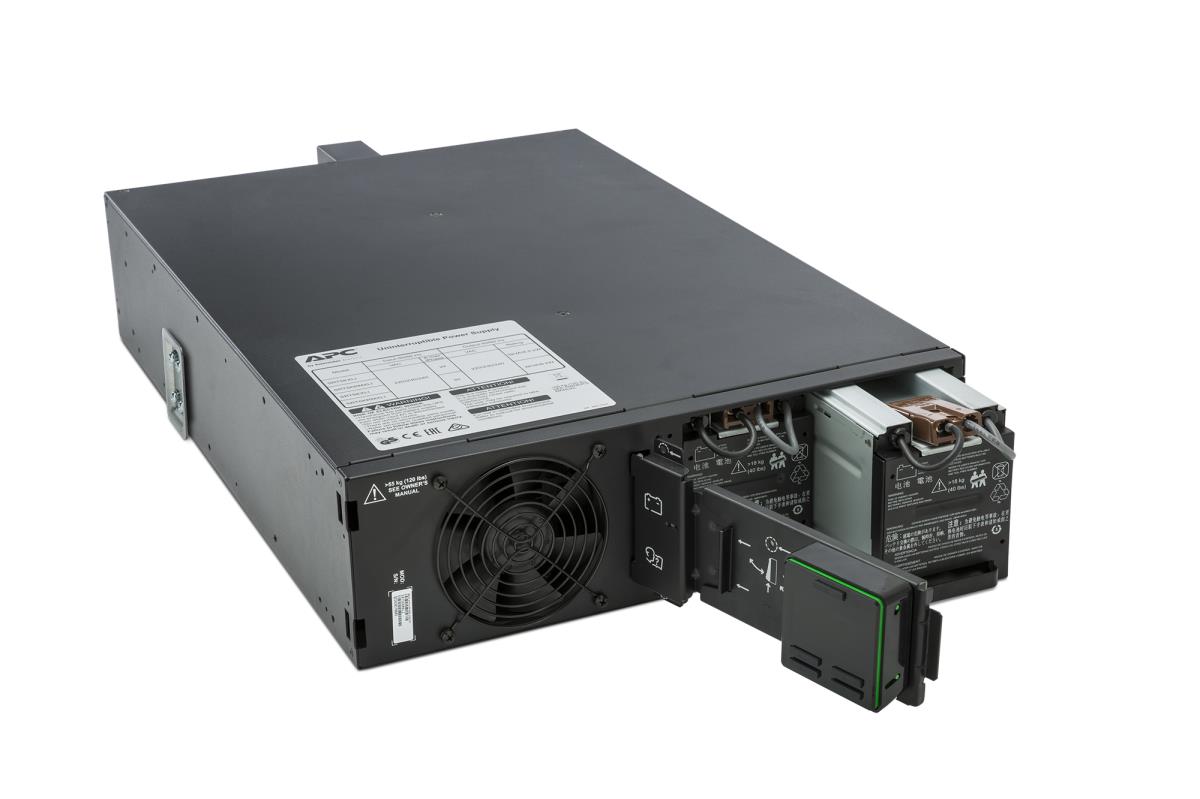

Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Replacement battery cartridge
APCRBC140
Design
Form factor
Rackmount
Rack capacity
3U
Product colour
Black

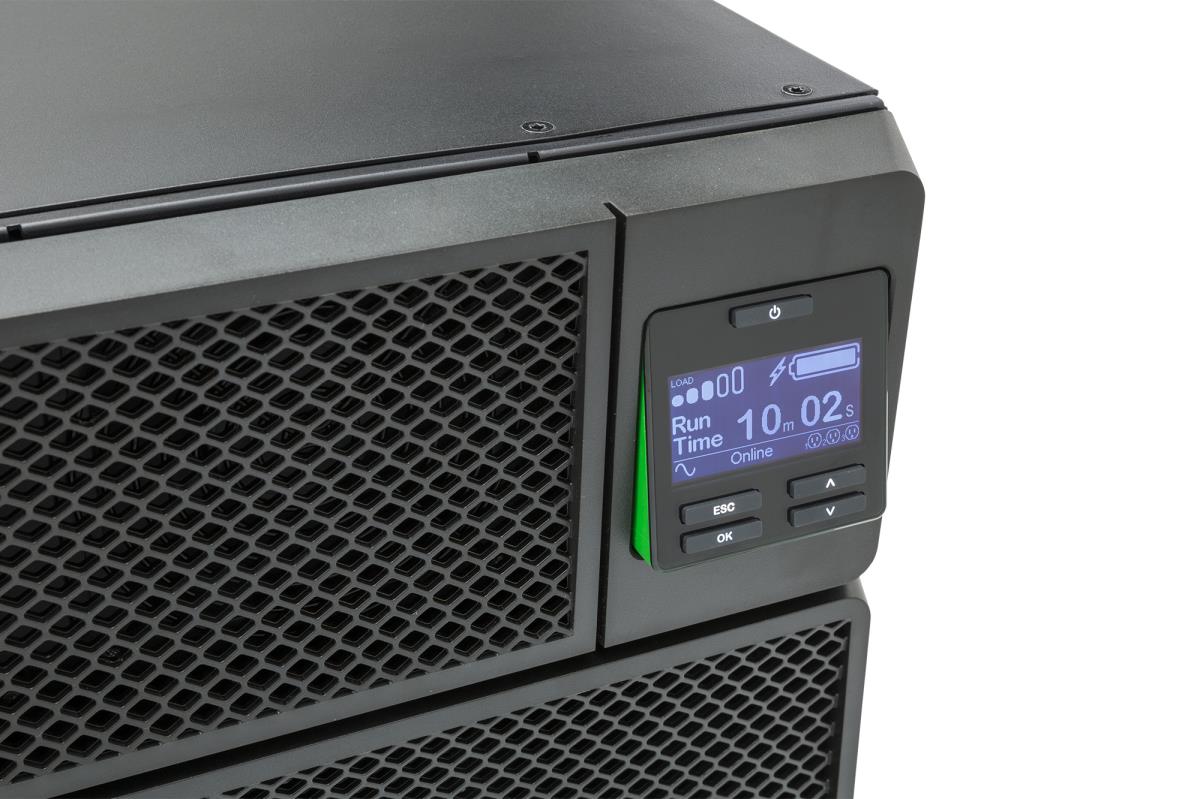

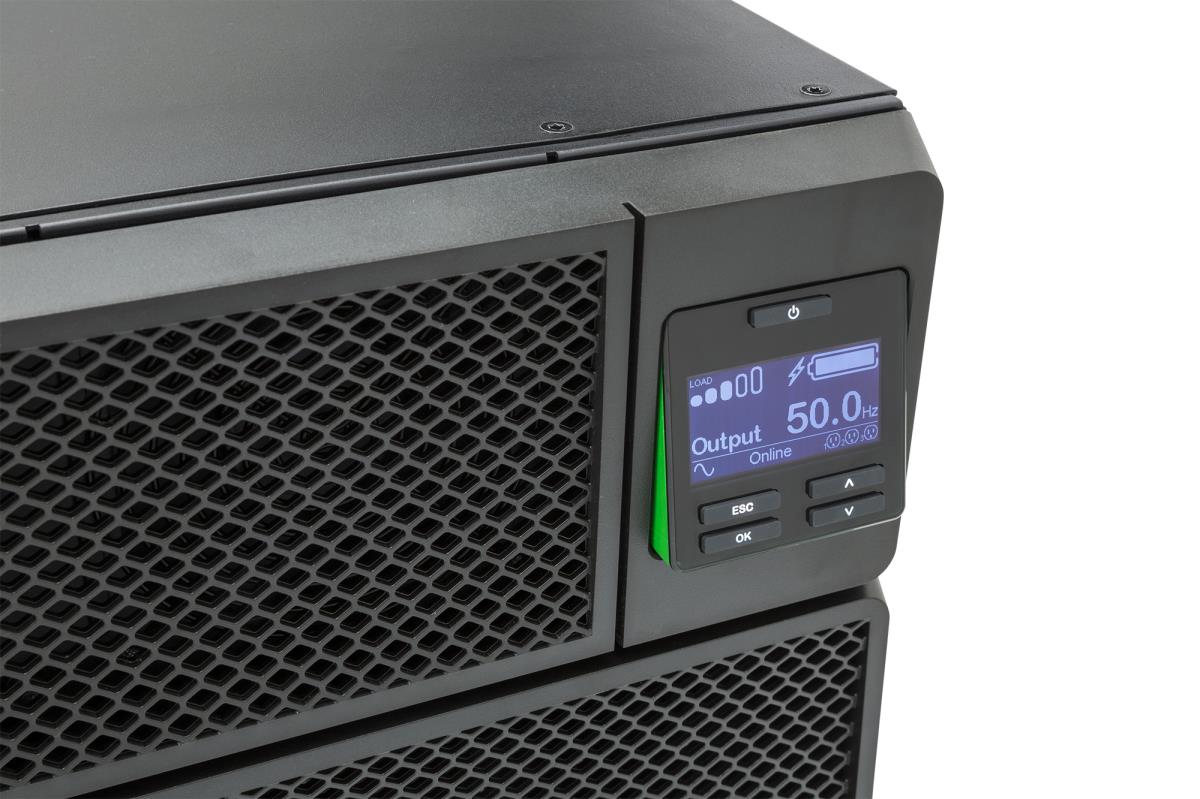

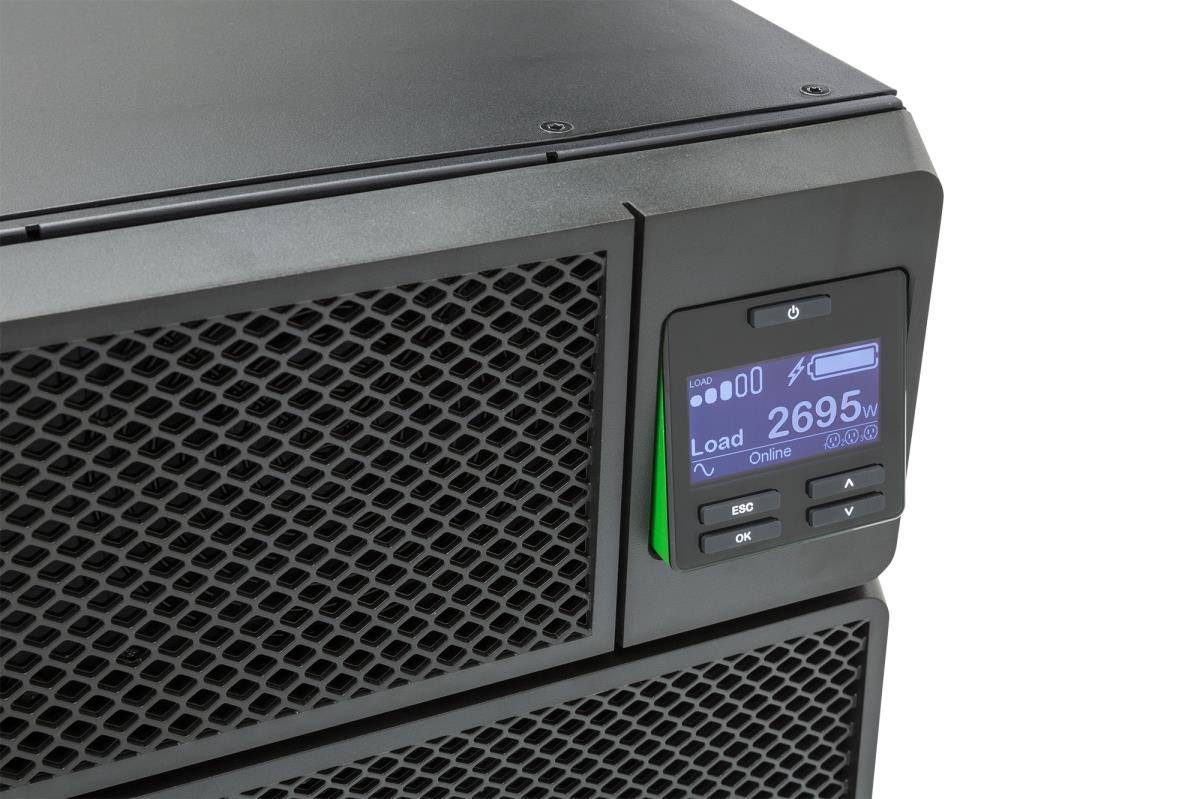

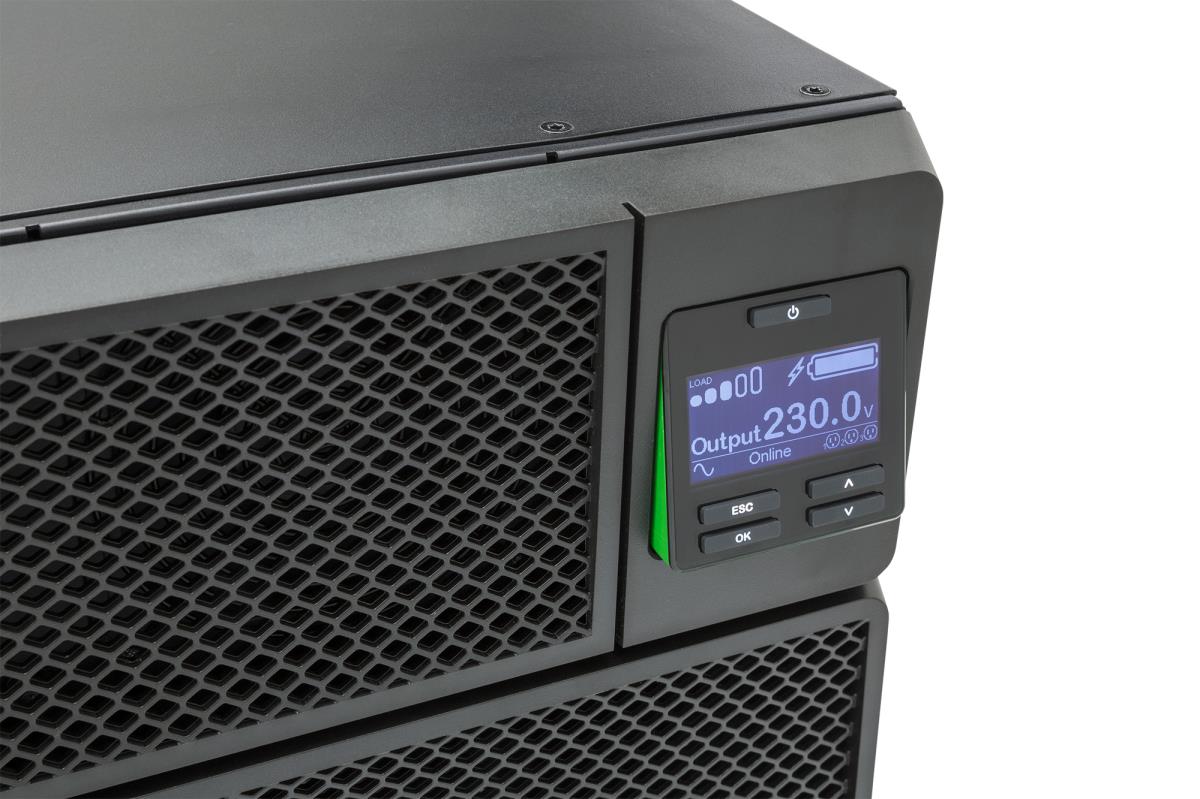

Display type
LCD
Certification
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
432 mm
Depth
719 mm
Height
130 mm
Weight
54.4 kg
Package width
610 mm
Package depth
960 mm
Package height
330 mm
Package weight
66.9 kg
Packaging data
Rack mount kit
Y
Temperature sensor
Y
Quick installation guide
Y
Warranty card
Y
Logistics data
Products per pallet
6 pc(s)
Other features
Packaging content
Web/SNMP Management Card
Information
| Part Number: | SRT5KRMXLI |
