Introduction

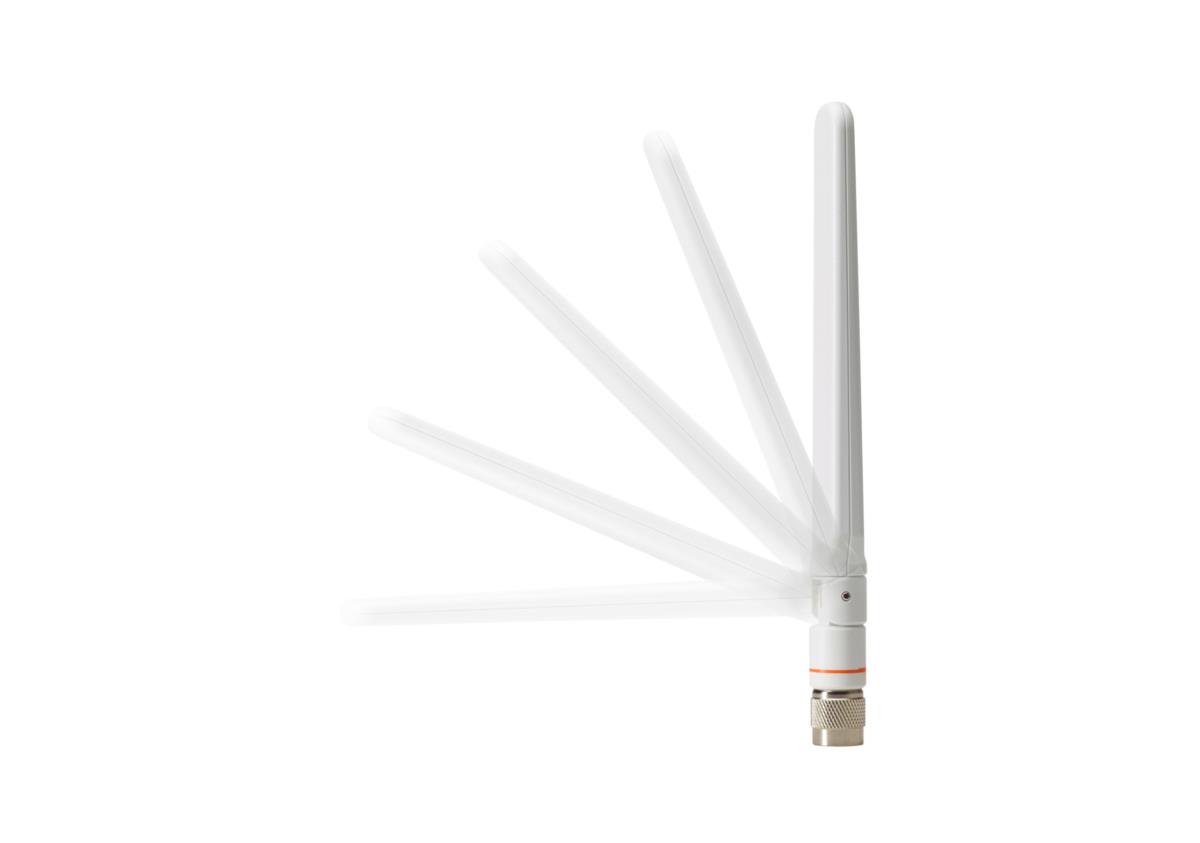

The Cisco Aironet high-performance, dual-band dipole antenna. The antenna operates in both the 2.4-GHz and 5-GHz frequency bands and is designed for use with Cisco Aironet 2.4-GHz and 5-GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4-GHz frequency band and 4 dBi in the 5-GHz frequency band.
Features
Country of origin
China
Antenna type
Omni-directional antenna
Antenna connector type
RP-TNC
Connector gender
Male
Voltage Standing Wave Ratio (VSWR)
2:1
Purpose
Indoor
Product colour
Grey
Weight & dimensions
Package width
152.4 mm
Package depth
184.2 mm
Package height
49.3 mm
Package weight
136.05 g
Width
21 mm
Depth
168.5 mm
Weight
38.5 g
Packaging content
Quantity per pack
1 pc(s)
Packaging content
AIR-ANT2524DW-R Antenna
Technical details
Harmonized System (HS) code
85177100
Performance
Frequency band
2.4/5 GHz
Antenna gain (2.4 GHz)
2 dBi
Antenna gain (5 GHz)
4 dBi
Impedance
50 O
Horizontal beam width (2.4 GHz)
63°
Horizontal beam width (5 GHz)
39°
Antenna gain level (max)
4 dBi
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-40 - 85 °C
Other features
Frequency range
2.4 - 2.5GHz, 5.15 - 5.85GHz
Information
| Part Number: | AIR-ANT2524DW-R= |
