Product Details
Introduction

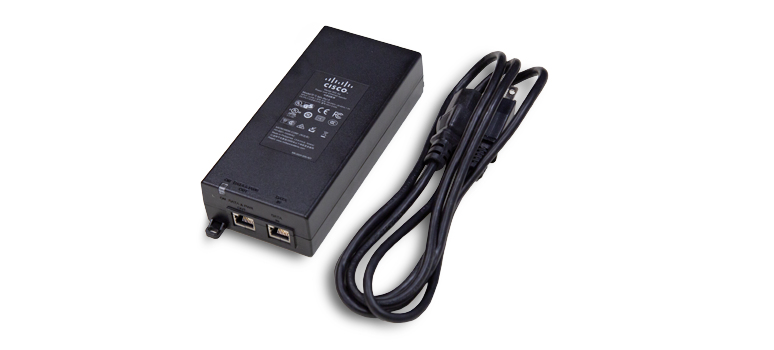

Provides power and connectivity
Allows delivery of both data and power for the Meraki MV smart camera over a single Ethernet cable allowing for simple installation.
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Y
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Duplex system
Full
Features
Product colour
Black
Wall mountable
Y
Maximum operating distance
100 m
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RJ-45 input ports
1
RJ-45 output ports
1
Power
AC adapter input voltage
100 - 240 V
AC adapter frequency
50 / 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 93%
Storage temperature (T-T)
-20 - 70 °C
Weight & dimensions
Width
160 mm
Depth
52.5 mm
Height
35.5 mm
Weight
210 g
Packaging content
Number of products included
1 pc(s)
Technical details
Harmonized System (HS) code
85044090
Information
| Part Number: | MA-INJ-4 |
