Introduction
Features
Upgrade your business with efficient digital displays
Samsung's QET series features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.
Incredible UHD picture quality
Samsung's QET series is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images in advanced picture quality than ever before.
Crystal Display
Samsung's QET series features a Crystal Display which optimizes color tones without distortion, ensuring each backlight unit is fine-tuned to match each color filter and create a clear native white.
Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung's Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.
Boundless design for an immersive experience
The boundless design of the display is optimized to allow the viewer to be completely immersed by content and the display seamlessly integrates into any business environment.
Integrated content management solution
With a range of on-demand images and videos, MagicINFO Lite Player makes content management easier than ever before. New content can be added from a personal computer or USB drive by connecting directly to the display.
Display
Display diagonal
165.1 cm (65")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
300 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
1200:1
Dynamic contrast ratio marketing name
Mega DCR
Viewing angle, horizontal
89°
Viewing angle, vertical
89°
Pixel pitch
0.372 x 0.372 mm
Horizontal scan range
15 - 135 kHz
Vertical scan range
24 - 75 Hz
Haze rate
2%
Touchscreen
No
Display diagonal (metric)
163 cm
Pixel frequency (max)
594 MHz
Colour gamut
72%
LED backlighting type
Direct-LED BLU
Display diagonal
165.1 cm (65")
Display technology
LED
Display resolution
3840 x 2160 pixels
Display brightness
300 cd/m²
HD type
4K Ultra HD
Touchscreen
N
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
4000:1
Dynamic contrast ratio marketing name
Mega Contrast
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.372 x 0.372 mm
Horizontal scan range
30 - 81 kHz
Vertical scan range
48 - 75 Hz

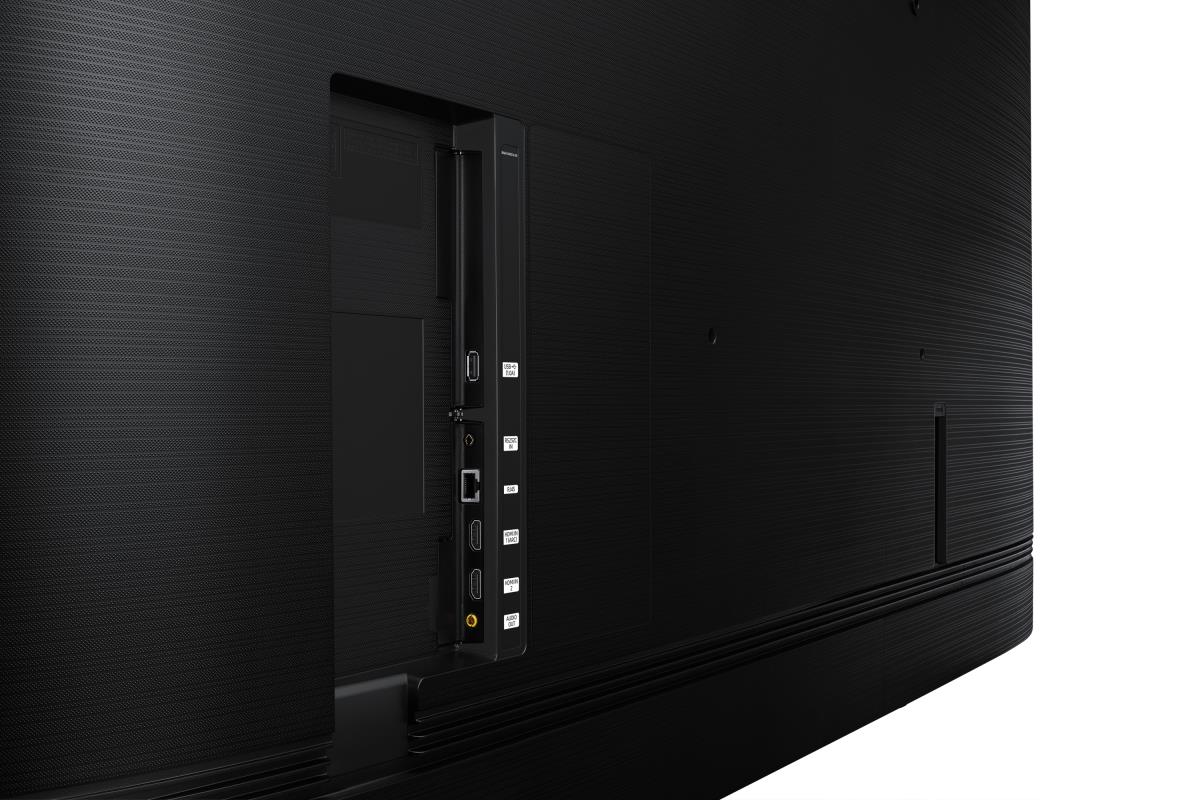

Ports & interfaces
HDMI ports quantity
2
HDMI input ports quantity
2
USB port
Yes
USB ports quantity
1
Ethernet LAN
Yes
Audio (L/R) out
1
RS-232 interface
Yes
HDMI version
2.0
Wi-Fi
No
HDMI ports quantity
2
DVI port
N
USB port
Y
USB ports quantity
1
USB version
2.0
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
RS-232C
Y
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Product colour
Black
VESA mounting
Yes
Panel mounting interface
400 x 300 mm
Bezel type
3 Bezel-less
Screen shape
Flat
Bezel colour
Black
Placement supported
Indoor
Product colour
Black
VESA mounting
Y
Panel mounting interface
400 x 300 mm
Performance
Purpose
Commercial
HDCP
Yes
HDCP version
2.2
Purpose
Universal
Power
Power consumption (typical)
204 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
145 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Power consumption (sleep)
0.5 W
Power consumption (typical)
145 W
Power consumption (sleep)
0.5 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
145 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Heat dissipation
695.6 BTU/h
Energy efficiency scale
A to G
Weight & dimensions
Display width
1449.4 mm
Display depth
59.9 mm
Display height
830.3 mm
Display weight
21.2 kg
Width
1449.4 mm
Depth
59.9 mm
Height
830.3 mm
Weight
21.2 kg
Weight (with stand)
21.2 kg
Width
1449.4 mm
Depth
59.9 mm
Height
830.3 mm
Weight
21.2 kg
Packaging data
Package width
1606 mm
Package depth
184 mm
Package height
963 mm
Package volume
29400 cm³
Package weight
27.5 kg
Package width
1606 mm
Package depth
184 mm
Package height
963 mm
Package weight
29.4 kg
Computer system
Operating system installed
Tizen 4.0
Computer system
Y
Built-in processor
Y
Processor frequency
1.7 GHz
Processor cores
4
Internal memory
2 GB
Internal storage capacity
8 GB
Operating system installed
Tizen 4.0
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Certificates
Certification
Class B
60950-1
Technical details
Compliance certificates
Electromagnetic Compatibility (EMC)
Other features
Flash memory
8000 MB
Optional features
WMN4277SE
Audio
Built-in speaker(s)
Y
Number of built-in speakers
2
RMS rated power
20 W
