Product Details
Introduction

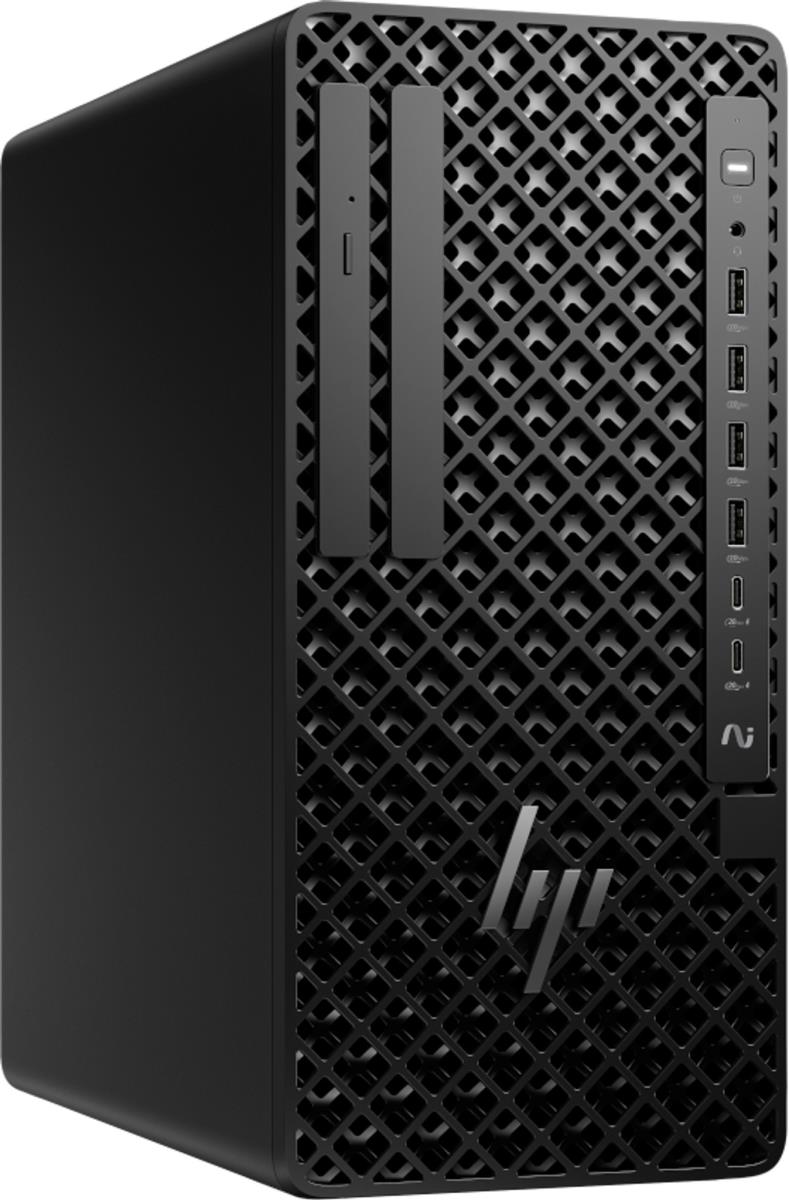

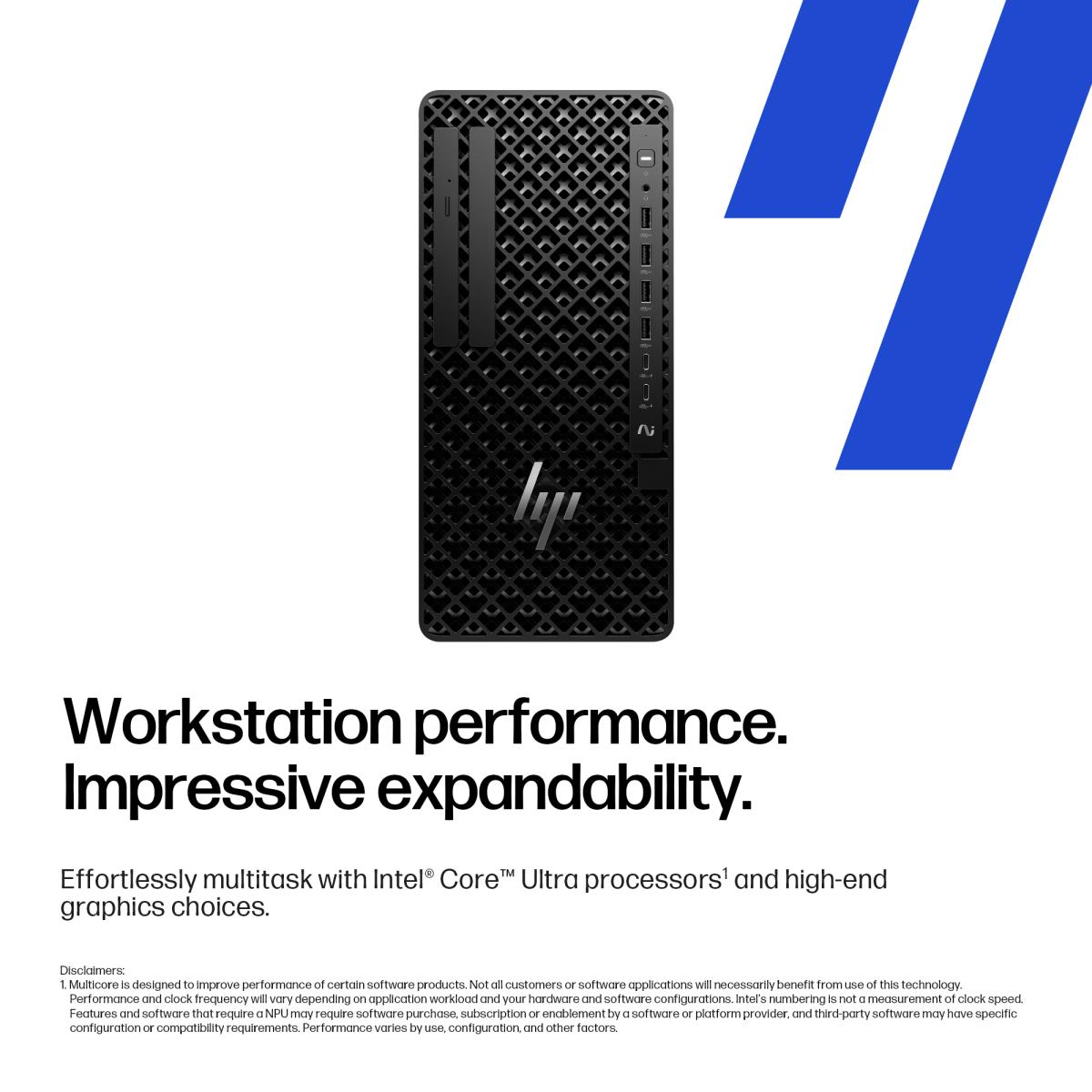

The most affordable HP Z desktop workstation
Workstation performance is now within reach with a tower built for designing, editing, and gaming. Go beyond a commercial PC with the HP Z1 Tower, delivering pro-level, expandable performance certified for pro-apps, with support for high-end graphics.
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
NPU performance up to
13 TOPs
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
36 TOPs
GPU performance up to
8 TOPs
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
36 TOPs
GPU performance up to
8 TOPs
Memory
Memory slots
4x DIMM
Non-ECC
Yes
Maximum internal memory
128 GB
Memory data transfer rate
5600 MT/s
Maximum internal memory
32 GB
Memory module type
UDIMM
Memory data transfer rate
5600 MT/s
Internal memory
32 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 32 GB
Memory clock speed
5600 MHz
Storage
Number of storage drives installed
1
Total storage capacity
1 TB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Total storage capacity
1 TB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Graphics
On-board graphics card
Yes
On-board GPU manufacturer
Intel
Discrete graphics card
No
Discrete graphics card model
Not available
On-board graphics card family
Intel Graphics
Discrete graphics card
No
Discrete graphics card model
Not available
On-board graphics card model
Intel Graphics
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Bluetooth
Yes
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 7 BE200
Antenna type
2x2
Bluetooth version
5.4
Wi-Fi standards
Wi-Fi 7 (802.11be)
Design
Chassis type
Tower
Colour name
Black
Number of 3.5" bays
2
Product colour
Black
Placement supported
Vertical
Introduction year
2025
Country of origin
Czech Republic
Placement supported
Vertical
Product colour
Black
Introduction year
2025
Intel® vPro™ Platform Eligibility
Yes
Processor
Efficient-core boost frequency
HP 3y Onsite Low End Workstation HW Supp. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-6385EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
Processor generation
Intel Core Ultra (Series 2)
Performance cores
8
Efficient cores
16
Performance-core Max Turbo Frequency
5.4 GHz
Efficient-core Max Turbo Frequency
4.6 GHz
Performance-core base frequency
2.5 GHz
Efficient-core base frequency
1.9 GHz
Processor base power
65 W
Maximum turbo power
182 W
Processor generation
Intel Core Ultra (Series 2)
Performance cores
8
Efficient cores
16
Performance-core Max Turbo Frequency
5.4 GHz
Efficient-core Max Turbo Frequency
4.6 GHz
Performance-core base frequency
2.5 GHz
Efficient-core base frequency
1.9 GHz
Processor base power
65 W
Maximum turbo power
182 W
Processor manufacturer
Intel
Processor family
Intel Core Ultra 9
Processor model
285
Processor cores
24
Processor threads
24
Processor boost frequency
5.6 GHz
Processor cache
36 MB
Processor cache type
L3
Performance
Market positioning
Performance
Audio chip
Realtek ALC3252
Password protection
Yes
Password protection type
BIOS, Power on, User
Product type
Workstation
Motherboard chipset
Intel Q870
Software
Operating system installed
Windows 11 Pro
Brand-specific features
HP Artificial Intelligence
AI PC, AI Workstation
HP segment
Business
HP Support Assistant
Yes
HP GTIN (EAN/UPC)
199485052892
HP Support Assistant
Yes

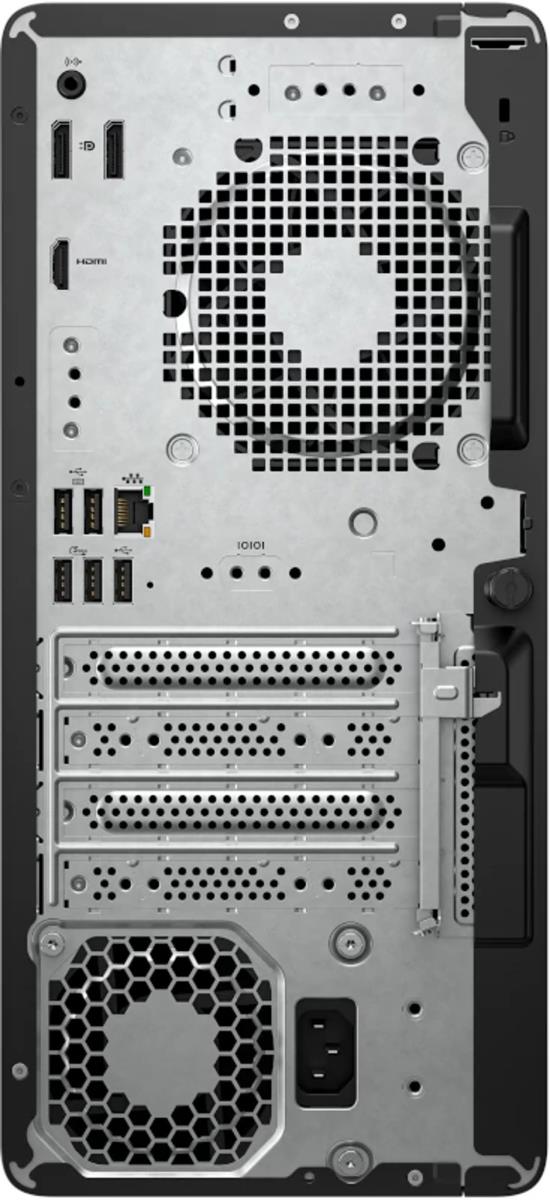

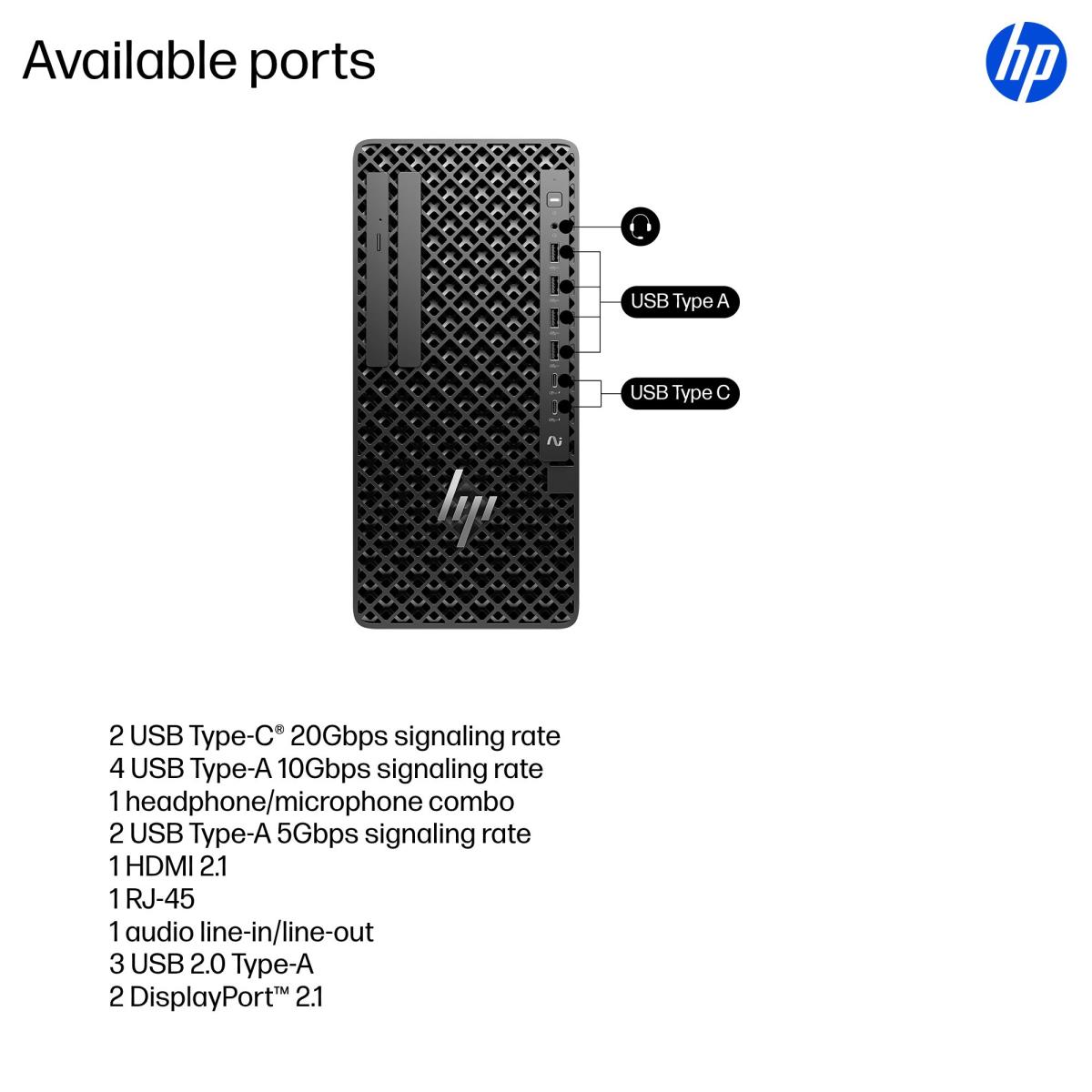

Ports & interfaces
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2x2 Type-C ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
2.1
Ethernet LAN (RJ-45) ports
1
Line-out
Yes
Line-in
Yes
Combo headphone/mic port
Yes
Microphone in
Yes
USB 2.0 ports quantity
3
DisplayPorts quantity
2
DisplayPort version
2.1
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Line-out
Yes
Line-in
Yes

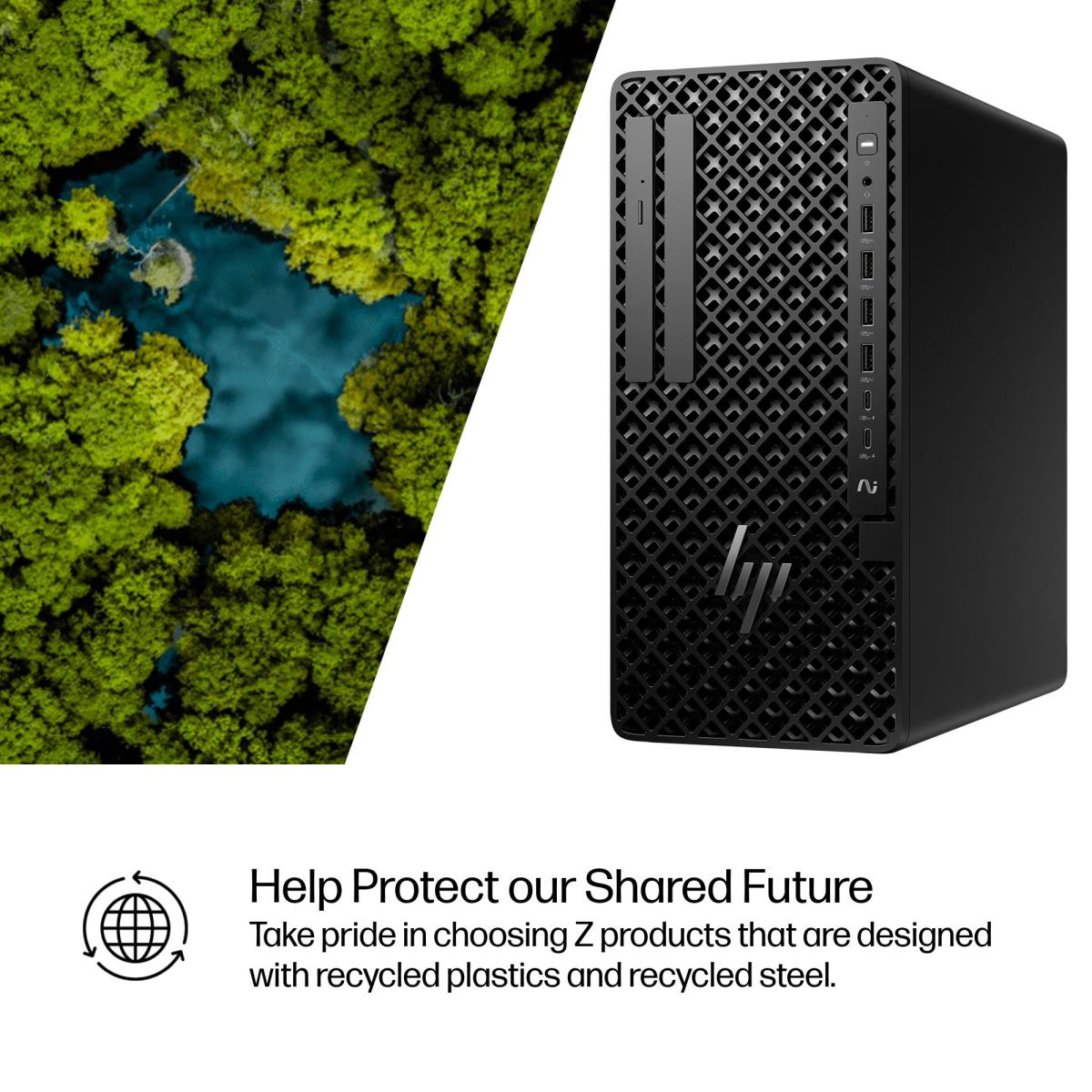

Sustainability
Sustainability compliance
Yes
Sustainability compliance
Yes
Sustainable technologies and materials
Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 10% ITE-derived closed loop plastic; 80 Plus Platinum power supplies available; Contains at least 60% post-consumer recycled plastic; Outside box and corrugated cushions are 100% sustainably sourced or recyclable

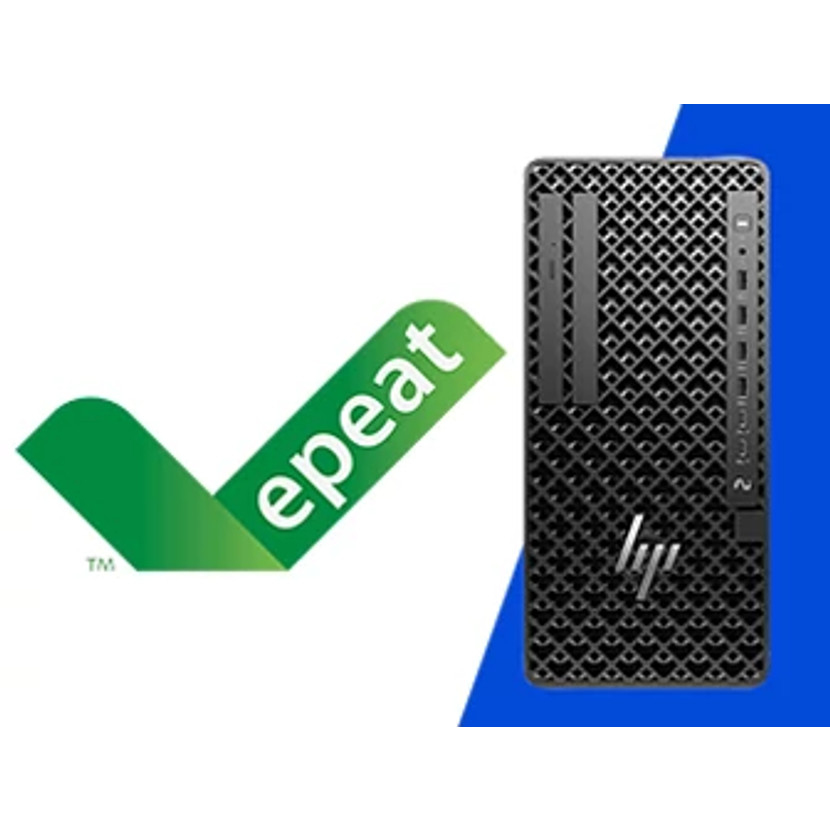

Sustainability certificates
ENERGY STAR, EPEAT

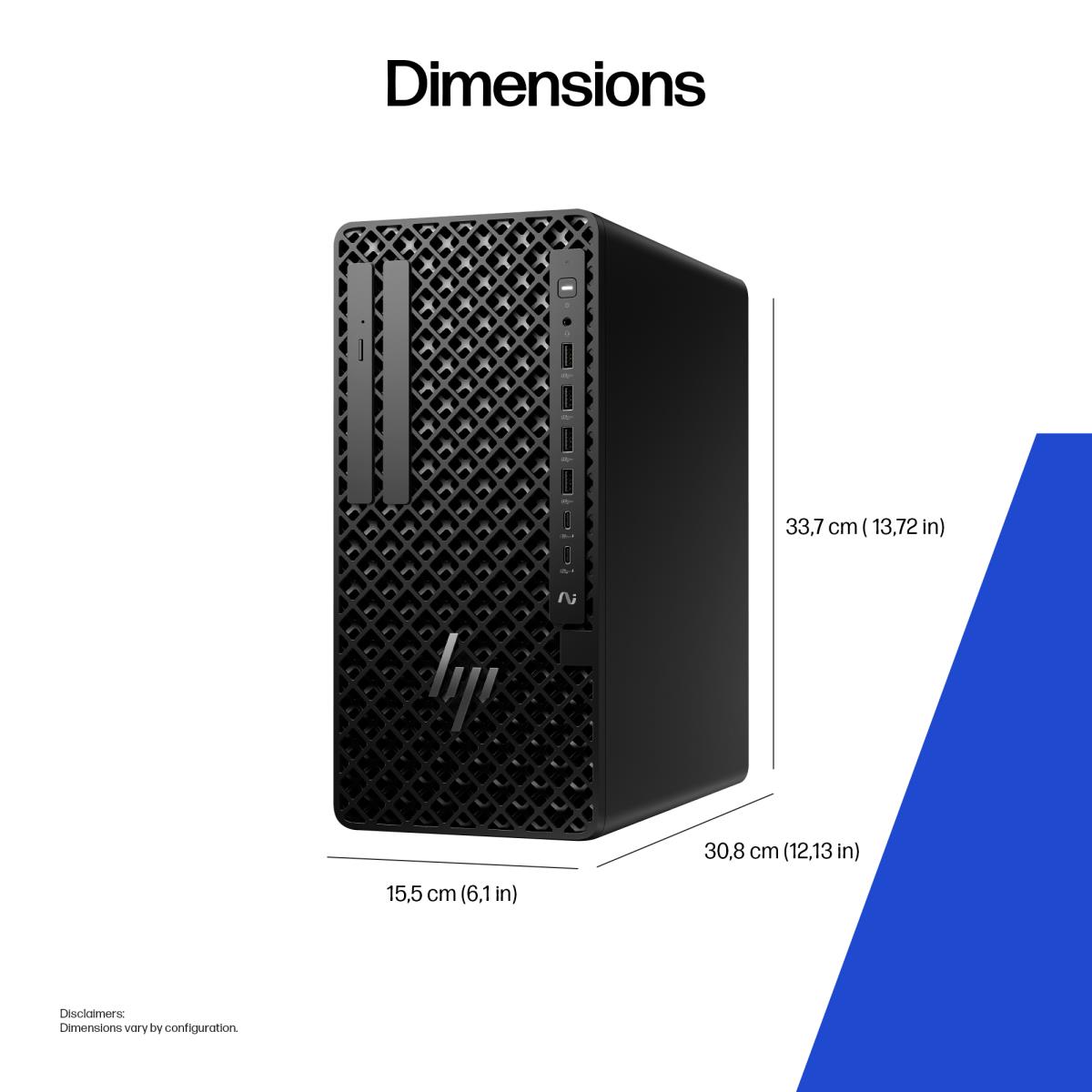

Weight & dimensions
Width
337 mm
Depth
308 mm
Height
155 mm
Package width
287 mm
Package depth
400 mm
Package height
499 mm
Weight
5.51 kg
Package weight
7.67 kg
Weight
5.51 kg
Power
Power supply
500 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50/60 Hz
Power supply
500 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50/60 Hz
Number of main power supplies
Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 10% ITE-derived closed loop plastic; 80 Plus® Platinum power supplies available; Contains at least 60% post-consumer recycled plastic; Outside box and corrugated cushions are 100% sustainably sourced or recyclable
Packaging content
Keyboard included
Yes
Mouse included
Yes
Mouse connectivity
Wired
Mouse included
Yes
Mouse connectivity
Wired
Numeric keypad
No
Keyboard connectivity
Wired
Input device model
HP Wired 320M Mouse
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Display
Display included
No
Display included
No
Logistics data
Harmonized System (HS) code
8471500000
Audio
Audio chip
Realtek ALC3252
Features
Battery technology
8471500000
Processor special features
Intel® Turbo Boost Technology
Yes
Packaging data
Package weight
7.67 kg
Other features
Manufacturer warranty
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
UNSPSC-code
43211515
Quantity
HP 3y Onsite Low End Workstation HW Supp. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-6385EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
Carbon footprint
Total carbon footprint (kg of CO2e)
300.686
Carbon emissions, manufacturing (kg of CO2e)
243.264
Carbon emissions, logistics (kg of CO2e)
1.463
Carbon emissions, end-of-life (kg of CO2e)
1.67
Total carbon emissions, w/o use phase (kg of CO2e)
54.289
Information
| Part Number: | B76RLET#ABU |
