Introduction

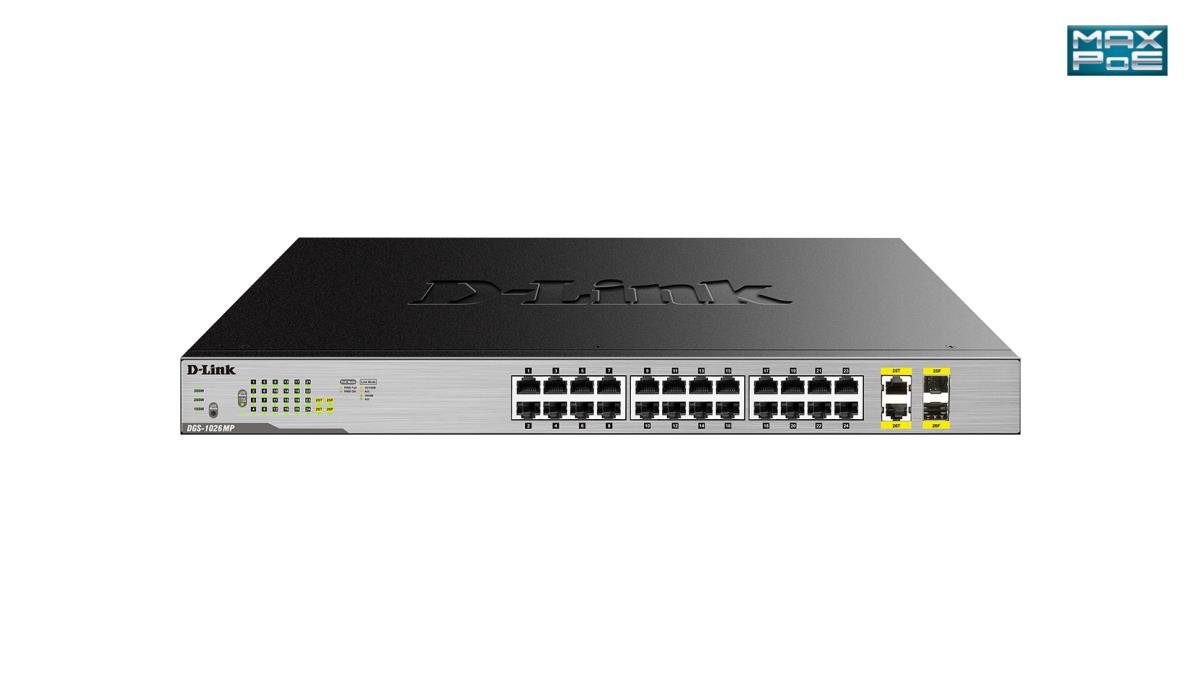

26 Port Gigabit Max PoE Switch
DGS-1026MP
The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.
Power over Ethernet
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.
Expand Your Network
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.
Energy Efficient
To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.
Hassle-Free Setup
The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.
Network
10G support
No
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Auto MDI/MDI-X
Y
Data transmission
Forwarding rate
38.69 Mpps
Packet buffer memory
0.512 MB
Switching capacity
52 Gbit/s
Throughput
38.69 Mpps
MAC address table
8192 entries
Store-and-forward
Y
Power
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
444.1 W
Performance
Harmonized System (HS) code
85176990
Buffer size
512 KB
Mean time between failures (MTBF)
205975 h
Certificates
Compliance certificates
BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Design
Rack mounting
Yes
Product colour
Black, Grey
LED indicators
Activity, Link, PoE, Power, Power fail, Speed
Number of fans
2 fan(s)
Safety
UL/CSA 60950-1, EN 60950-1, IEC 60950-1
Certification
FCC Class A
CE
CCC
RoHS
VCCI
BSMI
RCM
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
24
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W
Management features
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
1
Combo SFP ports quantity
2
Technical details
Shipping (inner) case height
41 cm
Shipping (inner) case width
20.5 cm
Shipping (inner) case length
52 cm
Shipping (inner) case net weight
8.39 kg
Products per shipping (inner) case
2 pc(s)
Pallet gross weight (air)
281.8 kg
Master (outer) cases per pallet (air)
30 pc(s)
Products per pallet (air)
60 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
136.5 cm
Pallet gross weight (sea)
369.8 kg
Master (outer) cases per pallet (sea)
40 pc(s)
Products per pallet (sea)
80 pc(s)
Pallet height (sea)
177.5 cm
Shipping (inner) case gross weight
8.79 kg
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
1515 BTU/h
Weight & dimensions
Width
440 mm
Depth
250.4 mm
Height
44 mm
Weight
3.1 kg
Packaging data
Package width
388 mm
Package depth
506 mm
Package height
90 mm
Package weight
3.7 kg
