Product Details
Introduction

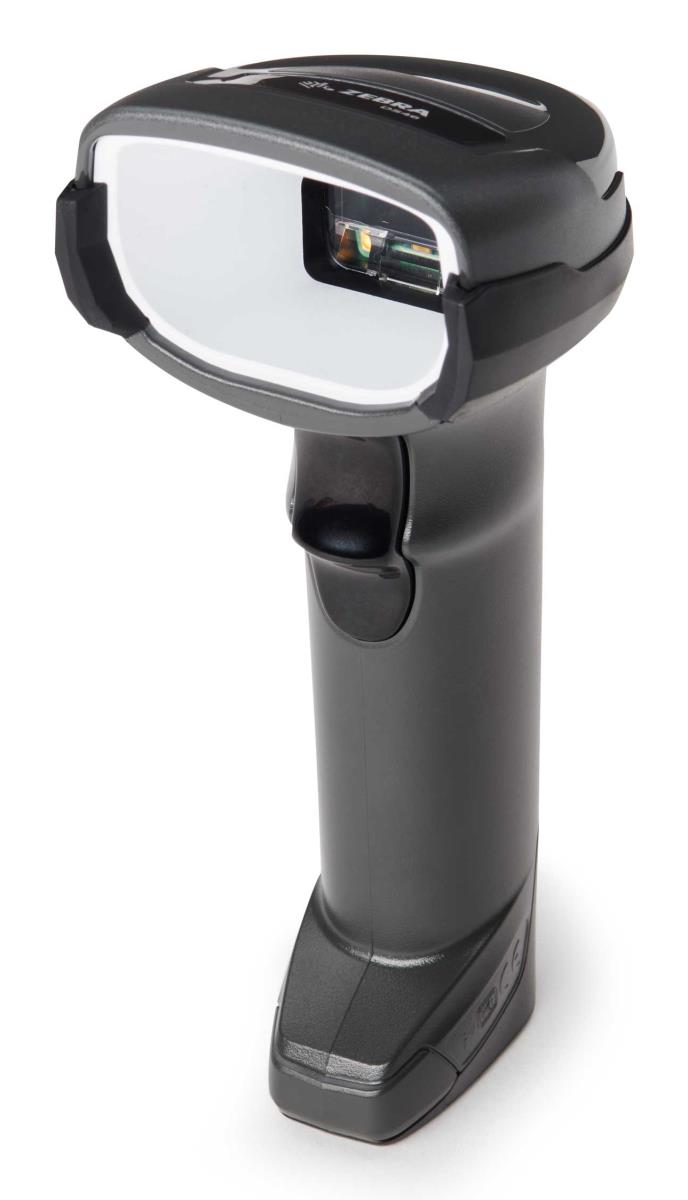

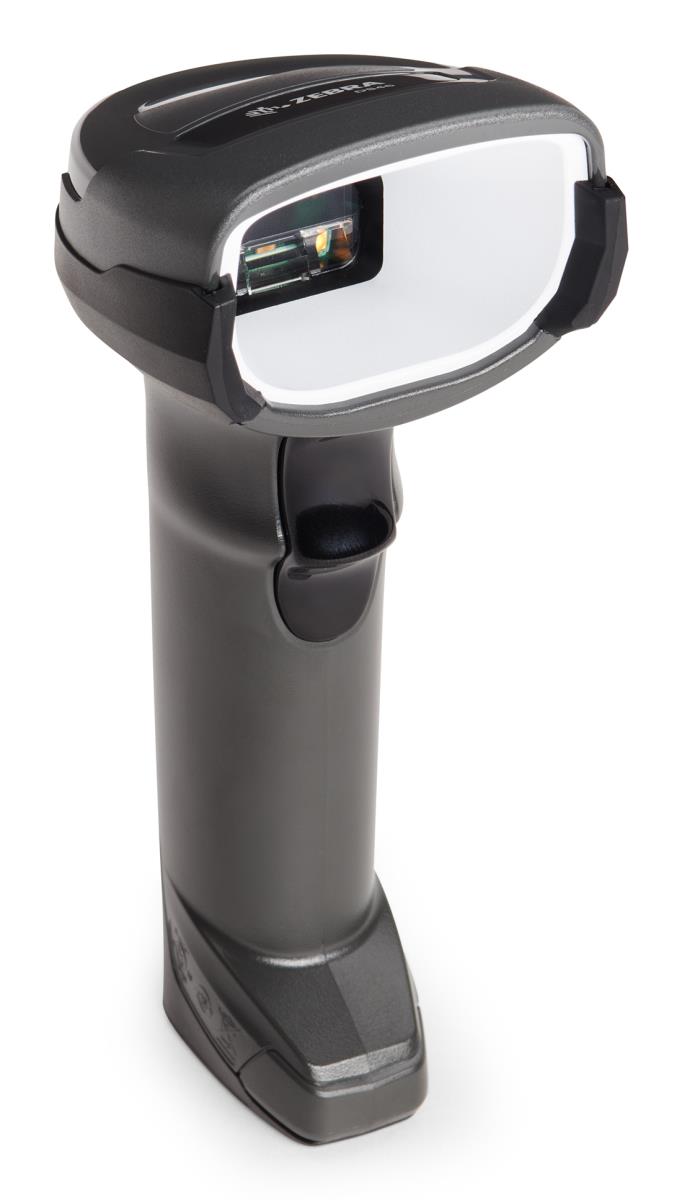

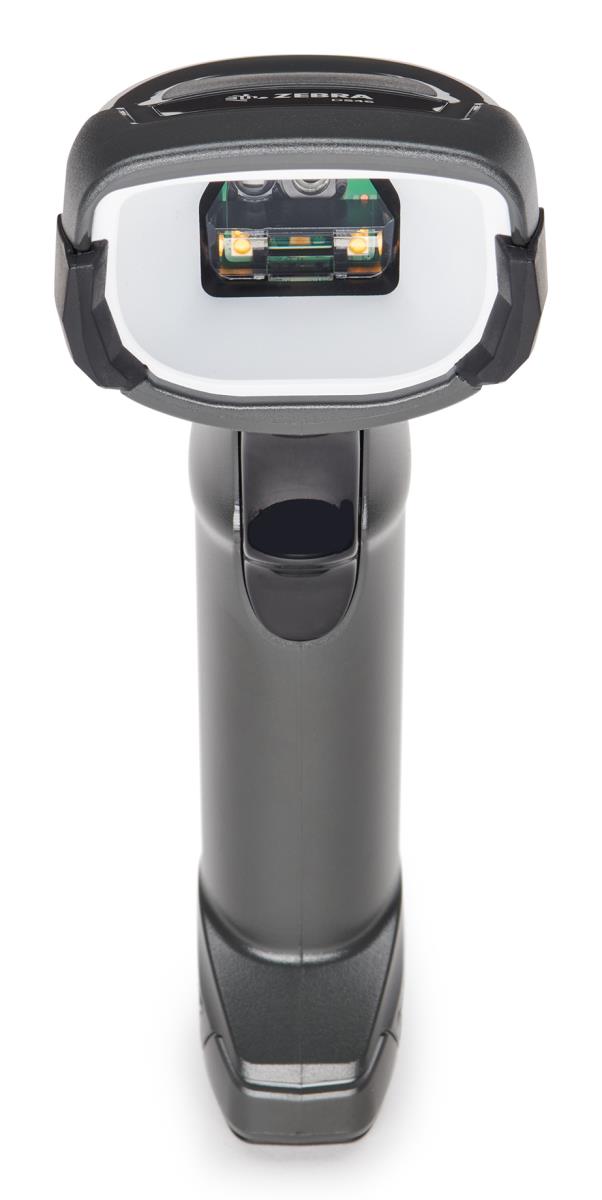

The cordless DS4678-DPE is purpose built to capture whatever type of barcodes are found in your electronics manufacturing operations-from laser etched direct part marks, high density and low contrast codes, to 4-inch wide barcodes. It's battery delivers more than 50,000 scans in a single charge.
Scanning
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)
1280 x 800 pixels
Horizontal field of view
31.6°
Vertical field of view
22.6°
Light levels (direct sunlight)
0 - 107000 lx
Tilt reading angle
0 - 360°
Pitch reading angle
-60 - 60°
Yaw reading angle
-60 - 60°
Ports & interfaces
Connectivity technology
Wireless
Standard interfaces
Bluetooth
Bluetooth version
5.2
Bluetooth Low Energy (BLE)
Yes
Performance
International Protection (IP) code
IP52
LED indicators
Yes
Image formats supported
BMP, JPEG, TIFF
Built-in processor
Yes
Processor frequency
800 MHz
Product colour
Black
Vibration function
Yes
Power
Power source type
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
2500 mAh
Number of reads per charge
50000
Charging time
2.25 h
Weight & dimensions
Width
66 mm
Depth
107 mm
Height
168 mm
Weight
225 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Drop resistance
1.8 m
Technical details
Warranty period
3 year(s)
Compliance certificates
Federal Communications Commission (FCC), Trade Agreements Act (TAA)
Information
| Part Number: | DS4678-DPE0007VZRW |
