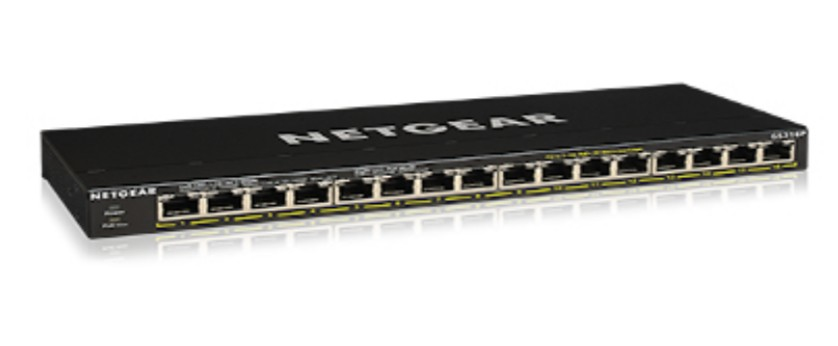

NETGEAR Unmanaged Essentials Switch PoE+ GS316P - 16-Port GbE (115W)

£159.30

Part Number: GS316P-100EUS
Delivery: 1 - 2 days

Product Details

Introduction

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR's unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.

Management features

Switch type Unmanaged
Quality of Service (QoS) support Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector DC-in jack

Network

Networking standards IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support N
Full duplex Y
Flow control support Y
Auto MDI/MDI-X Y

Data transmission

Switching capacity 32 Gbit/s
MAC address table 4000 entries
Latency (1 Gbps) 3.7 µs
Jumbo frames support Y
Jumbo frames 9216
Packet forwarding rate (1 Gbps) 1448000 pps
Packet buffer memory 1 MB

Design

Rack mounting Y
Product colour Black
Housing material Metal
LED indicators Y
Wall mountable Y

Performance

Mean time between failures (MTBF) 2362192 h

Power

DC input voltage 54 V
Input current 2.4 A
Power consumption (max) 127.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 16

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Operating altitude 0 - 3000 m
Heat dissipation 437.42 BTU/h

Weight & dimensions

Width 286 mm
Depth 102 mm
Height 27 mm
Weight 880 g

Information

Part Number: GS316P-100EUS
