Product Details
Introduction

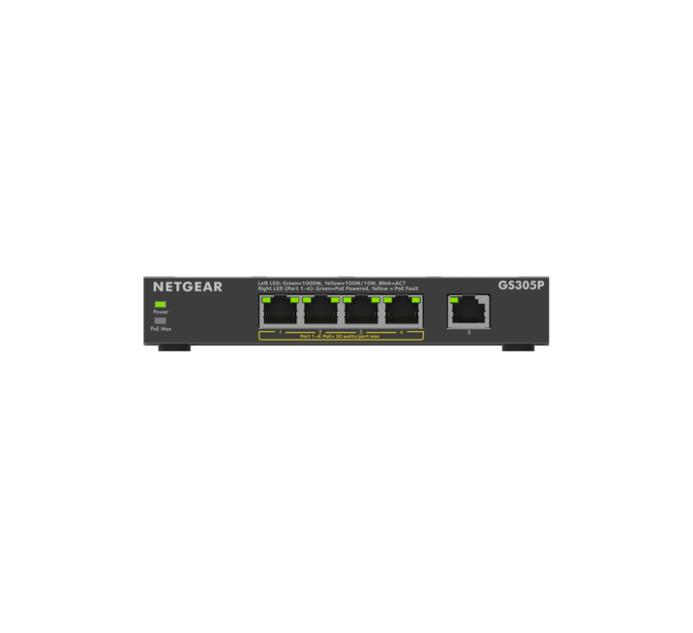

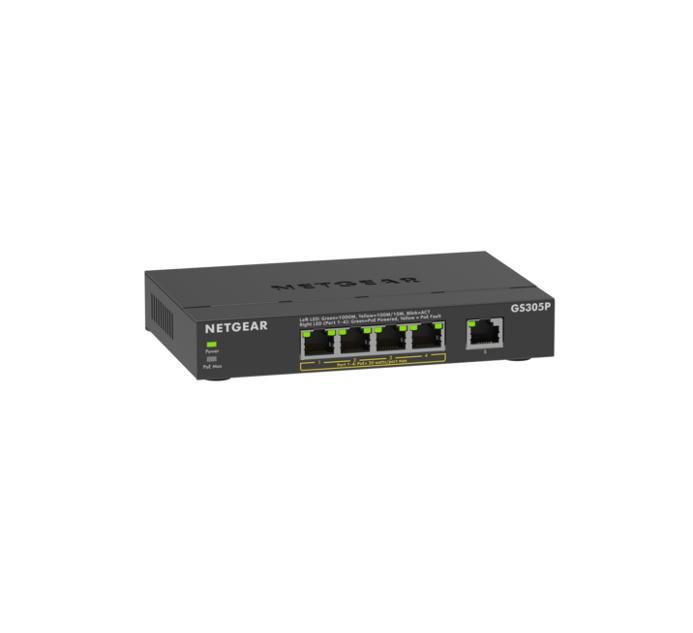

5-Port Switch Gigabit Unmanaged PoE switch with 4 PoE+ ports and 63W power budget to power Wireless AP, IP Cameras, IP Phones and more.
General
Model
GS305Pv3
Type
Fixed Port
Technical Features
Port Count
5
Management
Unmanaged
Routing/Switching
Layer 2 to 4
Uplink Speed/Media
10/100/1000 Copper
High Availability
None
Ports/Interfaces
RJ-45
Form Factor
Mounting
Desktop
Other features
Warranty period
3 year(s)
Technical details
Shipping (inner) case height
37.5 cm
Shipping (inner) case width
45.1 cm
Shipping (inner) case length
25.5 cm
Shipping (inner) case net weight
14 kg
Products per shipping (inner) case
10 pc(s)
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-sensing
Yes
Data transmission
Switching capacity
10 Gbit/s
MAC address table
2000 entries
Jumbo frames support
Yes
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
0.128 MB
Design
Rack mounting
No
Stackable
No
Product colour
Black
LED indicators
Yes
Wall mountable
Yes
Performance
Mean time between failures (MTBF)
4113947 h
Power
Power source
DC
DC input voltage
54 V
Input current
1.25 A
Power consumption (max)
66.78 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
63 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
228.38 BTU/h
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
27 mm
Weight
400 g
Information
| Part Number: | GS305P-300EUS |
