Introduction
Effortlessly share whiteboards into video meetings with Logitech Scribe, an AI-powered whiteboard camera for Microsoft Teams Rooms, Zoom Rooms, and other leading video conferencing services. With built-in AI and a custom lens, Scribe broadcasts whiteboard content into video meetings with outstanding clarity. Now, even remote participants can have the best seat at the table.

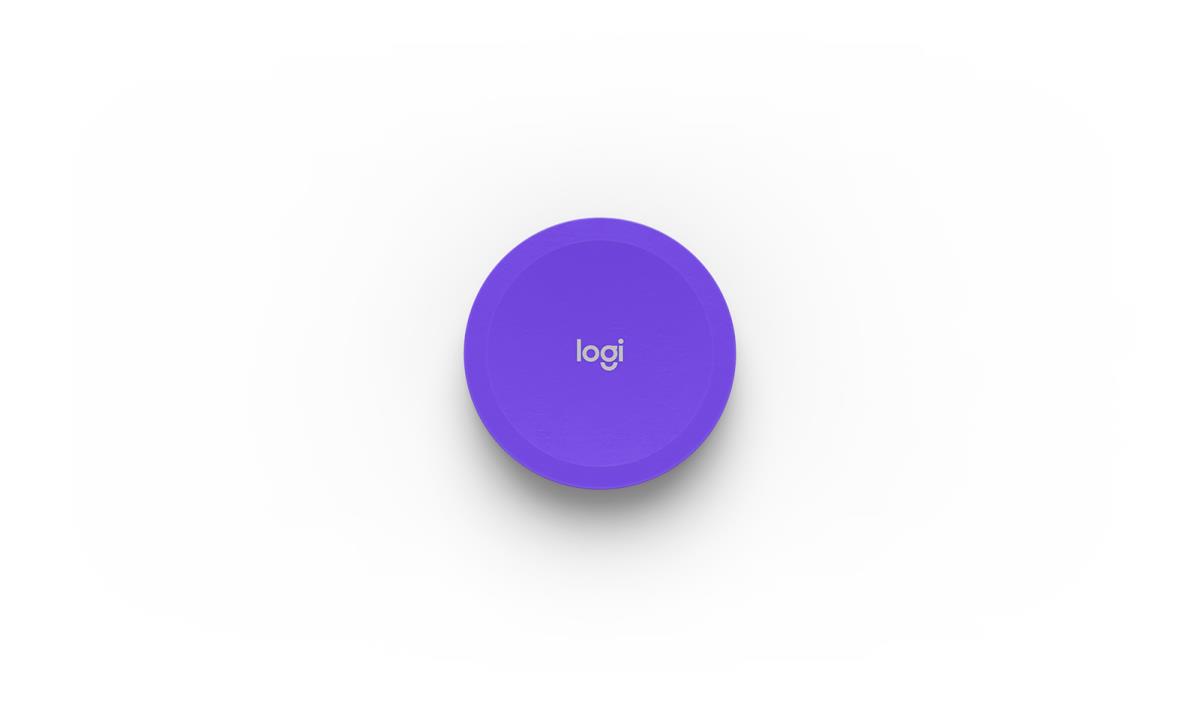

Scribe works with any dry erase marker and all whiteboard surfaces, capturing an area up to 2m W (6') by 1.2m H (4'). Sharing into video meetings is quick and easy, whether using Scribe's wireless share button or your meeting room touch controller, like Logitech Tap.

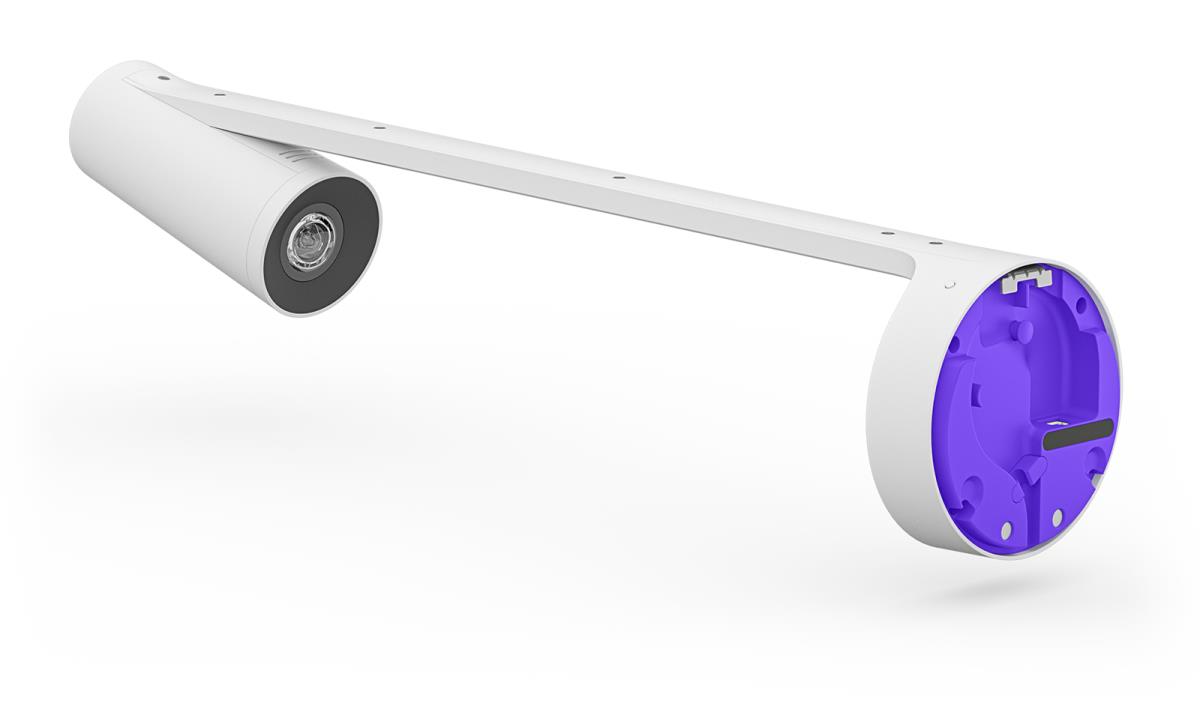

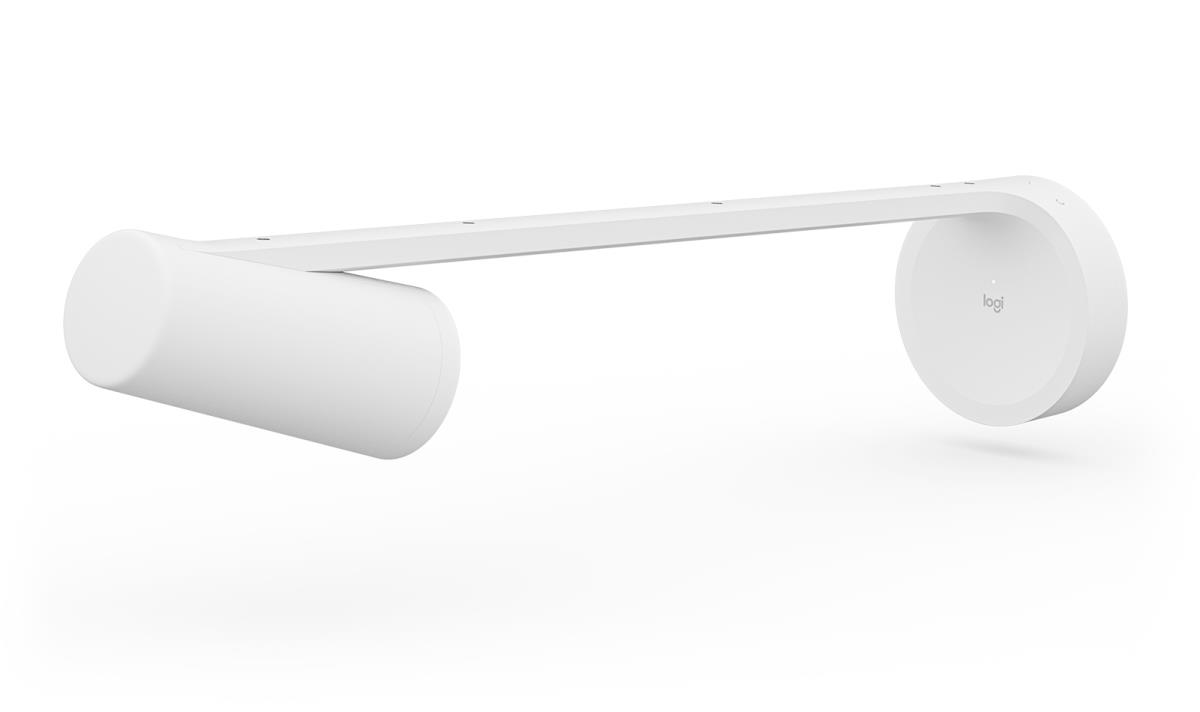

With a clean wall-mounted design and thoughtful cable management, Scribe installs elegantly and out of the way of meeting collaboration. Together with the whiteboard content camera, Scribe includes a share button, mounting components, power supply, and category cables for deployment at scale.
Performance
Bluetooth
Yes
Product colour
White
Bluetooth
Y
Remote control function
Y
Remote control type
Bluetooth
Video
HD type
Full HD
Maximum video resolution
1920 x 1080 pixels
Supported video modes
1080p
Maximum frame rate
15 fps
HD type
Full HD
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
15 fps
Supported video modes
1080p
System requirements
Minimum system requirements
Maximum Whiteboard Dimensions:
Height: 1.2 m
Width: 2 m
Minimum system requirements
Maximum Whiteboard Dimensions:
Height: 1.2 m
Width: 2 m
Logistics data
Master (outer) case gross weight
6.38 kg
Master (outer) case length
634 mm
Master (outer) case width
300 mm
Master (outer) case height
173 mm
Harmonized System (HS) code
85258900
Master (outer) case gross weight
6.38 kg
Master (outer) case length
634 mm
Master (outer) case width
300 mm
Master (outer) case height
173 mm
Battery
Battery capacity
0.675 Wh
Battery capacity (Watt-hours)
0.675 Wh
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Power
Power source type
AC
AC input voltage
100 - 240 V
Battery technology
Lithium
Battery capacity
220 mAh
Number of batteries supported
2
Power source type
AC
AC input voltage
100 - 240 V
Remote control battery type
CR2032
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
220 mAh
Number of batteries supported
2
Weight & dimensions
Remote control dimensions (W x H x D)
71.8 x 71.8 x 12.7 mm
Remote control weight
108 g
Width
119 mm
Depth
573 mm
Height
149 mm
Weight
1.1 kg
Package width
152.2 mm
Package depth
623.6 mm
Package height
146.2 mm
Package weight
2.9 kg
Packaging content
Cables included
LAN (RJ-45)
Power cable length
5 m
Mounting kit
Yes
Remote control included
Yes
Batteries included
Yes
Quick start guide
Yes
Packaging content

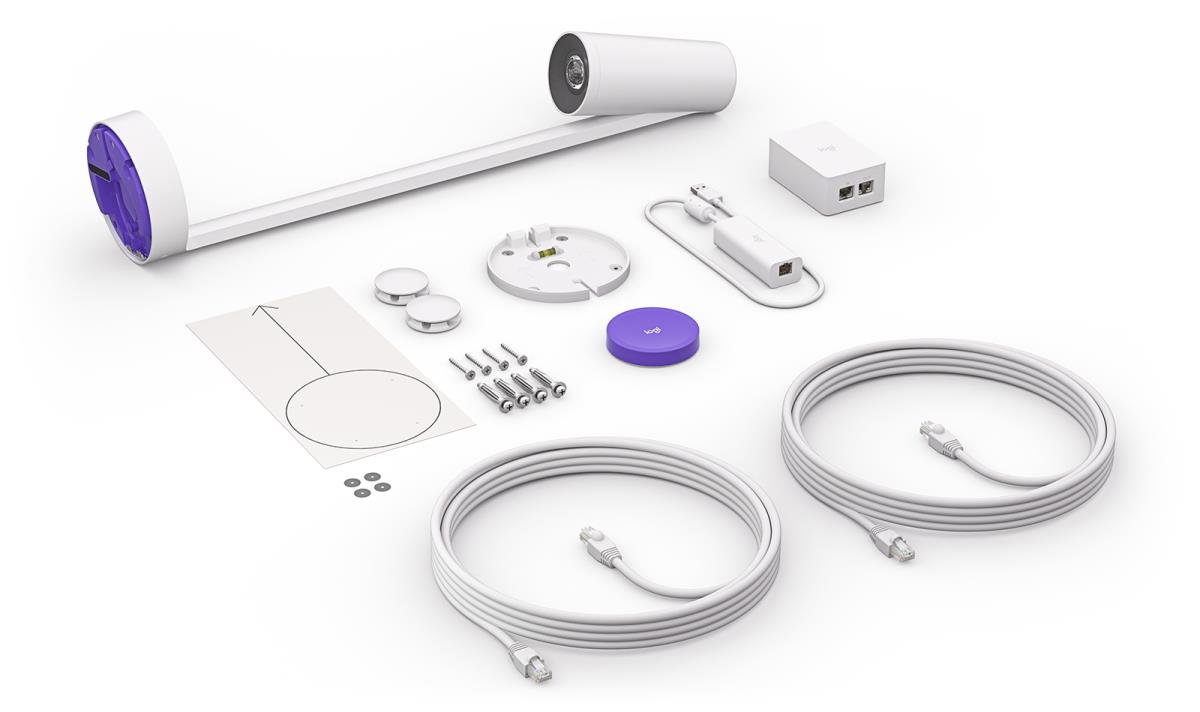

Camera Share Button Dongle Transceiver 100-240v Power Supply with International Adaptor Set 5.0 m Cat5e Cables x 2 Camera Installation Kit Documentation
Power supply included
Y
Remote control included
Y
Remote control batteries included
Y
Cables included
LAN (RJ-45)
Quick start guide
Y
Mounting kit
Y
Design
Network
Supported protocols
AES-128
Packaging data
Package width
152.2 mm
Package depth
623.6 mm
Package height
146.2 mm
Package weight
2.9 kg
