Introduction

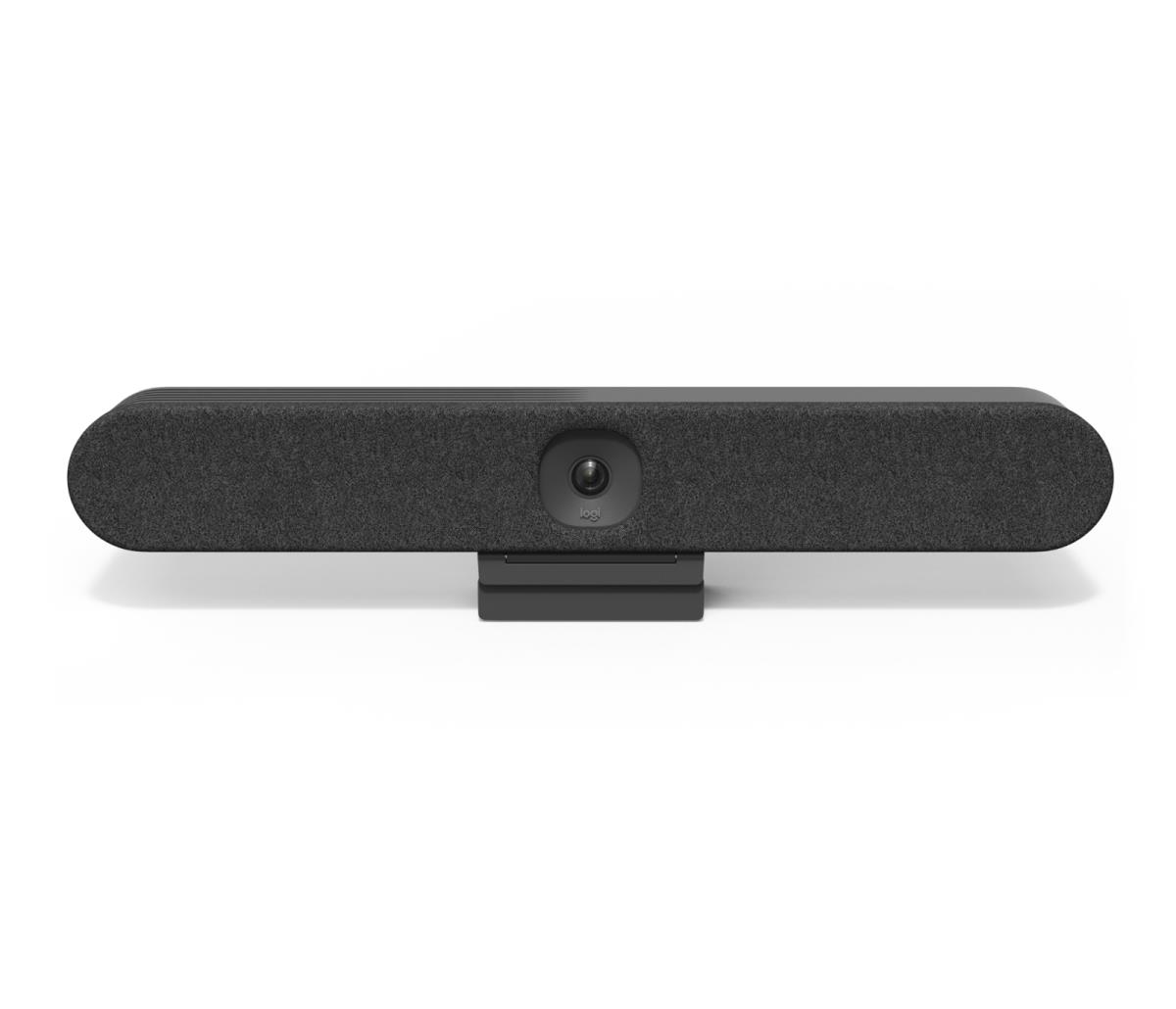

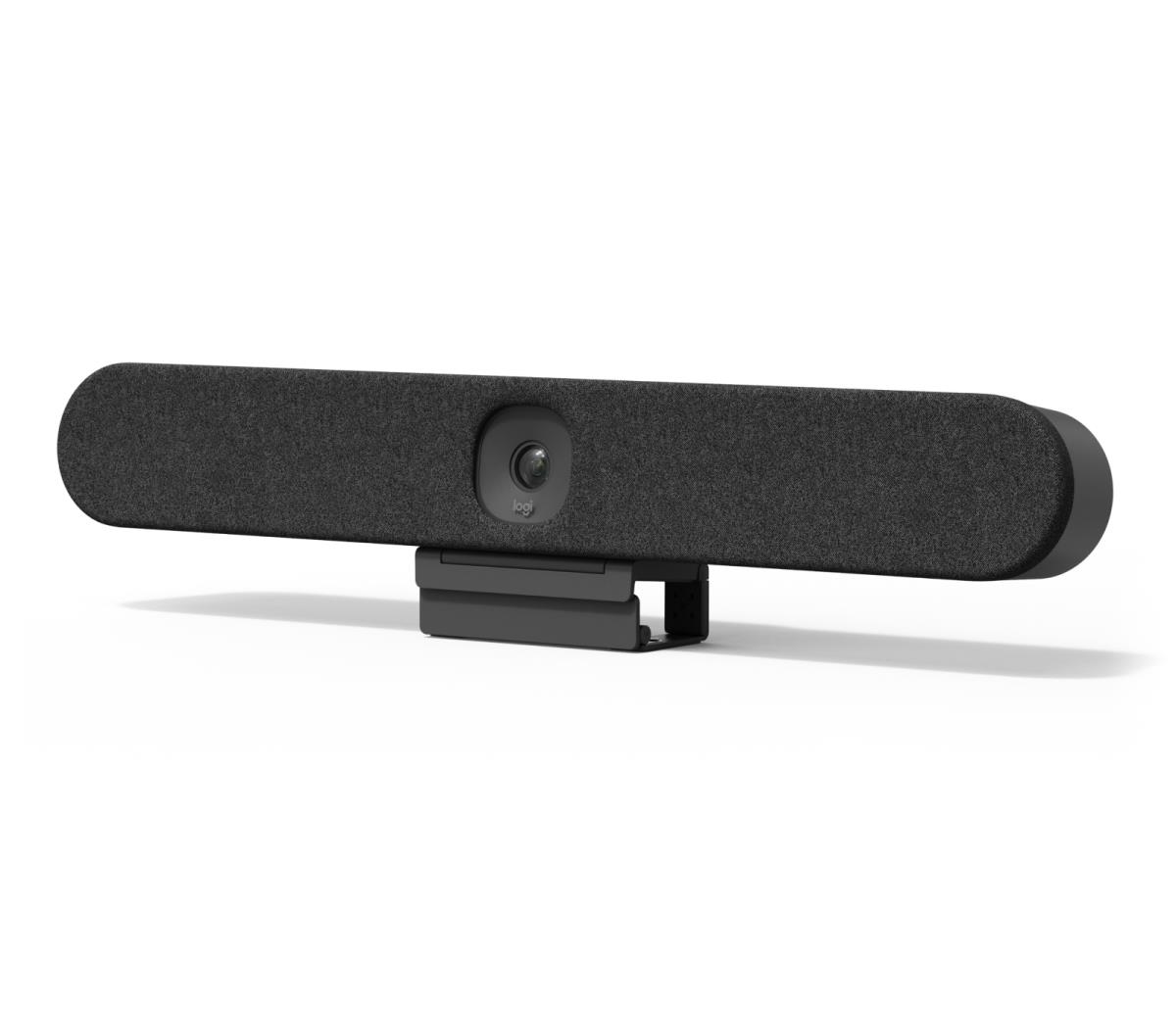

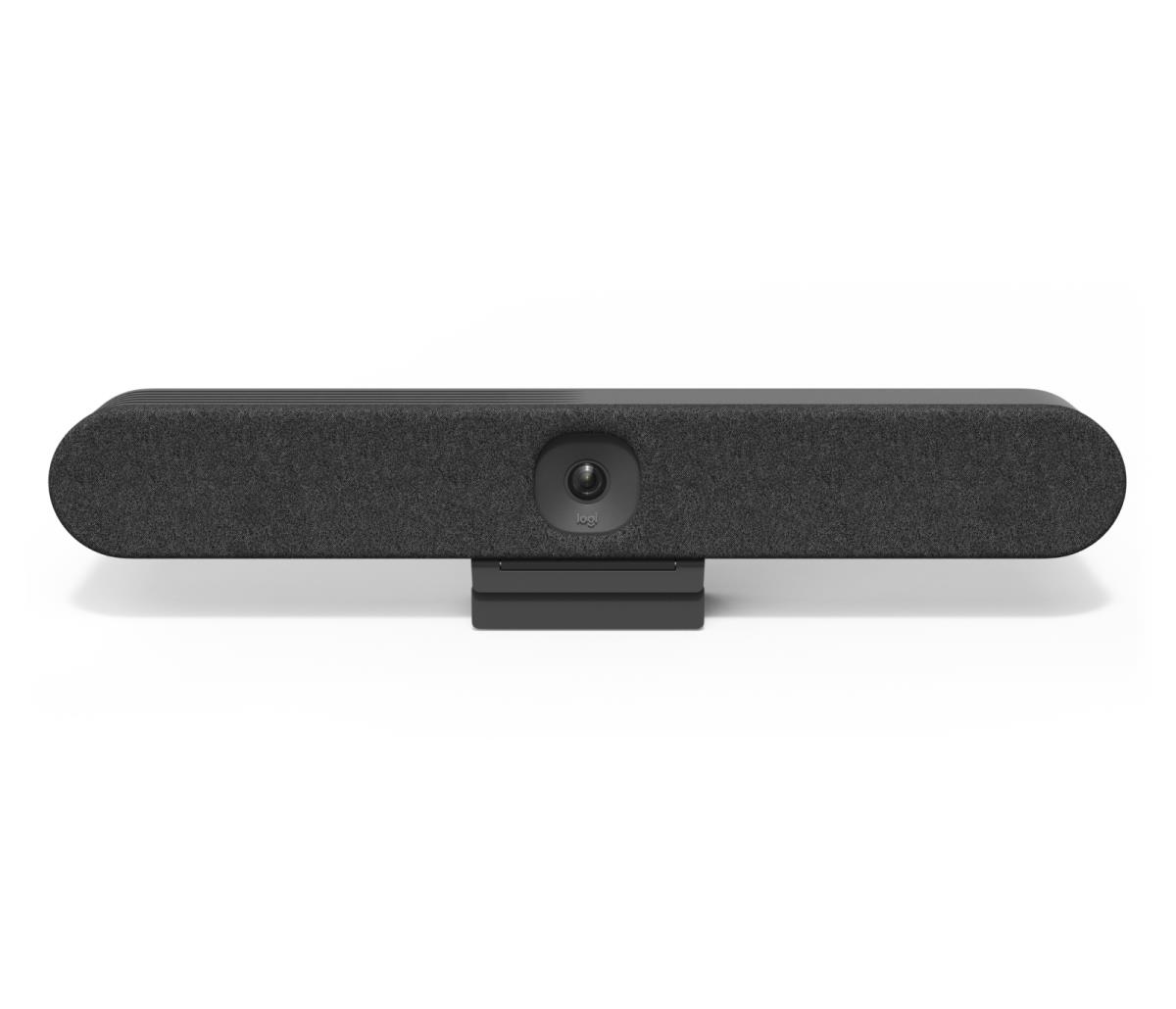

Rally Bar Huddle all-in-one video bar for huddle and small rooms.
Logitech Rally Bar Huddle is an all-in-one video conferencing bar for huddle and small meeting rooms. Designed to deliver equitable video meetings with ease, Rally Bar Huddle is quick to set up, simple to manage, and easy to integrate with Tap IP through CollabOS.
With Rally Bar Huddle, ensure everyone can be seen and heard clearly during hybrid meetings. Leveraging AI video intelligence, advanced sound pickup, noise suppression, and other ongoing software improvements, Rally Bar Huddle provides a clear and natural meeting experience for remote workers.
Plus, Rally Bar Huddle works with whatever platform you use to connect hybrid teams, ensuring a seamless experience from the home to the office, and everywhere in between. Plug and play Rally Bar Huddle with virtually any PC or Mac, or run supported video conferencing applications on the device in appliance mode without a computer.
Performance
Bluetooth
Yes
Product colour
Graphite
Camera cable length (max)
2.2 m
Product type
Group video conferencing system
Pan range
-48 - 48°
Tilt angle range
-32 - 32°
PTZ control
Yes
Video
Audio
Built-in speaker(s)
Yes
Line-out impedance
4 O
Output voltage Total Harmonic Distortion (THD)
2%
Audio beamforming
Yes
Echo cancellation
Yes
Microphone pick-up range
7 m
Sample rates
0 - 48 kHz
Driver diameter
5.5 cm
Speaker power
8 W
Ports & interfaces
HDMI output ports quantity
1
HDMI input ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols
IPv4, IPv6 Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Security algorithms
128-bit AES
Camera
Camera type
Single camera
Zoom capability
Yes
Digital zoom
4x
Horizontal field of view
113°
Vertical field of view
80°
Diagonal field of view
120°
Privacy camera
Yes
Privacy type
Privacy shutter
Microphone
Microphone sensitivity
-36 dB
Microphone frequency
90 - 16000 Hz
Sound pressure level (max)
83 dB
Number of microphones
6
Computer system
Mac operating systems supported
MacOS
Windows operating systems supported
Windows 10, Windows 11
Features
Packaging content
Packaging content
Rally Bar Huddle Multi-Mount Power supply AC power cord HDMI cable USB cable
Cables included
AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length
2.5 m
HDMI cable length
2 m
AC adapter included
Yes
Packaging content
Rally Bar Huddle
Multi-Mount
Power supply
AC power cord
HDMI cable
USB cable
Batteries included
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-25 - 70 °C
Power
Power source type
AC
AC input voltage
100-240 V
Current
2.1 A
DC output voltage
19 V
Weight & dimensions
Width
549.6 mm
Depth
76 mm
Height
78.9 mm
Weight
1.8 kg
Package width
197 mm
Package depth
629 mm
Package height
118 mm
Package weight
3.21 kg
