Introduction

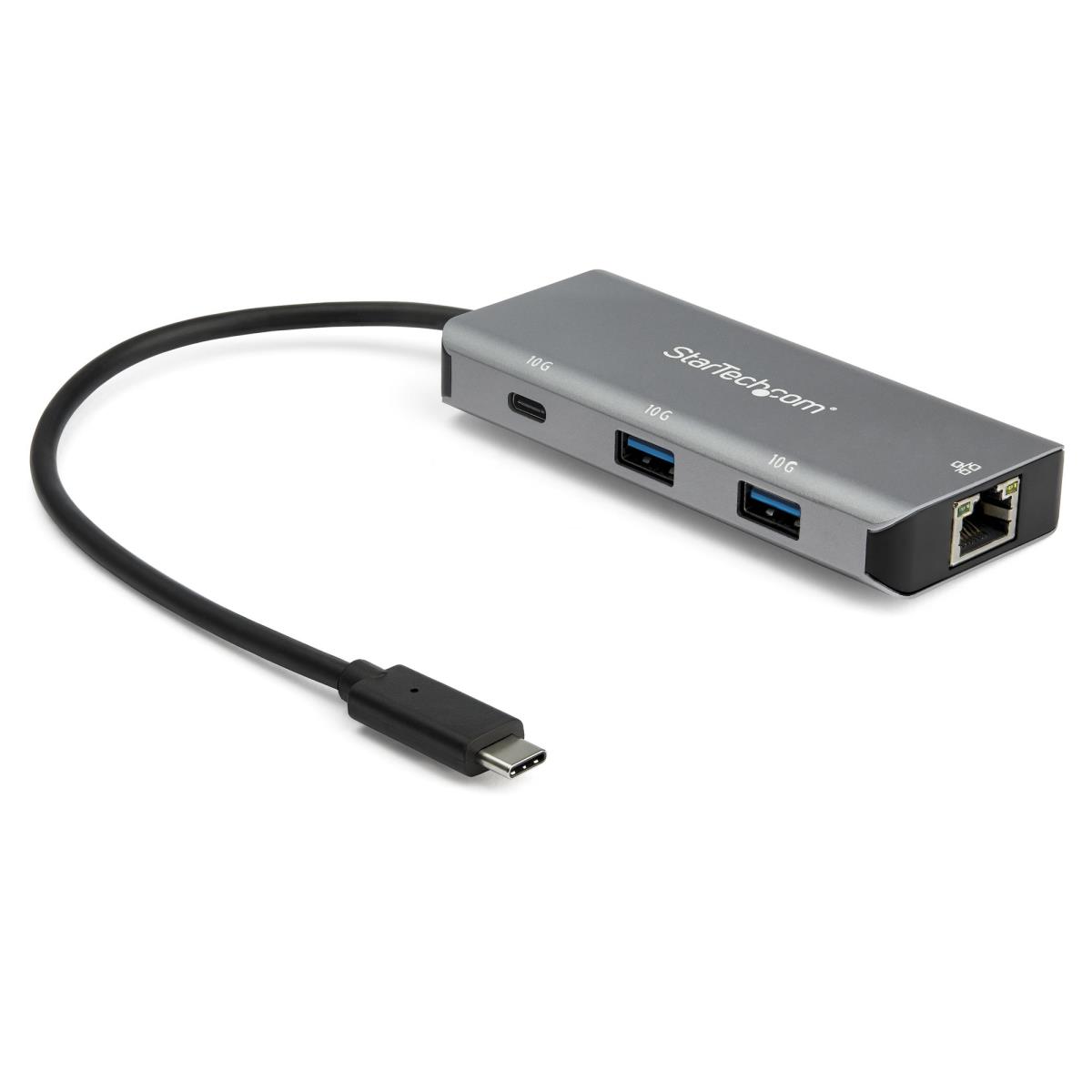

USB Type-C Hub | USB 3.1 (10Gbps) | Gigabit Ethernet | Bus-Powered | Mac & Windows
Expand the connectivity of your USB-C laptop with this new generation USB-C Gen 2 hub offering 10Gbps supporting greater bandwidth to connected devices and faster data transfer speeds. This bus-powered 3-Port USB-C hub plugs into the USB Type-C or Thunderbolt 3 port on your device, adding one LAN port, one USB-C port, and two USB-A ports, so you can quickly connect more USB devices.

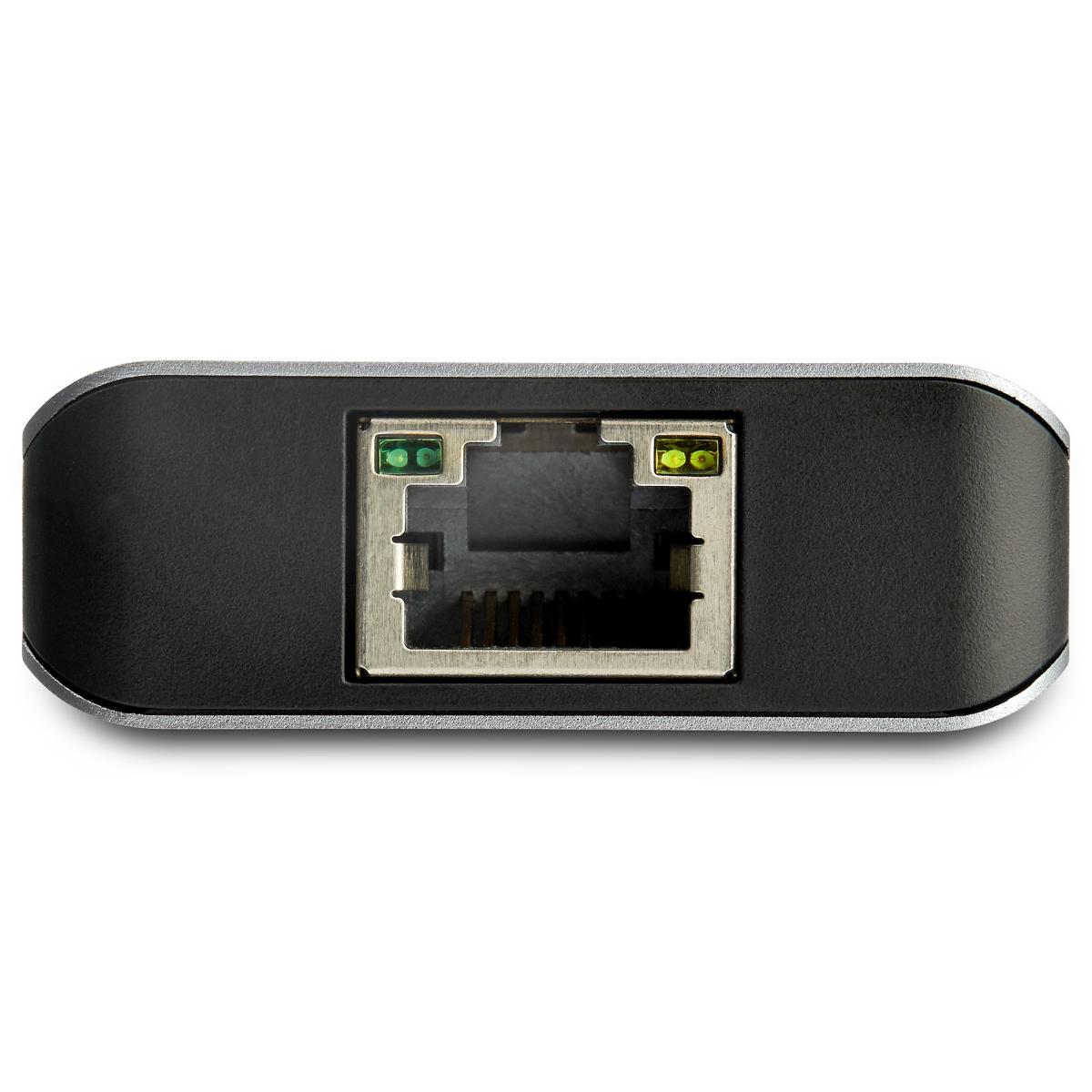

Gigabit Network Access
For faster and more consistent network connections, the USB 3.1 Gen 2 Hub's integrated Gigabit Ethernet port provides wired network access that is fully compatible with IEEE 802.3/u/ab standards. The GbE port also supports Wake-on-LAN (WOL), so you can remotely?wake your computer over your network.
Convenient Portability and Easy Setup
This compact, lightweight USB-Type-C hub is a convenient and portable addition to your laptop accessories.? The USB-C cable is built-in, and hub is bus-powered, so it draws its power directly from your computer's USB-C port, with no external power required. That means fewer cables to carry with you when you travel. The hub can draw up to 15 Watts of power from the connected host and operating multiple bus powered devices at one time with the total available power dependent on the connected host.

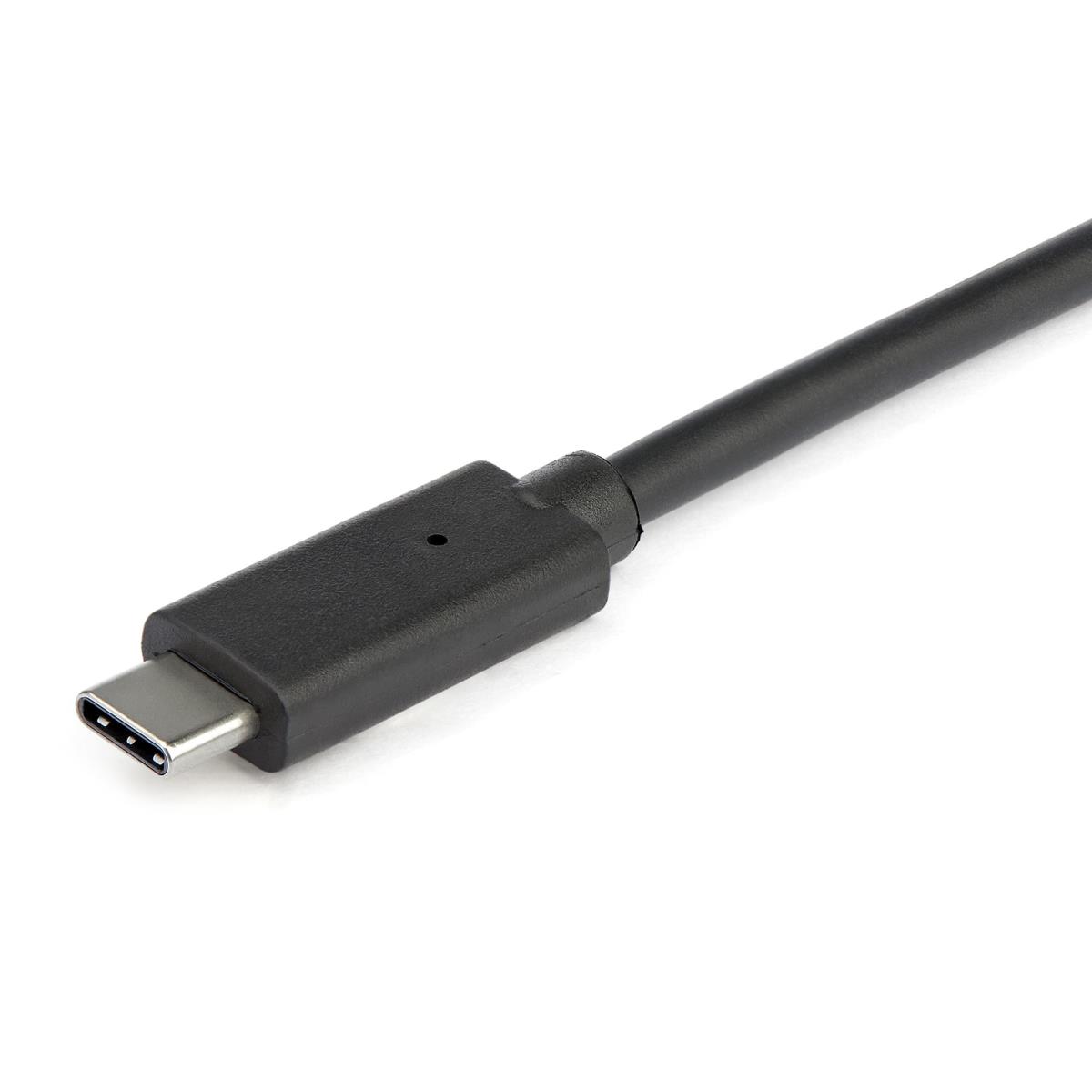

The extended length attached cable?of?9.8" (25 cm) provides more flexibility for longer reach connection requirements and plug and play installation.?

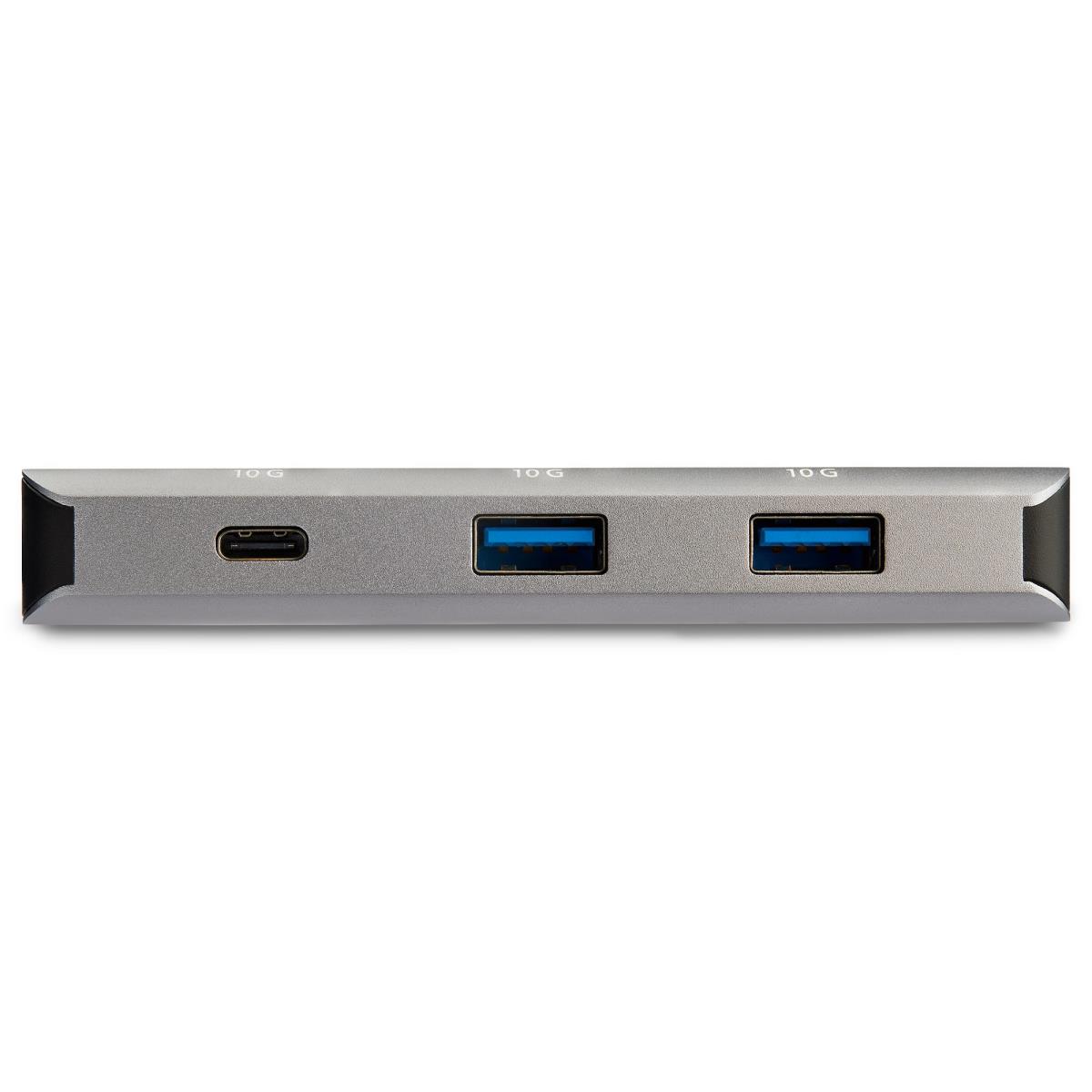

Connect Both USB-C & USB-A Peripherals
With ports for both USB-C and USB-A peripherals, this hub is backwards compatible supporting both legacy and new USB devices. You can connect flash drives, video capture devices and external hard drives, with fast data transfer speeds of up to 10Gbps. This USB Type-C hub enhances your productivity, giving you the connections, you need while you work.
HB31C2A1CGB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- 3 PORT USB-C HUB: Expand the connectivity of a USB-C laptop or PC by adding 1x USB-C, 2x USB-A & 1x GbE ports with this USB 3.2/3.1 Gen 2 SuperSpeed 10Gbps adapter hub; Supports USB 3.0/2.0 devices
- GIGABIT ETHERNET: Add a Full Duplex Gigabit Ethernet RJ45 port for wired connectivity w/Jumbo Frames, Wake-On-Lan, 10/100/1000 Mbps auto negotiation, V-LAN Tagging, and Layer 2 Priority encoding
- MORE POWER FOR DEVICES: USB Type-C hub with data transfer speeds up to 10Gbps & power up to 15W (3A) shared with all downstream devices; Supports SSD/thumb drives, data storage, keyboards, mice, etc.
Ports & interfaces
Card reader integrated
No
DC-in jack
No
DC-in jack
No
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ports quantity
4
Ethernet LAN (RJ-45) ports
1
Performance
Card reader integrated
No
Product colour
Black, Grey
Hub interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Plug and Play
Yes
UASP support
Yes
Housing material
Aluminium, Plastic
Harmonized System (HS) code
84719000
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, RoHS
Sustainability certificates
CE, RoHS
Sustainability compliance
Yes
Power
Wireless charging
No
Power supply type
USB
Power supply type
USB
Technical details
Compliance certificates
CE, RoHS
Compliance certificates
CE, RoHS
Network
Ethernet LAN (RJ-45) ports
1
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
Yes
Full duplex
Yes
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Full duplex
Y
Auto MDI/MDI-X
Y
UASP support
Y
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Linux operating systems supported
Ubuntu 14.04, Ubuntu 16.04
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64, Windows Server 2019
Other operating systems supported
Android, iOS
Weight & dimensions
Width
45 mm
Depth
102 mm
Height
14 mm
Weight
69 g
Width
45 mm
Depth
102 mm
Height
14 mm
Weight
69 g
Packaging data
Quantity per pack
1 pc(s)
Package width
145 mm
Package depth
210 mm
Package height
37 mm
Package weight
200 g
Quantity per pack
1 pc(s)
Package width
145 mm
Package depth
210 mm
Package height
37 mm
Package weight
200 g
Logistics data
Products per master (outer) case
40 pc(s)
Master (outer) case width
445 mm
Master (outer) case length
310 mm
Master (outer) case height
430 mm
Harmonized System (HS) code
84719000
Master (outer) case width
445 mm
Master (outer) case length
310 mm
Master (outer) case height
430 mm
Products per master (outer) case
40 pc(s)
Other features
Chipset
Realtek - RTS5423, Realtek - RTL8153
Chipset
Realtek - RTS5423, Realtek - RTL8153
Features
Data transfer rate
10000 Mbit/s
Product colour
Black, Grey
Housing material
Aluminium, Plastic
Plug and Play
Y
Certification
RoHS, REACH, CE, FCC
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Linux operating systems supported
Ubuntu 14.04,Ubuntu 16.04
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 x64,Windows Server 2019
Other operating systems supported
Android, Chrome, iOS
