Product Details
Introduction

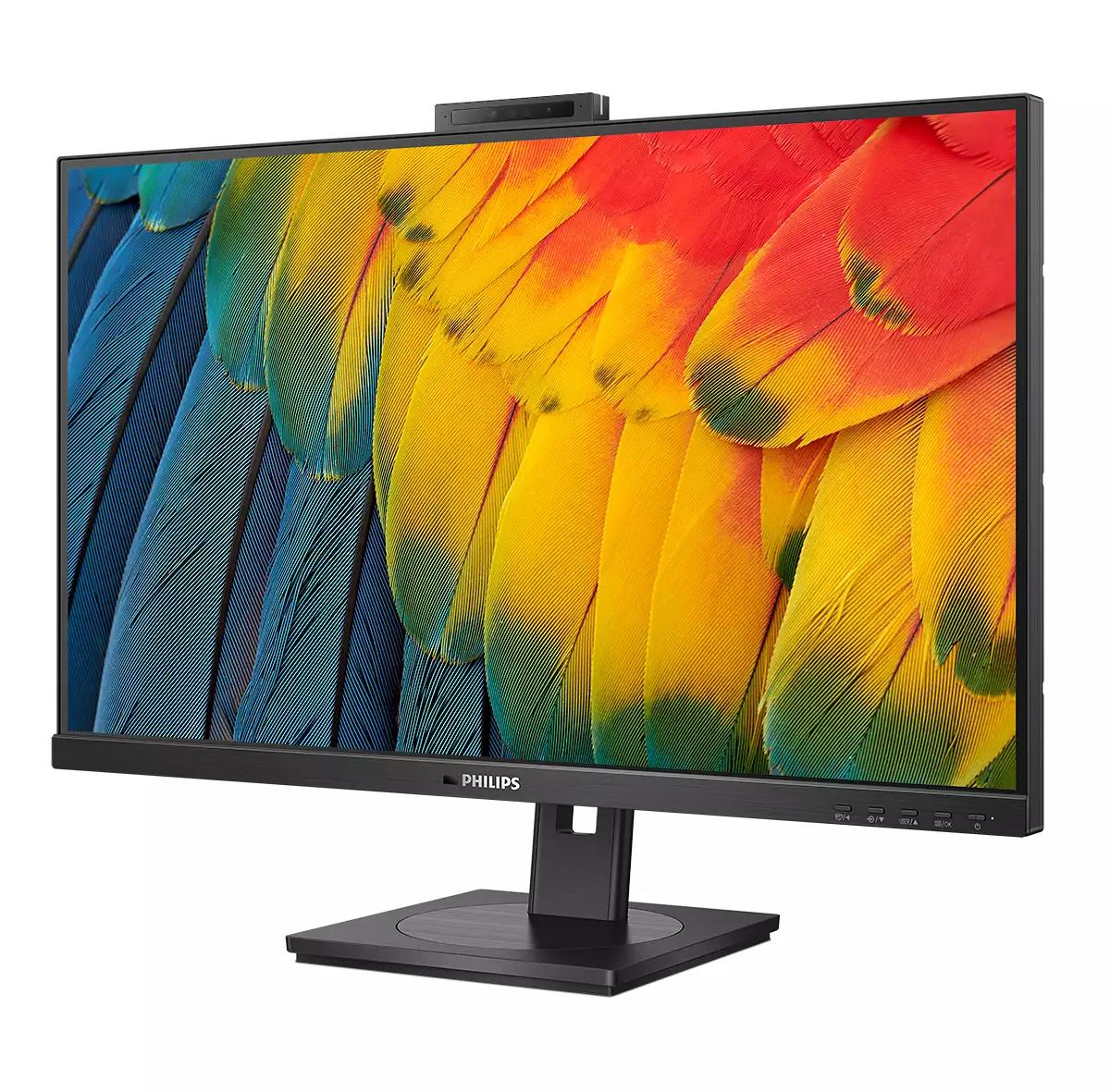

This USB-C monitor is for data transfer, power delivery and watching videos. The integrated 5 MP webcam delivers sharp images, and the noise cancelling mic lets people hear you fine. Windows Hello Webcam for quick access and strong security.
Display
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
IPS
Backlight type
W-LED
Touchscreen
N
Display brightness (typical)
300 cd/m²
Response time
4 ms
Anti-glare screen
Y
Screen shape
Flat
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
50000000:1
Dynamic contrast ratio marketing name
SmartContrast
Maximum refresh rate
75 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.2745 x 0.2745 mm
Pixel density
93 ppi
Horizontal scan range
30 - 85 kHz
Vertical scan range
48 - 75 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Display diagonal (metric)
60.5 cm
DDC/CI
Y
Haze rate
25%
Surface hardness
3H
Colour depth
8 bit
RGB colour space
sRGB
sRGB coverage (typical)
105%
NTSC coverage (typical)
88%
Display sRGB
Y
LED backlight
Yes
Colour gamut
88%
Display panel size
23.8 inch / 60.5 cm
Performance
NVIDIA G-SYNC
N
AMD FreeSync
N
Fast charging
Y
Fast charging technology
Power Delivery
Component video sync
Separate sync
Flicker-free technology
Y
Low Blue Light technology
Y
HBR3 support
Y
Compatible operating systems
Mac OS X
Windows 11 / 10 / 8.1 / 8 / 7
Multimedia
Built-in speaker(s)
Y
Built-in camera
Y
Number of speakers
2
RMS rated power
5 W
Megapixel (approx.)
5 MP
Built-in microphone
Y
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
Feet colour
Black

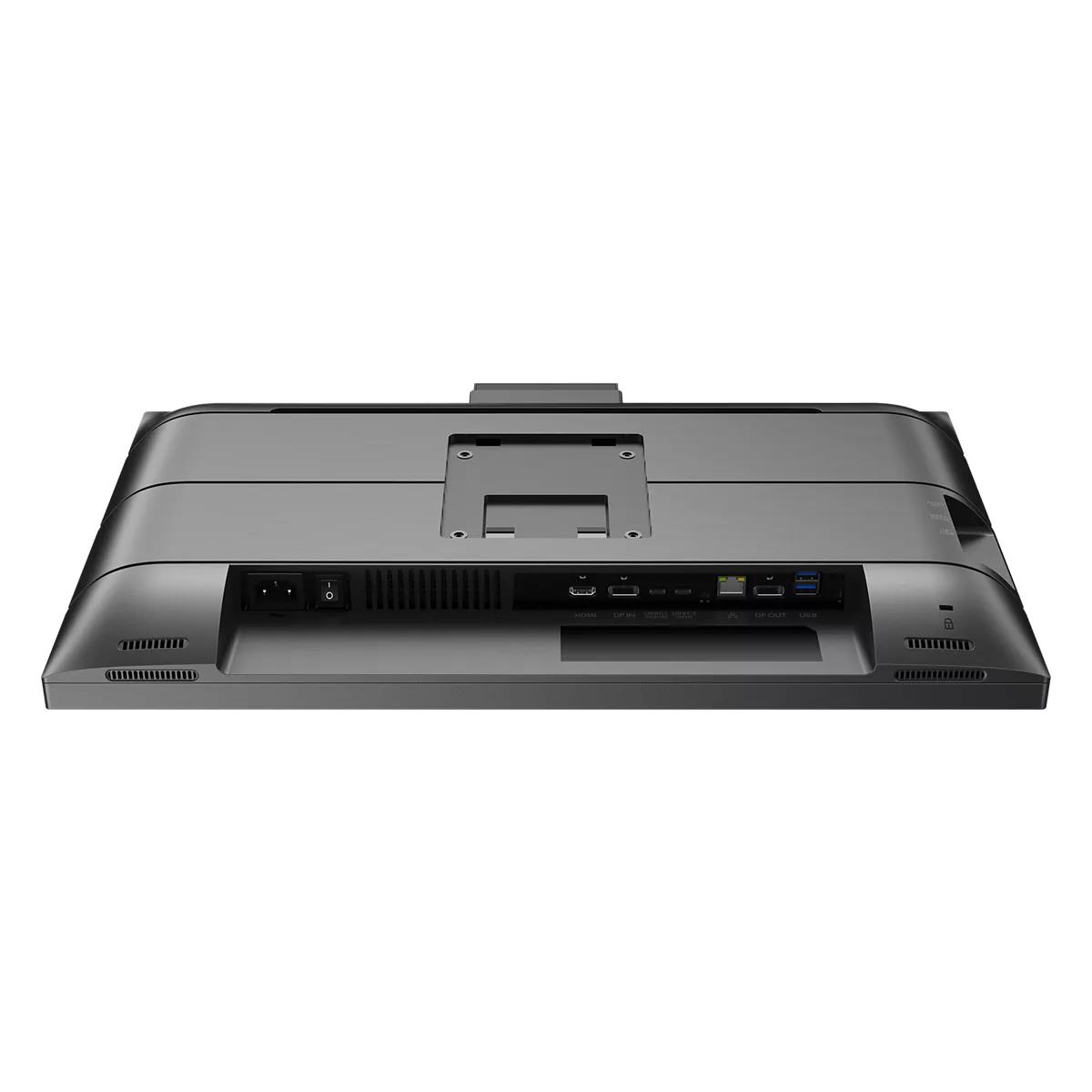

Ports & interfaces
Built-in USB hub
Y
USB hub version
3.2 Gen 2 (3.1 Gen 2)
USB upstream port type
USB Type-C
Number of upstream ports
1
USB Type-A downstream ports quantity
4
USB Type-C downstream ports quantity
1
USB Type-C DisplayPort Alternate Mode
Y
USB Power Delivery
Y
USB Power Delivery up to
90 W
HDMI
Y
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone out
Y
HDCP
Y
HDCP version
1.4/2.2
DisplayPort output
Y
DisplayPort out quantity
1
Network
Ethernet LAN
Y
Ergonomics
VESA mounting
Y
Panel mounting interface
100 x 100 mm
Cable lock slot
Y
Cable lock slot type
Kensington
Height adjustment
Y
Height adjustment
15 cm
Pivot
Y
Pivot angle
-90 - 90°
Swivelling
Y
Swivel angle range
-180 - 180°
Tiltable
Y
Tilt angle range
-5 - 30°
Picture-in-Picture
Y
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and Play
Y
LED indicators
Operation, Stand-by
On Screen Display (OSD)
Yes
Power
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
18 kWh
Power consumption (typical)
15.3 W
Power consumption (standby)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Power consumption (off)
0 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating altitude
0 - 3658 m
Non-operating altitude
3658 - 12192 m
Packaging content
Stand included
Y
Cables included
HDMI, DisplayPort, USB Type-C, AC
Manual
Y
Bundled software
SmartControl
Weight & dimensions
Width (with stand)
540 mm
Depth (with stand)
205 mm
Height (with stand)
500 mm
Weight (with stand)
5.5 kg
Width (without stand)
54 cm
Depth (without stand)
5.1 cm
Height (without stand)
32.3 cm
Weight (without stand)
3.9 kg
Packaging data
Package width
600 mm
Package depth
198 mm
Package height
406 mm
Package weight
8.32 kg
Sustainability
Sustainability compliance
Y
Sustainability certificates
ENERGY STAR, TCO, RoHS
Doesn't contain
Mercury, PVC/BFR
European Product Registry for Energy Labelling (EPREL) code
1325579
Recycling data
Post-consumer recycled plastic
85%
Other features
Picture-by-Picture (PbP)
Y
Exterior finish type
Textured
Picture enhancement
SmartImage
Recyclable packaging material
100%
Regulatory Approvals
CB; CE Mark; FCC Class B; ICES-003; CU-EAC; EAEU RoHS; SEMKO; TUV Ergo; TUV/GS; TUV Eye Comfort certified; cETLus
Light sensor
Y
EasyRead mode
Y
LowBlue mode
Y
Mean time between failures (MTBF)
70000 h
Ethernet LAN data rates
10,100,1000 Mbit/s
Wake-on-LAN
Y
Monitor sync input signal
Separate Sync
User controls
SmartImage; Input; User; Menu; Power On/Off
MultiView
PIP/PBP mode; 2x devices
Technical details
Compliance certificates
RoHS
Information
| Part Number: | 24B1U5301H/00 |
