Product Details
Introduction

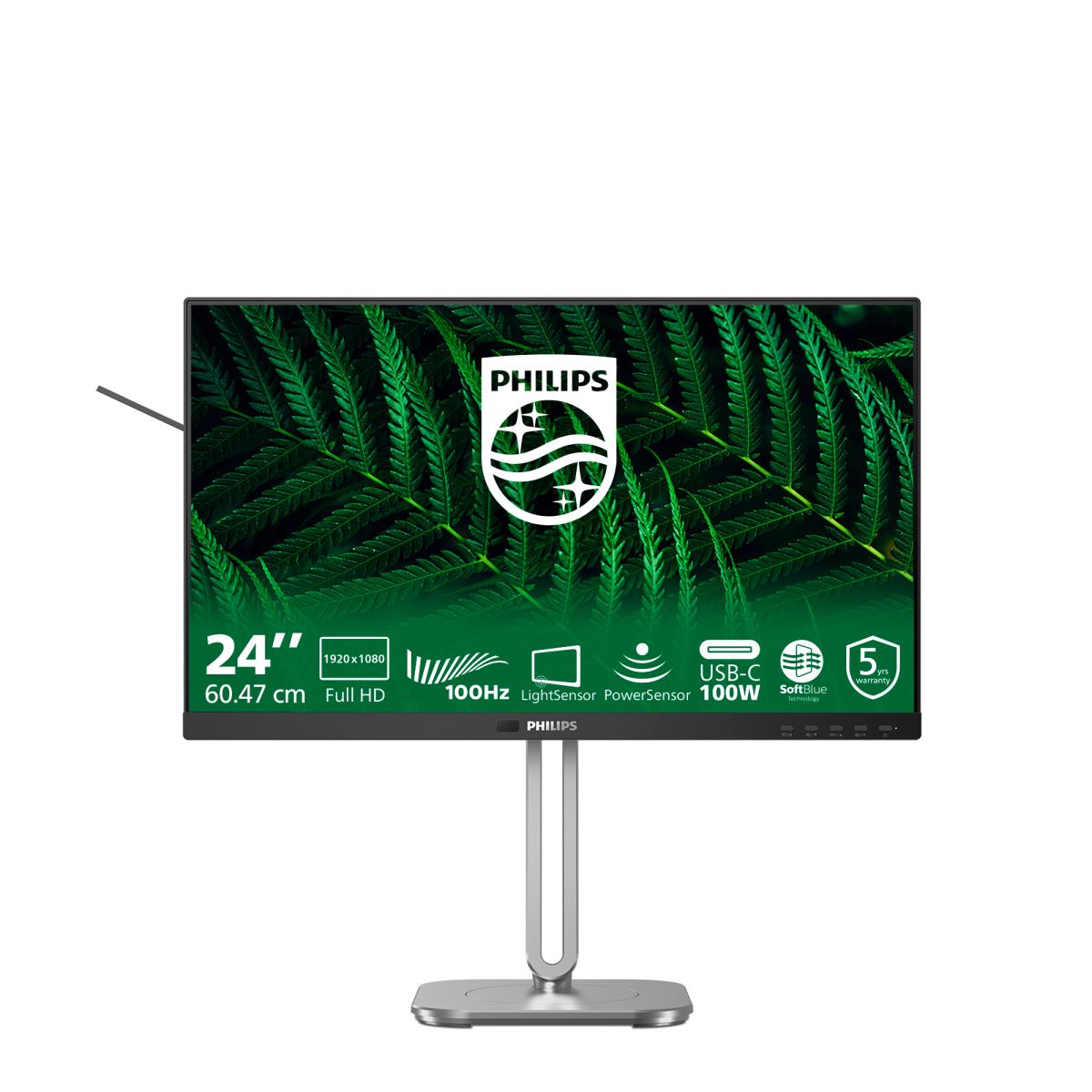

This monitor is built for energy efficiency. With its LightSensor and PowerSensor 2, these two features combine to make a power-saving monitor that is equipped with many other features designed to facilitate work tasks.
Display
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
IPS
LED backlight
Yes
Backlight type
W-LED
Touchscreen
No
Display brightness (typical)
300 cd/m²
Response time
4 ms
Response time measurement type
GTG (Gray to Gray)
Anti-glare screen
Yes
Screen shape
Flat
Contrast ratio (typical)
1500:1
Contrast ratio (dynamic)
50000000:1
Dynamic contrast ratio marketing name
SmartContrast
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.2745 x 0.2745 mm
Pixel density
93 ppi
Horizontal scan range
30 - 115 kHz
Vertical scan range
48 - 100 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Display diagonal (metric)
60.47 cm
DDC/CI
Yes
Haze rate
25%
Surface hardness
3H
Colour gamut standard
NTSC, sRGB
sRGB coverage (typical)
110%
NTSC coverage (typical)
96%
Display sRGB
Yes
Display panel size
23.8 inch/60.47 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Component video sync
Separate sync, Sync-on-green (SOG)
Flicker-free technology
Yes
VESA Adaptive Sync support
Yes
Multimedia
Number of speakers
2
RMS rated power
6 W
Built-in speaker(s)
Yes
Built-in camera
No
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
Feet colour
Silver

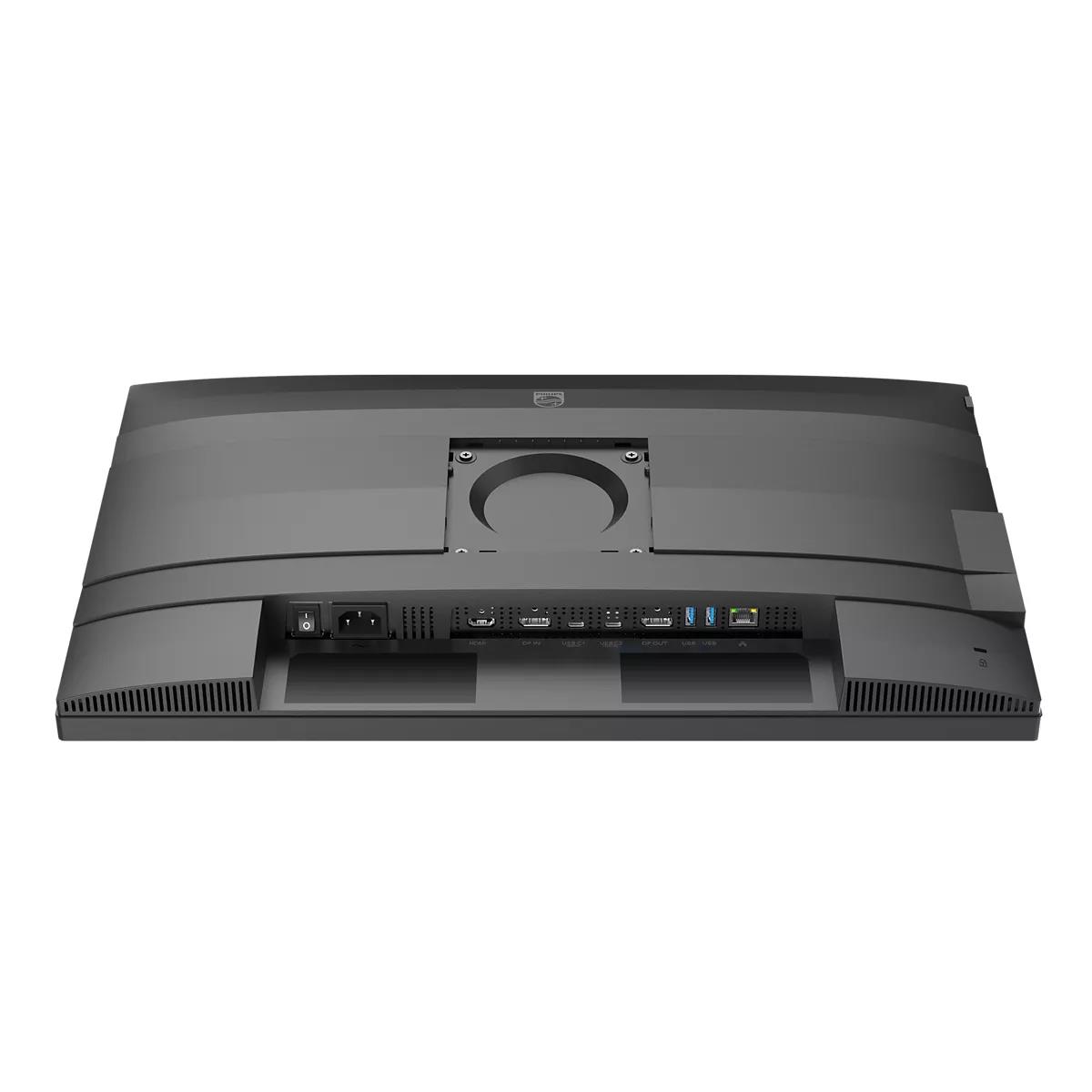

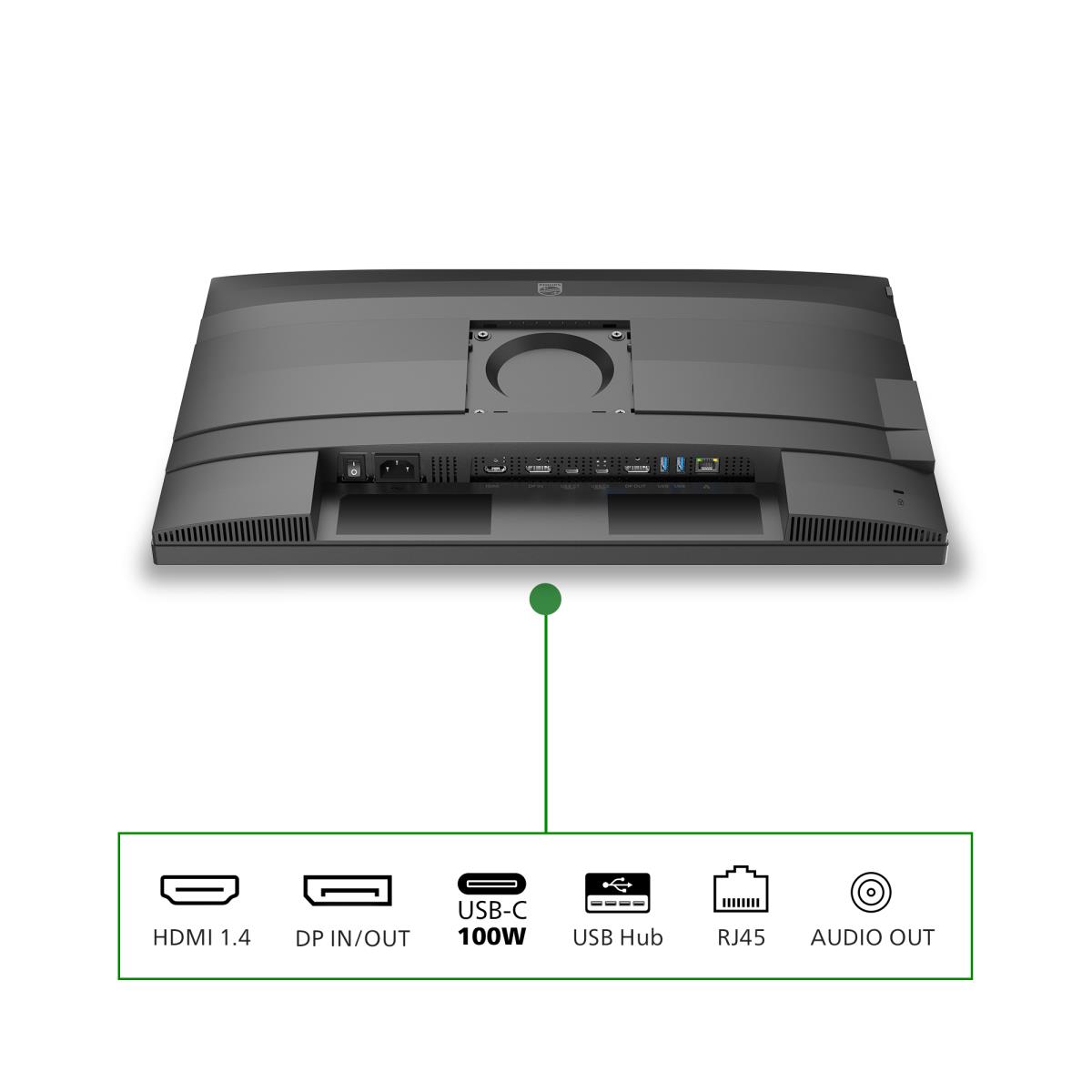

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 2 (3.1 Gen 2)
USB upstream port type
USB Type-C
Number of USB Type-C upstream ports quantity
2
USB Type-A downstream ports quantity
4
USB Type-C downstream ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
100 W
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.4
Audio output
Yes
Built-in KVM switch
Yes
KVM switch ports quantity
2
HDCP
Yes
HDCP version
1.4
I/O ports
USB3.2, Gen2, 10G, Upstream: 1x USB-C1 (Full), USB-C2 (data only)
Downstream: USB-A x4 (with x1 fast charge B.C 1.2), USB-C3x1 (data, 15W)
DisplayPort out quantity
1
Network
Ethernet LAN
Yes

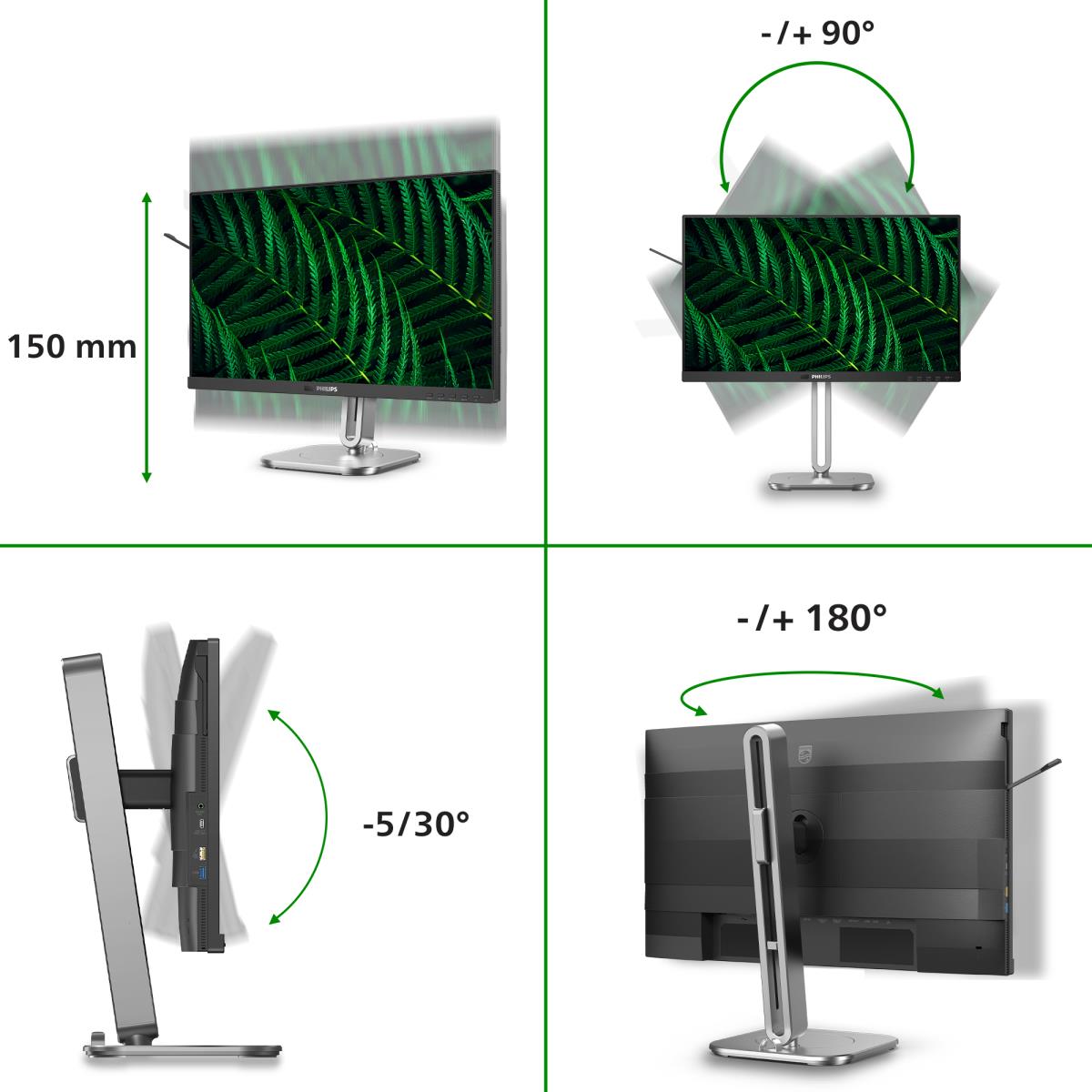

Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
Yes
Adjustable height (max)
15 cm
Pivot
Yes
Pivot angle
-90 - 90°
Swivelling
Yes
Swivel angle range
-180 - 180°
Tilt adjustment
Yes
Tilt angle range
-5 - 35°
Picture-in-Picture
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages
21
Plug and Play
Yes
LED indicators
Operation, Stand-by
Power
Energy efficiency class (SDR)
C
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
12 kWh
Power consumption (typical)
14.18 W
Power consumption (standby)
0.3 W
Power consumption (off)
0.3 W
Power consumption (PowerSave)
11.9 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating altitude
0 - 3658 m
Non-operating altitude
3658 - 12192 m
Weight & dimensions
Width (with stand)
540 mm
Depth (with stand)
232 mm
Height (with stand)
501 mm
Weight (with stand)
5.61 kg
Width (without stand)
540 mm
Depth (without stand)
56 mm
Height (without stand)
324 mm
Weight (without stand)
3.89 kg
Packaging data
Package width
615 mm
Package depth
139 mm
Package height
385 mm
Package weight
7.84 kg
Packaging content
Stand included
Yes
Cables included
AC, DisplayPort, HDMI, USB Type-C to USB Type-C
Manual
Yes
Bundled software
SmartControl
Sustainability
Sustainability certificates
ENERGY STAR, EPEAT
Doesn't contain
Mercury, PVC/BFR
Other features
HBR3 support
Yes
Picture-by-Picture (PbP)
Yes
Exterior finish type
Textured
Picture enhancement
SmartImage
Recyclable packaging material
100%
Regulatory Approvals
CB, CE Mark, TUV/GS, TUV Ergo, TCO Certified, UKCA, EMF, FCC, ICES-003
Heavy metals free
Hg (mercury)
Adaptive synchronisation
Yes
EasyRead mode
Yes
(cdm) Software / function
SmartControl
Compliance certificates
RoHS
Mean time between failures (MTBF)
70000 h
Compatible operating systems
Mac OS; Windows 11 / 10
Monitor sync input signal
Separate Sync; Sync on Green
User controls
SmartImage; Input; Brightness; Menu; Power On/Off
Signal input
HDMI 1.4 x 1; DisplayPort 1.4 x 1; USB-C (DP Alt mode); VGA (Analog )
MultiView
2x devices; PIP/PBP mode
Recycling data
Post-consumer recycled plastic
85%
Information
| Part Number: | 24B2G5301/00 |
