Product Details
Introduction
This monitor delivers business efficiency. Not only is it equipped with essential features, but it also has ones that stand out like its 120hz refresh rate, SoftBlue, Flicker-Free, VESA mount, and more.
Display
Display diagonal
60.5 cm (23.8")
Display resolution
2560 x 1440 pixels
HD type
Quad HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
IPS
LED backlight
Yes
Backlight type
W-LED
Touchscreen
No
Screen shape
Flat
Contrast ratio (typical)
1500:1
Contrast ratio (dynamic)
50000000:1
Maximum refresh rate
120 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.2058 x 0.2058 mm
Digital horizontal frequency
30 - 230 kHz
Digital vertical frequency
48 - 120 Hz
Display diagonal (metric)
60.5 cm
Response time
4 ms
Response time measurement type
GTG (Gray to Gray)
Display brightness (typical)
350 cd/m²
Anti-glare screen
Yes
Pixel density
123 ppi
Horizontal scan range
30 - 230 kHz
Vertical scan range
48 - 120 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
DDC/CI
Yes
Haze rate
25%
Surface hardness
3H
Colour gamut standard
sRGB, NTSC
sRGB coverage (typical)
110%
NTSC coverage (typical)
98%
Display sRGB
Yes
Display panel size
23.8 inch/60.47 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
VESA Adaptive Sync support
Yes
Component video sync
Separate sync
Flicker-free technology
Yes
Low Blue Light technology
Yes
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Built-in camera
No
Design
Product colour
Black
Feet colour
Black
Front bezel colour
Black

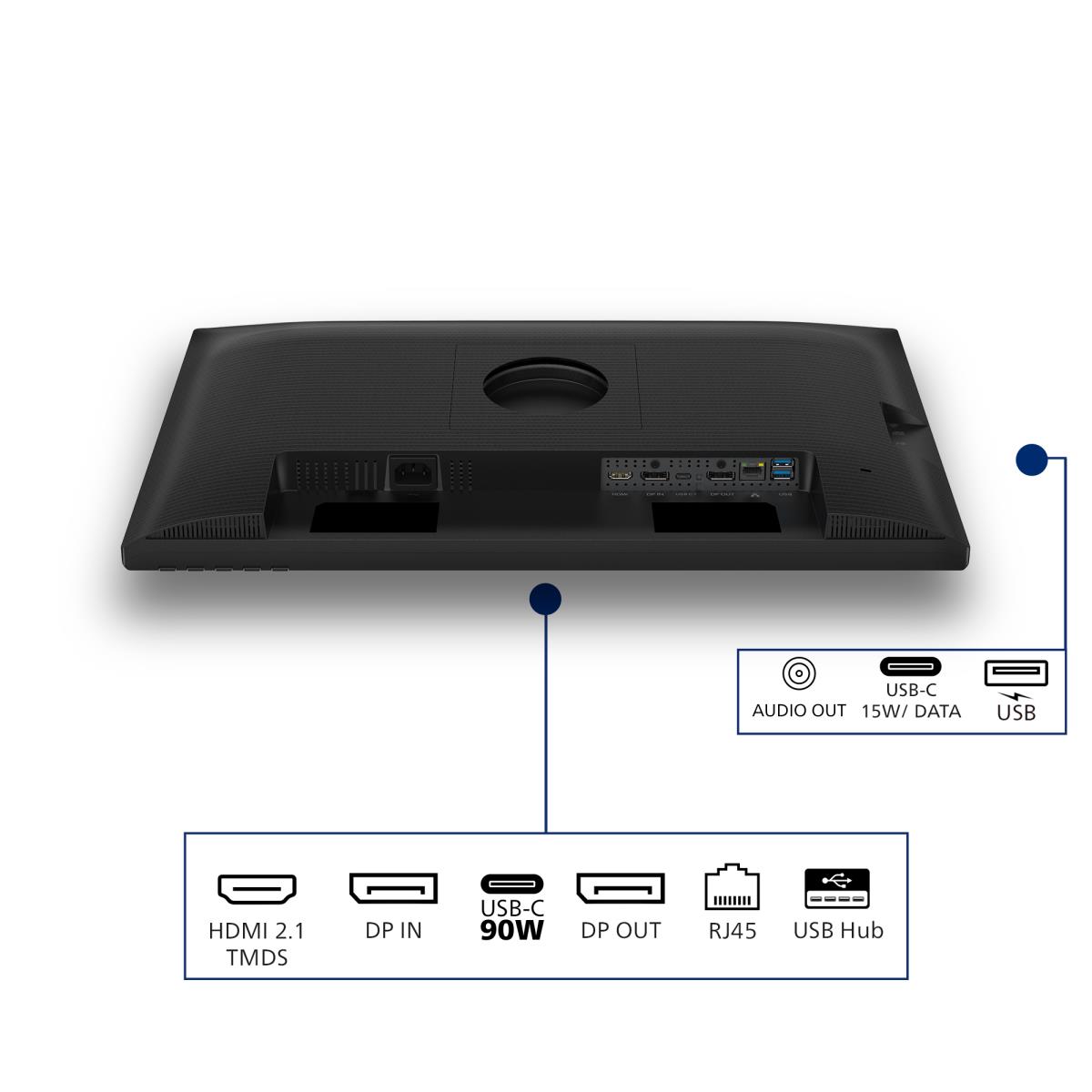

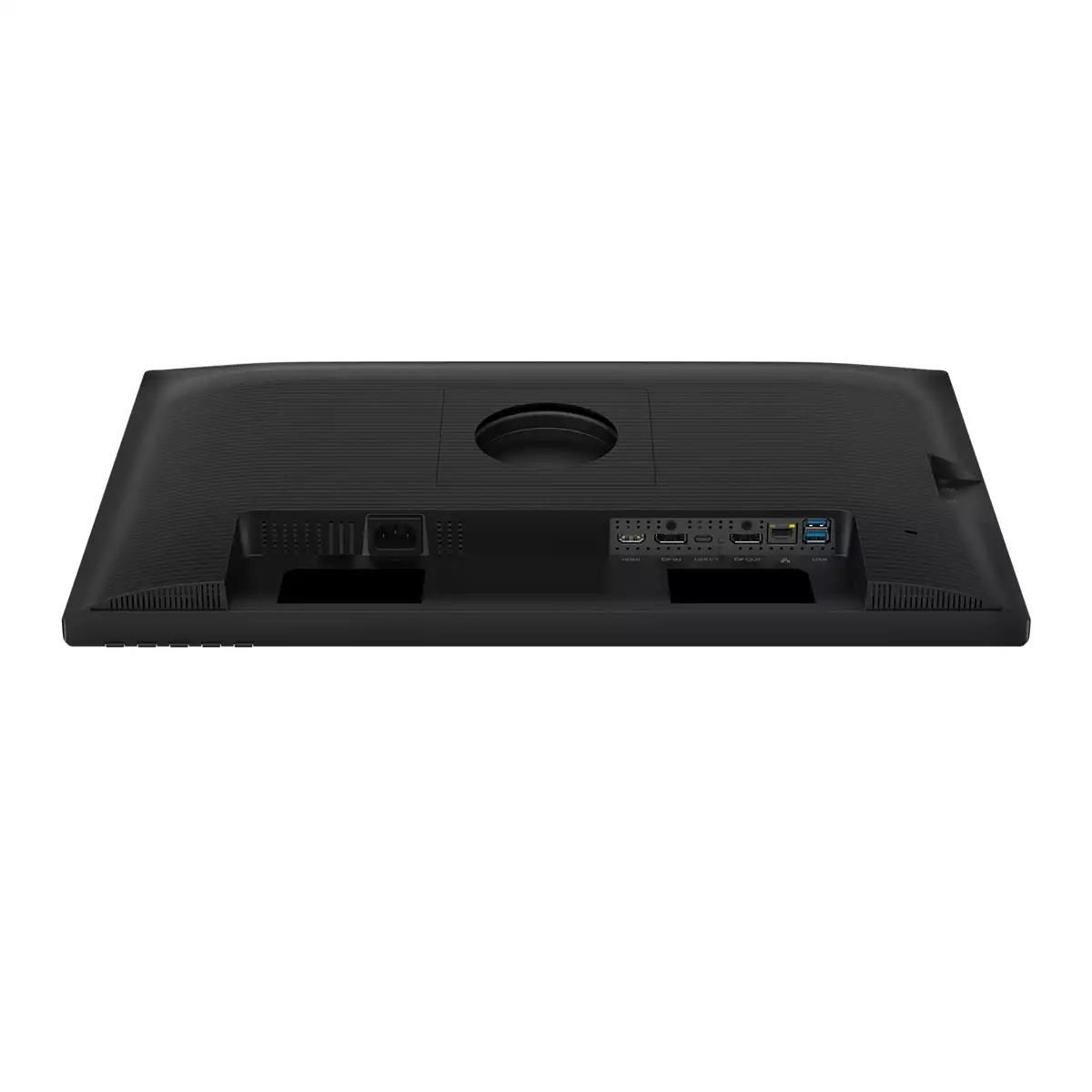

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Number of USB Type-C upstream ports quantity
1
USB Type-A downstream ports quantity
3
USB Type-C downstream ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
90 W
HDMI
Yes
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort out version
1.4
Audio output
Yes
DisplayPort out quantity
1
HDCP
Yes
HDCP version
2.3
Network
Ethernet LAN
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable lock slot
Yes
Cable lock slot type
Kensington

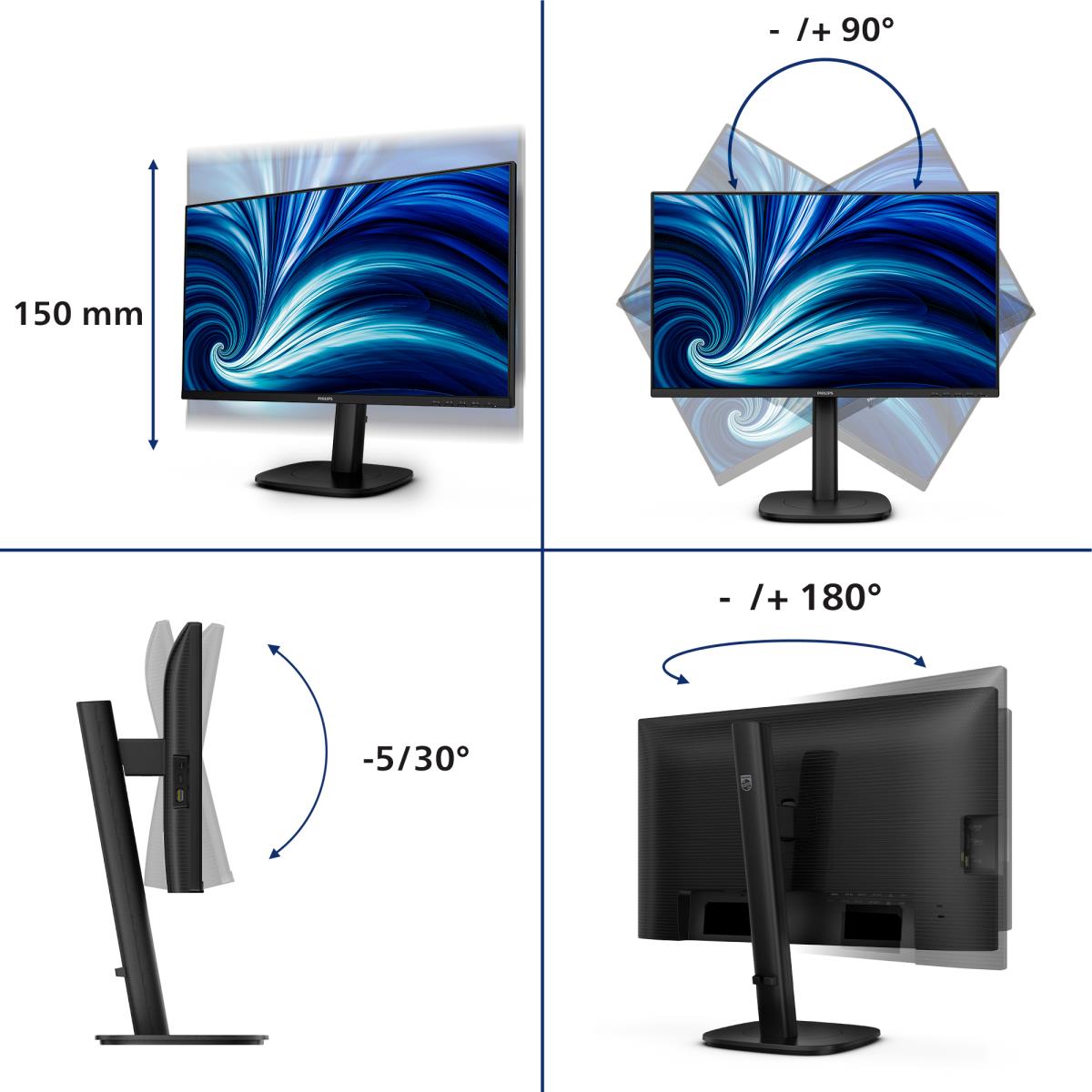

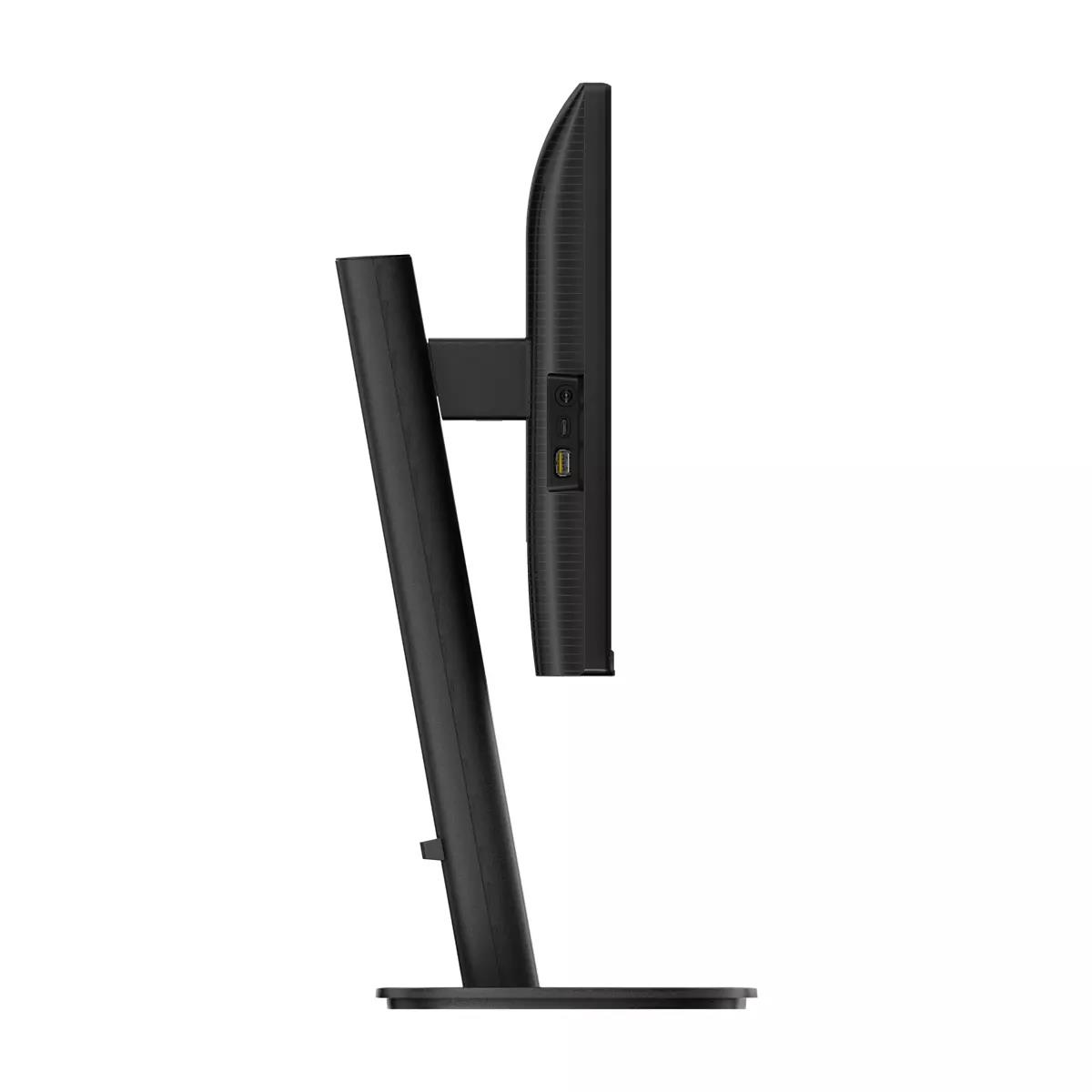

Height adjustment
Yes
Adjustable height (max)
15 cm
Pivot
Yes
Pivot angle
-90 - 90°
Swivelling
Yes
Swivel angle range
-180 - 180°
Tilt adjustment
Yes
Tilt angle range
-5 - 30°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
LED indicators
Operation, Stand-by
Power
Energy efficiency class (SDR)
D
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
14 kWh
Power consumption (typical)
23.7 W
Power consumption (standby)
0.3 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Power consumption (PowerSave)
13.7 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating altitude
0 - 3658 m
Non-operating altitude
0 - 12192 m
Weight & dimensions
Width (with stand)
542 mm
Depth (with stand)
228 mm
Height (with stand)
499 mm
Weight (with stand)
5.7 kg
Width (without stand)
542 mm
Depth (without stand)
48 mm
Height (without stand)
320 mm
Weight (without stand)
4.03 kg
Packaging data
Package width
615 mm
Package depth
139 mm
Package height
385 mm
Package weight
8.03 kg
Packaging content
Stand included
Yes
Bundled software
SmartControl
Sustainability
Doesn't contain
PVC/BFR
Other features
HBR3 support
Yes
Compatible operating systems
Mac OS; Windows 11 / 10
Exterior finish type
Textured
Monitor sync input signal
Separate Sync; Sync on Green
User controls
SmartImage; Input; Brightness; Menu; Power On/Off
Picture enhancement
SmartImage
Regulatory Approvals
CB; CE Mark; TUV/GS; TUV Ergo; TCO Certified; TCO Certified Edge; EAC; EAC ROHS; MEPS; PSE; VCCI; UKCA; EMF; FCC; ICES-003; TÜV Rheinland Low Blue Light (Hardware Solution); eyesafe® CERTIFIED 2.0
SoftBlue
Yes
EasyRead mode
Yes
Recycling data
Packaging recyclability rate
100%
Product post-consumer recycled plastic
85%
Information
| Part Number: | 24B2U3601/00 |
