Product Details
Introduction

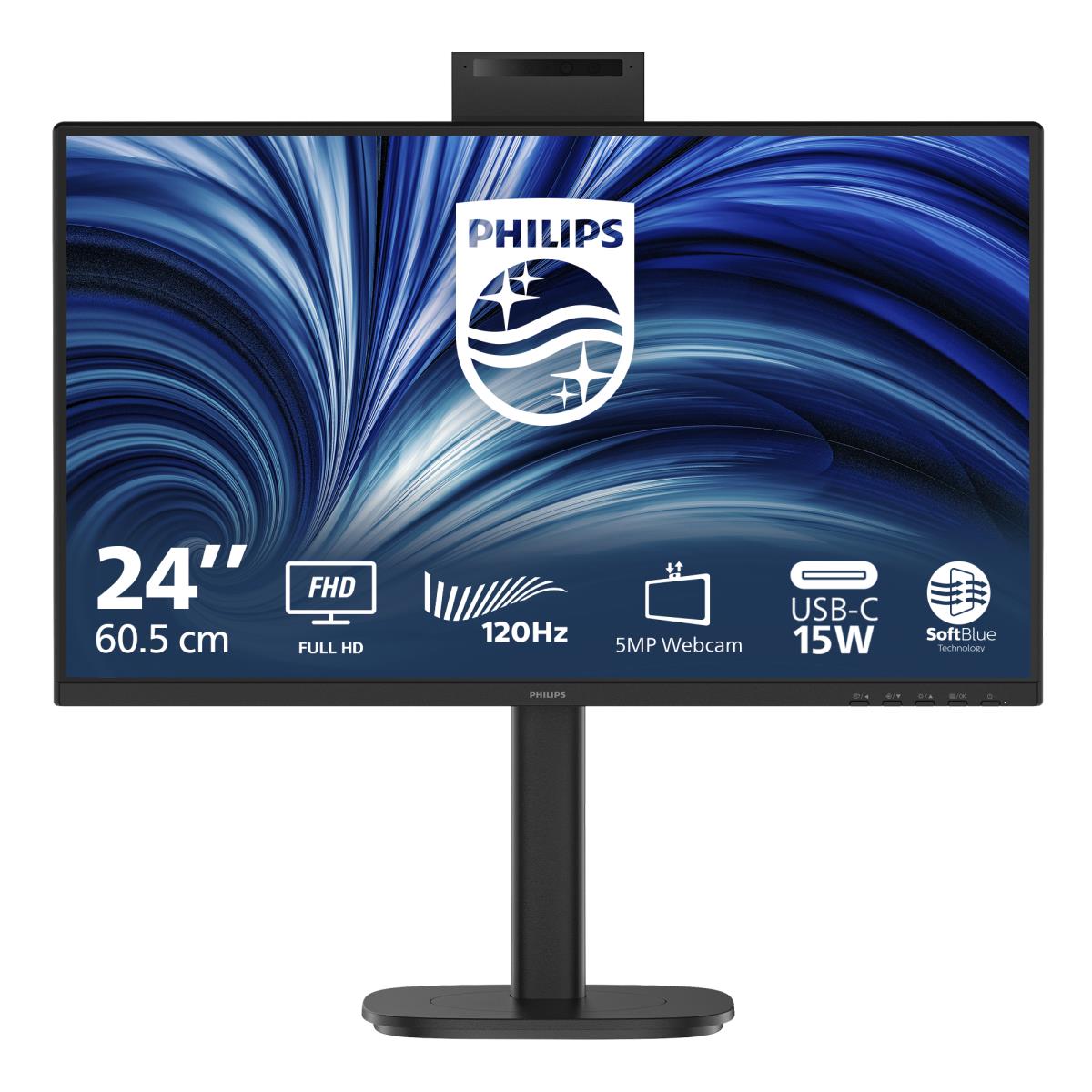

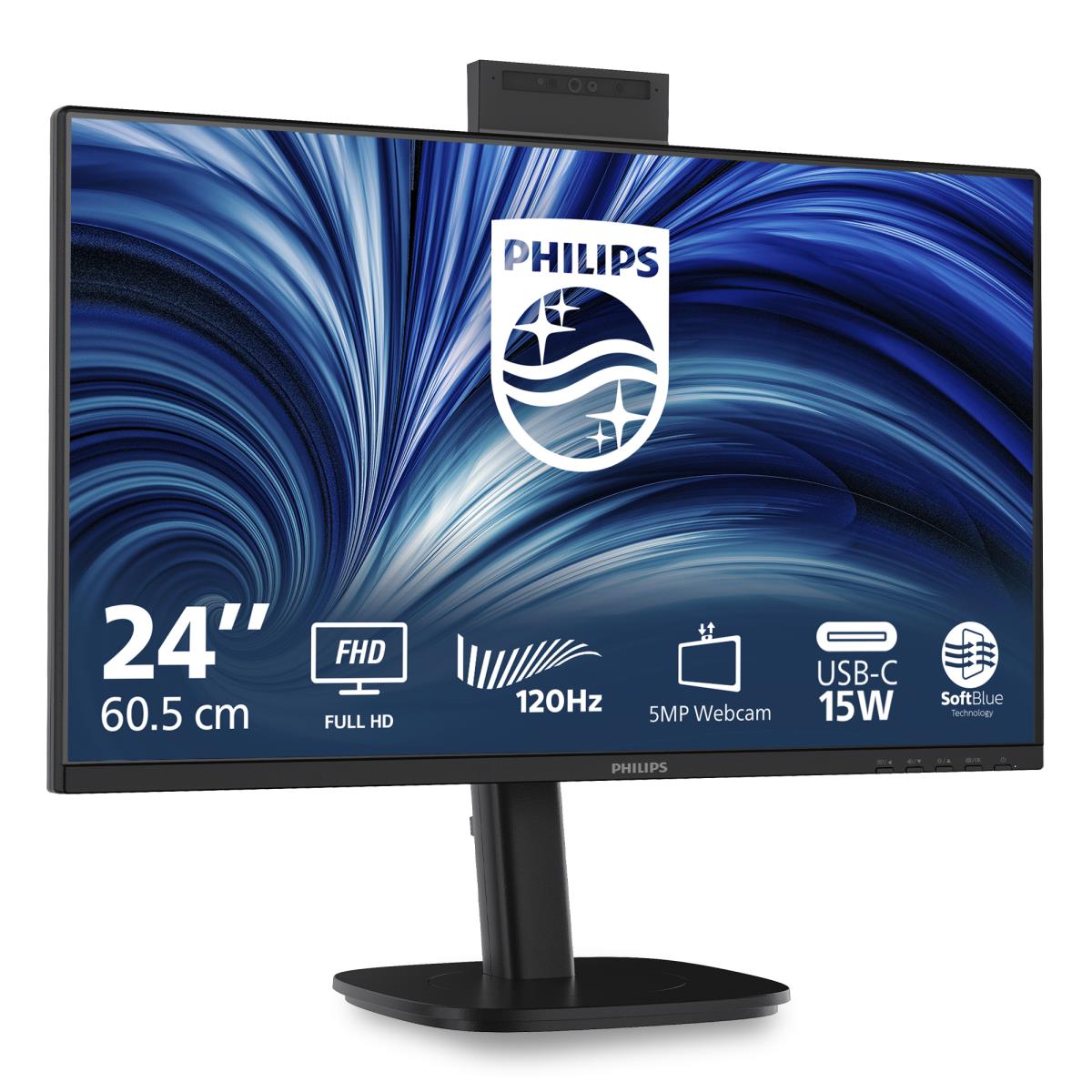

Speed through daily tasks in comfort with this monitor's SoftBlue technology and 120Hz refresh rate. Productivity-enhancing features like USB-C and adjustable webcam with Windows Hello deliver the performance and convenience you expect.
Display
Display panel size
23.8 inch / 60.47 cm
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
IPS
LED backlight
Yes
Backlight type
W-LED
Touchscreen
No
Display brightness (typical)
300 cd/m²
Response time
4 ms
Response time measurement type
GTG (Gray to Gray)
Anti-glare screen
Yes
Screen shape
Flat
Contrast ratio (typical)
1500:1
Contrast ratio (dynamic)
50000000:1
Dynamic contrast ratio marketing name
SmartContrast
Maximum refresh rate
120 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.2745 x 0.2745 mm
Pixel density
93 ppi
Horizontal scan range
30 - 85 kHz
Vertical scan range
48 - 75 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Digital horizontal frequency
30 - 140 kHz
Digital vertical frequency
48 - 120 Hz
Sync-on-green (SOG)
Yes
Display diagonal (metric)
60.47 cm
DDC/CI
Yes
Haze rate
25%
Surface hardness
3H
Colour depth
8 bit
Colour gamut standard
NTSC, sRGB
sRGB coverage (typical)
110%
NTSC coverage (typical)
96%
Display sRGB
Yes
Performance
VESA Adaptive Sync support
Yes
NVIDIA G-SYNC
No
AMD FreeSync
No
Component video sync
Separate Sync, Sync-on-green (SOG)
Flicker-free technology
Yes
Multimedia
Megapixel (approx.)
5 MP
Built-in microphone
Yes
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Built-in camera
Yes
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
Feet colour
Black

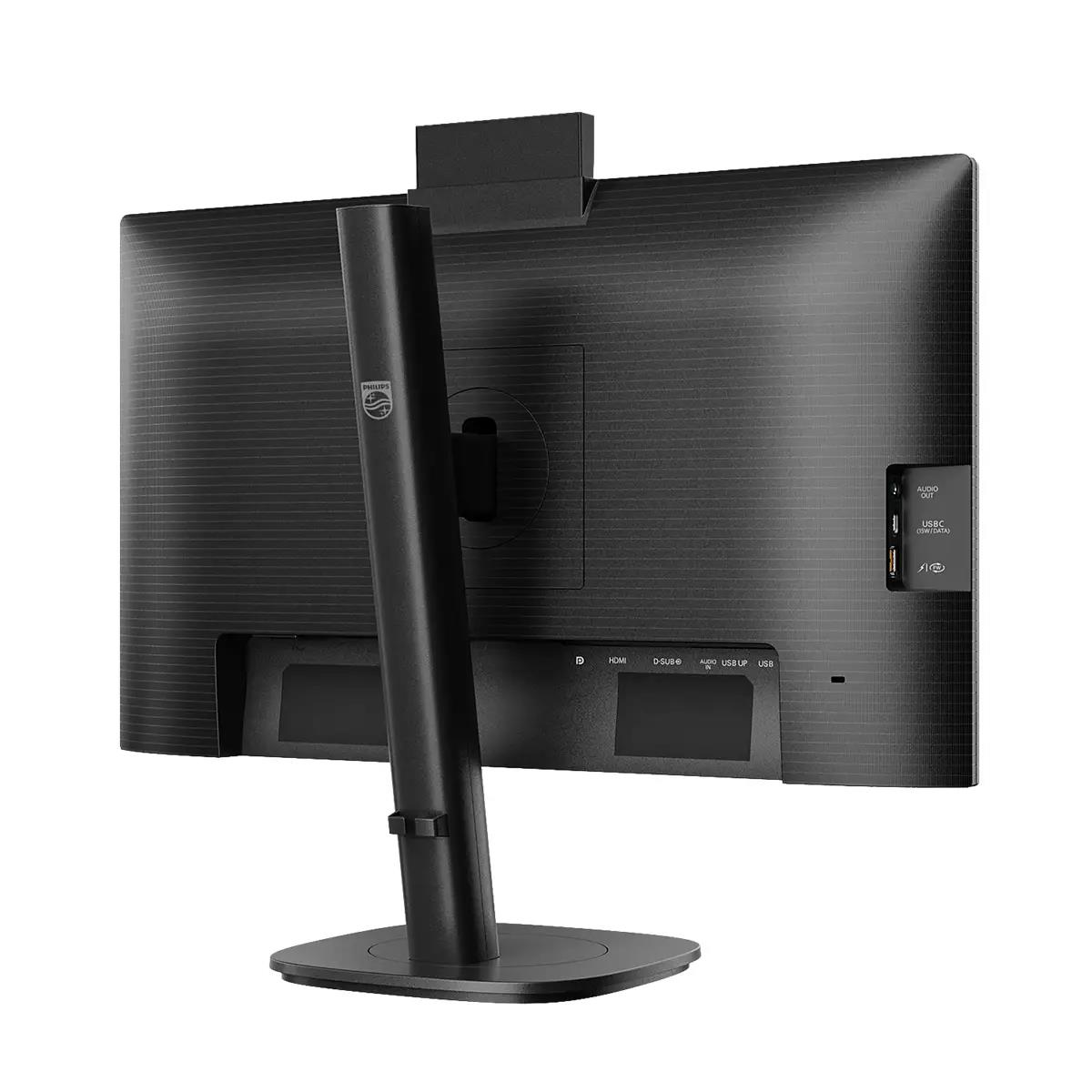

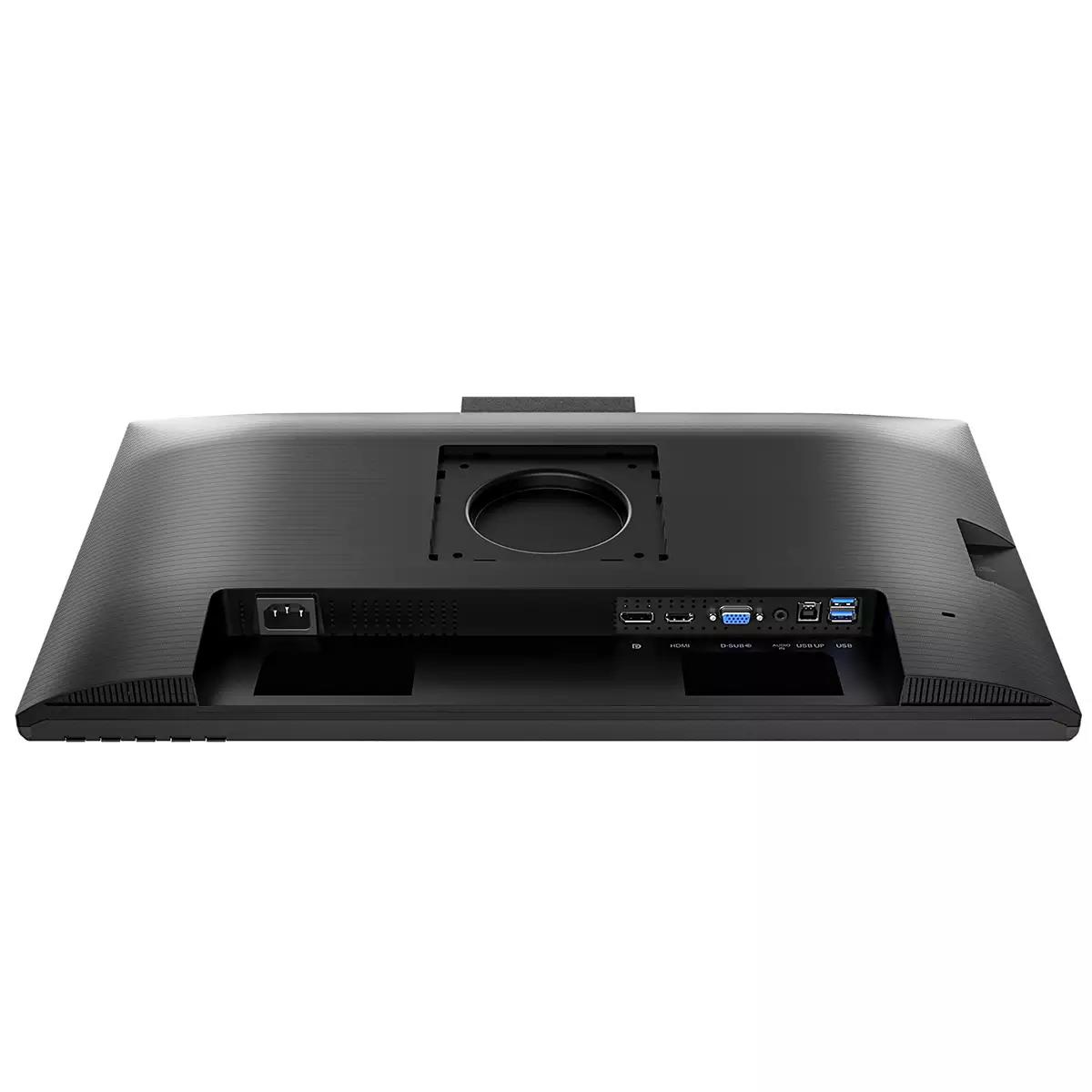

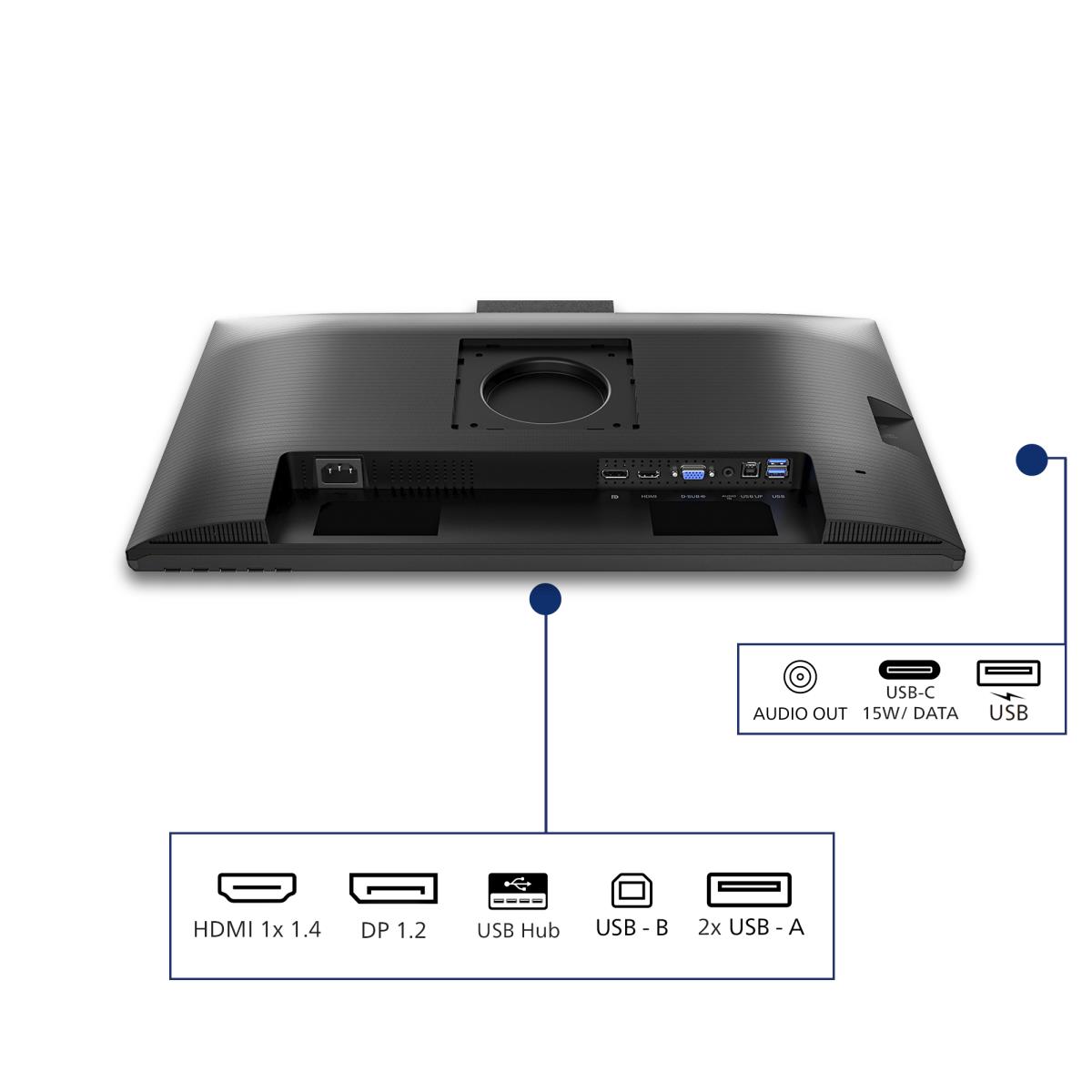

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B
Number of USB Type-B upstream ports quantity
1
USB Type-A downstream ports quantity
4
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.2
Audio input
Yes
Audio output
Yes
HDCP
Yes
HDCP version
1.4
Packaging content
Bundled software
SmartControl*; SmartManagement
Stand included
Yes
Cables included
AC, DisplayPort, HDMI
Manual
Yes
Ergonomics

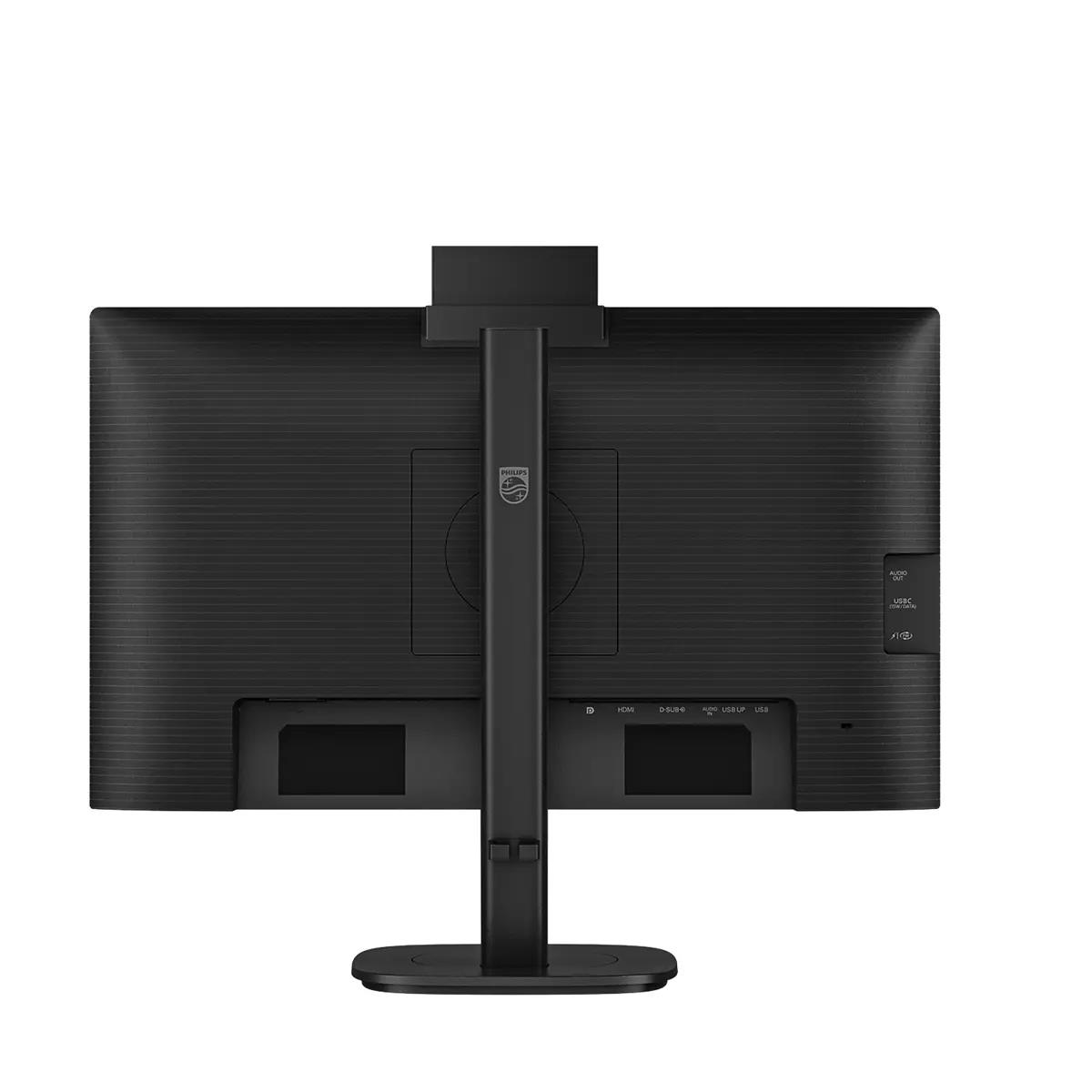

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable lock slot
Yes
Cable lock slot type
Kensington

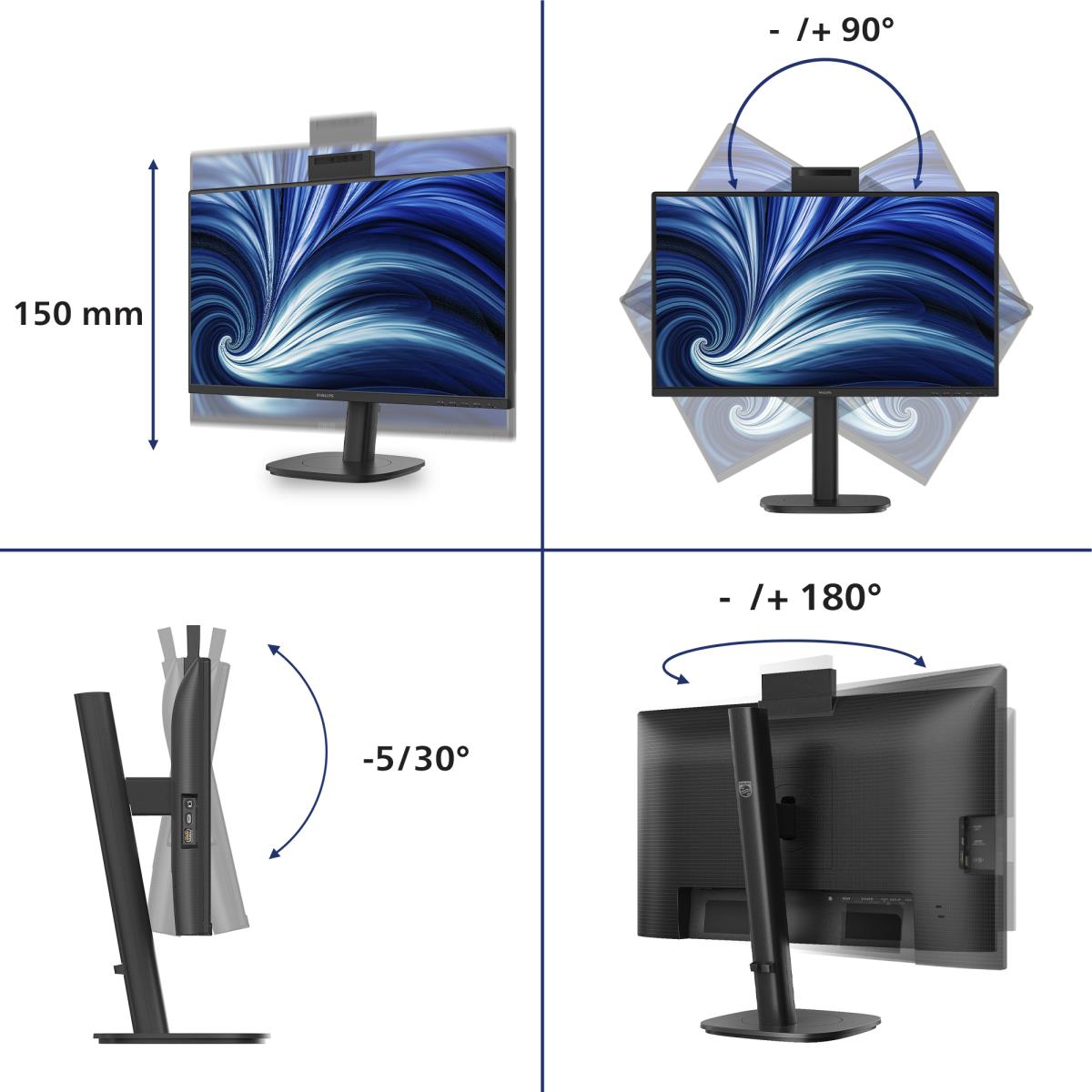

Height adjustment
Yes
Adjustable height (max)
15 cm
Pivot
Yes
Pivot angle
-90 - 90°
Swivelling
Yes
Swivel angle range
-180 - 180°

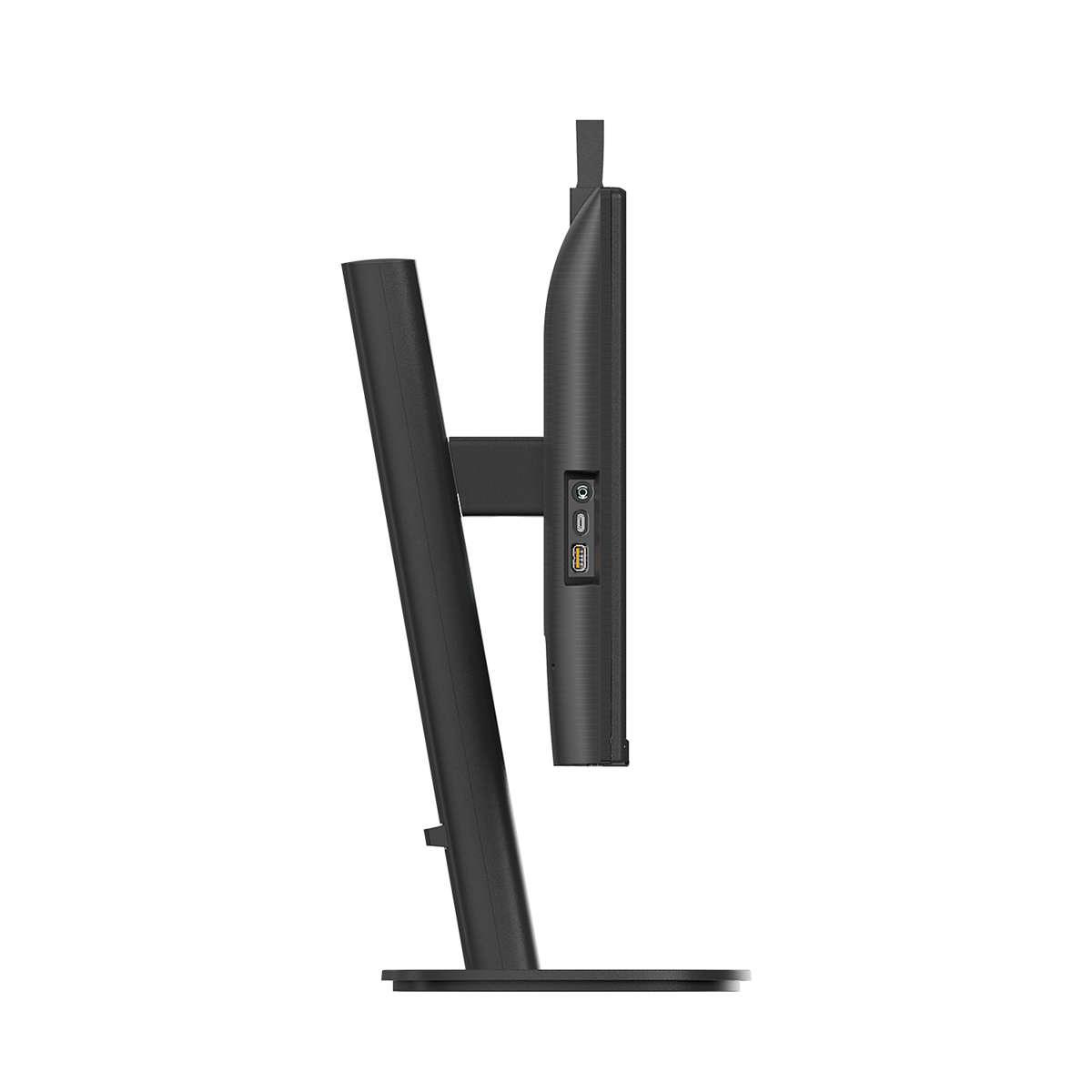

Tilt adjustment
Yes
Tilt angle range
-5 - 30°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages
21
Plug and Play
Yes
LED indicators
Operation, Stand-by
Power
Energy efficiency class (SDR)
C
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
11 kWh
Power consumption (typical)
13.09 W
Power consumption (standby)
0.3 W
Power consumption (off)
0.3 W
Power consumption (PowerSave)
7.6 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating altitude
0 - 3658 m
Non-operating altitude
3658 - 12192 m
Weight & dimensions
Width (with stand)
542 mm
Depth (with stand)
228 mm
Height (with stand)
499 mm
Weight (with stand)
5.59 kg
Width (without stand)
542 mm
Depth (without stand)
48 mm
Height (without stand)
320 mm
Weight (without stand)
3.93 kg
Packaging data
Package width
615 mm
Package depth
139 mm
Package height
420 mm
Package weight
7.73 kg
Other features
Compatible operating systems
DDC CI; Mac OS; Windows 11 / 10
Monitor sync input signal
Separate Sync; Sync on Green
User controls
SmartImage; Input; Brightness; Menu; Power On/Off
SoftBlue
Yes
Exterior finish type
Textured
Picture enhancement
SmartImage
Regulatory Approvals
CB, CE Mark, ETL, TUV/GS, TUV Ergo, TCO Certified, TCO Certified Edge, EAC, EAC ROHS, MEPS, PSB, UKCA, EMF, FCC, ICES-003, TÜV Rheinland Low Blue Light (Hardware Solution), eyesafe® CERTIFIED 2.0
Adaptive synchronisation
Yes
EasyRead mode
Yes
(cdm) Software / function
SmartControl
Compliance certificates
RoHS
Mean time between failures (MTBF)
70000 h
Sustainability
Sustainability certificates
ENERGY STAR, EPEAT
Doesn't contain
PVC/BFR
Recycling data
Recyclable packaging material
100%
Post-consumer recycled plastic
85%
Information
| Part Number: | 24B2N3200JH/00 |
