Product Details
Introduction

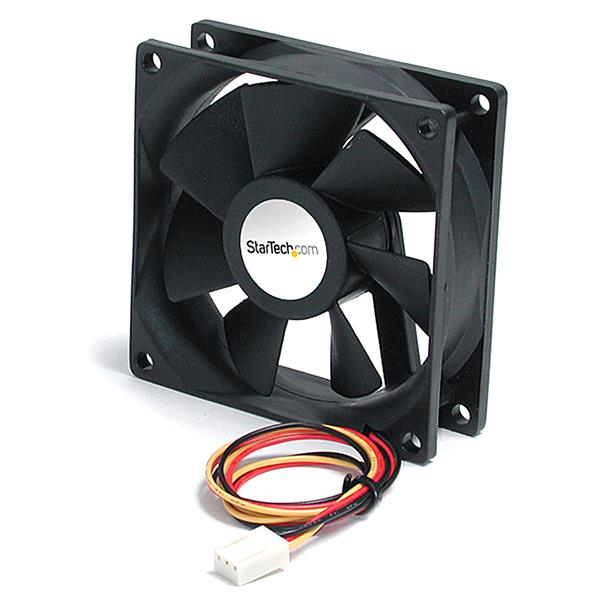

Add additional chassis cooling with a 92mm ball bearing fan
This quiet, dual ball-bearing (9.25cm) Case Fan offers a cost-effective solution for replacing a non-functional or noisy fan in your PC. Powered through a simple TX3 connection to the host computer power supply, the 8cm case fan helps keep your computer running at optimal temperatures for stable system performance.
The StarTech.com Advantage
- A dual ball bearing design ensures reliability and longer life
- A built-in tachometer allows for easy monitoring of the fan performance
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Logistics data
Master (outer) case width
364 mm
Master (outer) case length
590 mm
Master (outer) case height
216 mm
Products per master (outer) case
100 pc(s)
Technical details
Compliance certificates
RoHS
Bearing technology
Ball bearing
Sustainability certificates
RoHS
Performance
Suitable location
Computer case
Type
Fan
Fan diameter
9.2 cm
Rotational speed (max)
1800 RPM
Noise level (high speed)
22 dB
Maximum airflow
31.84 cfm
Mean time between failures (MTBF)
50000 h
Operating temperature (T-T)
-10 - 80 °C
Design
Product colour
Black
Material
Plastic
Number of fans
1 fan(s)
Power
Power consumption (typical)
1.08 W
Voltage
12 V
Other features
Harmonized System (HS) code
84733080
Dimensions (WxDxH)
92 x 92 x 25 mm
Connector(s)
1 - TX3 Female
Airflow
35.7
Rotational speed
1600 RPM
Weight & dimensions
Width
25 mm
Depth
92 mm
Height
92 mm
Weight
108 g
Package width
98 mm
Package depth
144 mm
Package height
34 mm
Package weight
98 g
Information
| Part Number: | FAN9X25TX3L |
