Boardroom Docking Station | 4K HDMI | USB-C and USB-A | USB-C Power Delivery
Add docking station capabilities to a boardroom, classroom or huddle space. This laptop docking module for the StarTech.com conference table connectivity box lets you:
Access your room's display and peripherals
Charge mobile devices using the USB-A charge port
Power a supported USB-C laptop with USB Power Delivery
Dock Your Laptop
Modern office environments need to support technology more than ever, to keep laptops, phones and tablets connected. During meetings, you may need to set up video conference calls using applications such as Skype for Business or Zoom.

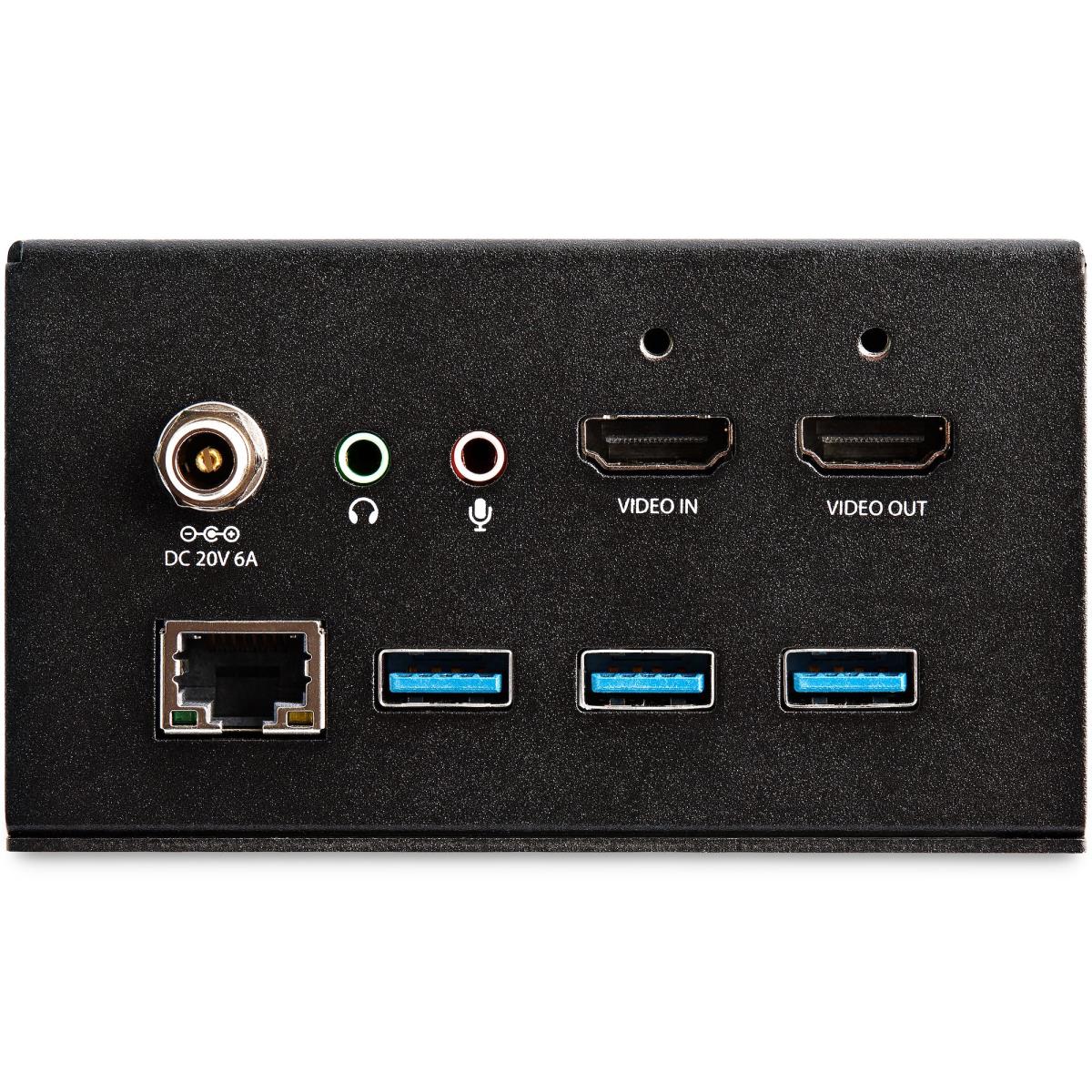

Connect a USB-C or USB-A laptop to the module and access your room's peripherals, webcams, speakers, mics, network and HDMI display. The boardroom docking station module lets you collaborate with others in the room and around the globe.

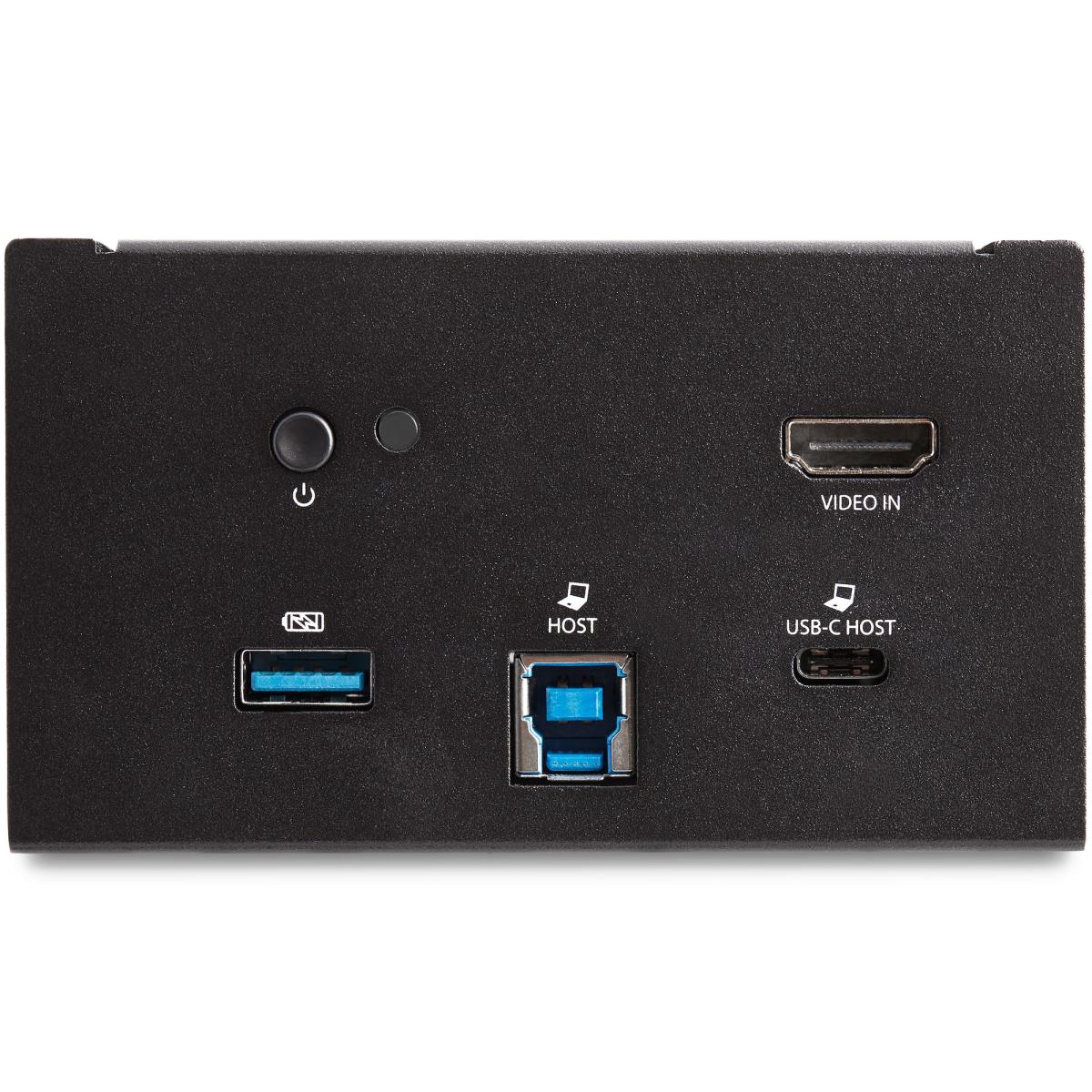

For users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display.
Customizable
Architectural connectivity is becoming the trend when designing a boardroom or huddle space. StarTech.com docking station modules let you:
Customize laptop docking according to the specific needs of your space
Install in easy-to-access locations
You can install this module as a standalone solution using the supplied table-mounting bracket, or as an addition to a StarTech.com single-module (BEZ4MOD) or dual-module (BOX4MODULE) conference room table connectivity box (each sold separately).
MOD4DOCKACPD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Easily access boardroom or huddle space devices and set up conference calls using applications such as Skype for Business
- Connect to all your boardroom peripherals from a USB-C or USB-A laptop
- Power and charge your USB-C laptop with USB Power Delivery 2.0 (up to 60W)
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733020
Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
HDMI ports quantity
3
Microphone in
Y
Combo headphone/mic port
N
Headphone outputs
1
Headphone connectivity
3.5 mm
Network
Ethernet LAN
Y
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X
Y
Full duplex
Y
Performance
Card reader integrated
N
Data transfer rate
5 Gbit/s
Maximum digital resolution
3840 x 2160 pixels
Product colour
Black
LED indicators
Power
UASP support
Y
Housing material
Aluminium, Plastic
Certification
CE, FCC, TAA, REACH
Power
AC input voltage
100 - 240 V
Input current
2 A
Output voltage
20 V
Output current
6 A
Power consumption (typical)
60 W
Power plug type
Type N
Compatible power plug types
EU,UK,US
Software
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.9 Mavericks
Other operating systems supported
Chrome
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Operating relative humidity (H-H)
20 - 80%
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Width
94 mm
Depth
12 mm
Height
61 mm
Weight
588 g
Packaging data
Package width
211 mm
Package depth
251 mm
Package height
10 mm
Package weight
2.1 kg
Packaging content
Mounting brackets included
Y
Cables included
USB Type-A to USB Type-B, USB Type-C to USB Type-C
AC adapter included
Y
Quick start guide
Y
Number of screws
12
Logistics data
Products per master (outer) case
4 pc(s)
Master (outer) case width
273 mm
Master (outer) case length
430 mm
Master (outer) case height
246 mm
Other features
Chipset
DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153
