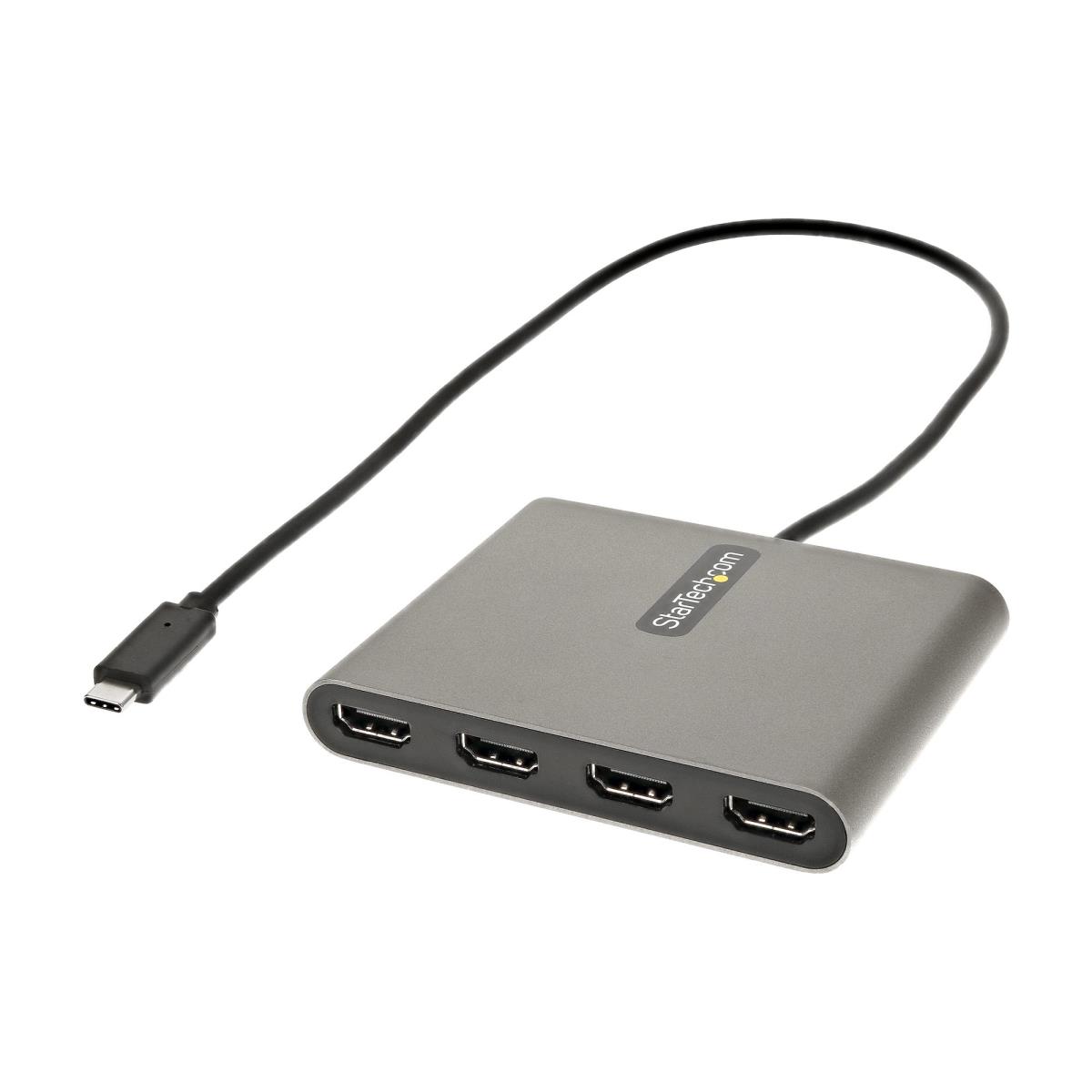

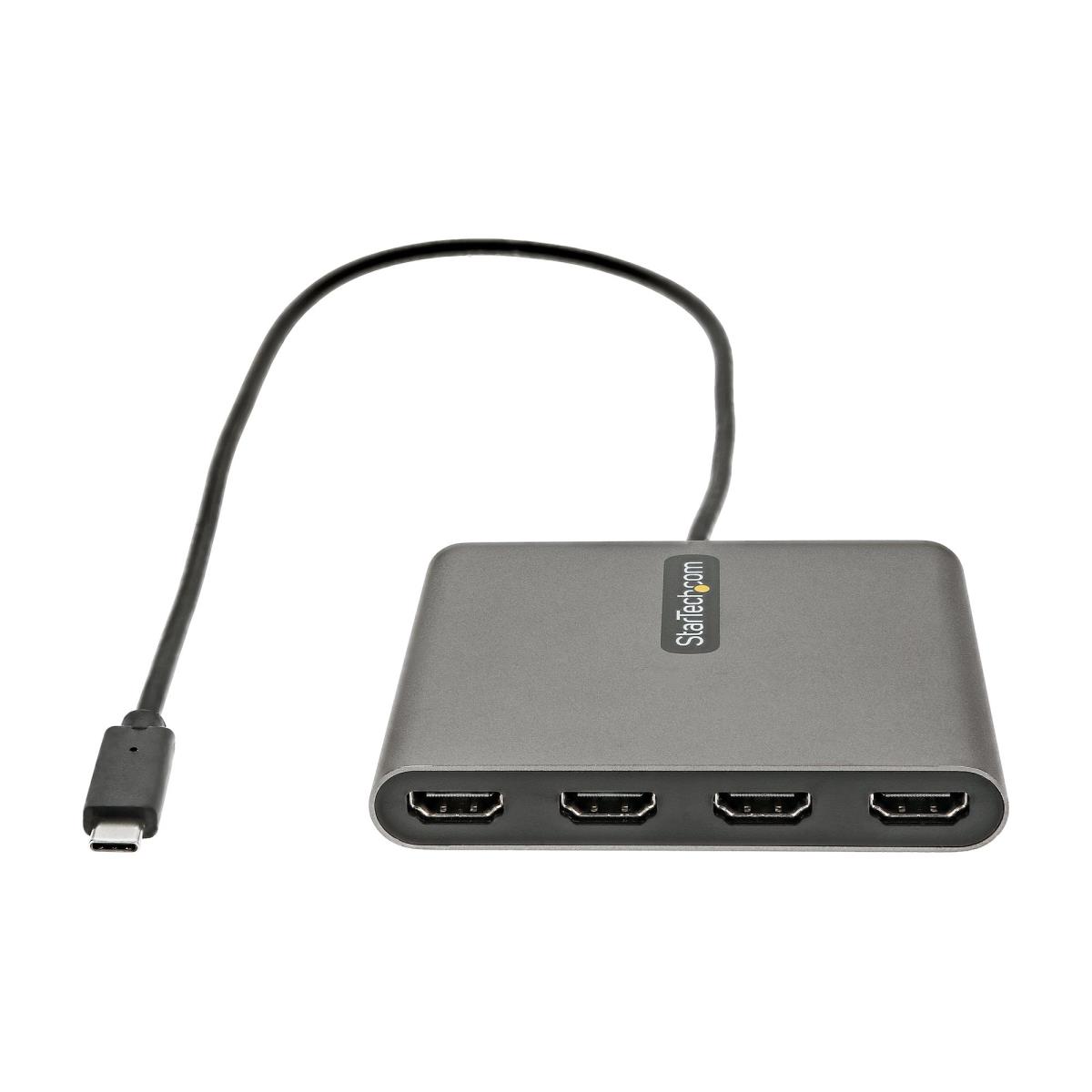

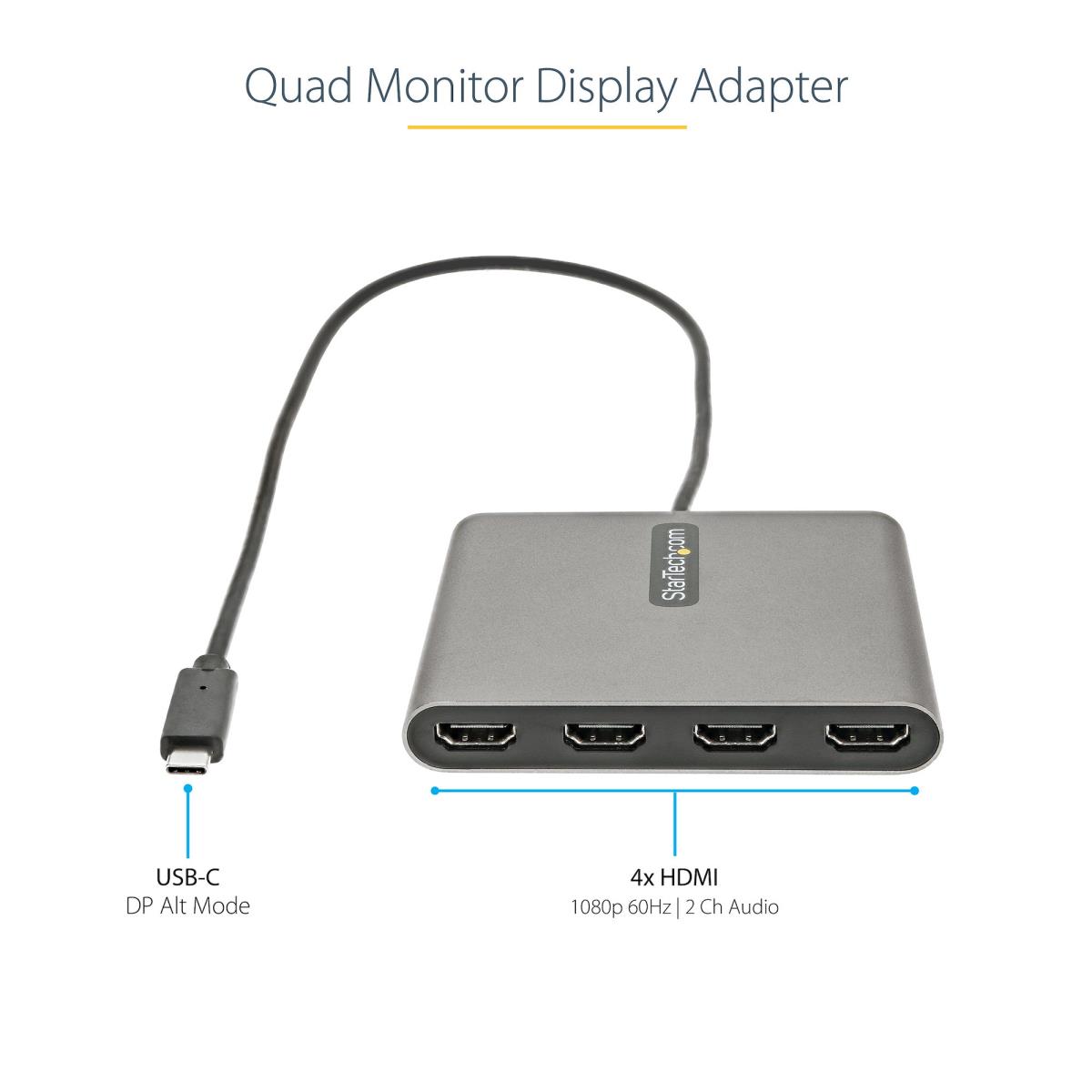

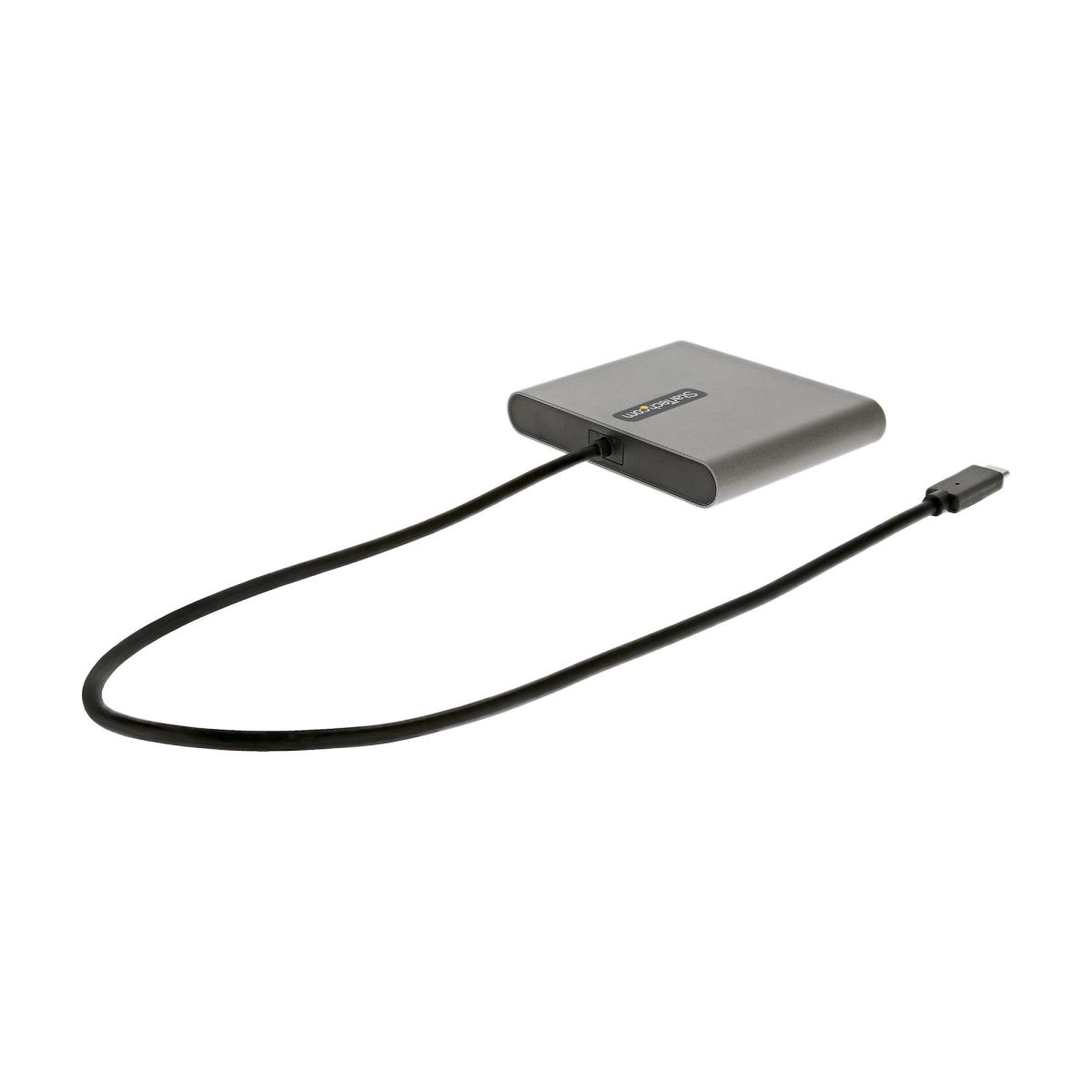

USB-C External Video Adapter | 4x 1080p | Quad MonitorThe StarTech.com Advantage
Technical details
Compliance certificates
CE, RoHS
Harmonized System (HS) code
84733020
Sustainability certificates
CE, RoHS
Performance
USB connector type
USB Type-C
USB connector gender
Male
USB connector form factor
Straight
DVI output
N
HDMI output
Y
DisplayPort output
N

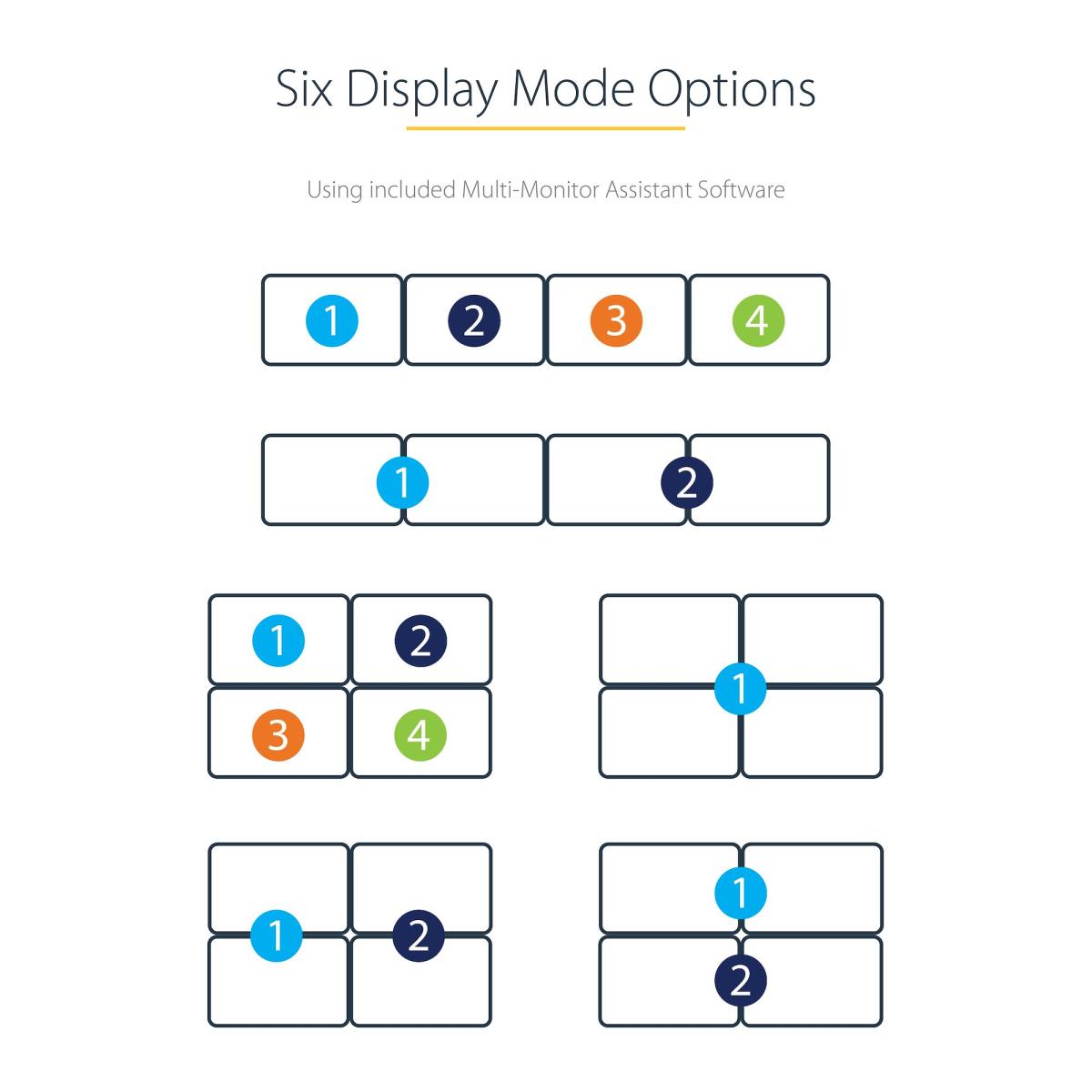

Number of displays supported
5
HDMI ports quantity
4
Maximum resolution
1920 x 1080 pixels
Refresh rate at maximum resolution
60 Hz
Audio output channels
2.0 channels
Chipset
Trigger T6-688SL, IT66121
Design
Product colour
Grey
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 x64
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 75 °C
Operating relative humidity (H-H)
0 - 85%

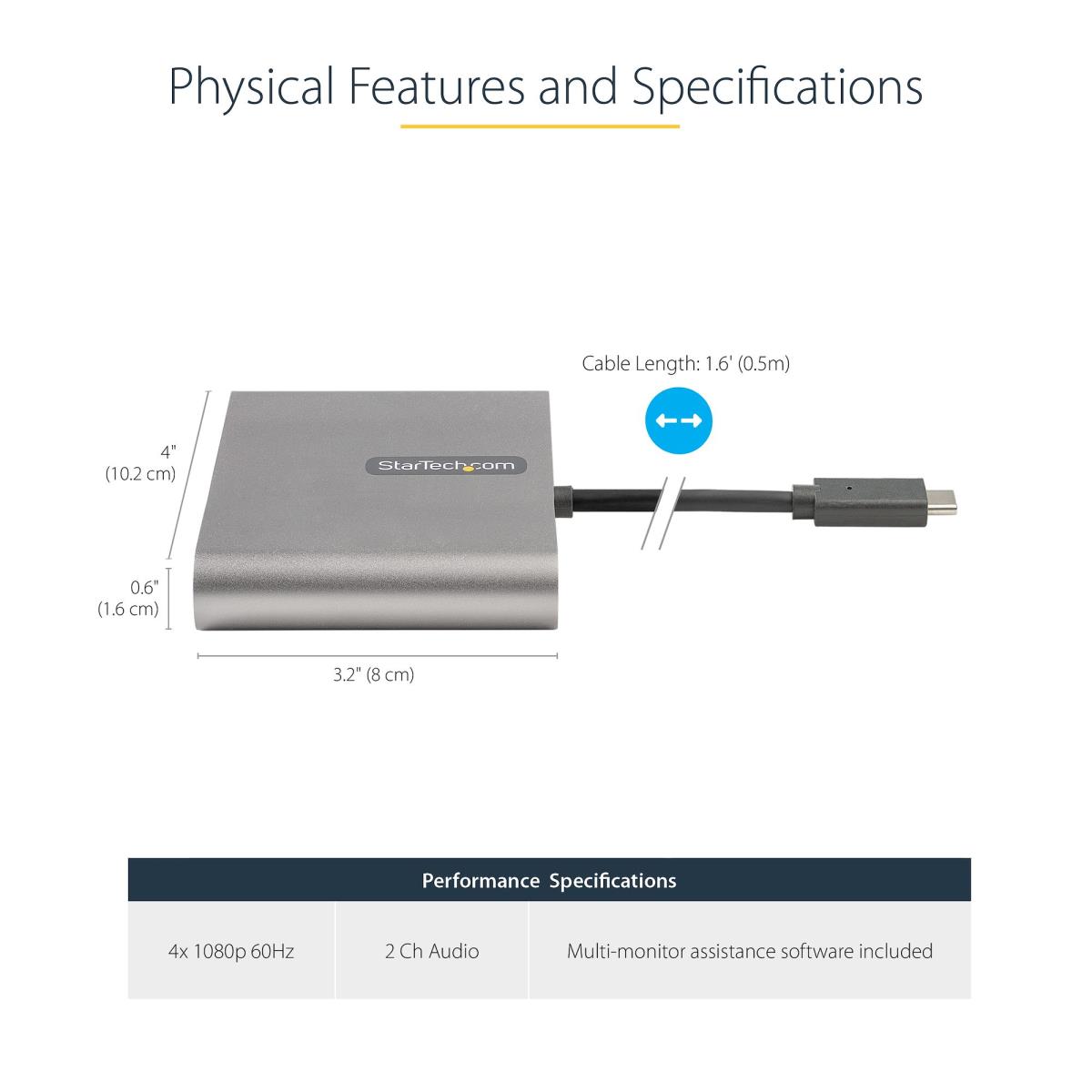

Weight & dimensions
Width
80 mm
Depth
101 mm
Height
16 mm
Weight
165 g
Package width
145 mm
Package depth
210 mm
Package height
38 mm
Package weight
268 g
Packaging content
Quick installation guide
Y
Logistics data
Products per master (outer) case
40 pc(s)
Master (outer) case width
315 mm
Master (outer) case length
445 mm
Master (outer) case height
435 mm
Information
| Part Number: | USBC2HD4 |
