Introduction

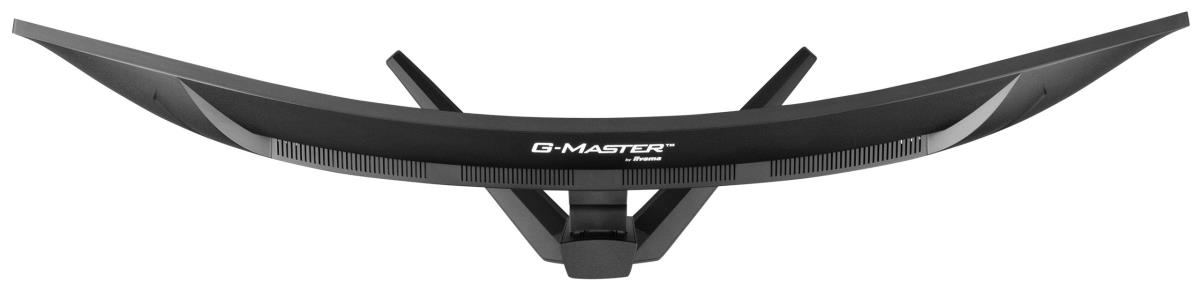

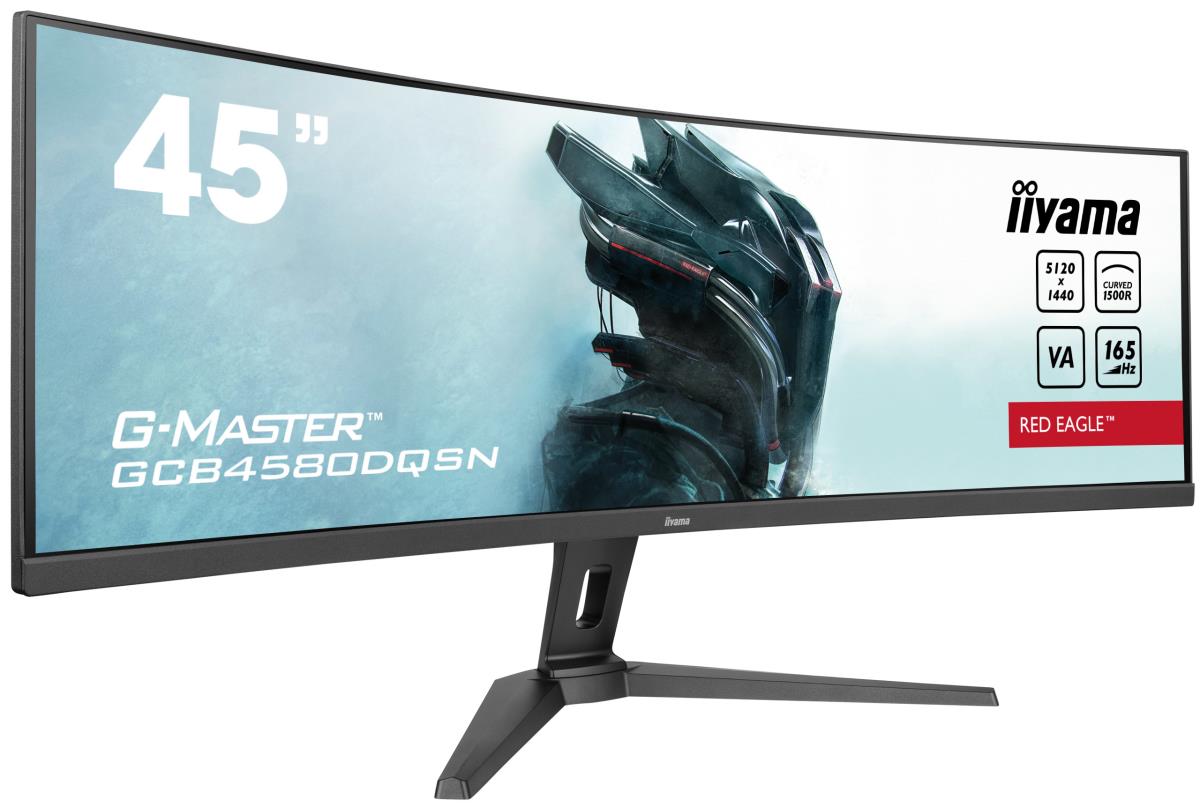

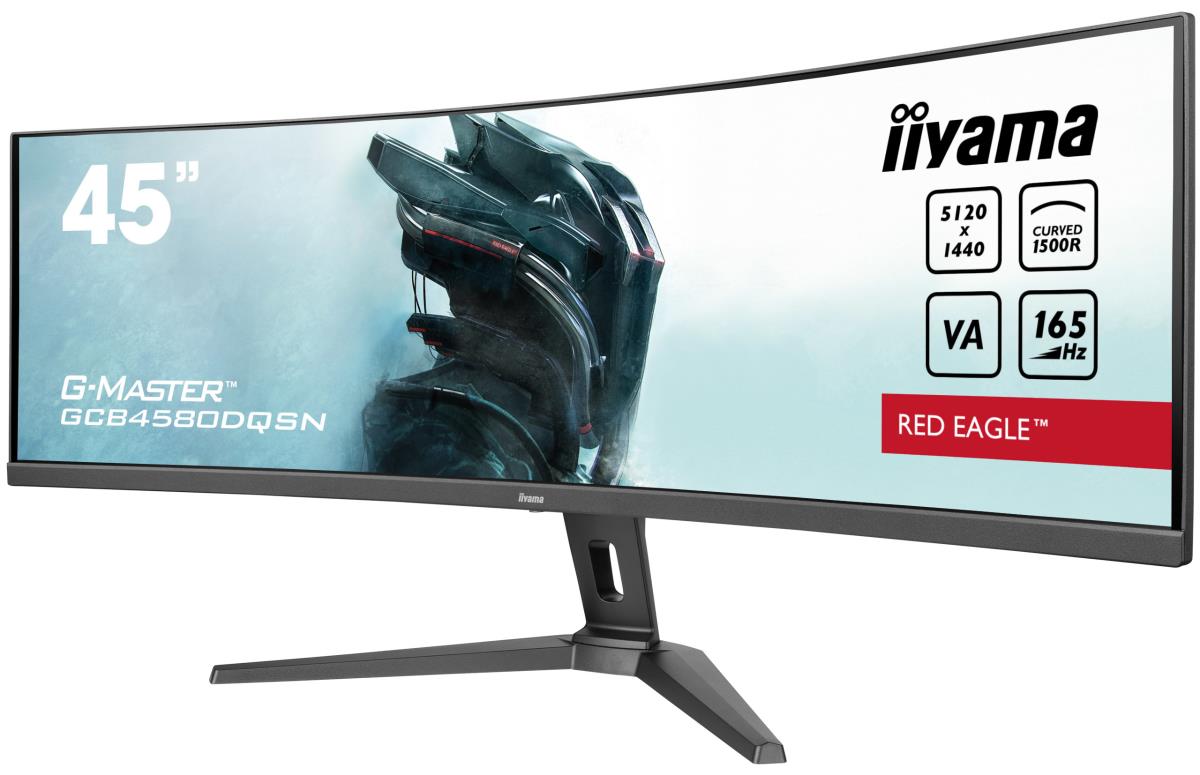

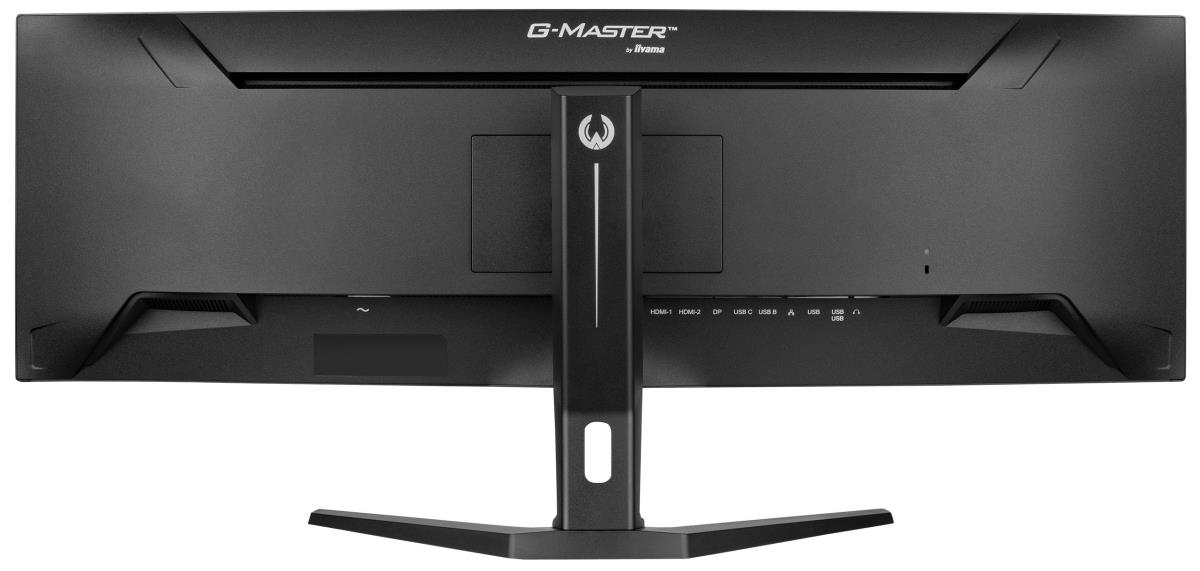

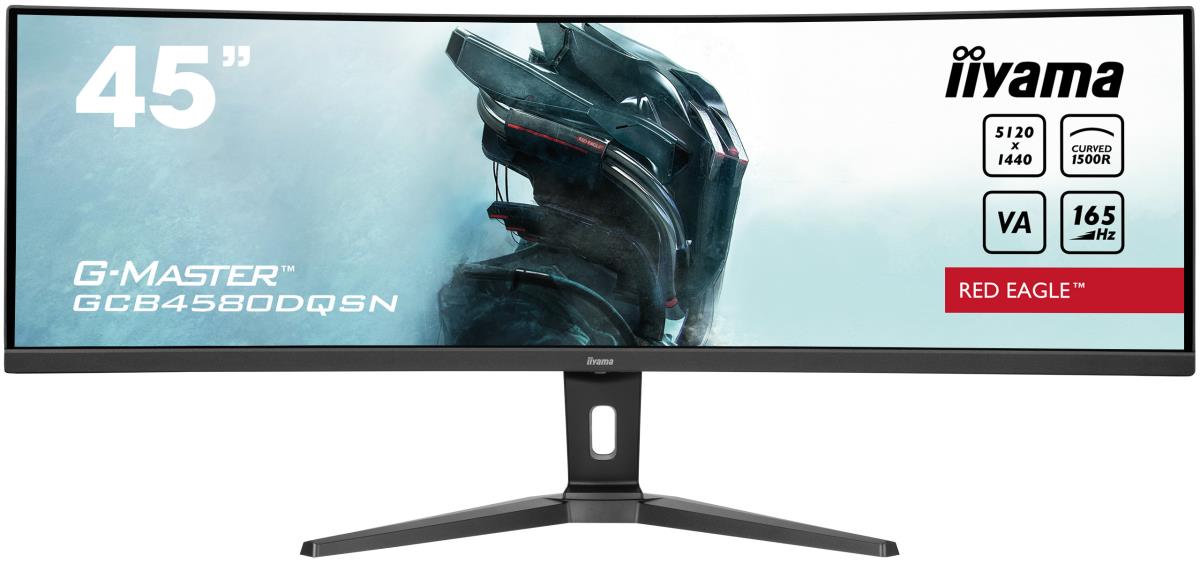

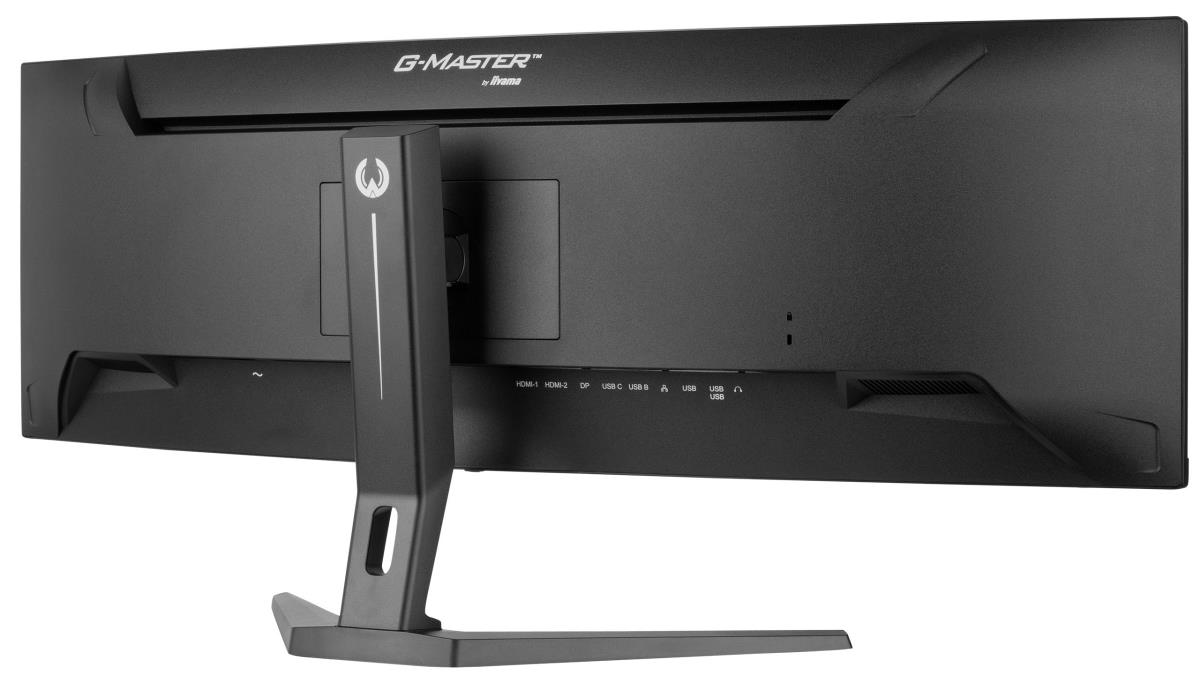

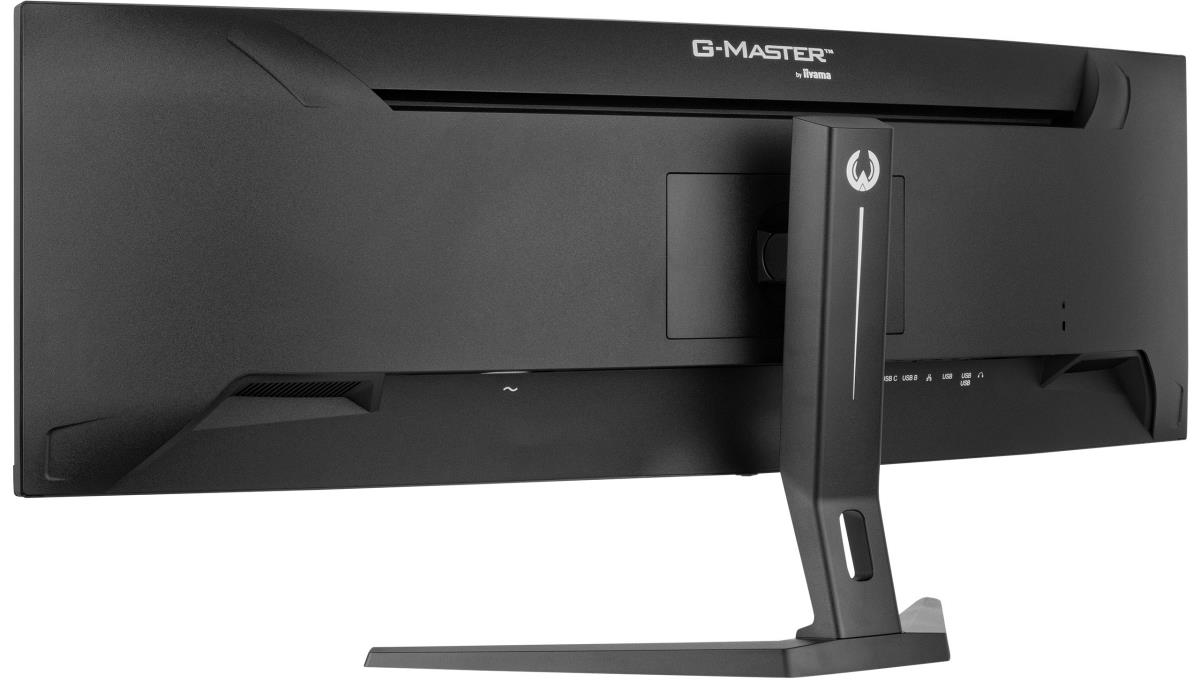

G-MASTER GCB4580DQSN-B1
Immerse yourself in the game with the curved 45’’ Dual QHD Red Eagle Gaming Display
Unleash a panoramic visual experience and immerse yourself into your gaming world with this ultra-wide DQHD 5120 x 1440 resolution 32:9 display. With 1500R curved VA panel with a 165Hz refresh rate featuring 0.8ms MPRT, delivering a high framerate and smooth yet sharp rendered images with beautiful colour, that brings your games to life.
DQHD
Ultra-wide 32:9 monitors boasting DQHD 5120 x 1440 resolution, also recognized as Dual QHD, guarantee razor-sharp images that bring your games to life. These monitors empower you to organize your gaming setup for an unparalleled gaming experience. You won't miss a single detail!
165HZ & 0.8MS MPRT
With 165Hz refresh rate and 0.8ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.
CURVED DESIGN 1500R
The 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.
VA PANEL TECHNOLOGY
Guaranteeing excellent contrast ratio making all the nuances between the light and dark colours clearly visible.
BLACK TUNER
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.
Display
Response time (MPRT)
0.8 ms
Display number of colours
16.7 million colours
Horizontal scan range
30 - 260 kHz
DDC/CI
Yes
Colour depth
8 bit
sRGB coverage (typical)
100%
NTSC coverage (typical)
80%
Aspect ratio
32:9
Product type
PC monitor
Display diagonal
114.3 cm (45")
Display resolution
5120 x 1440 pixels
HD type
Dual QHD
Native aspect ratio
32:9
Display technology
LED
Panel type
VA
Backlight type
LED
Touchscreen
No
Display brightness (typical)
450 cd/m²
Response time
0.8 ms
Display surface
Matt
Screen shape
Curved
Screen curvature rating
1500R
Contrast ratio (typical)
3000:1
Contrast ratio (dynamic)
80000000:1
Maximum refresh rate
165 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.212 x 0.212 mm
Viewable size, horizontal
30.6 cm
Viewable size, vertical
108.8 cm
Digital horizontal frequency
30 - 260 kHz
Display diagonal (metric)
113 cm
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range (HDR) 400

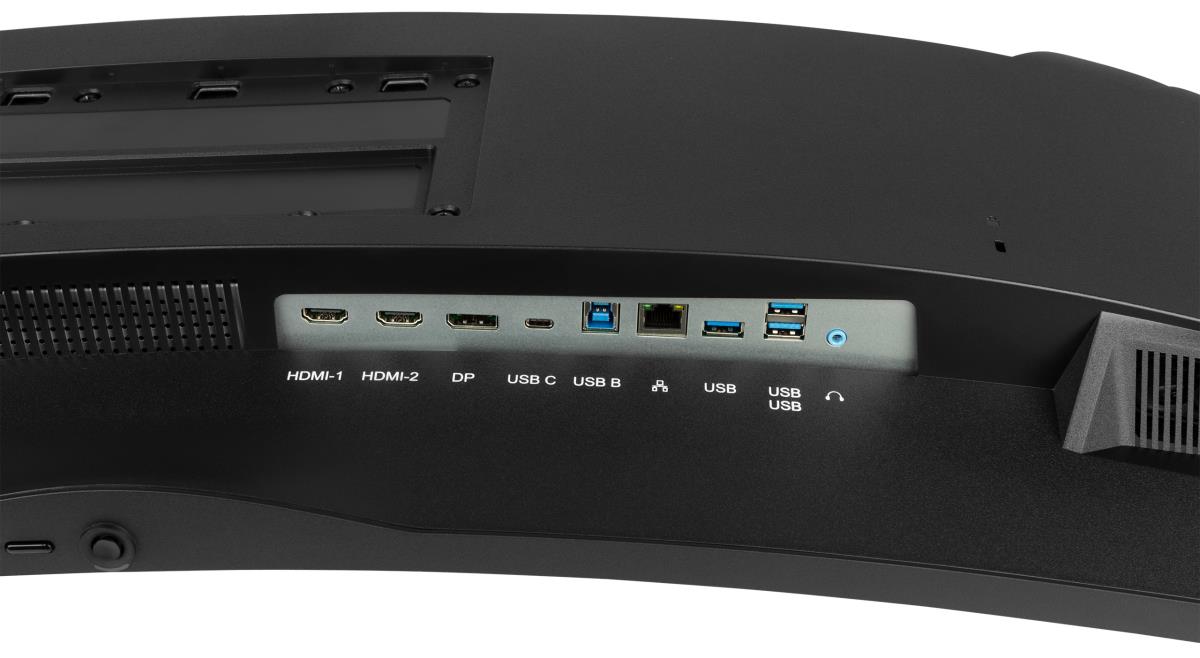

Ports & interfaces
USB upstream port type
USB Type-C
Number of USB Type-C upstream ports quantity
1
DisplayPort version
1.4
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity
3
USB Type-C downstream ports quantity
1
USB Power Delivery
Yes
USB Power Delivery up to
90 W
HDMI
Yes
HDMI ports quantity
2
DisplayPorts quantity
1
Headphone out
Yes
Headphone outputs
1
Built-in KVM switch
Yes
HDCP
Yes
Number of downstream ports
3
Ergonomics
Cable management
Yes
VESA mounting
Yes
Panel mounting interface
100 x 100,200 x 100 mm
Wall mountable
No
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
Yes
Height adjustment
13 cm
Tilt adjustment
Yes
Tilt angle range
3 - 20°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, German, English, French, Hungarian, Italian, Japanese, Polish, Russian
Number of OSD languages
9
Weight & dimensions
Height (without stand)
409 mm
Weight (without stand)
8.9 kg
Width (with stand)
1090 mm
Depth (with stand)
275 mm
Height (with stand)
409 mm
Weight (with stand)
11.2 kg
Performance
AMD FreeSync
Yes
Brand specific technologies
Black Equalizer, Eye Saver
ConnectShare (USB)
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
Packaging data
Package width
1260 mm
Package depth
1260 mm
Package height
470 mm
Package weight
16.4 kg
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
6 W
Design
Market positioning
Gaming
Product colour
Black
Detachable stand
Yes
Feet colour
Black
Other features
Display
LED
Power
37 W
Resolution
5120 x 1440 pixels
Package weight
16400 kg
Net weight
11.2 kg
Weight
11.2 kg
Height
409 mm
Width
1090 mm
Depth
275 mm
Volume control
Buttons
Weight
11.2 kg
User controls
picture (brightness, contrast, Black Tuner, Sharpness, OD, Adv. Contrast, Night Mode, X-Res Technology), colour (warm, normal, cool, user colour, blue light reducer, gamma), input select, PBP (PBP mode, sub win input, PBP Swap, audio input), audio (volume, mute), i-Style Mode, language, OSD settings (OSD H. position, OSD V. position, OSD background, OSD time out, information), setup menu (memory recall, MST, DSC, HDMI, KVM, USB-C, USB BC, video adjust mode, HDMI RGB range, direct drive, Adaptive Sync, MBR, HDR, opening logo, LED)
Packaging content
quick start guide, safety guide
Control panel
navigation button: Menu/Execution, Down (i-Style Colour), Up (Input Select), Right (Volume), Left (Night Mode), Power
Ethernet LAN (RJ-45) ports
1
Compliance certificates
CE, PSE, REACH, RoHS, cTUVus, UKCA, VCCI, WEEE
Network
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
37 kWh
Energy consumption (HDR) per 1000 hours
67 kWh
Power consumption (typical)
37 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
External
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Packaging content
Stand included
Yes
Cables included
DisplayPort, HDMI, Power, USB
Power adapter included
Yes
Quick start guide
Yes
Manual
Yes
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, ErP, PSE, REACH, RoHS, TUV, UKCA, VCCI, WEEE
European Product Registry for Energy Labelling (EPREL) code
1774067
Technical details
Native refresh rate
60 Hz
