Product Details
Introduction

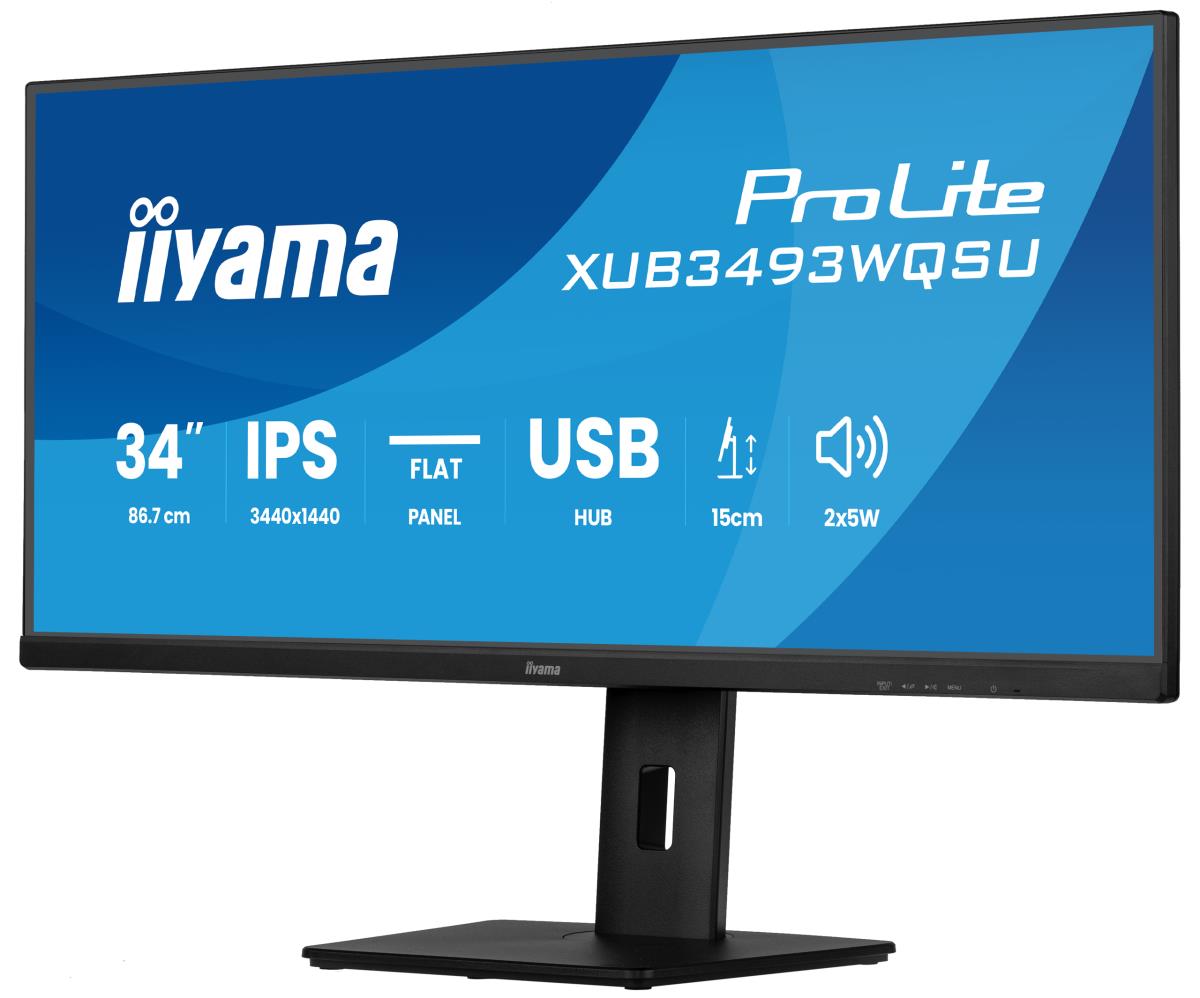

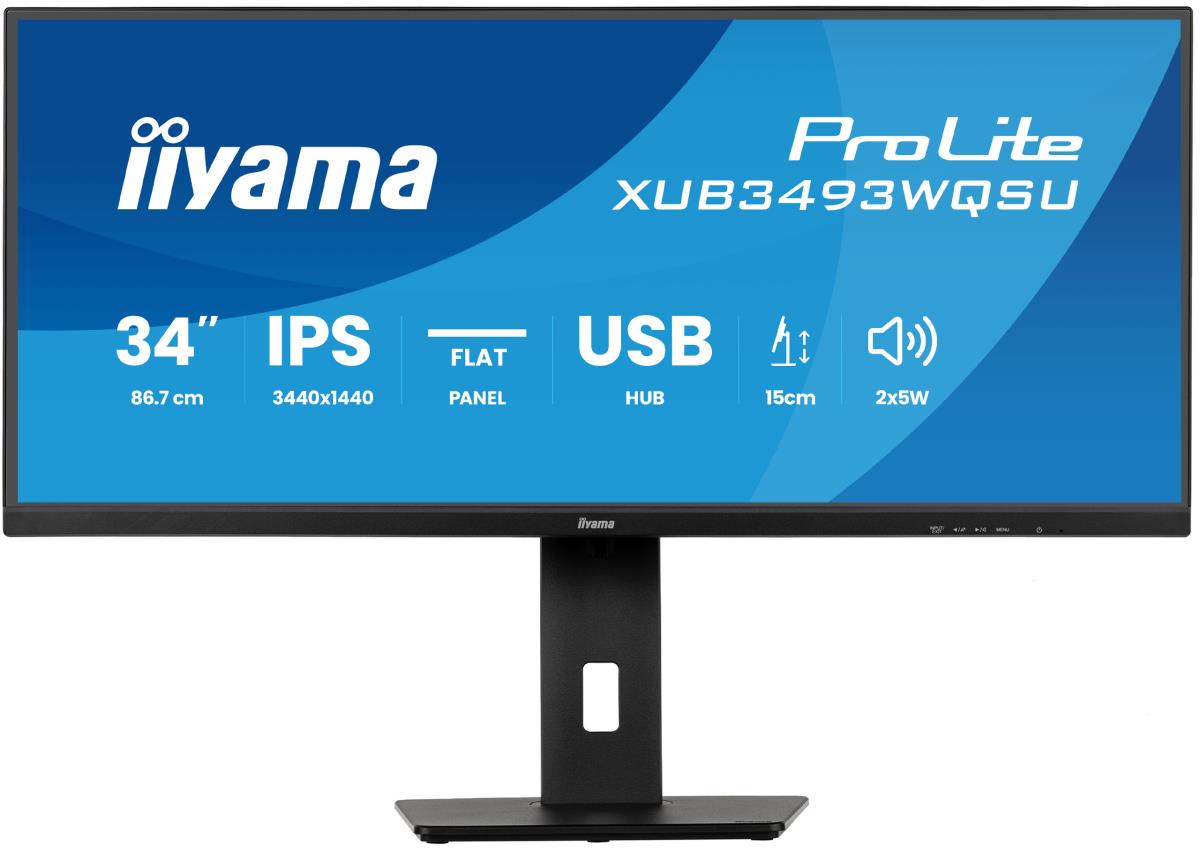

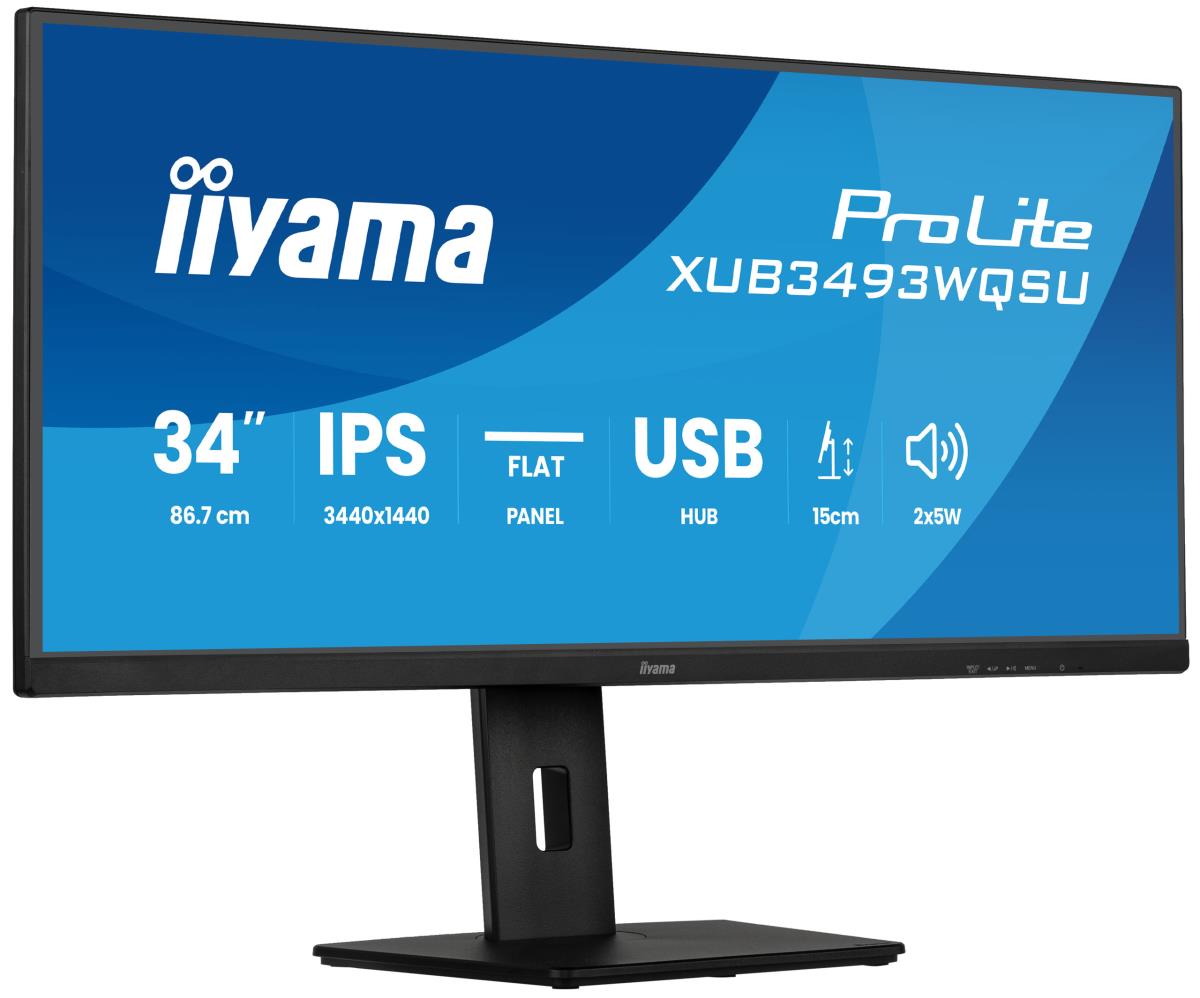

With a 21:9 UWQHD resolution, the ProLite XUB3493WQSU provides an extended desktop space ideal for working with multiple applications side by side. The IPS panel ensures accurate colour reproduction and wide viewing angles, suitable for both detailed work and media consumption. Equipped with Picture-in-Picture (PiP) and Picture-by-Picture (PbP) functionalities, the monitor allows you to display content from two different sources simultaneously. This is especially useful for professionals who need to monitor multiple systems or compare data across devices without the need for a second screen. The 150 mm height-adjustable stand helps you maintain an ergonomic posture, while flicker-free technology and a blue light reducer contribute to reduced eye fatigue. The XUB3493WQSU offers a practical and flexible solution for users who value efficiency, clarity, and comfort.
Display
Display diagonal
86.4 cm (34")
Display resolution
1440 x 3440 pixels
HD type
UltraWide Quad HD
Native aspect ratio
21:9
Display technology
LED
Panel type
IPS
Touchscreen
No
Display brightness (typical)
400 cd/m²
Response time
1 ms
Response time (MPRT)
1 ms
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
80000000:1
Maximum refresh rate
120 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.233 x 0.233 mm
Horizontal scan range
30 - 185 kHz
Viewable size, horizontal
33.5 cm
Viewable size, vertical
80 cm
Display diagonal (metric)
86.7 cm
High Dynamic Range (HDR) supported
Yes
Colour gamut standard
NTSC, sRGB
sRGB coverage (typical)
100%
NTSC coverage (typical)
74%
DDC/CI
Yes
Colour depth
8 bit
Performance
VESA Adaptive Sync support
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
AMD FreeSync
Yes
Multimedia
Number of speakers
2
RMS rated power
10 W
Built-in speaker(s)
Yes
Design
Market positioning
Business
Product colour
Black

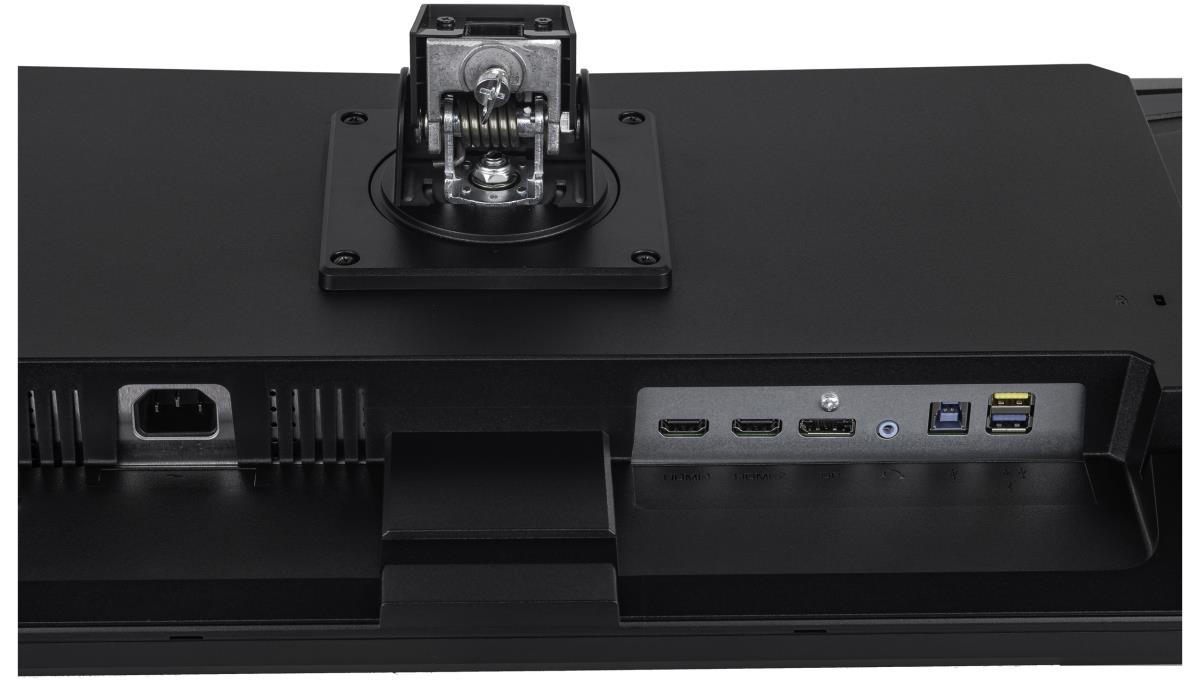

Ports & interfaces
Built-in USB hub
Yes
USB upstream port type
USB Type-A, USB Type-C
Number of USB Type-C upstream ports quantity
2
USB Type-A downstream ports quantity
2
HDMI
Yes
HDMI ports quantity
2
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort out version
1.2
HDCP
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Number of downstream ports
4
Ergonomics

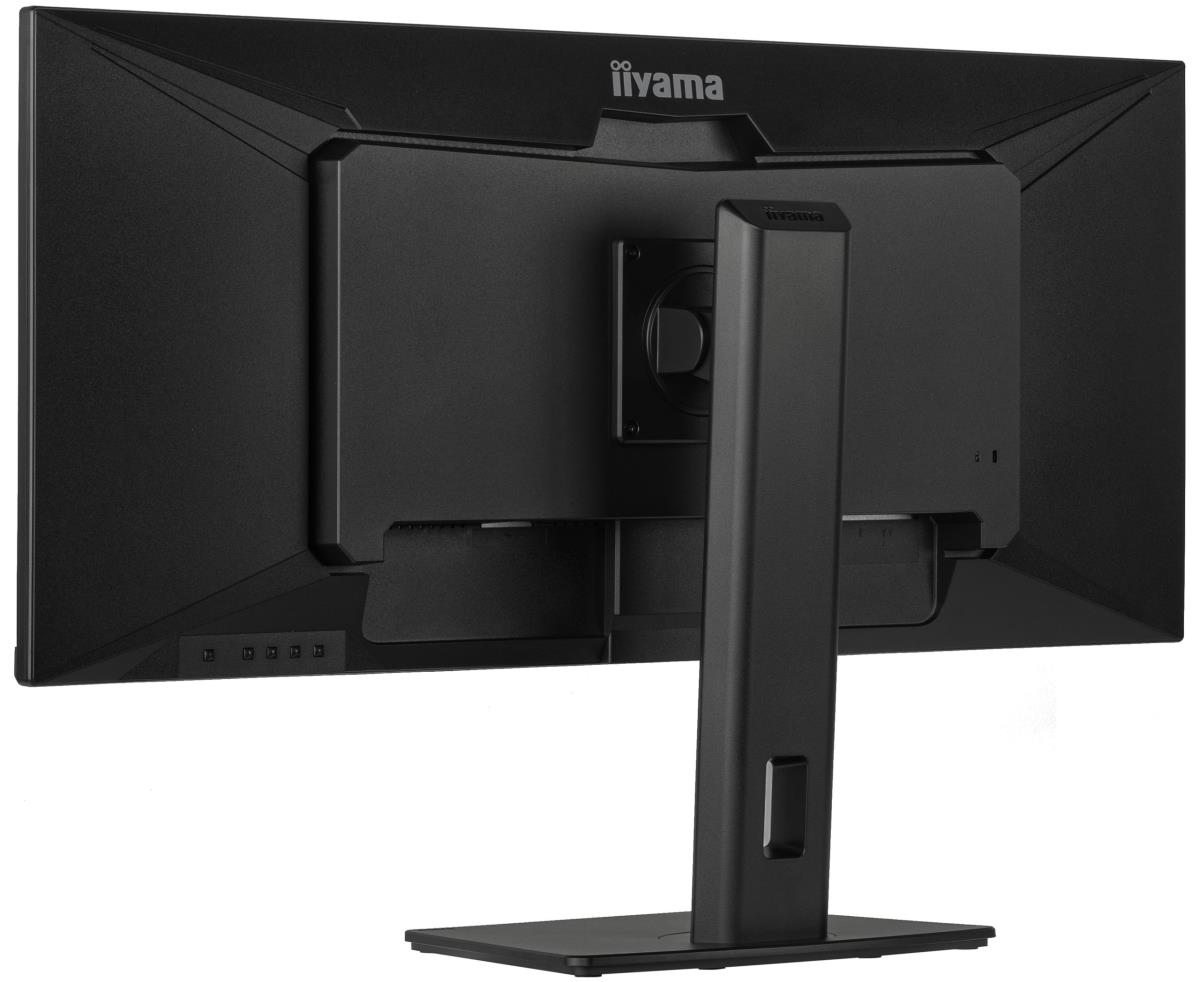

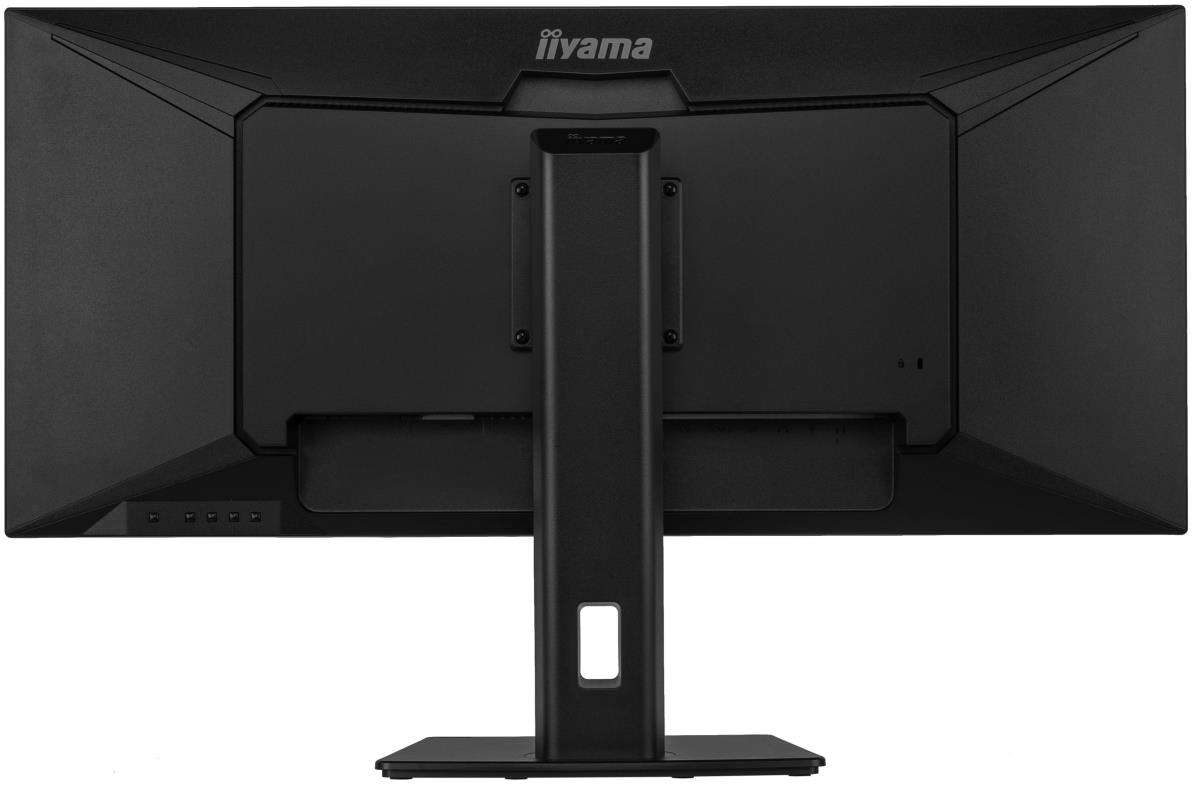

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

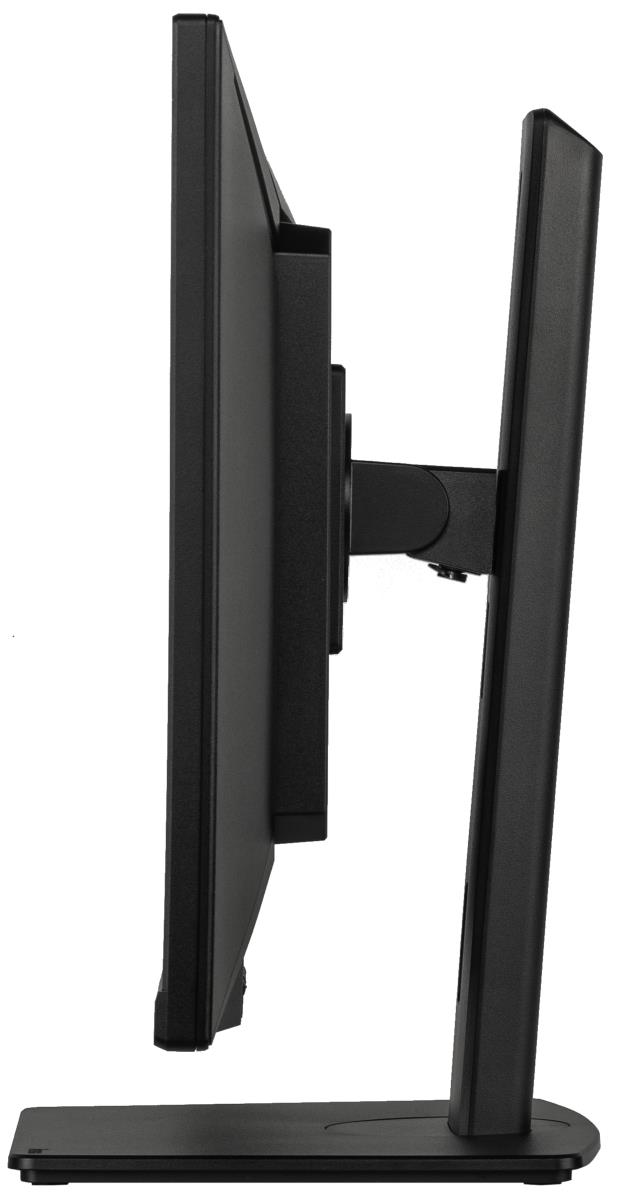

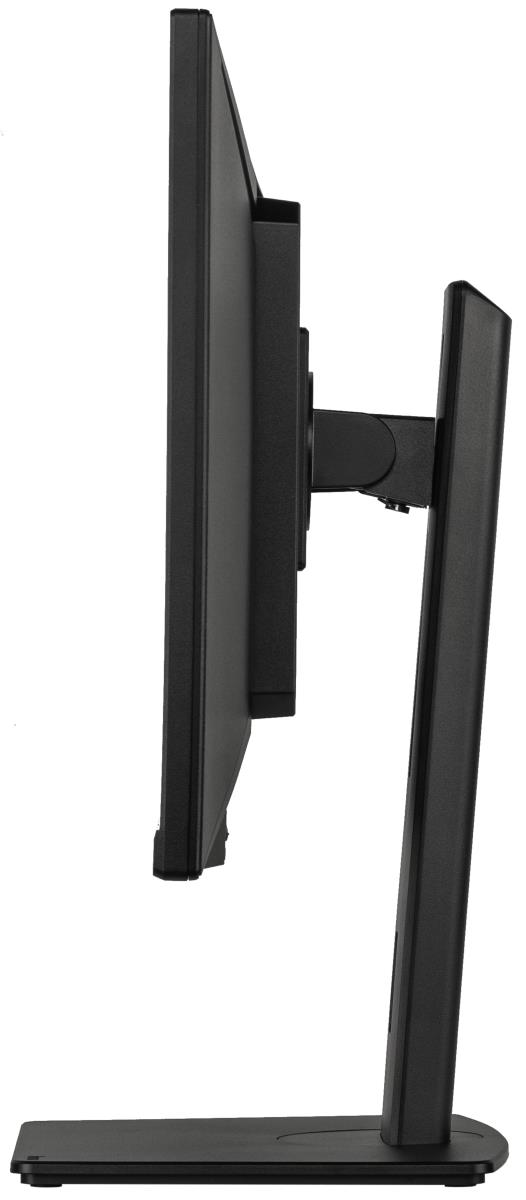

Height adjustment
Yes
Adjustable height (max)
15 cm
Swivelling
Yes
Swivel angle range
45 - 90°

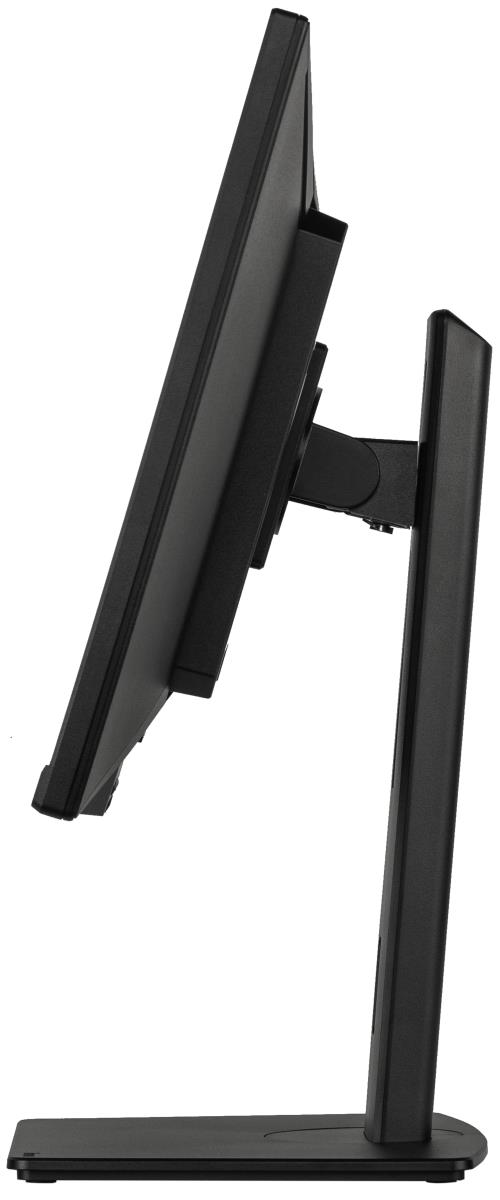

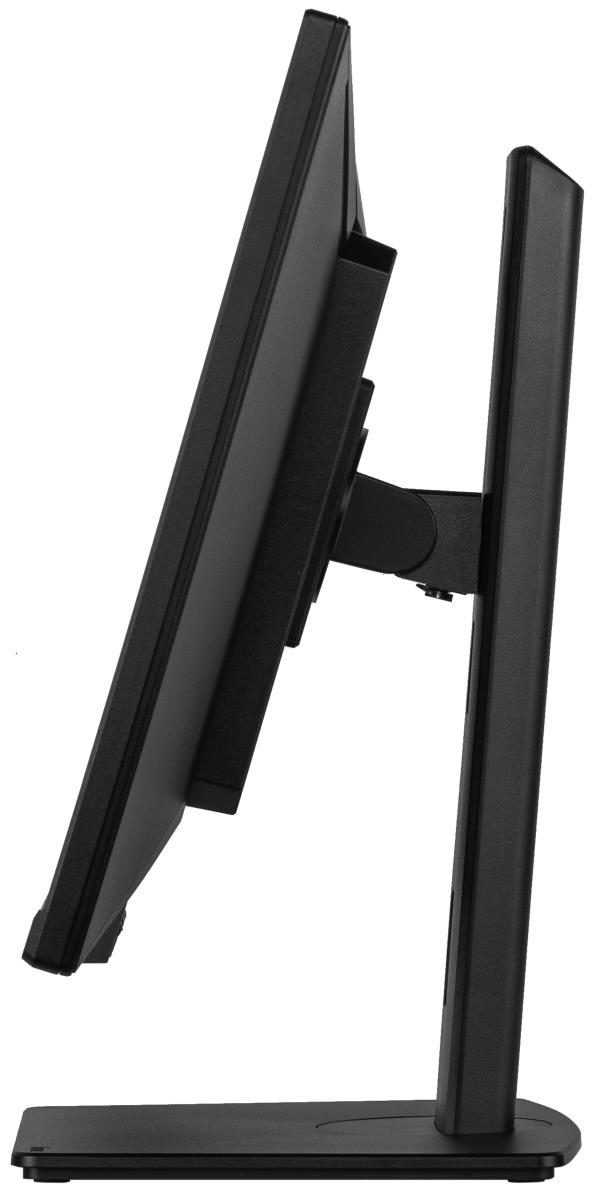

Tilt adjustment
Yes
Tilt angle range
5 - 23°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
31 kWh
Energy consumption (HDR) per 1000 hours
40 kWh
Power consumption (typical)
44 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Weight & dimensions
Width (with stand)
817 mm
Depth (with stand)
245.5 mm
Height (with stand)
572.5 mm
Weight (with stand)
9.6 kg
Width (without stand)
817 mm
Depth (without stand)
245.5 mm
Height (without stand)
428.5 mm
Packaging data
Package width
900 mm
Package depth
456 mm
Package height
188 mm
Package weight
11.9 kg
Package type
Box
Technical details
Native refresh rate
60 Hz
Packaging content

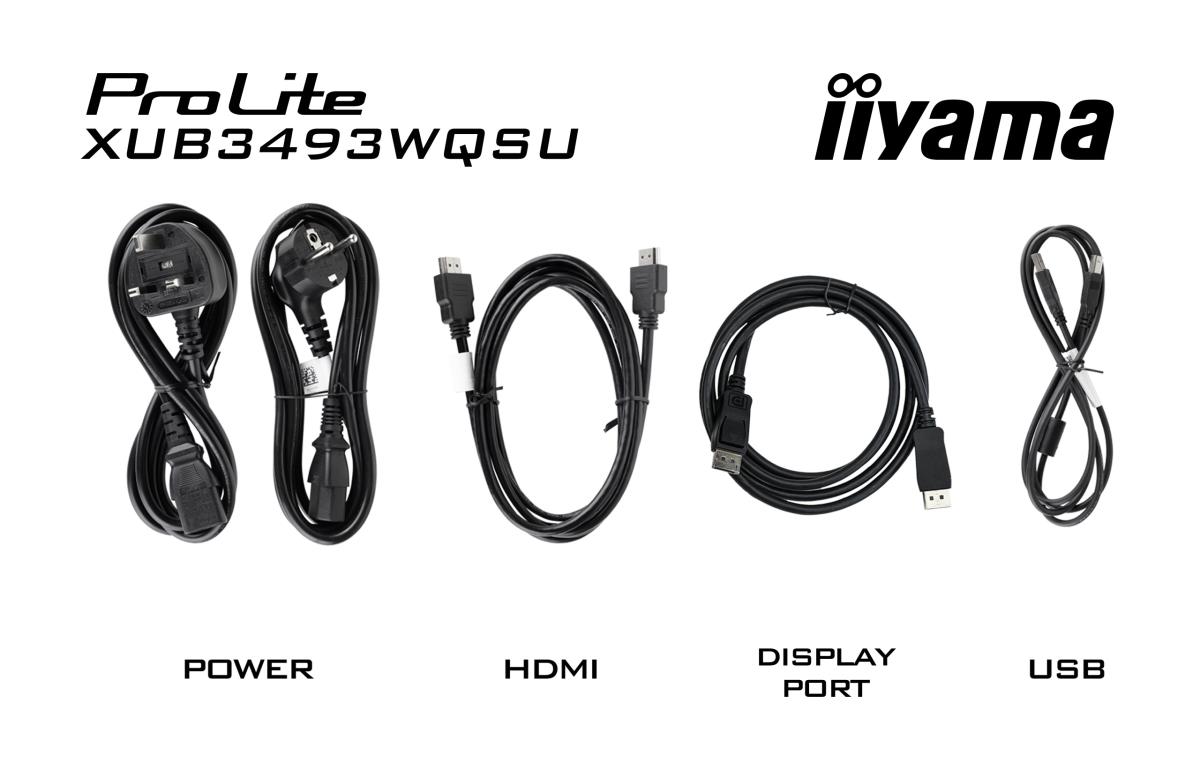

Cables included
AC, USB, HDMI, DisplayPort
Sustainability
Sustainability certificates
ErP
Other features
User controls
picture (video mode adjust, brightness, contrast, black tuner, sharpness, OD, ACR, Eco, X-res Technology ), colour adjust (colour temperature, user colour, i-Style colour, blue light reducer, gamma), PiP/PbP (PiP/PbP mode, sub win input, PiP size, PiP position, swap, audio input), input select (input source), audio (volume, mute), language, OSD (OSD H. position, OSD V. position, OSD background, OSD time out), setup menu (reset, USB charge, DDC/CI Control, HDMI range, HDR, Adaptive Sync, motion blur red., opening logo, power LED, information
Packaging content
quick start guide, safety guide
Weight
9.6 kg
Width
817 mm
Depth
245.5 mm

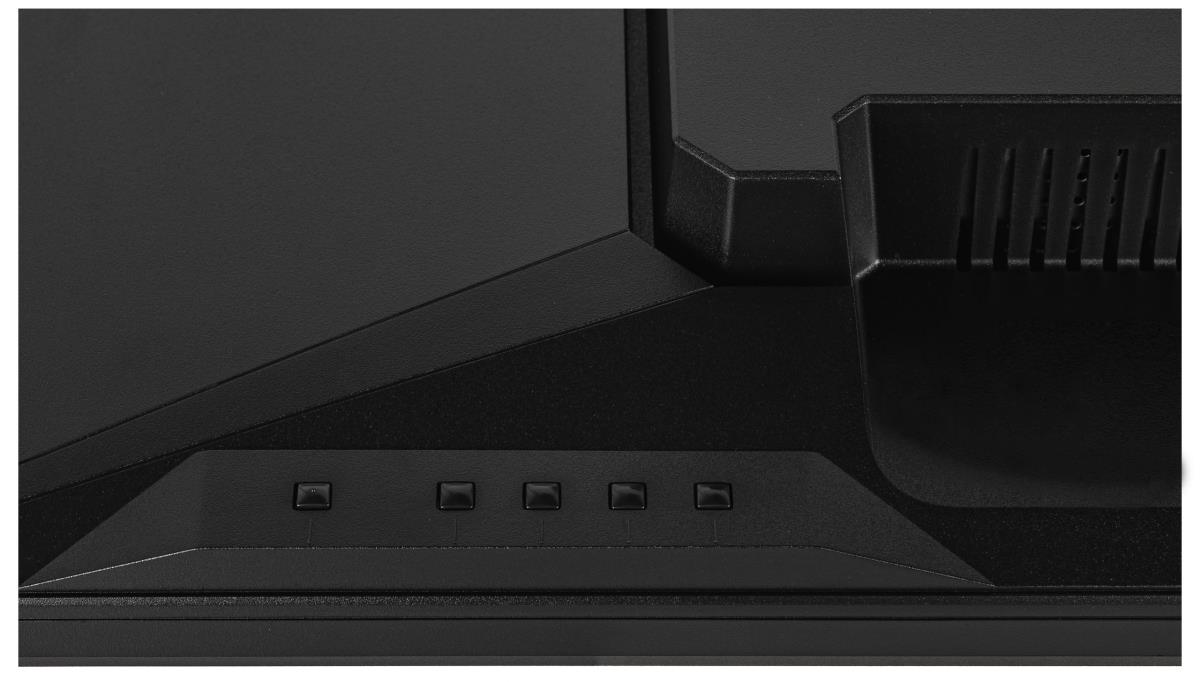

Control panel
Power, Menu, Adjust/Volume/Mute, Adjust/Shortcut, Input/Exit
Compliance certificates
CE, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Information
| Part Number: | XUB3493WQSU-B6 |
