Introduction

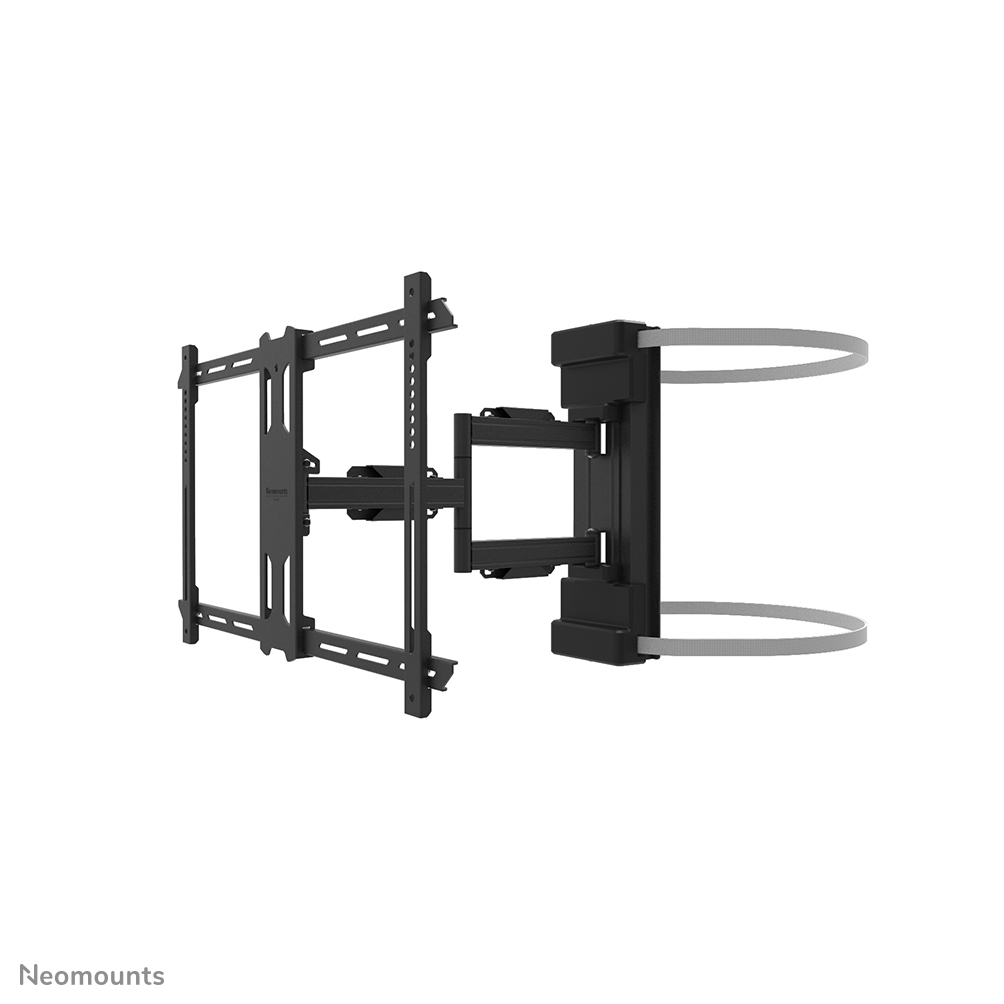

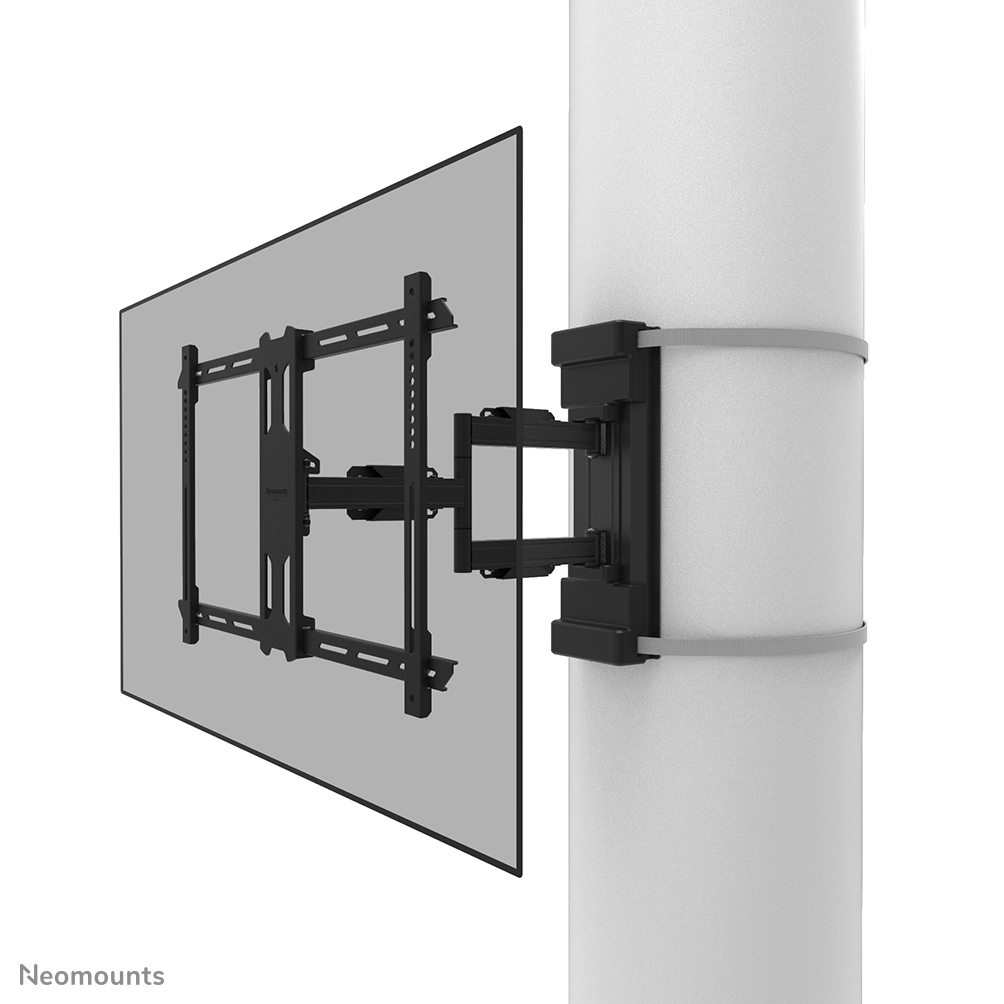

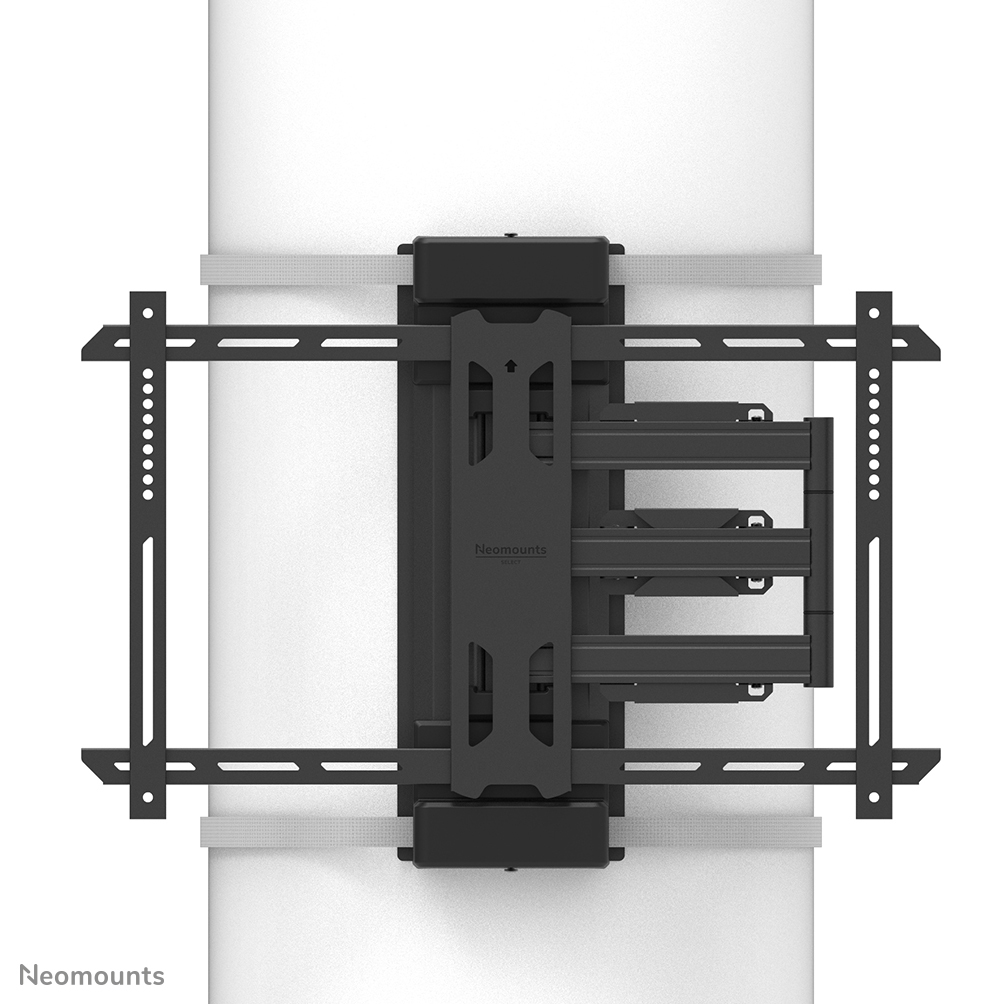

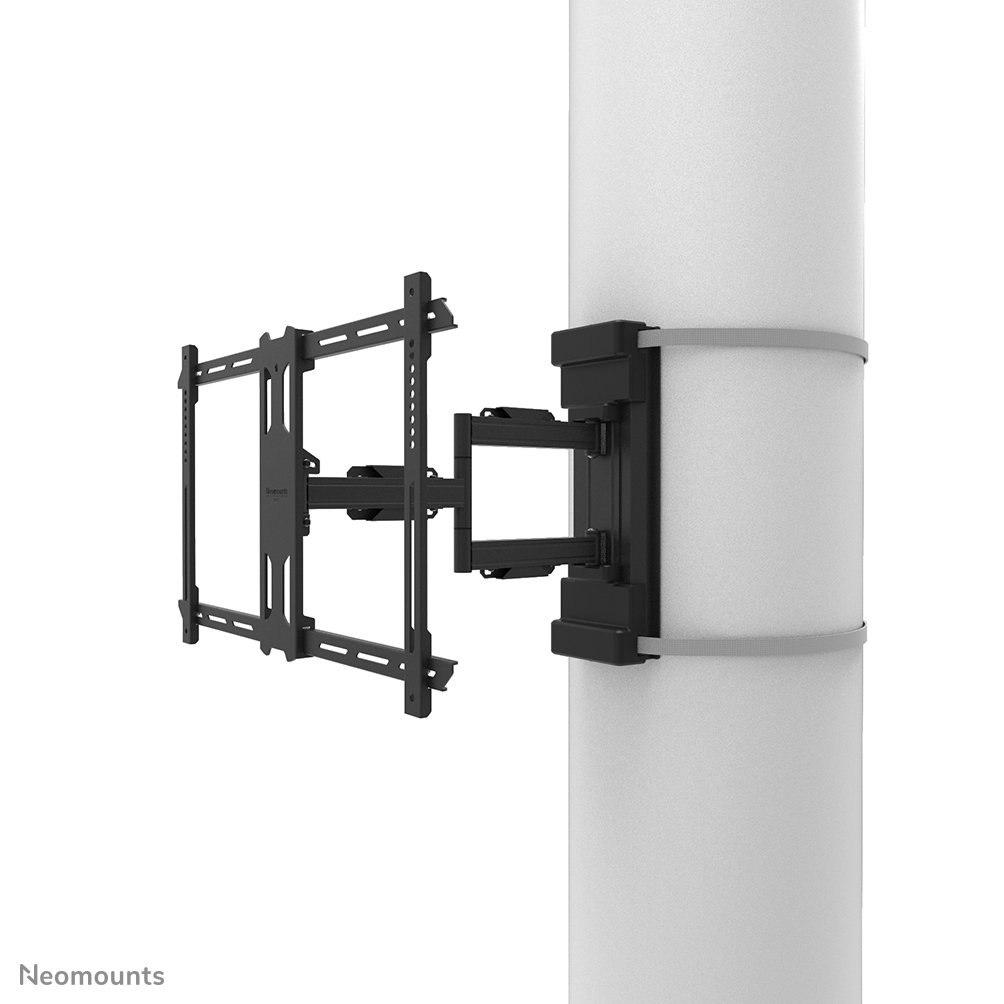

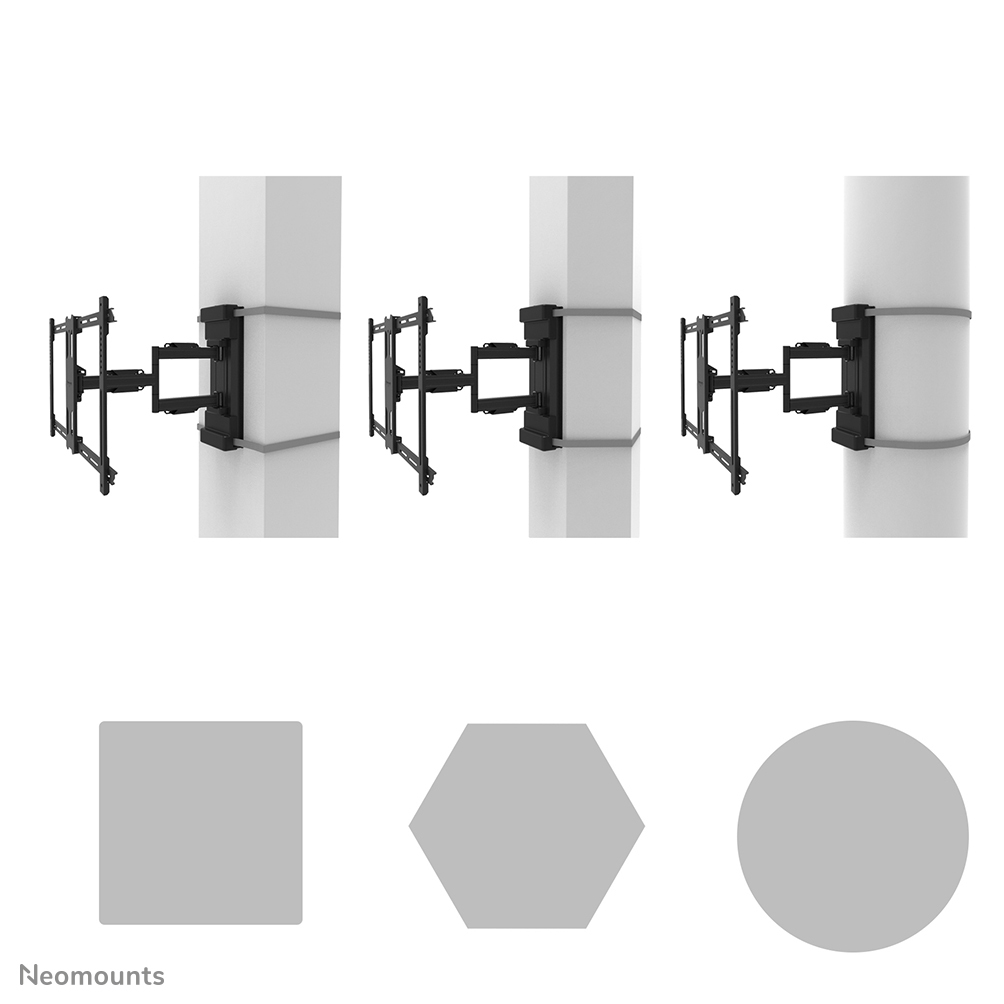

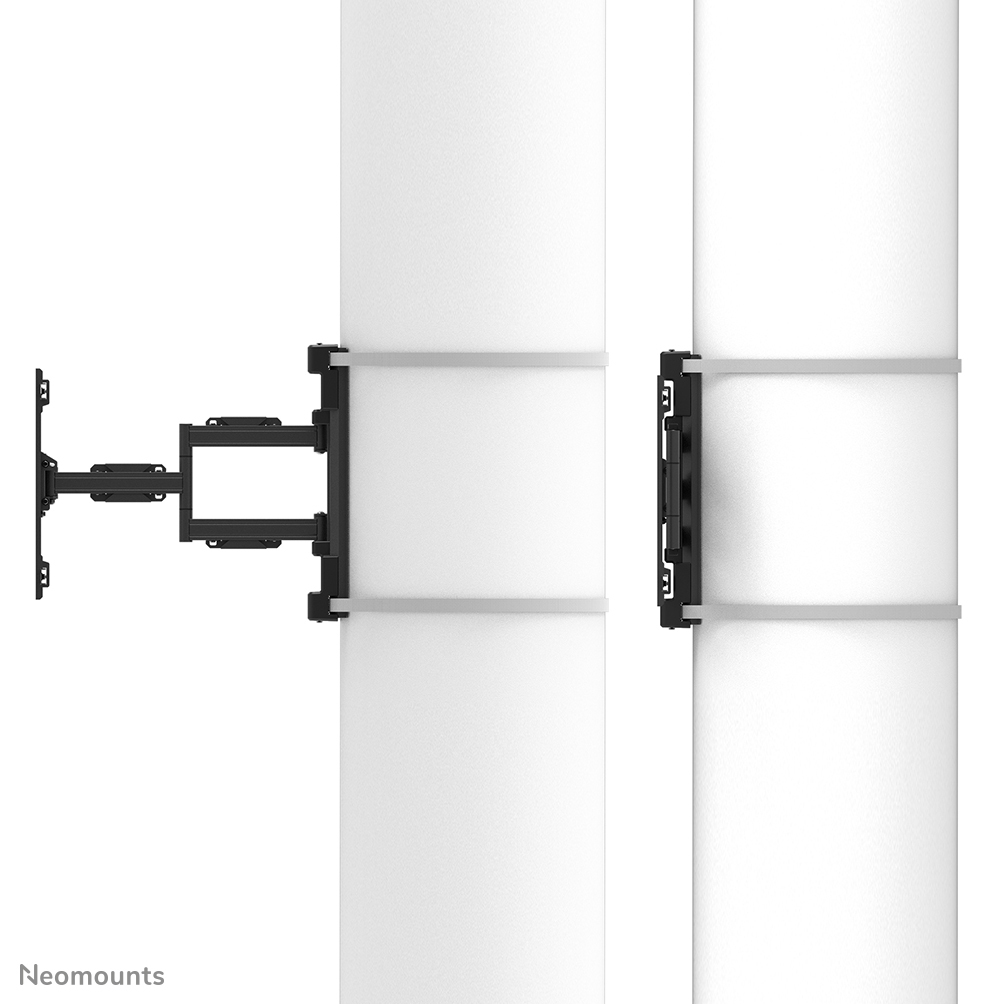

The Neomounts Select WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.

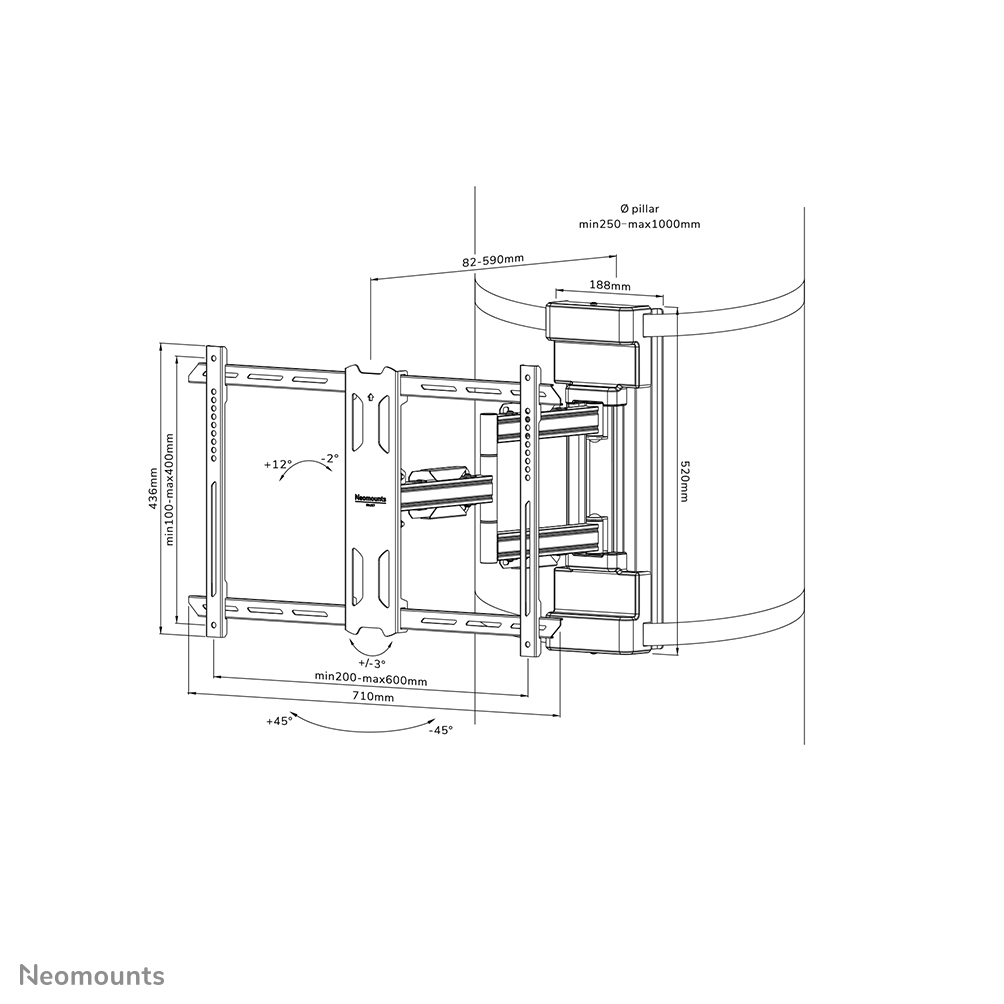

The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm.

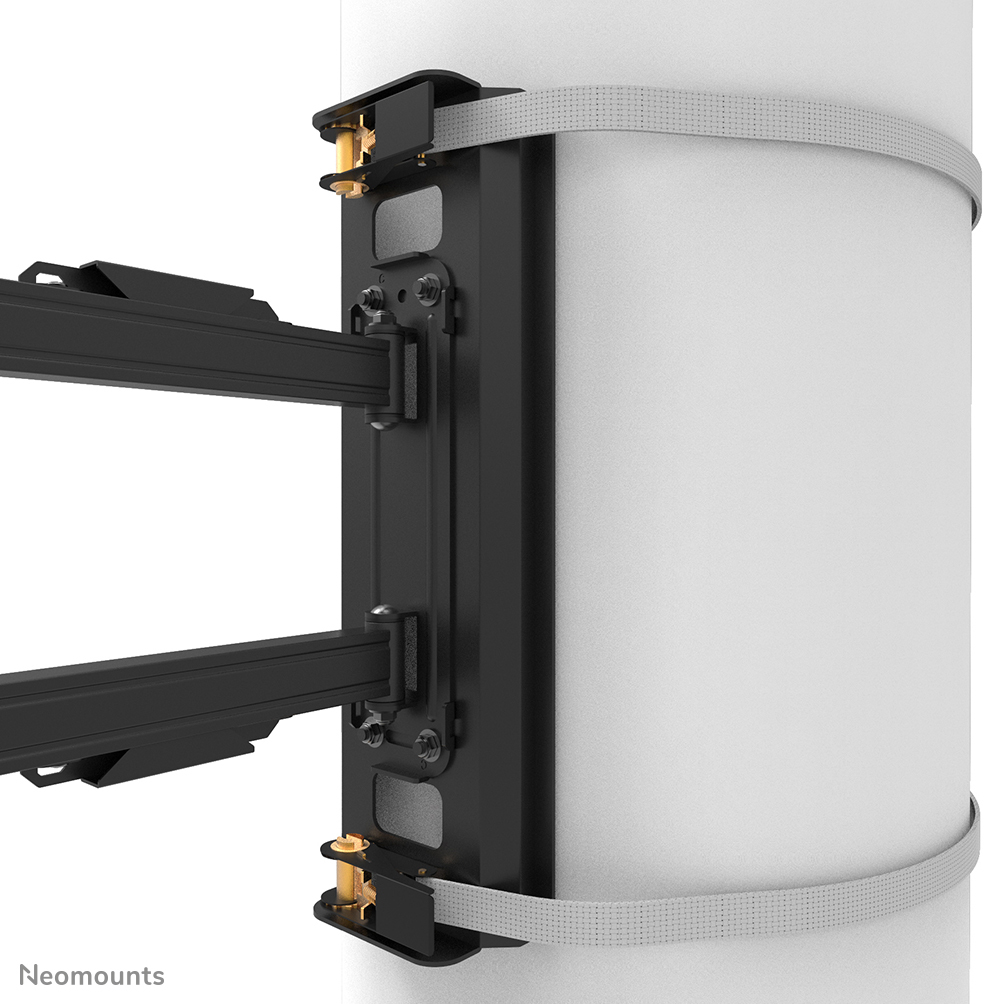

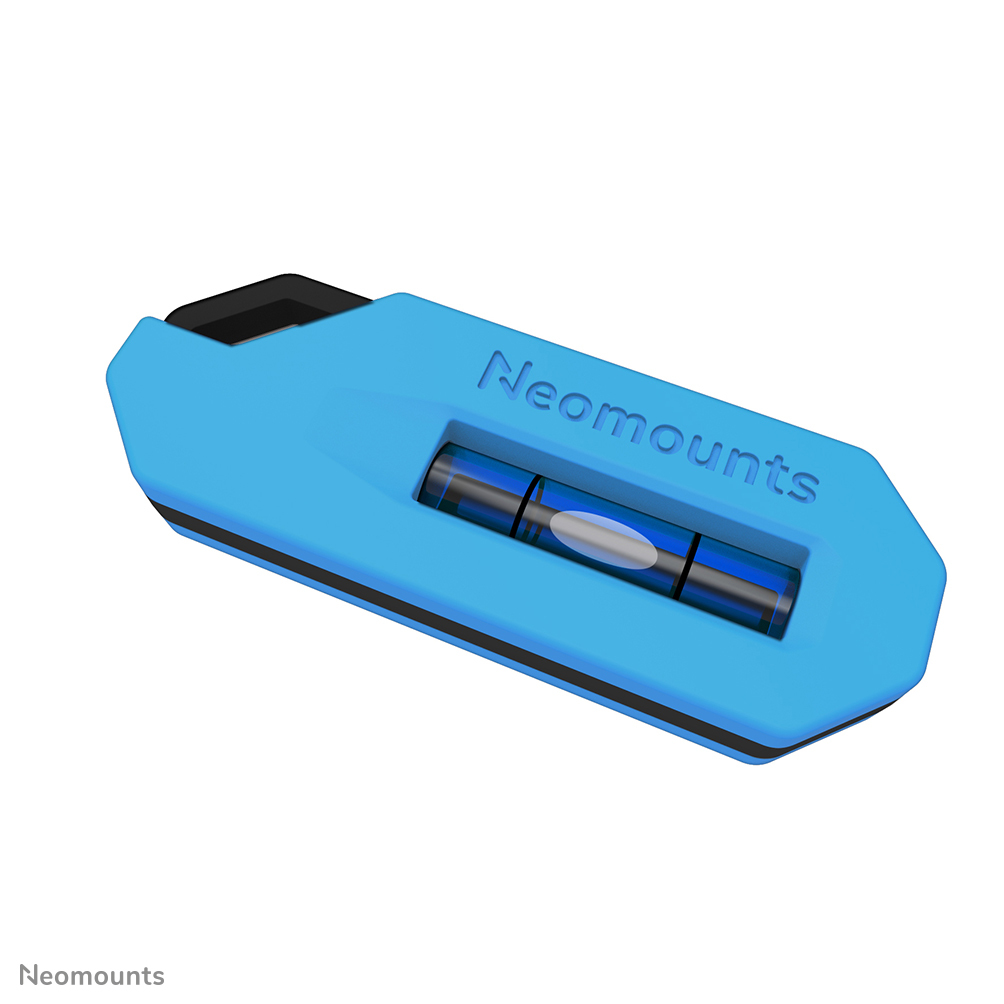

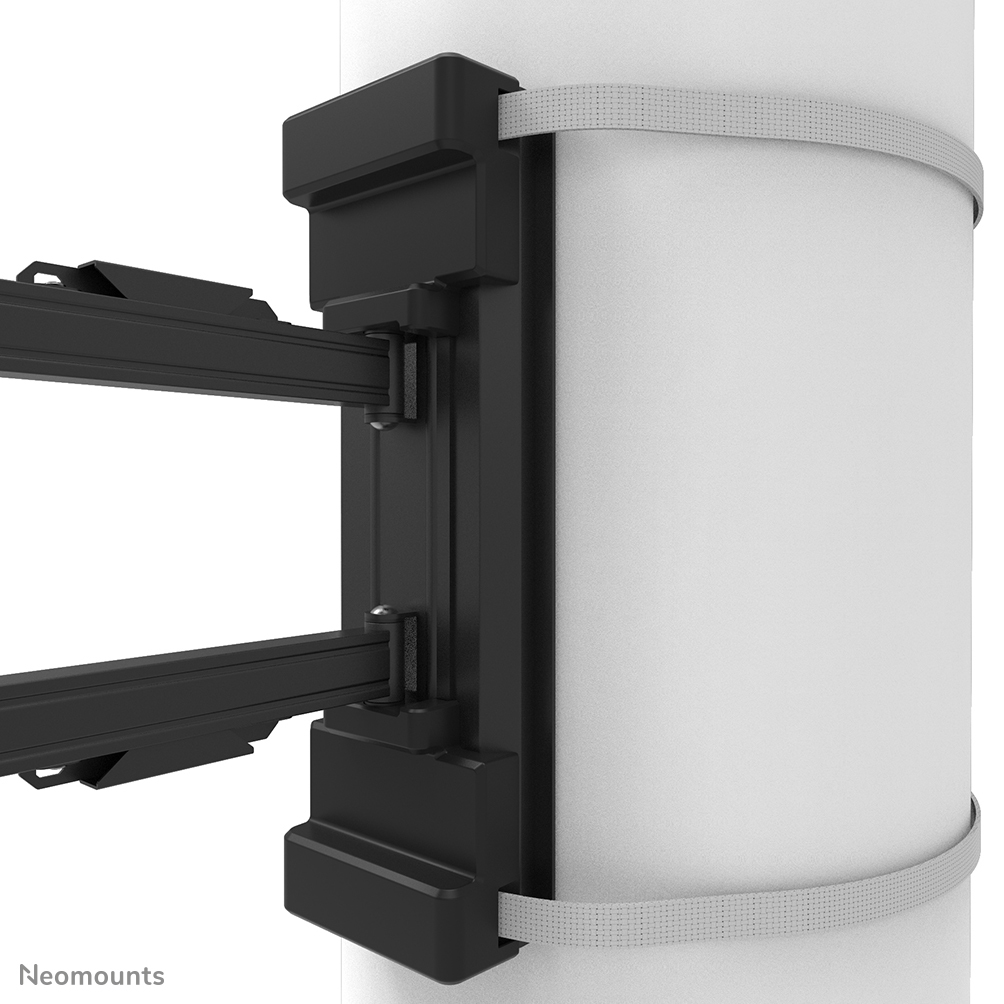

The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Hardware
Mount For
Flat Screen
VESA Maximum
600x400 mm
VESA Minimum
200x100 mm
Screen Size (Inches)
40 - 70
Screens
1
Physical Characteristics
Color
Black
Product Material
Steel
Performance
Flexibility
Tilt & Rotatable
Max. Weight (Kg)
45
Mount On
Wall Mounts
Depth Range
8,2-59 cm
Rotation (Degrees)
+3°, -3°
Swivel (Degrees)
+45°, -45°
Tilt (Degrees)
+12°, -2°
Mounting
Mounting type
Pole
Maximum weight capacity (per display)
45 kg
Minimum screen size
101.6 cm (40")
Maximum weight capacity
45 kg
Maximum screen size
177.8 cm (70")
Minimum VESA mount
200 x 100 mm
Maximum VESA mount
600 x 400 mm
Panel mounting interface
200 x 100,600 x 400 mm
Number of displays supported
1
Packaging data
Package weight
11.1 kg
Package width
386 mm
Package depth
95 mm
Package height
744 mm
Ergonomics
Adjustable depth
Yes
Tilt adjustment
Yes
Tilt angle range
-2 - 12°
Swivel angle range
-45 - 45°
Pivot angle
-3 - 3°
Cable management
Yes
Distance to the wall (max)
59 cm
Distance to the wall (min)
8.2 cm
Swivelling
Yes
Rotating
Yes
Angle of rotation
6°
Type
Full motion
Design
Product colour
Black
Housing material
Steel
Weight & dimensions
Weight
9.5 kg
Width
710 mm
Depth
590 mm
Depth (min)
8.2 cm
Depth (max)
59 cm
Height
520 mm
Technical details
Package net weight
11.1 kg
Compatible pole diameter (min)
25 cm
Compatible pole diameter (max)
100 cm
Warranty period
5 year(s)
Lockable
Not lockable
Packaging content

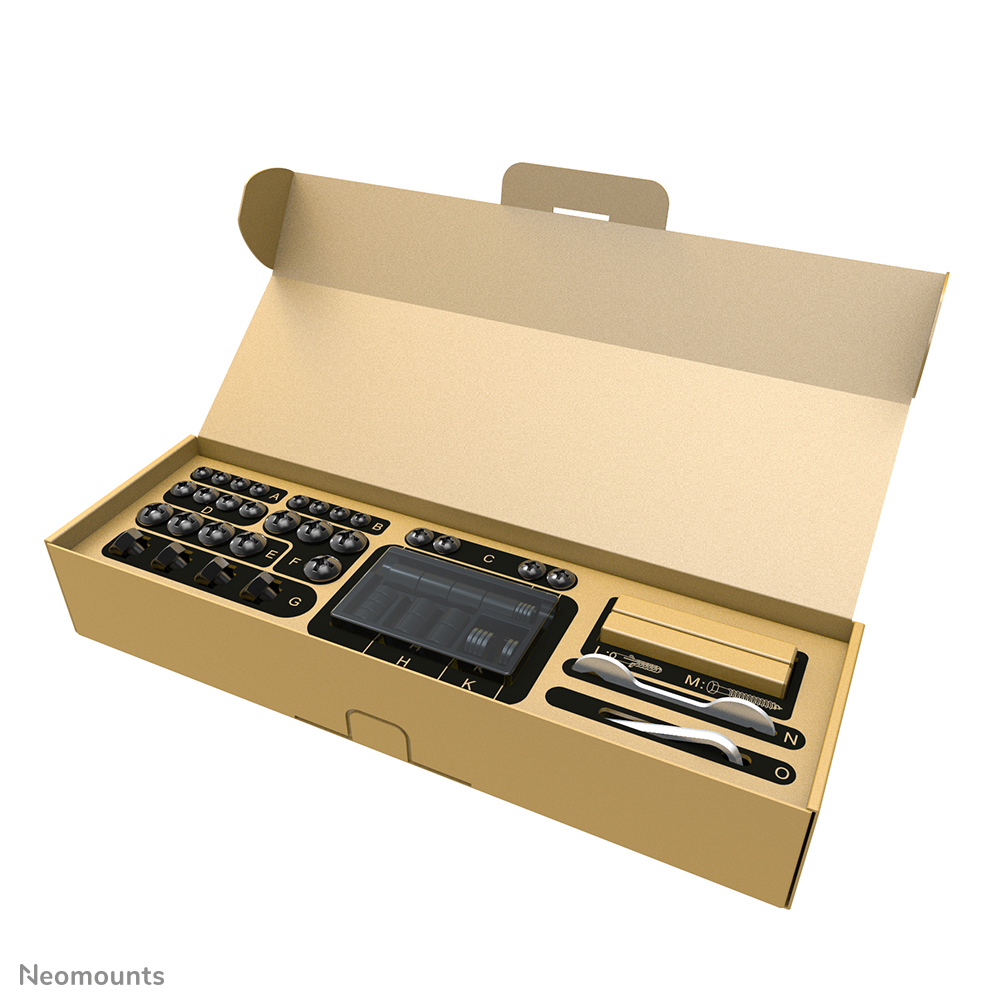

Mounting kit
Yes
Logistics data
Master (outer) case width
205 mm
Master (outer) case length
406 mm
Master (outer) case height
764 mm
Master (outer) case net weight
19 kg
Products per master (outer) case
2 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
34 pc(s)
Master (outer) case gross weight
22.8 kg
Other features
Country of origin
China
Depth adjustment range
82 - 590 mm
Information
| Part Number: | WL40S-910BL16 |
