Product Details
Introduction
- AI-driven efficiency for streamlined workflows & optimal performance
- Robust computing via Intel® Core™ Ultra processors & NVIDIA RTX PRO™ graphics
- Multitask like a pro with advanced security, ample storage, & smooth connectivity
Processor
Processor generation
Intel Core Ultra (Series 2)
Processor boost frequency
5.7 GHz
Performance cores
8
Efficient cores
16
Performance-core Max Turbo Frequency
5.5 GHz
Efficient-core Max Turbo Frequency
4.6 GHz
Performance-core base frequency
3.7 GHz
Efficient-core base frequency
3.2 GHz
Processor socket
LGA 1851 (Socket V1)
Processor base power
125 W
Maximum turbo power
250 W
Processor manufacturer
Intel
Processor family
Intel Core Ultra 9
Processor model
285K
Processor cores
24
Processor threads
24
Processor cache
36 MB
Processor cache type
Smart Cache
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
36 TOPs
NPU performance up to
13 TOPs
GPU performance up to
8 TOPs
Graphics
Graphics card
Intel Graphics
Discrete graphics card
Yes
Discrete GPU manufacturer
NVIDIA
On-board graphics card
Yes
Discrete graphics card model
NVIDIA RTX 2000 Ada
Discrete graphics card memory
16 GB
Number of discrete graphics cards
1
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Design
Chassis type
Tower
Cable lock slot
Yes
Cable lock slot type
Kensington
Display
Display included
No
Memory
Internal memory
32 GB
Maximum internal memory
256 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
2 x 16 GB
Memory slots
4x DIMM
Memory clock speed
5600 MHz
Memory channels
Dual-channel
Storage
Total storage capacity
1 TB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Self-Encrypting Drive (SED)
Yes
Card reader integrated
Yes
Compatible memory cards
SD
Performance
Motherboard chipset
Intel W880
Trusted Platform Module (TPM)
Yes
Product type
Workstation
Trusted Platform Module (TPM) version
2.0
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet

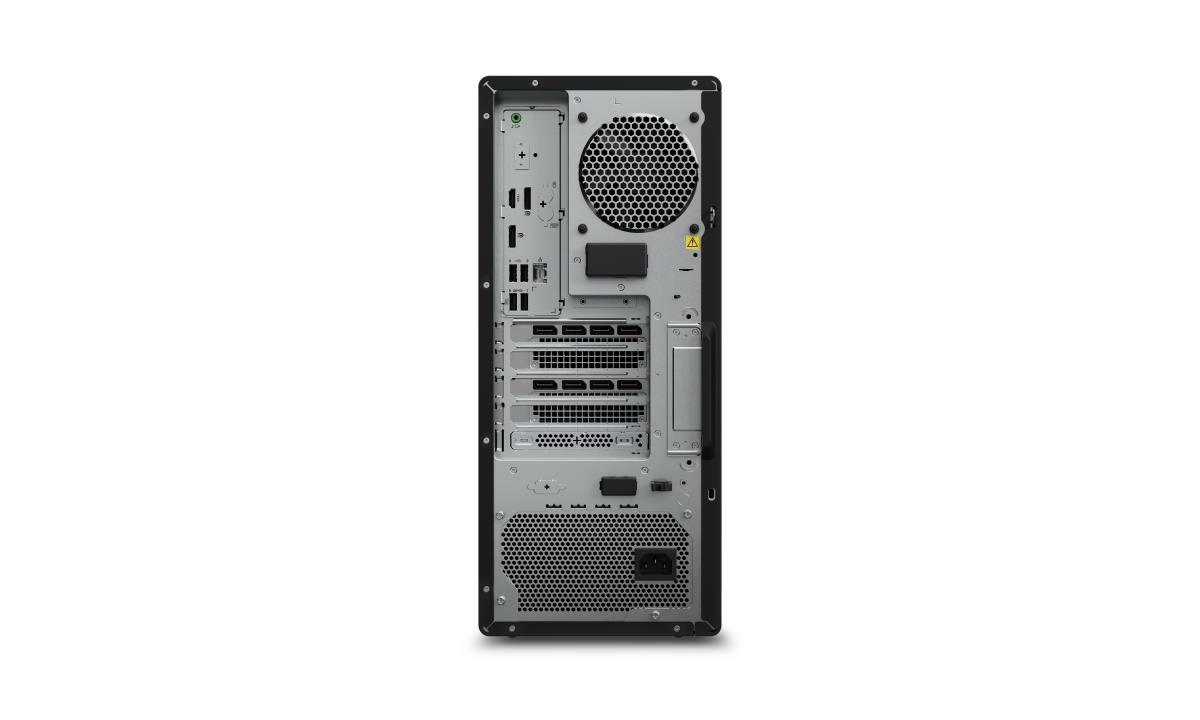

Ports & interfaces
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2x2 Type-C ports quantity
2
DisplayPorts quantity
2
HDMI ports quantity
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Line-out
Yes
Microphone in
Yes
Power
Power supply
750 W
80 PLUS certification
80 PLUS Platinum
Software
Operating system language
US English, ENG-UK
Operating system installed
Windows 11 Pro
Bundled software
Lenovo AI Now
Processor special features
Intel® Smart Cache
Yes
Audio
Audio chip
Realtek ALC623-CG
Audio system
High Definition Audio
Weight & dimensions
Width
180 mm
Depth
370 mm
Height
415 mm
Weight
14.4 kg
Packaging content
Mouse included
Yes
Mouse connectivity
Wired
Keyboard included
Yes
Keyboard
Keyboard connectivity
Wired
Information
| Part Number: | 30HT00DGUK |
