Product Details
Introduction

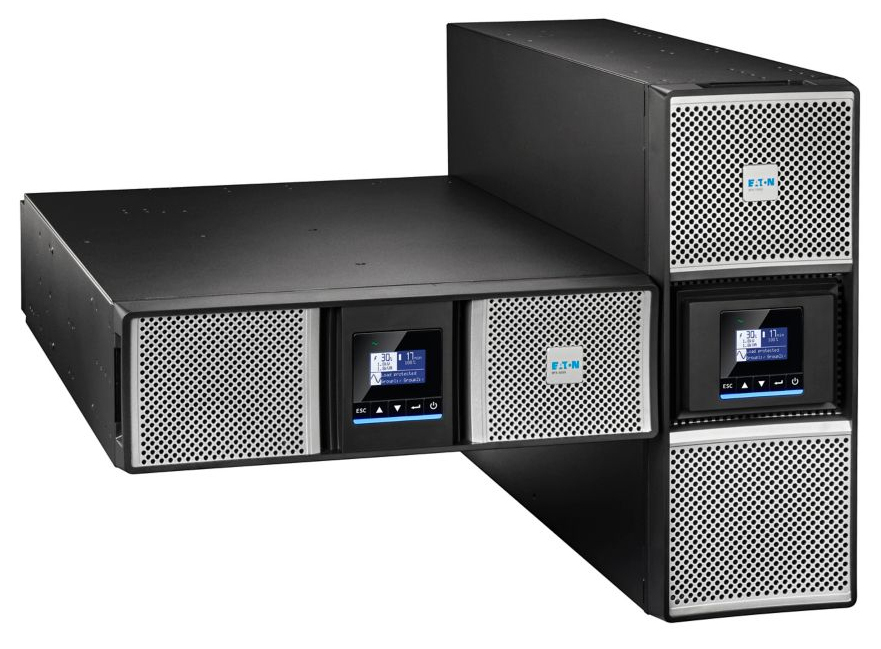

Eaton 9PX Gen2 UPS HotSwap Netpack, 5000 VA, 5000 W, Input: Hardwired, Outputs: (2) C13, (3) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included, Maintenance bypass included
Features
UPS topology
Double-conversion (Online)
Output power capacity
5 kVA
Output power
5000 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Input frequency
40/70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Power consumption (average operating)
214 W
Heat dissipation
563 BTU/h
Number of input phases
1
Number of output phases
1
Efficiency
96.7%
Efficiency (ECO mode)
99%
Input power factor
0.99
Noise level
37 dB
Ports & interfaces
AC outlet types
C13 coupler, C19 coupler
USB port
Yes
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
5 Ah
Battery voltage
12 V
Typical backup time at half load
9.4 min
Automatic battery test
Yes
Design
Form factor
Rackmount/Tower
Rack capacity
4U
Cable length
1.8 m
Product colour
Black, Silver
Display type
LCD
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Certificates
Compliance certificates
BSMI, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus
Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
Packaging content
Rack mount kit
Yes
Cables included
Output power cable, USB cable
Quick installation guide
Yes
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
440 mm
Depth
684 mm
Height
130 mm
Weight
45.1 kg
Information
| Part Number: | 9PX5KIRTNBPG2 |
