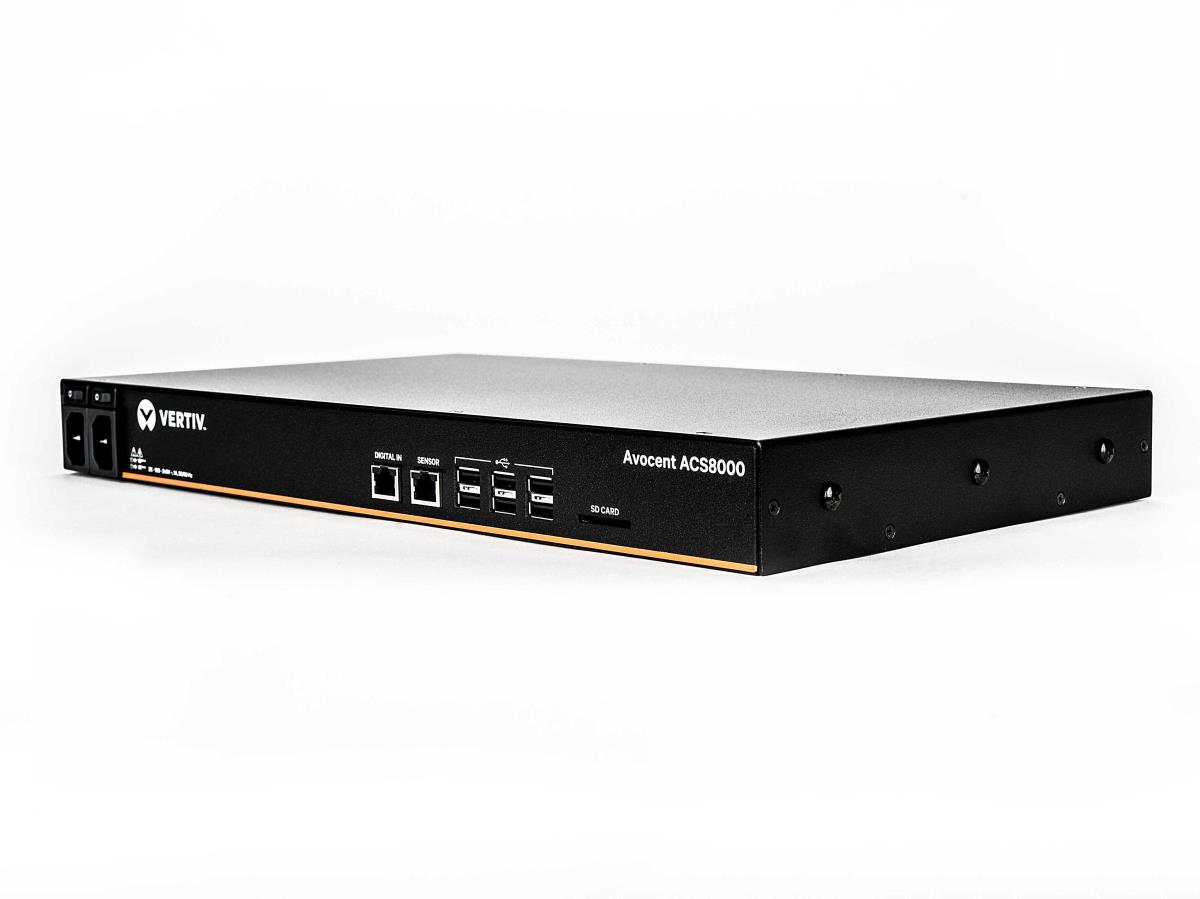

VERTIV ACS8000 8-Port Console System with Single AC Power Supply

VERTIV ACS8000 8-Port Console System with Single AC Power Supply

£1,264.01 (incl. VAT)

Qty:

Add to basket

Part Number:	ACS8008SAC-404
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).

Technical details

Rack mounting Y

Internal modem N

Zero Touch Provisioning (ZTP) Y

Web-based management Y

Temperature sensor Y

Product colour Black

Management features

Management protocols CLI, HTTP/ HTTPS, SNMP

Security

Authentication method LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)

Security algorithms 3DES,128-bit AES,192-bit AES,256-bit AES,AES,FIPS 140-2,HTTPS,IPSec,SHA-256,SNMP,SNMPv3,SSH,SSH-2

IP address filtering Y

One-time password (OTP) Y

Ports & interfaces

Console port RJ-45

Serial ports quantity 8

USB 2.0 ports quantity 8

Ethernet LAN (RJ-45) ports 2

SFP module slots quantity 2

AC outlet types C13 coupler

Software

Operating system installed Embedded LINUX

Weight & dimensions

Dimensions (WxDxH) 438.2 x 241.3 x 44.5 mm

Weight 3.4 kg

Power

Power source type AC

AC input voltage 102 - 240 V

AC input frequency 50 - 60 Hz

Power consumption (typical) 20 W

Power consumption (max) 35 W

Input current 0.1 A

Number of power supply units 1

Operational conditions

Operating temperature (T-T) -10 - 60 °C

Storage temperature (T-T) -20 - 70 °C

Operating relative humidity (H-H) 20 - 80%

Storage relative humidity (H-H) 5 - 95%

Certificates

Certification FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)

Memory

Flash memory 16000 MB

RAM capacity 1024 MB

RAM type DDR3L

eMMC capacity 16 GB

Processor

Processor family ARM Cortex-A9

Processor architecture ARM Cortex-A9

Processor cores 2

Processor frequency 667 MHz

Network

Copper ethernet cabling technology 10BASE-T,100BASE-T,1000BASE-T

Cable types supported Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber

Other features

Safety UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
