Product Details
Introduction
The NuScan 4100 is a industrial, waterproof, antimicrobial, highly portable barcode scanner designed to simplify your job and increase productivity. Offering a wide scanning range from multiple symbologies from up to 30 ft away the NuScan 4100 makes an excellent choice for delivering intuitive and rapid scanning regardless of the environment!
Scanning
Type
Handheld bar code reader
Scanner type
1D
Sensor type
CCD
Linear (1D) barcodes supported
Codabar,Code 128,Code 32,Code 39,Code 93,EAN 128,EAN-13,EAN-8,Industrial 2 of 5,Interleaved 2 of 5,JAN,MSI,Plessey,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported
Not supported
Working distance
30 cm
Read rate (max)
200 reads/s
Wavelength
630 nm
Maximum scan width
30 cm
Ports & interfaces
Connectivity technology
Wireless
Standard interfaces
Bluetooth
Wireless range
10 m
Bluetooth version
3.0+HS
PC connection
USB 2.0
Cable length
2 m
Performance
Housing material
Plastic
International Protection (IP) code
IP67
Protection features
Shock resistant, Water resistant
LED indicators
Y
Buzzer
Y
Built-in processor
Y
Product colour
Black, Yellow
Country of origin
China
Certification
CE, FCC DOC, VCCI, BSMI
Power
Power source type
Battery
Battery technology
Polymer
Battery type
Built-in battery
Number of reads per charge
25000
Charging time
2.5 h
Input voltage
3.3 - 4.2 V
Power consumption
140 mA
Weight & dimensions
Width
100 mm
Depth
70 mm
Height
178 mm
Weight
260 g
Packaging data
Cables included
USB

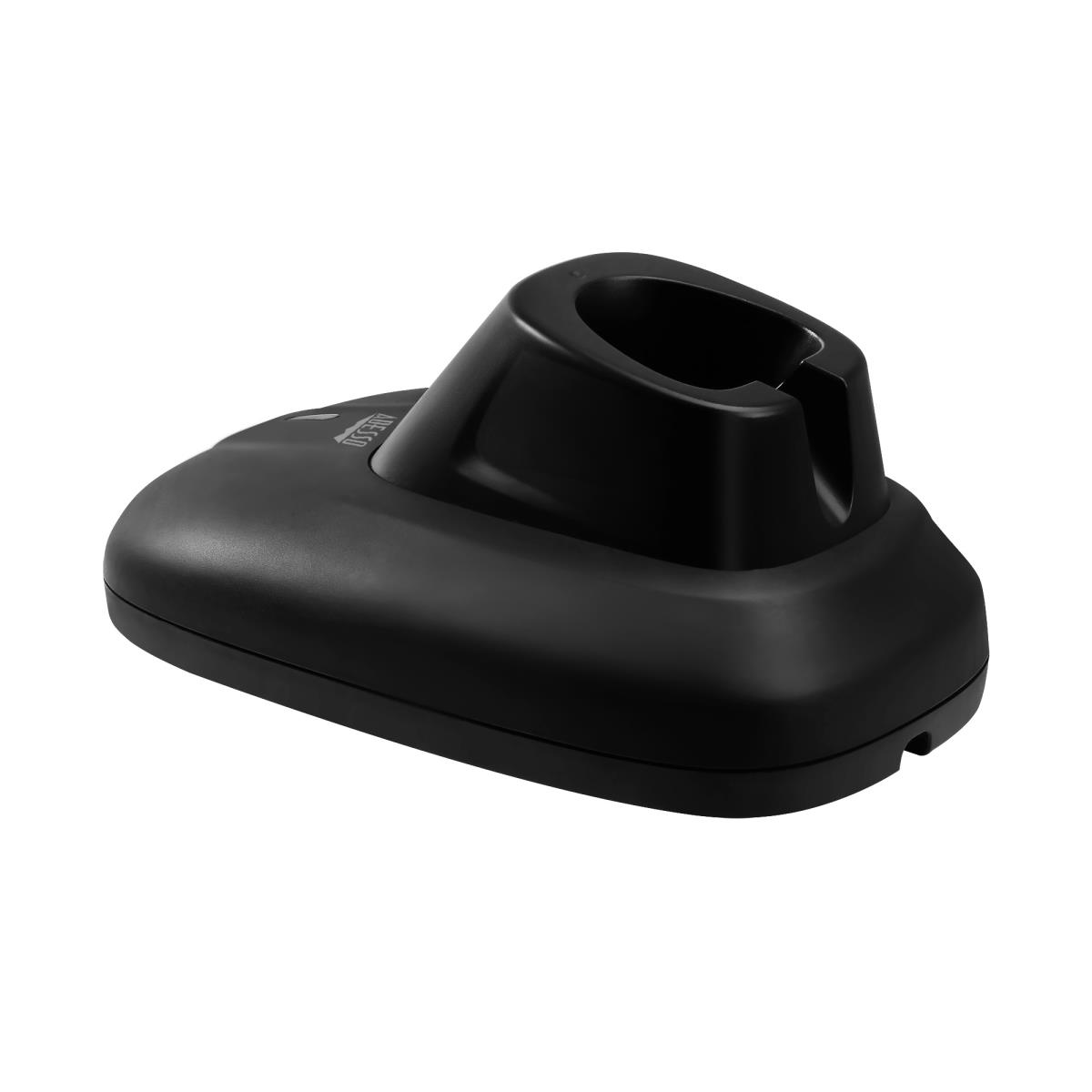

Charging base
Y
Package width
254 mm
Package depth
177.8 mm
Package height
101.6 mm
Package weight
907.19 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Technical details
Sustainability certificates
RoHS
Other features
Mobile operating systems supported
Android, iOS
Information
| Part Number: | NUSCAN 4100B |
