Product Details
Introduction

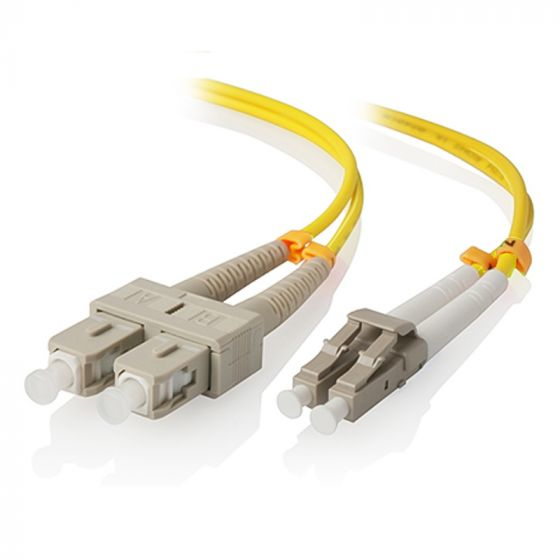

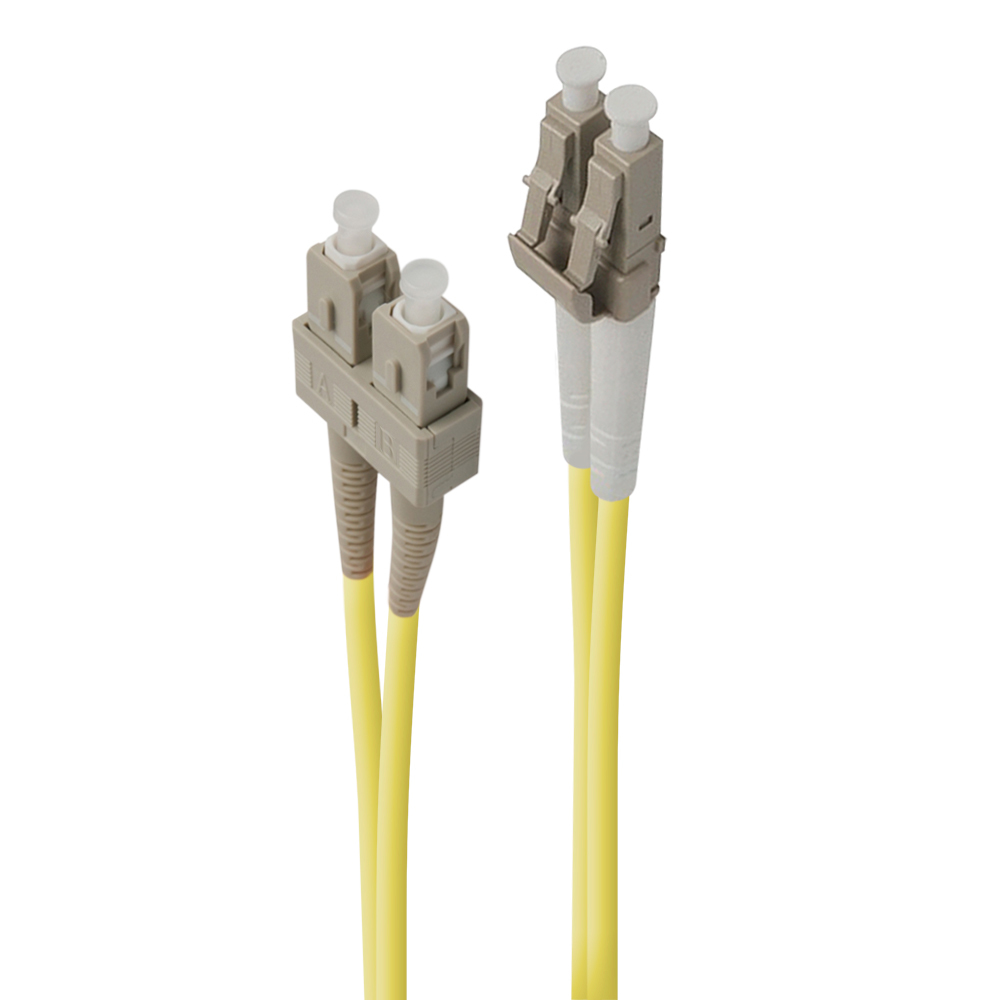

The Single mode OS2 cables are designed to support very high transfer speed and have universal loose tube construction, the ALOGIC cables are compliant to fibre type B1.3 in IEC 60793-2-50 G652d capable of supporting up to 10gigabit applications over very long distances.
Features
Cable length
1.5 m
Connector 1
LC
Connector 2
SC
Connector 1 gender
Male
Connector 2 gender
Male
Fibre optic type
OS2
Product colour
Yellow
Full duplex
Yes
Core diameter
9 µm
Cladding diameter
125 µm
Fiber mode structure
Single-mode
Wavelengths supported
1300,1550 nm
Ethernet interface type
10 Gigabit Ethernet
Data transfer rate
10 Gbit/s
Insertion loss
0.3 dB
Jacket material
Low smoke zero halogen (LSZH)
Weight & dimensions
Cable diameter
3 mm
Packaging data
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
85447000
Other features
Number of optical fibres
2
Information
| Part Number: | LCSC-1.5-OS2 |
