Product Details
Introduction

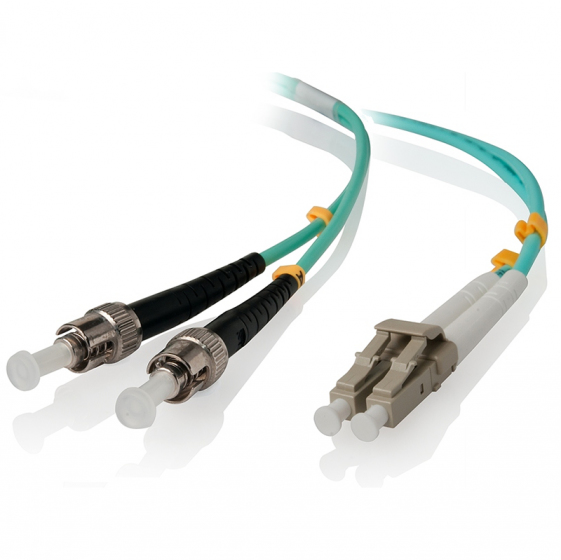

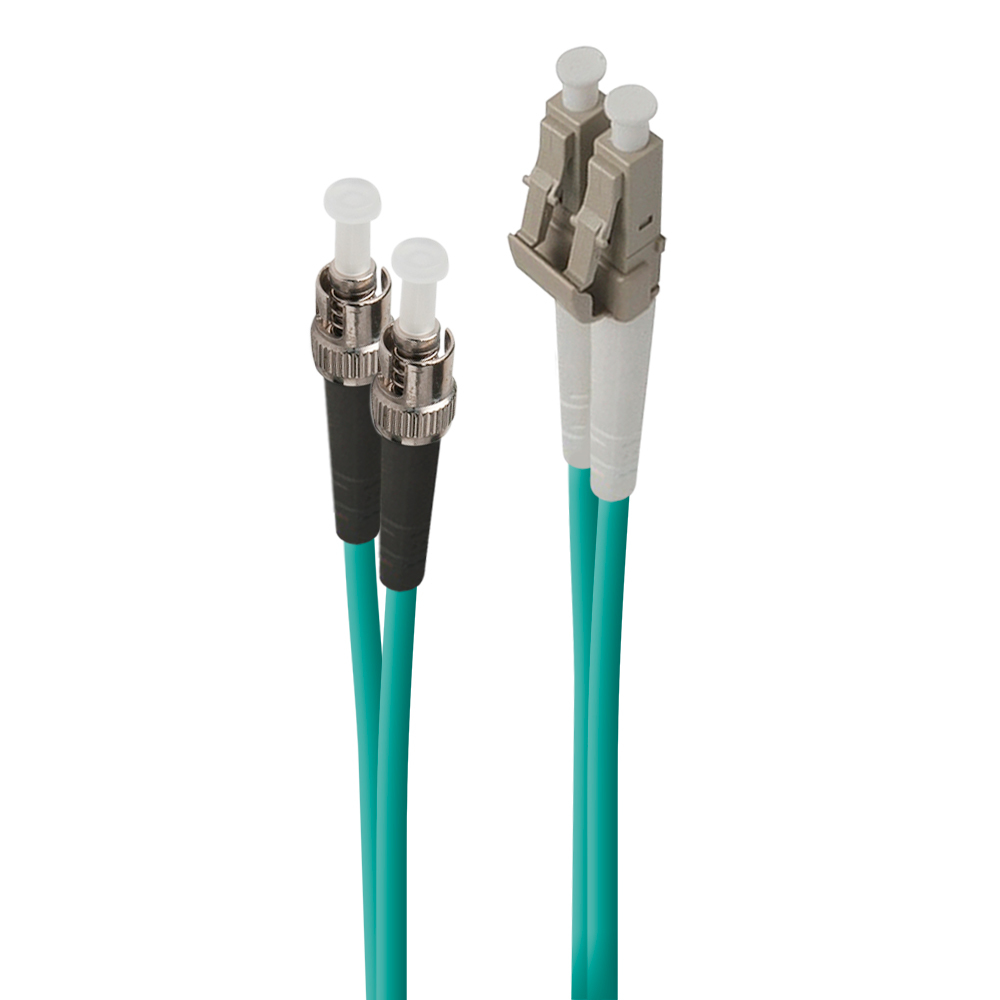

The Multi Mode OM4 cables are designed to support very high transfer speed, the cables are capable of supporting up to 100gigabit applications at the same time being backward compatible with OM3 and OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.The ALOGIC OM4 Patch Cables are available in various lengths starting from 1m to 10m length.
Features
Cable length
2 m
Connector 1
LC
Connector 2
ST
Connector 1 gender
Male
Connector 2 gender
Male
Fibre optic type
OM4
Product colour
Turquoise
Full duplex
Y
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Wavelengths supported
850,1300 nm
Ethernet interface type
40 Gigabit Ethernet, 100 Gigabit Ethernet
Data transfer rate
100 Gbit/s
Insertion loss
0.5 dB
Jacket material
Low smoke zero halogen (LSZH)
Harmonized System (HS) code
85447000
Certification
ETL/c-ETL
Weight & dimensions
Cable diameter
3 mm
Packaging data
Quantity per pack
1 pc(s)
Other features
Number of optical fibres
2
Information
| Part Number: | LCST-02-OM4 |
