ALOGIC Quad Display Universal Docking Station

ALOGIC Quad Display Universal Docking Station

£107.10 (incl. VAT)

Qty:

Add to basket

Part Number:	DUCDV4
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Connect up to 4 Displays
When linked to a computer using USB-C the DV4 dock can connect up to four* external displays via the 3x HDMI and 1x DisplayPort outputs for the ultimate in workstation display capabilities. This dock will also work with older laptops without USB-C, connecting via USB-A and allowing up to two displays to be used.

Expand your laptop’s capabilities
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.

Powerhouse Companion for your laptop

Connect up to 4 Displays
- Connect up to 4 extended displays with HDMI 2 + HDMI 3 + HDMI 1 + DisplayPort 1
- USB-C DP Alt Mode host required for HDMI 1 and DisplayPort 1 outputs.
- Connect to 2 extended displays with a USB-A host.

Connect up to 3 Displays
- Connect up to 3 extended displays with HDMI 2 + HDMI 3 + HDMI 1 OR DisplayPort 1
- HDMI 1 AND DisplayPort 1 in use will give mirrored displays
- USB-C host required for HDMI 1 and DisplayPort 1 outputs

Three Screens. Endless Possibilities.
See your work in whole new ways. Immerse yourself in the art you love. With your MacBook connected to one stunning 4K display and up to two 1080p screens, you’ll finally have space for everything you need to live your best digital life. Even with all those tabs.

Up to 85W Power Delivery
Equipped with a USB Power Delivery power input, the dock can charge laptops with up to 85W of power when a USB PD power adapter is connected (ALOGIC recommend the DCG1X100 100W Rapid Power Gan power adapter for use with this product - available separately).

Clutter-free desk
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.

Truly Universal Plug And Play
With Plug and Display™ support for Windows, macOS and Chromebooks, as well as dual-screen support for legacy USB-A devices, it’s never been simpler to create the perfect workstation or hotdesking environment. Just plug in and you’re ready to go.Text

Ports & interfaces

Connectivity technology Wired

Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 2

USB Power Delivery Yes

USB Power Delivery up to 100 W

HDMI ports quantity 3

HDMI version 1.4b/2.0

DisplayPorts quantity 1

DisplayPort version 1.4

Combo headphone/mic port Yes

Headphone outputs 1

USB Type-C DisplayPort Alternate Mode Yes

Network

Ethernet LAN Yes

Ethernet LAN (RJ-45) ports 1

Ethernet LAN data rates 10,100,1000 Mbit/s

Performance

Card reader integrated Yes

Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC

HD type 4K Ultra HD

Maximum digital resolution 3840 x 2160 pixels

Number of displays supported 4

Maximum refresh rate 60 Hz

Cable lock slot Yes

Product colour Grey

LED indicators Yes

Plug and Play Yes

Housing material Acrylonitrile butadiene styrene (ABS), Aluminium

Power

Power source type USB

USB cable length 0.8 m

Software

Windows operating systems supported Yes

Mac operating systems supported Yes

Other operating systems supported ChromeOS

Weight & dimensions

Width 172 mm

Depth 82 mm

Height 27 mm

Weight 435 g

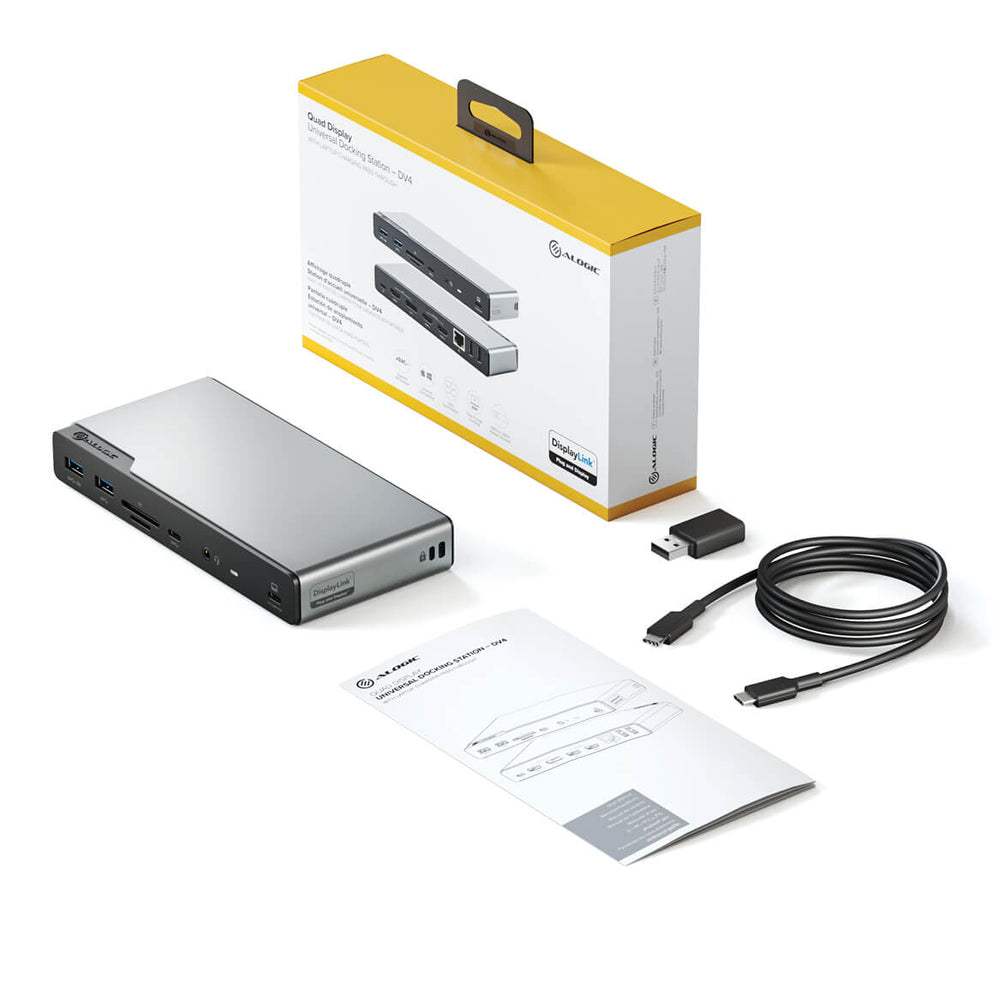

Packaging content

Cables included USB Type-C

Quick start guide Yes

Information

Part Number:

DUCDV4
