Introduction
The Next Big Thing in Creativity
The technology behind our Clarity monitors hasn’t lost any of its lustre in the transition to a bigger screen. They remain a studio-grade tool for creatives professionals who rely on accurate colours to work.
With HDR400 support and a 3000:1 contrast ratio, Clarity Max delivers crisp contrasts between its deep blacks and eye-catching brightness. Offering more than 16 million colours across their 4K Ultra High Resolution display, Clarity Max monitors are the perfect place to realise your next masterpiece.
Connect to Creativity with a Single Cable
Sitting at the centre of your studio, Clarity Max connects your computer to everything you need to compose your next piece.

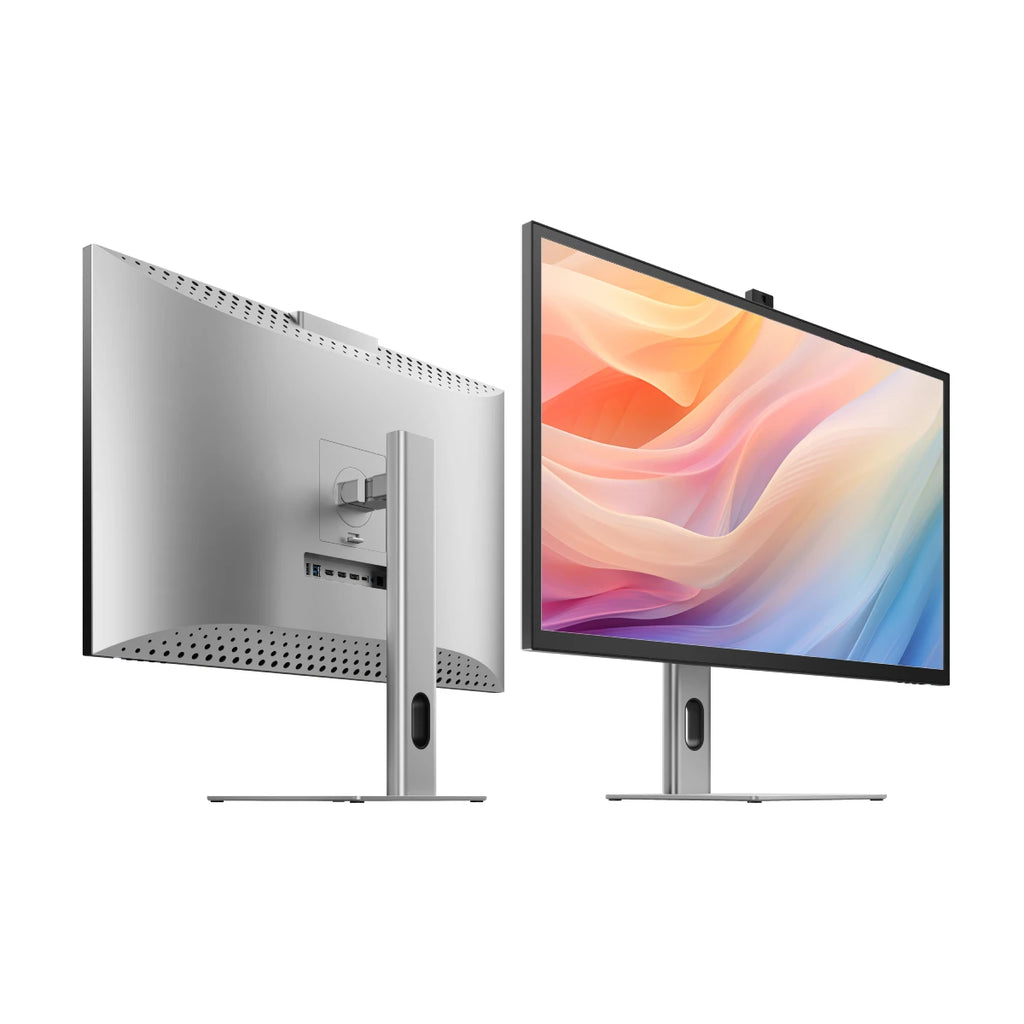

Its rear USB hub connects your computer to two USB-A accessories, 65W laptop charging and your 3.5mm speakers or headphones – all with the same USB-C cable you’re using for video.
See Yourself on The Big Screen

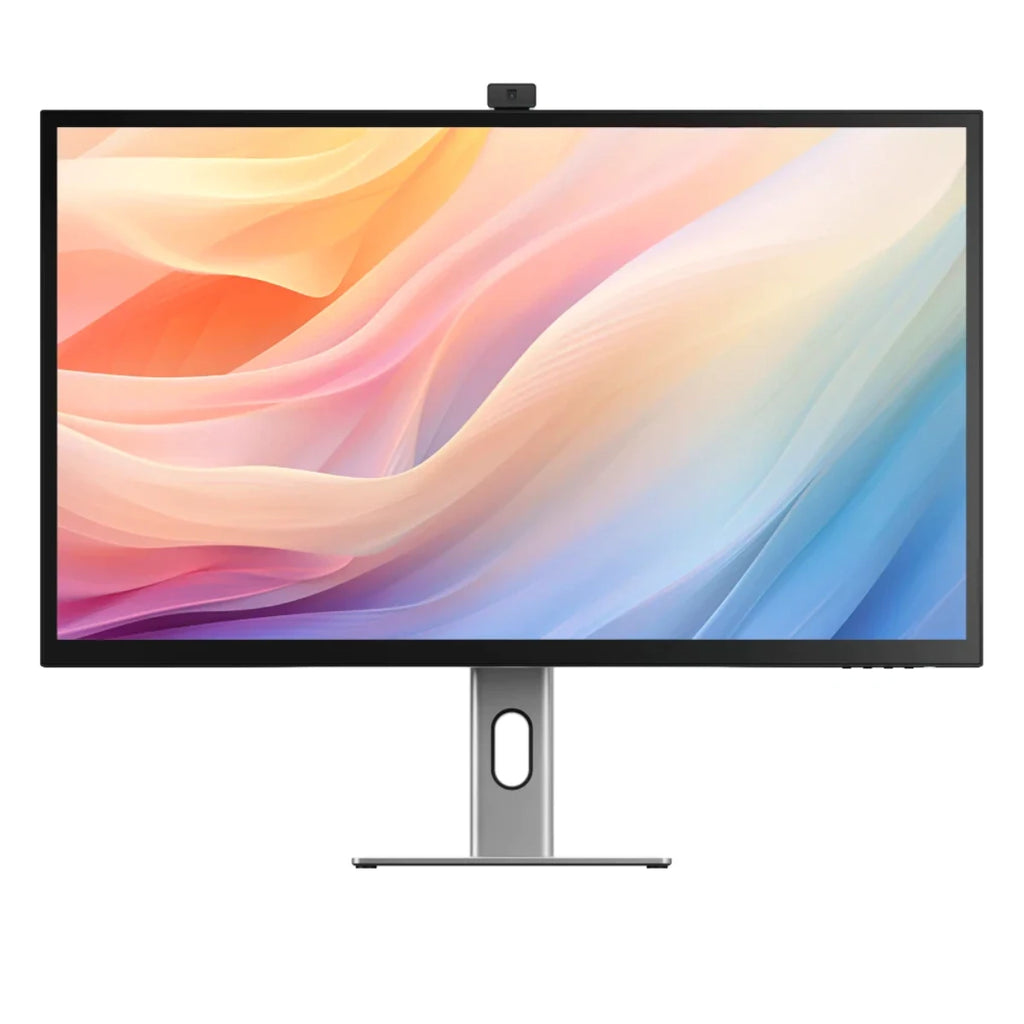

Put your best foot forward with the crystal-clear picture of Clarity Max Pro or Touch’s 8MP retractable webcam. The smart webcam automatically slides back into the monitor when it’s not in use, preventing you from sharing anything you didn’t mean to.
Perfect Colour for Work and Play

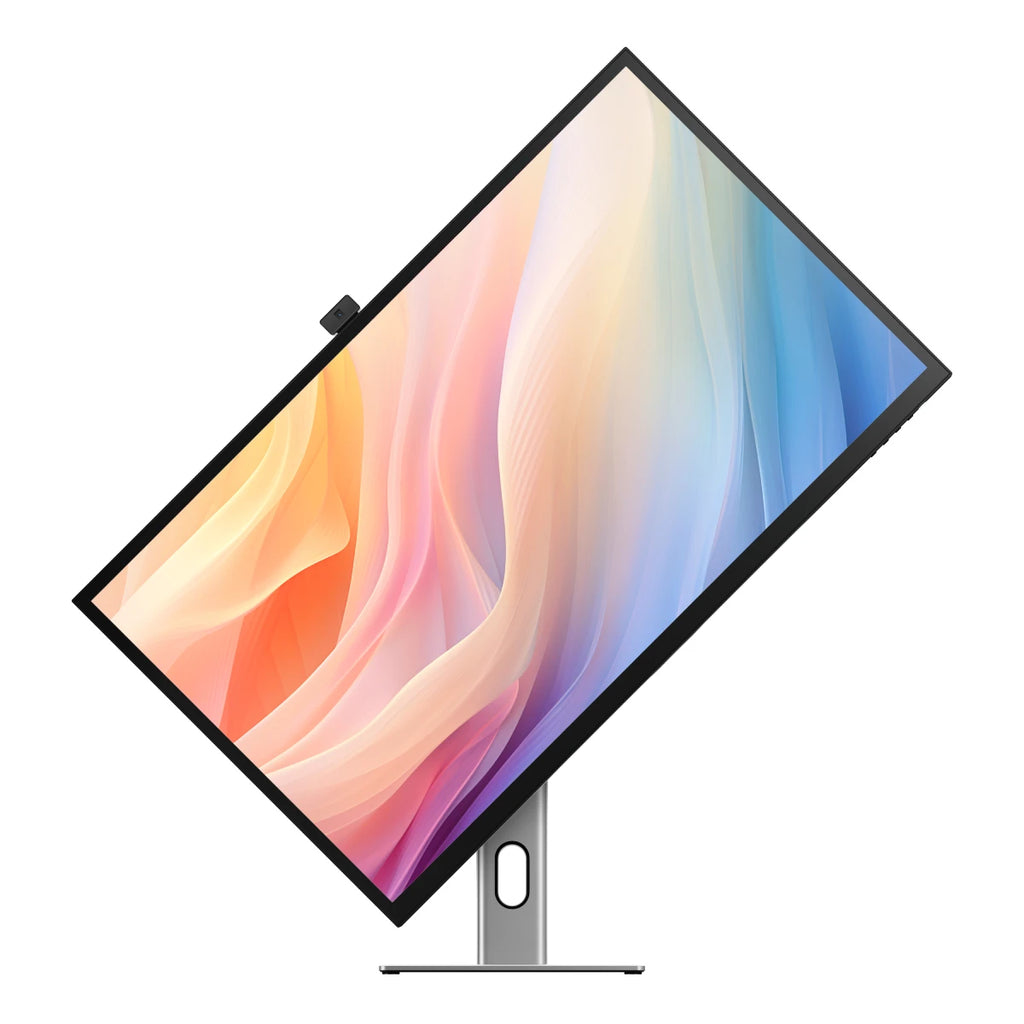

Raise, Lower, Tilt and Twist

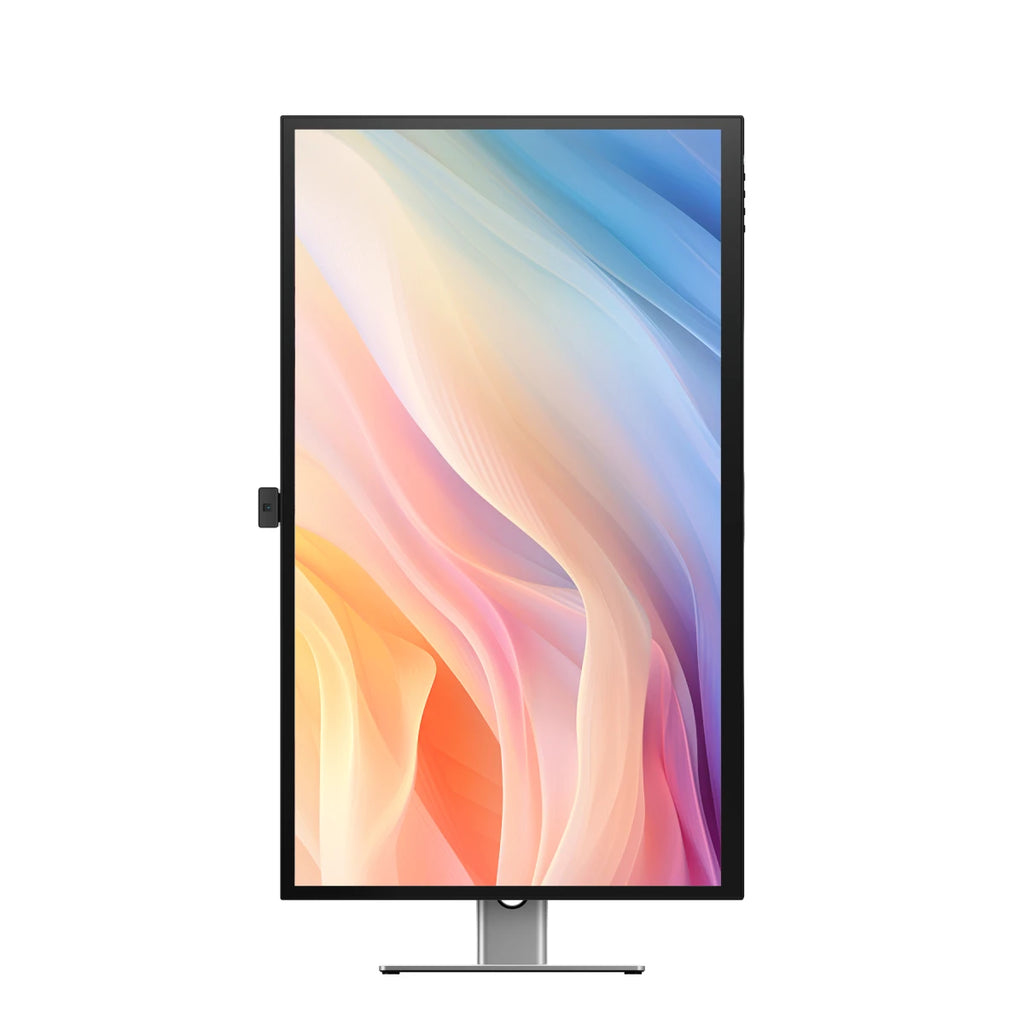

Our aluminium stand makes it easy to position Clarity Max exactly where you need it, letting you raise, pivot, tilt and swivel the display to fit your desk setup and maximise ergonomic comfort.
With Clarity Max, it’s easy to show off your latest design to colleagues, with wide 178° viewing angles across its broad 32” screen.
Compatible with 100x100mm VESA Mounts (such as our Clarity Fold Stand and Glide Monitor Arms), Clarity Max is an easy inclusion in any setup, despite its size.
More Space For What Matters
Display
Display diagonal
81.3 cm (32")
Display resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Native aspect ratio
16:9
Panel type
IPS
Backlight type
QD
Touchscreen
No
Display brightness (typical)
320 cd/m²
Screen shape
Flat
Contrast ratio (typical)
3000:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range (HDR) 400
sRGB coverage (typical)
130%
NTSC coverage (typical)
112%
Adobe RGB coverage
110%
BT.2020 coverage
76%
Multimedia
Number of speakers
2
RMS rated power
5 W
Built-in speaker(s)
Yes
Megapixel (approx.)
8 MP
Built-in camera
Yes
Design
Market positioning
Business
Product colour
Aluminium, Black
Housing material
Acrylonitrile butadiene styrene (ABS), Aluminium, Glass
Detachable stand
Yes
Feet colour
Silver
Ports & interfaces
Built-in USB hub
Yes
USB upstream port type
USB Type-B, USB Type-C
Number of USB Type-B upstream ports quantity
1
Number of USB Type-C upstream ports quantity
1
USB Type-A downstream ports quantity
2
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
65 W
HDMI
Yes
HDMI ports quantity
2
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone out
Yes
Headphone connectivity
3.5 mm
DC-in jack
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Height adjustment
Yes
Adjustable height (max)
42 cm
Pivot
Yes
Swivelling
Yes
Tilt adjustment
Yes
Plug and Play
Yes
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
32 kWh
Energy consumption (HDR) per 1000 hours
71 kWh
Power consumption (max)
150 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
19 V
Power supply type
External
Energy efficiency scale
A to G
Weight & dimensions
Width (with stand)
726 mm
Depth (with stand)
250 mm
Height (with stand)
481 mm
Weight (without stand)
6.5 kg
Packaging content
Stand included
Yes
Cables included
DisplayPort, HDMI, USB Type-A to USB Type-B, USB Type-C to USB Type-C
Power adapter included
Yes
Manual
Yes
