Introduction

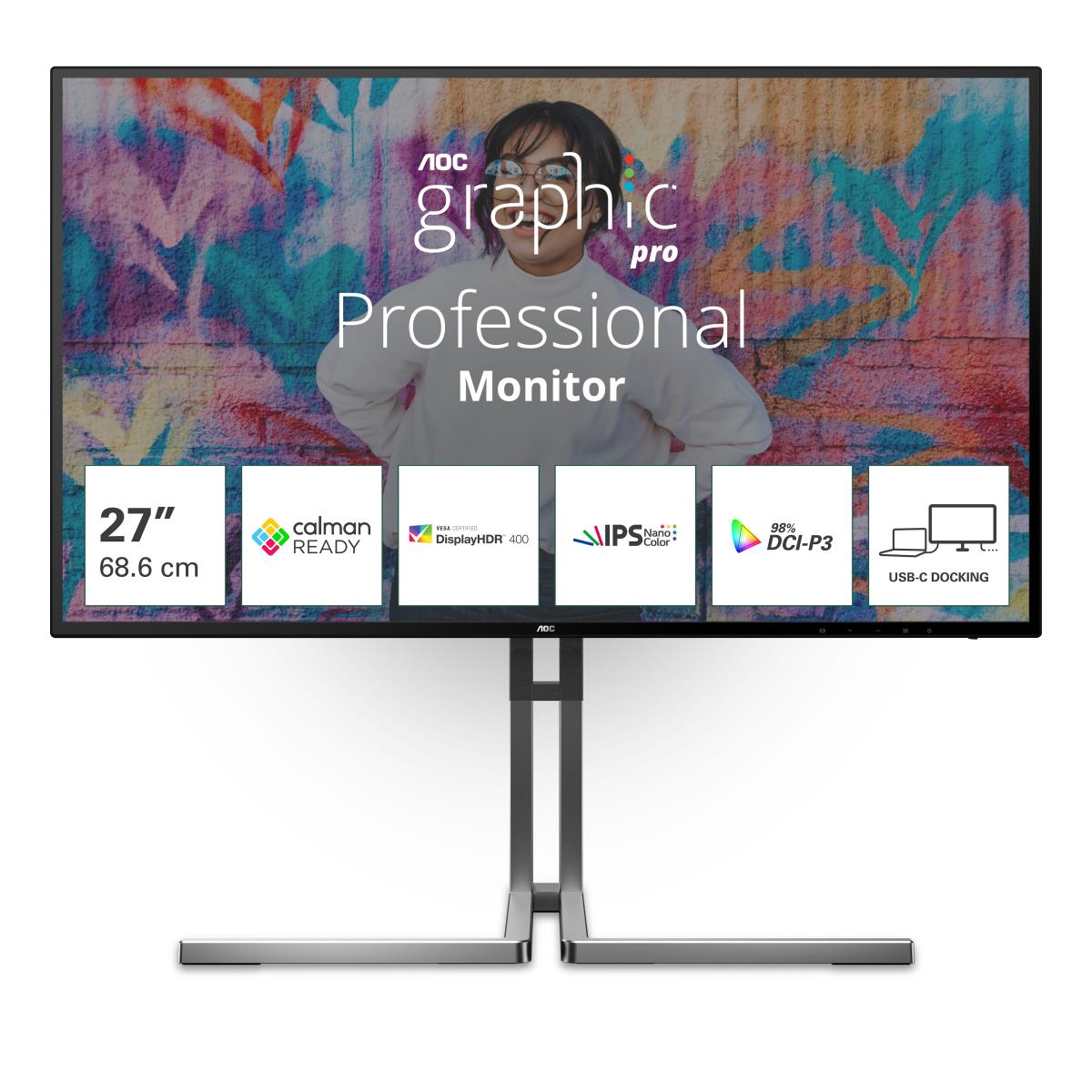

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and UHD Nano IPS display

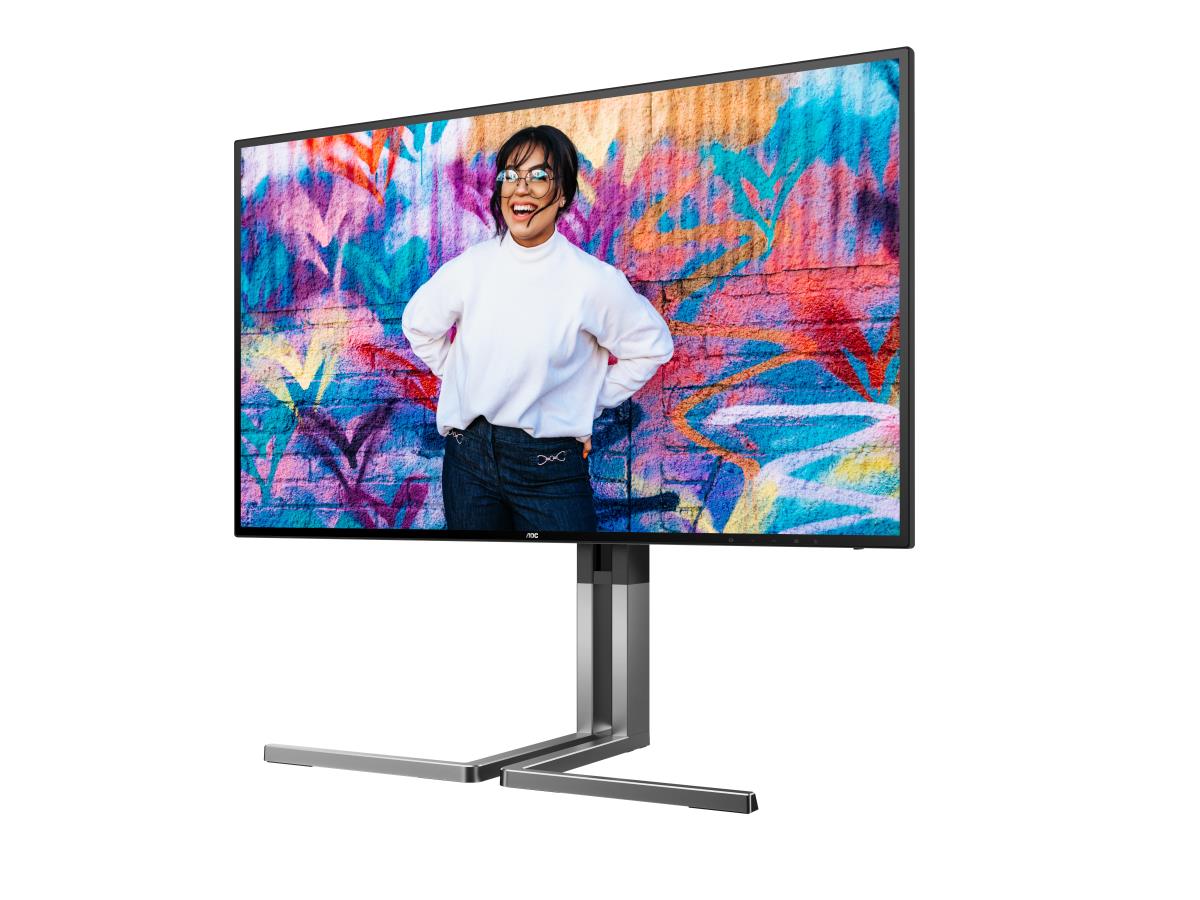

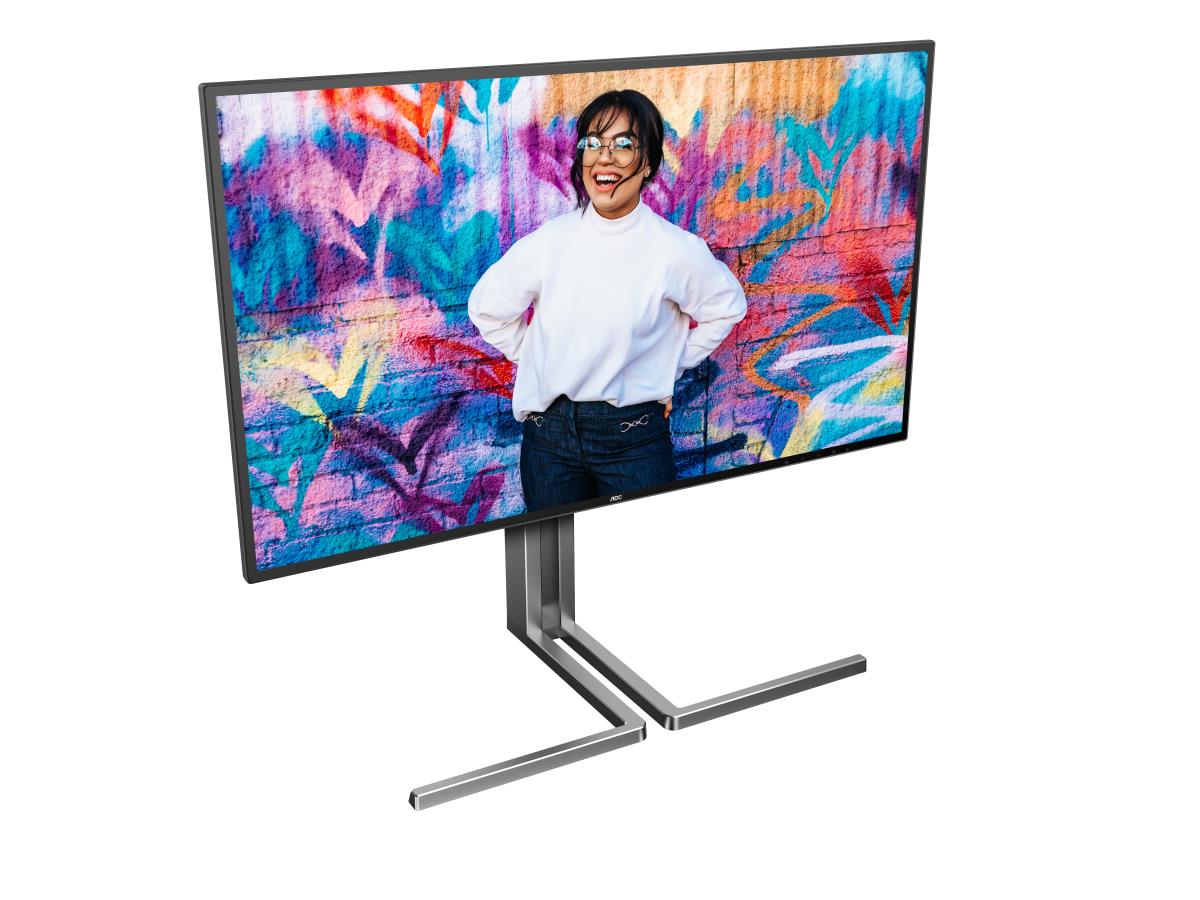

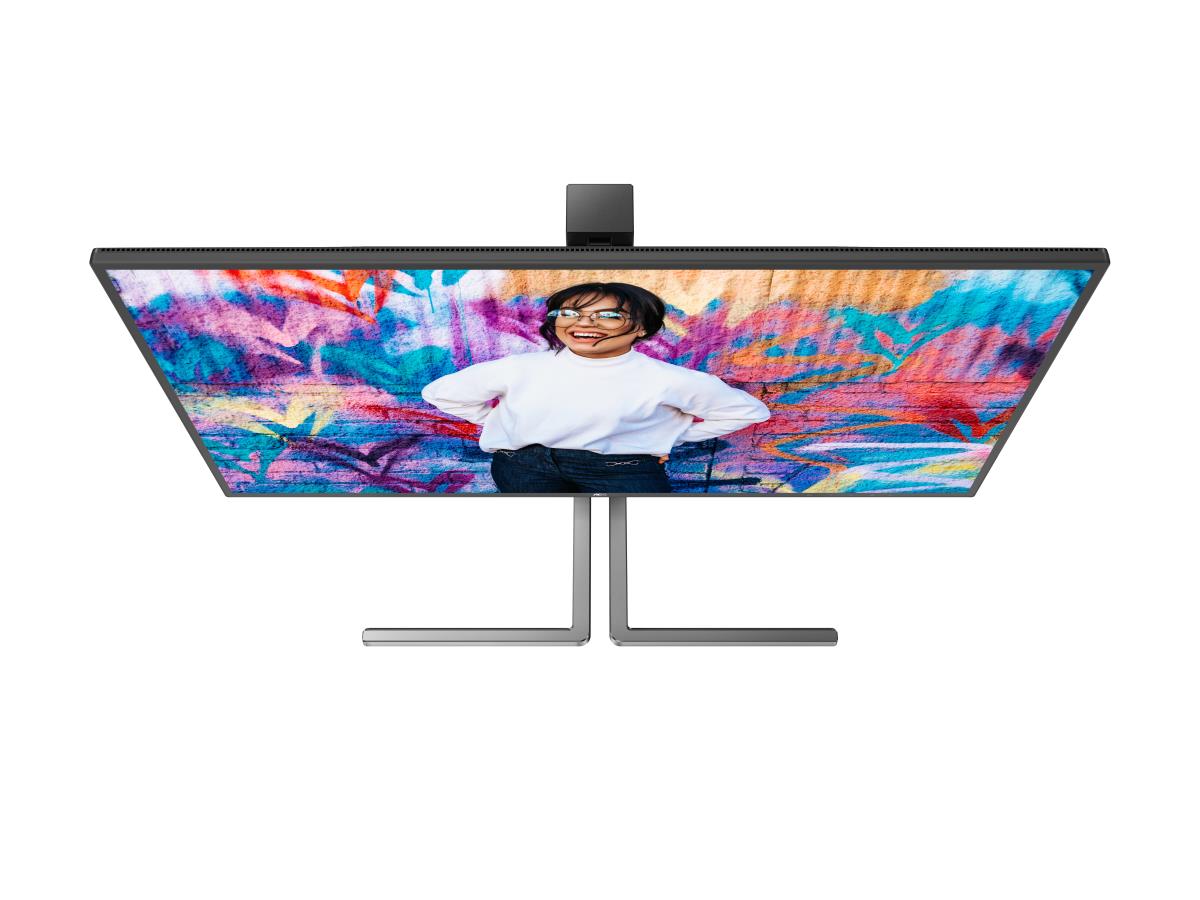

The AOC Graphic Pro U27U3CV delivers exceptional color accuracy straight out of the box, thanks to its hardware calibration achieving Delta E<2 (sRGB). Fine-tune settings effortlessly with the Calman Ready feature for optimal performance. With 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 color space, it's ideal for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering, surpassing human eye perception. Enhanced with a 4-sided frameless screen, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands as the top choice for professionals.
Monitor Type
TV / Monitor
Monitor
Model Specifications
Model
U3 U27U3CV
Display Type
LED
Screen Size
27"
Cabinet Colour
Black
Backlighting Technology
WLED
Display
Screen Technology
IPS
Pixel Pitch
0.1554 x 0.1554 mm
Response Time
4 ms
Horizontal Frequency
30 - 140 kHz
Vertical Frequency
23 - 75 Hz
Screen Shape
Flat
Digital horizontal frequency
30 - 140 kHz
Digital vertical frequency
23 - 75 Hz
Response time measurement type
GTG (Gray to Gray)
Contrast ratio (dynamic)
80000000:1
Pixel density
163 ppi
sRGB coverage (typical)
135.2%
Display diagonal
68.6 cm (27")
Display resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
Nano IPS
LED backlight
Yes
Backlight type
W-LED
Touchscreen
No
Display brightness (typical)
400 cd/m²
Response time
4 ms
Anti-glare screen
Yes
Screen shape
Flat
Contrast ratio (typical)
1300:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.073 billion colours
Pixel pitch
0.1554 x 0.1554 mm
Horizontal scan range
30 - 140 kHz
Vertical scan range
23 - 75 Hz
Viewable size, horizontal
59.7 cm
Viewable size, vertical
33.6 cm
Display diagonal (metric)
68.6 cm
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
DisplayHDR 400
DDC/CI
Yes
Haze rate
25%
Surface hardness
3H
Colour gamut standard
DCI-P3
Colour gamut
98%
Connectivity
Display Port
DisplayPorts quantity x 1
HDMI
HDMI ports quantity x 2
USB
USB Type-A downstream ports quantity x 4
USB Type-C downstream ports quantity x 1
USB Type-C downstream ports quantity x 1
Brightness
400 cd/m²
Aspect Ratio
16:9
Contrast Ratio
50000000:1
Colours
1.073 billion colours
Maximum Resolution
3840 x 2160
Multimedia
Multimedia Capability
Yes
Speakers
Yes, 6W
Number of speakers
2
RMS rated power
6 W
Built-in speaker(s)
Yes
Built-in camera
No
Power
Power Voltage
100 - 240 V
Power Consumption
0.3 W
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
26 kWh
Energy consumption (HDR) per 1000 hours
60 kWh
Energy efficiency scale
A to G
Power consumption (off)
0.3 W
Power consumption (typical)
25.45 W
Power consumption (standby)
0.3 W
Power consumption (max)
206 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
3 A
Power supply type
Internal
Dimensions
Weight
6.54 kg (14.42 lb)
Ergonomics
Height adjustment
Yes
Supported Mounting
100 x 100 mm
Swivel angle range
-30 - 30°
Tilt angle
-6.5 - 23°
Cable lock slot
Yes
Cable lock slot type
Kensington
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Height adjustment
Yes
Height adjustment
15 cm

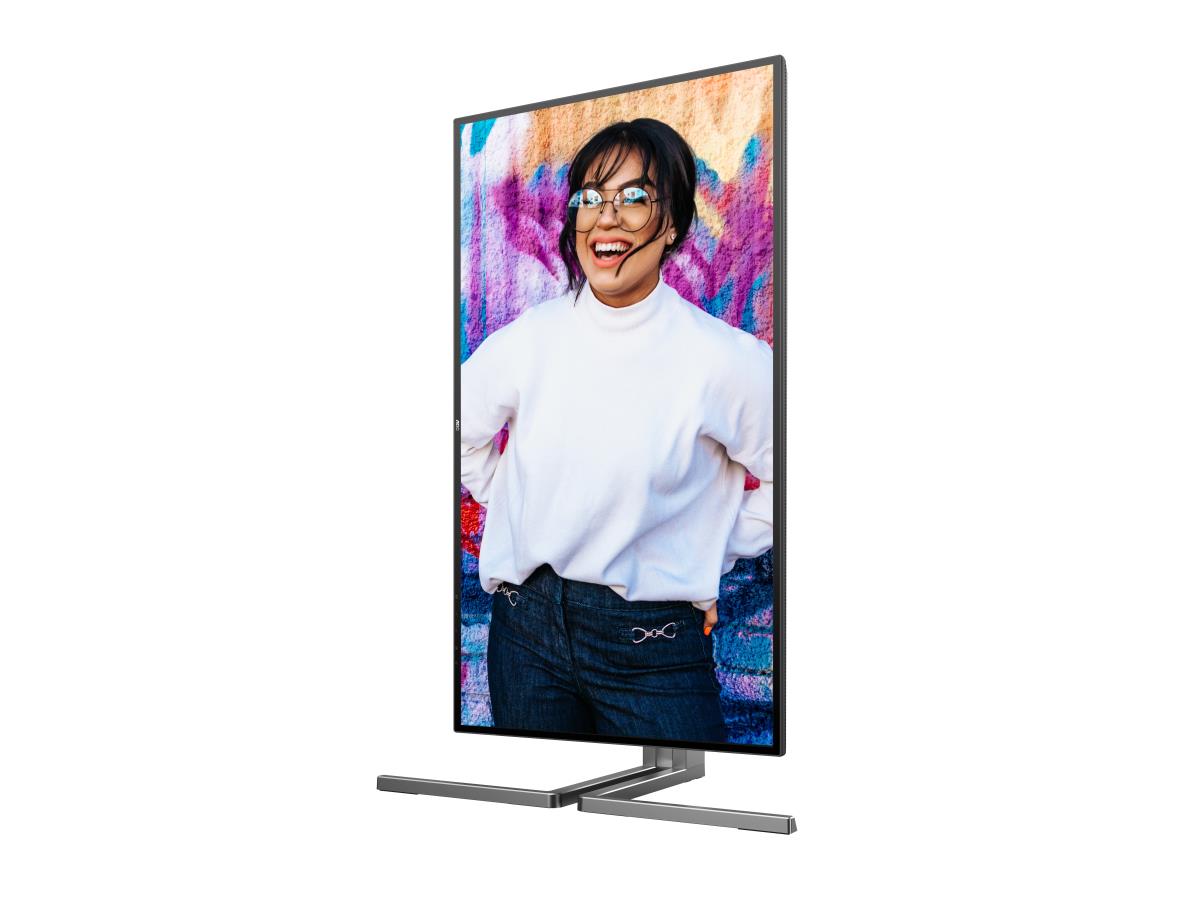

Pivot
Yes
Pivot angle
-90 - 90°
Swivelling
Yes
Swivel angle range
-30 - 30°
Tilt adjustment
Yes
Tilt angle range
-6.5 - 23°
Picture-in-Picture
Yes
Plug and Play
Yes
Miscellaneous
MTBF
30000 h
Green Certificates
Energy Efficiency Class
A
Energy Star Certified
Yes
Epeat
Gold
Green Compliant
Yes
TCO
TCO 10
Performance
Low Blue Light technology
Yes
Fast charging
Yes
VESA Adaptive Sync support
Yes
Flicker-free technology
Yes
Design
Front bezel colour
Black/Silver
Market positioning
Graphics design
Product colour
Black
Frameless design
Yes
Detachable stand
Yes
Feet colour
Grey

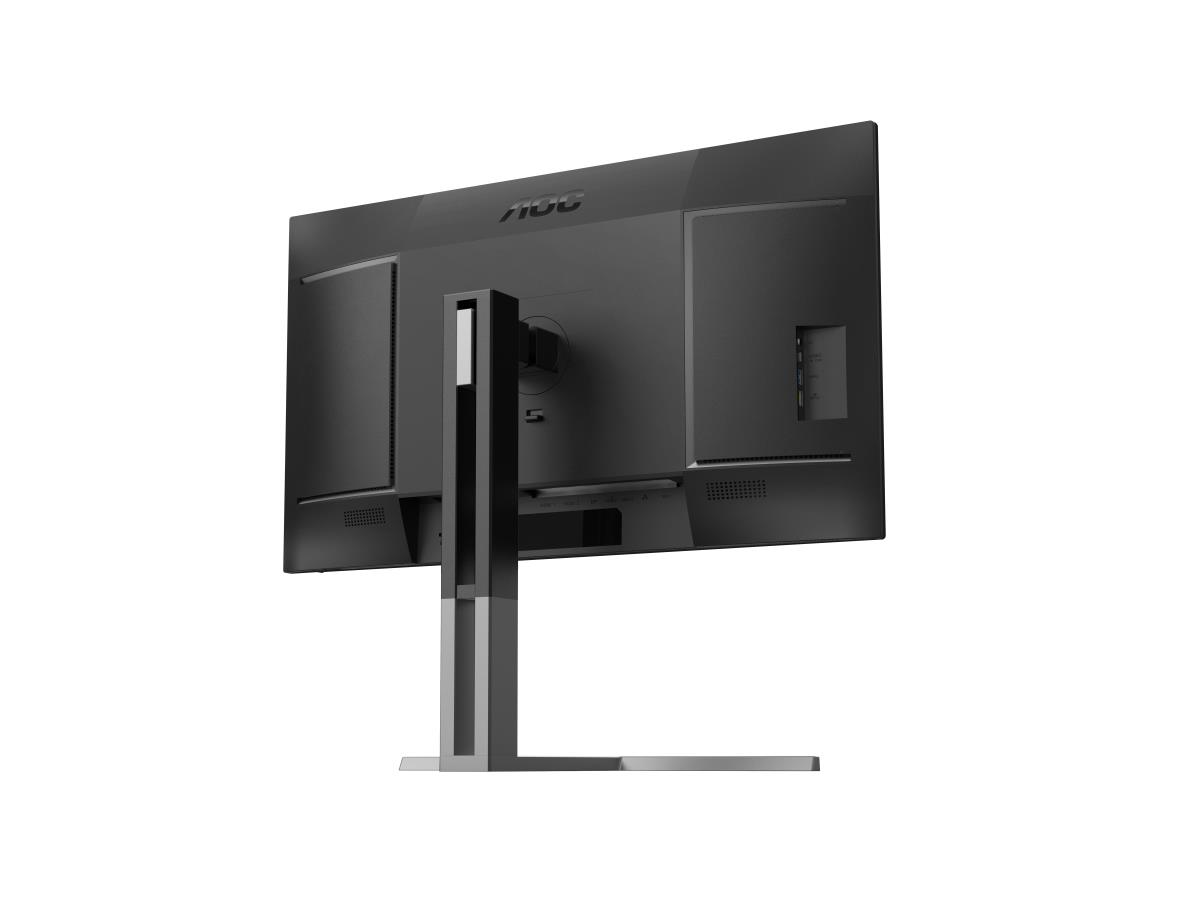

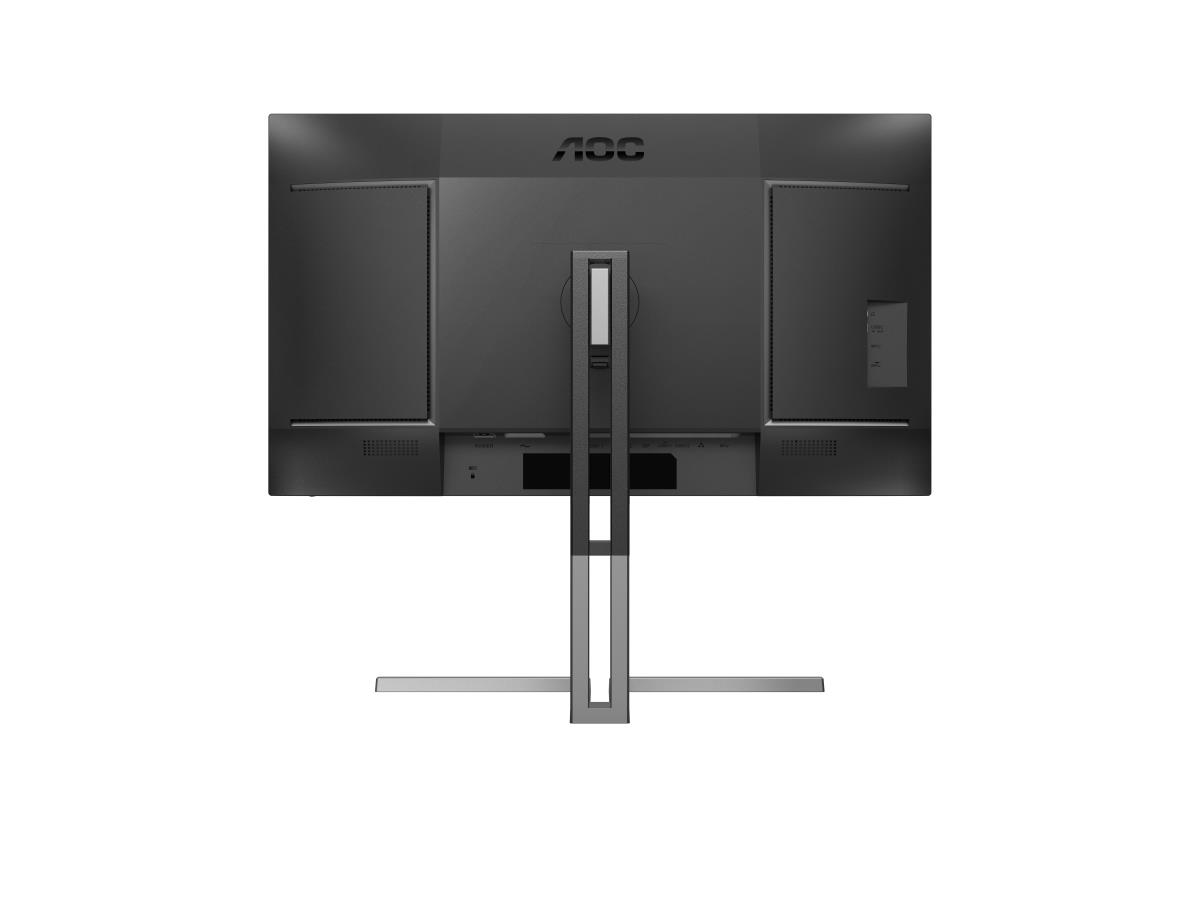

Ports & interfaces
Audio output
Yes
Built-in KVM switch
Yes
Built-in USB hub
Yes
USB hub version
3.2 Gen 2 (3.1 Gen 2)
USB upstream port type
USB Type-C
Number of upstream ports
2
USB Type-A downstream ports quantity
4
USB Type-C downstream ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
96 W
HDMI
Yes
HDMI ports quantity
2
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone out
Yes
Headphone outputs
1
AC (power) in
Yes
Technical details
Native refresh rate
60 Hz
Weight & dimensions
Height (without stand)
51.2 mm
Weight (without stand)
4.85 kg
Width (with stand)
612.7 mm
Depth (with stand)
238.4 mm
Height (with stand)
543.6 mm
Weight (with stand)
6.54 kg
Network
Ethernet LAN
Yes
Packaging data
Package width
825 mm
Package depth
162 mm
Package height
480 mm
Package weight
10 kg
Package type
Box
Packaging content
DisplayPort cable length
1.8 m
HDMI cable length
1.8 m
Power cable length
1.8 m
Stand included
Yes
Cables included
AC, HDMI, DisplayPort, USB Type-C
Quick start guide
Yes
Sustainability
Sustainability certificates
EPEAT Gold, TCO
Doesn't contain
Mercury, PVC/BFR
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 55 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 93%
Operating altitude
0 - 5000 m
Non-operating altitude
0 - 12192 m
Other features
Bezel thickness type
Frameless
Mean time between failures (MTBF)
30000 h
Local dimming
Yes
Warranty period
3 year(s)
Certification
WEEE,REACH compliant,RoHs compliant,HF
Recycling data
Post-consumer recycled plastic
85%
Recycled content in packaging
80%
Information
| Part Number: | U27U3CV |
