Product Details
Introduction

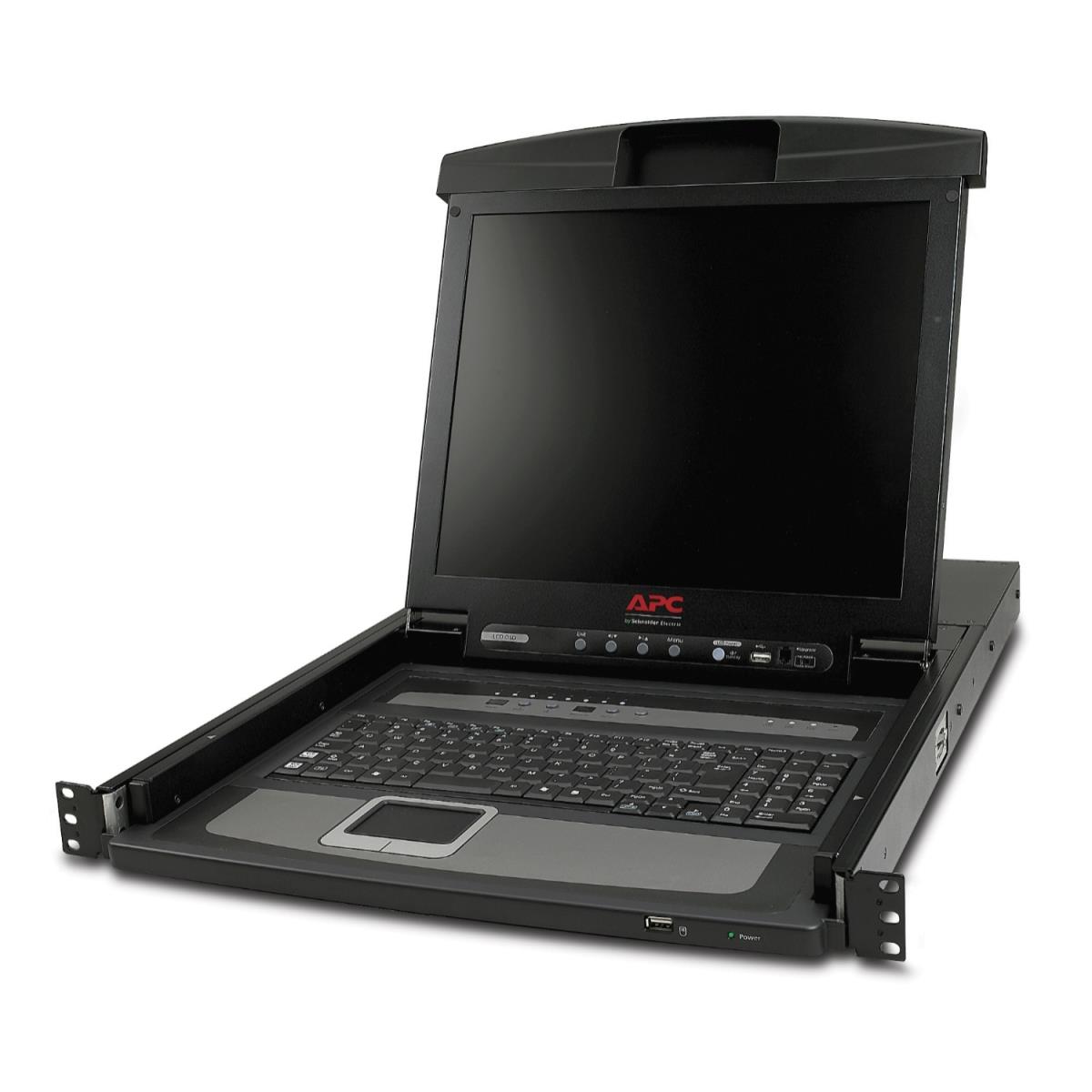

The Rack LCD Console with Integrated KVM Switch combines the functionality of Rack LCD Console and Analog KVM switches in one convenient package optimizing U space in the rack environment, eliminating cable clutter, and offering a value of two products functionality in one package.
Inclusief: Cable management arm, Cd met documentatie, Installatiegids, KVM-kabel, Rek inbouwbeugels, Gebruiksaanwijzing.
Technical details
Total carbon footprint (kg of CO2e)
60.26
Preferred mounting position
no preference
Take-back system
No
Packaging without single use plastic
No
Cable length
1.82 m
Compliance certificates
RoHS, REACH, WEEE
Sustainable packaging
No
Mounting
front
Proposition 65
Yes
Halogen free
No
Rack capacity
1U
Country of origin
China
Form factor
1U
Product colour
Black
Power requirements
120-240V, 50/60 Hz
Power
Input connection type
IEC 60320 C14
AC adapter input voltage
120-240 V
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Certification
cUL Listed, C-tick, CCC, CE, EN 60950, FCC 15 A, GOST, IEC 60950, UL Listed, VDE, RoHS, China RoHS
Weight & dimensions
Width
483 mm
Height
43 mm
Depth
711 mm
Weight
14 kg
Logistics data
Customs product code (TARIC)
8471800000
Display
Display diagonal
43.2 cm (17")
Display
LCD
Ports & interfaces
I/O ports
IEC-320 C14
Interface
USB
Keyboard
Built-in touchpad
Y
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Other features
Dimensions (WxDxH)
483 x 711 x 43 mm
Packaging data
Package weight
20.1 kg
Package dimensions (WxDxH)
665 x 830 x 130 mm
Information
| Part Number: | AP5808 |
