Introduction

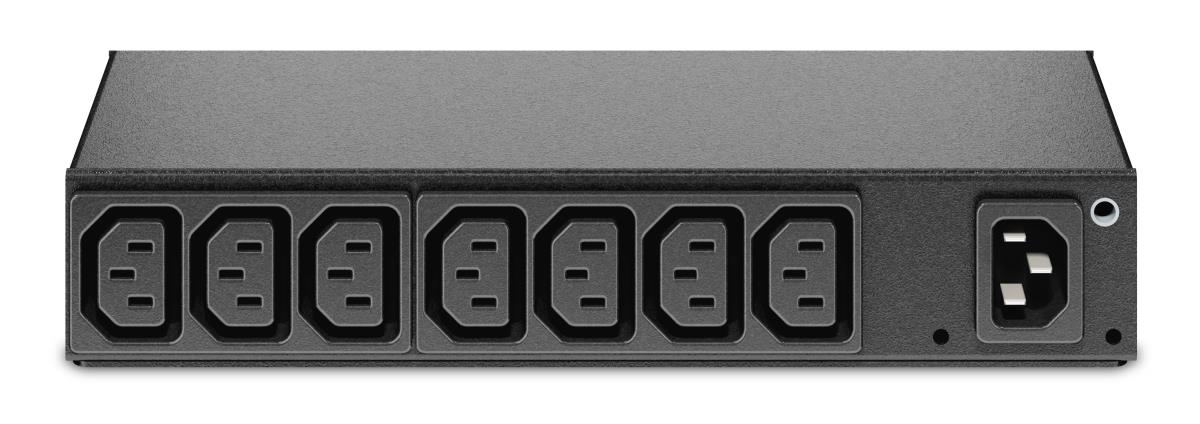

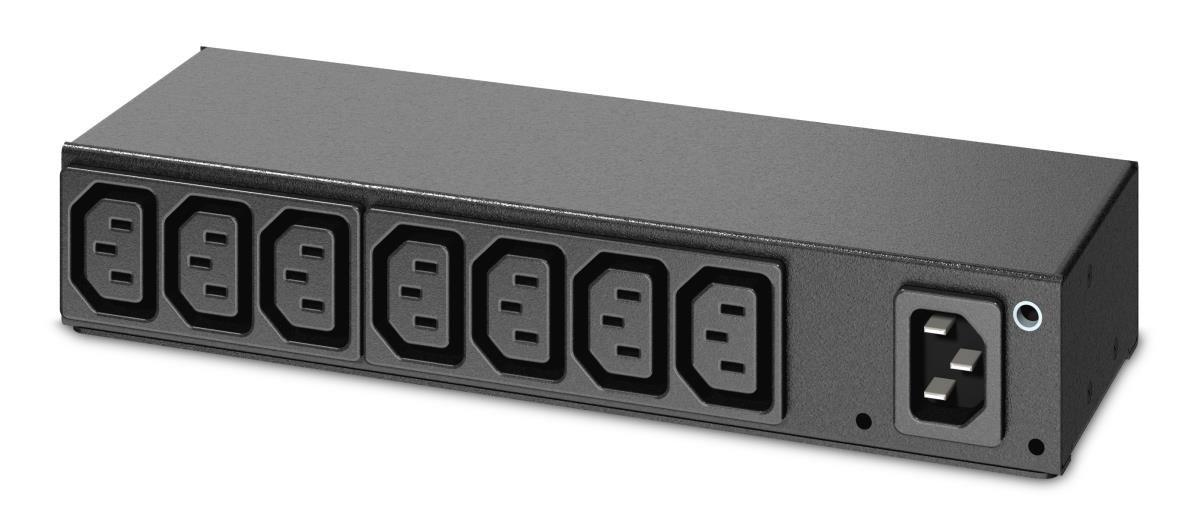

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
Ports & interfaces
Power plug
C14 coupler
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Technical details
Compliance certificates
RoHS
Sustainability certificates
RoHS
Design
PDU types
Basic
Rack capacity
0U/1U
Mounting
Horizontal/Vertical
Product colour
Black
Features
Cable length
3.65 m
Certification
VDE, CE
Power
Nominal input voltage
230 V
AC input frequency
50 - 60 Hz
Maximum current
10 A
Nominal output voltage
120 - 240 V
Load capacity
2300 VA
Maximum input current per phase
10 A
Maximum power
2300 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-15 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
Information
| Part Number: | AP6015A |
