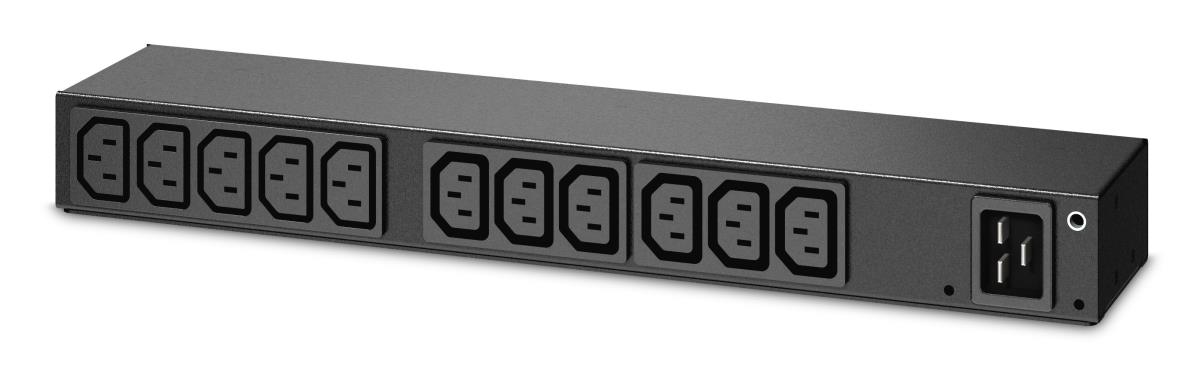

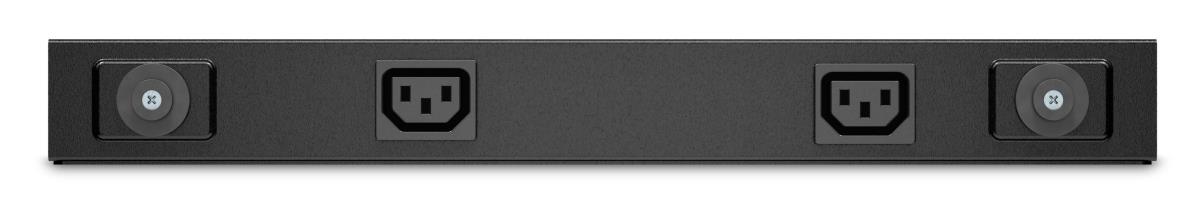

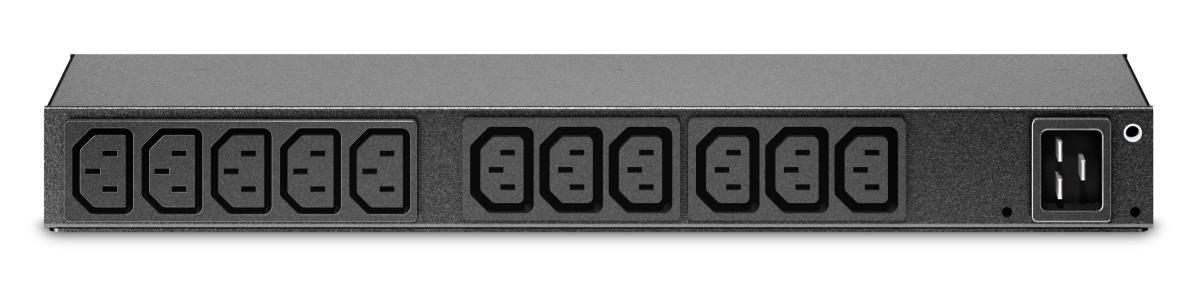

APC Rack PDU Basic 0U/1U 100-240V/20A 220-240V/16A (13) C13

APC Rack PDU Basic 0U/1U 100-240V/20A 220-240V/16A (13) C13

£86.97 (incl. VAT)

Qty:

Add to basket

Part Number:	AP6020A
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

AP6020AFeatures

- Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13
- Reliable rack power distribution
- Includes : Installation guide , Safety guide

Marketing Features

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Agility

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Total Cost of Ownership

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

Weight & dimensions

Width 44 mm

Depth 93 mm

Height 388 mm

Dimensions (WxDxH) 44 x 93 x 388 mm

Weight 1.5 kg

Packaging data

Package width 210 mm

Package depth 76 mm

Package height 436 mm

Package dimensions (WxDxH) 210 x 76 x 436 mm

Package weight 2.02 kg

Logistics data

Total carbon footprint (kg of CO2e) 38.04

Design

Type Single-phase

PDU types Basic

Rack capacity 0U/1U

Mounting Horizontal/Vertical

Product colour Black

Ports & interfaces

Power plug C20 coupler

AC outlet types C13 coupler

AC outlets quantity 13 AC outlet(s)

Output connections IEC 320 C13

Technical details

Compliance certificates RoHS

Sustainability certificates RoHS

Features

Certification cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH

Power

Nominal input voltage 100-240 V

AC input frequency 50 - 60 Hz

Maximum current 20 A

Load capacity 3680 VA

Maximum input current per phase 16 A

Maximum total current draw per phase 16 A

Maximum power 3680 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -15 - 60 °C

Operating relative humidity (H-H) 5 - 95%

Storage relative humidity (H-H) 5 - 95%

Operating altitude 0 - 3048 m

Information

Part Number:

AP6020A
