Product Details
Introduction

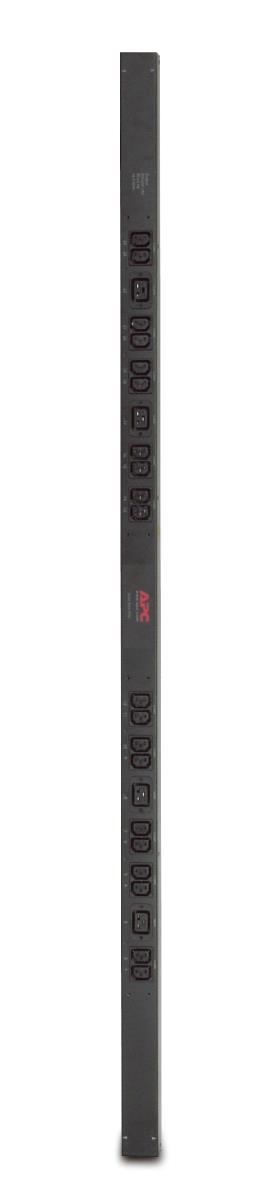

APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) that distribute power to rack-mount equipment.
- Single input power source.
- Toolless Mounting Capabilities.
- Vertical Mounting Capabilities.
Weight & dimensions
Width
56 mm
Depth
44 mm
Height
1619 mm
Dimensions (WxDxH)
56 x 44 x 1619 mm
Weight
5.57 kg
Packaging data
Package width
152 mm
Package depth
127 mm
Package height
2134 mm
Package dimensions (WxDxH)
152 x 127 x 2134 mm
Package weight
6.48 kg
Design
PDU types
Basic
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
24 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Input connection type
IEC 309 16A
Output connections
20x IEC 320 C13
4x IEC 320 C19
Features
Cable length
3.05 m
Certification
CCC, CE, VDE
Power
Nominal input voltage
230 V
Nominal output voltage
230 V
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
3680 W
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Information
| Part Number: | AP7554 |
