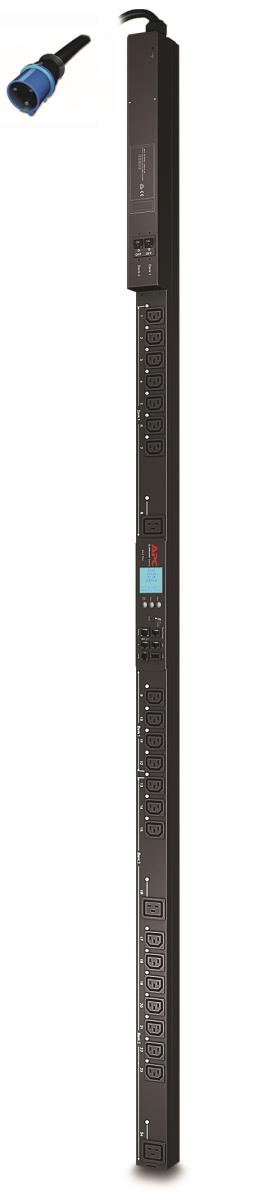

APC Switched Rack Pdu 2g Switched Plus Zerou 32a 230v (21) C13 And (3) C19

APC Switched Rack Pdu 2g Switched Plus Zerou 32a 230v (21) C13 And (3) C19

£1,712.83 (incl. VAT)

Qty:

Add to basket

Part Number:	AP8653
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Includes: CAN Port Terminator, Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable

Weight & dimensions

Width 56 mm

Depth 51 mm

Height 1829 mm

Dimensions (WxDxH) 56.00 x 51.00 x 1829.00 mm

Weight 8.23 kg

Packaging data

Package width 162 mm

Package depth 118 mm

Package height 2038 mm

Package dimensions (WxDxH) 162.00 x 118.00 x 2038.00 mm

Package weight 10.5 kg

Logistics data

Total carbon footprint (kg of CO2e) 8595.81

Technical details

Compliance certificates RoHS

Sustainability certificates RoHS

Design

PDU types Metered, Switched

Type Single-phase

Rack capacity 0U

Mounting Vertical

Product colour Black

Ports & interfaces

AC outlets quantity 24 AC outlet(s)

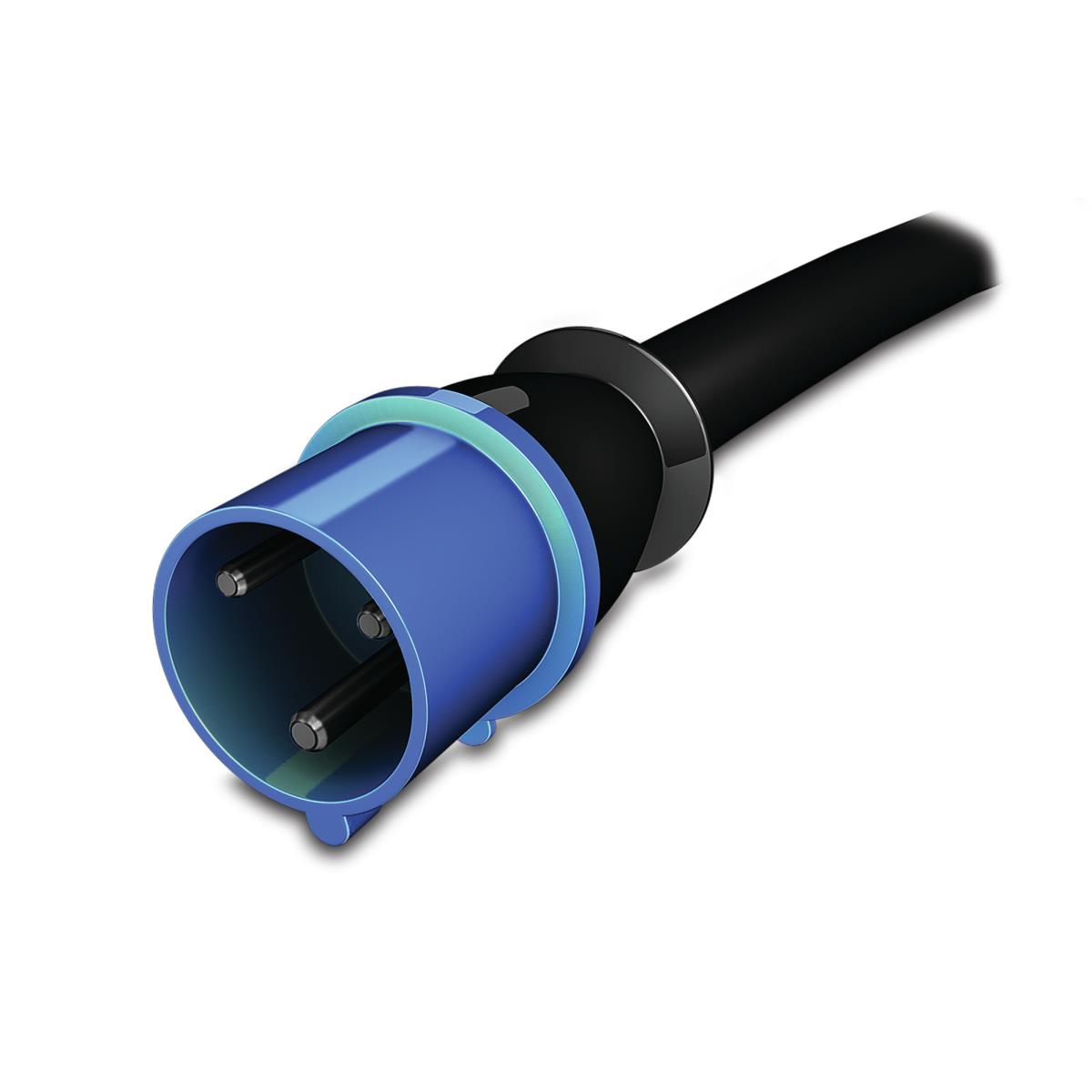

Power plug IEC309

AC outlet types C13 coupler, C19 coupler

Features

Cable length 3 m

Certification EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE

Management features

Monitoring Current, Power, Voltage

Outlet control Lock-out, Recycle, Turn off, Turn on

Power

Nominal input voltage 230 V

AC input frequency 50 - 60 Hz

Maximum current 32 A

Nominal output voltage 230 V

Load capacity 7680 VA

Maximum input current per phase 32 A

Maximum total current draw per phase 32 A

Power protection features Overload

Maximum power 7680 W

Operational conditions

Operating temperature (T-T) -5 - 45 °C

Storage temperature (T-T) -25 - 65 °C

Operating relative humidity (H-H) 5 - 95%

Storage relative humidity (H-H) 5 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m
