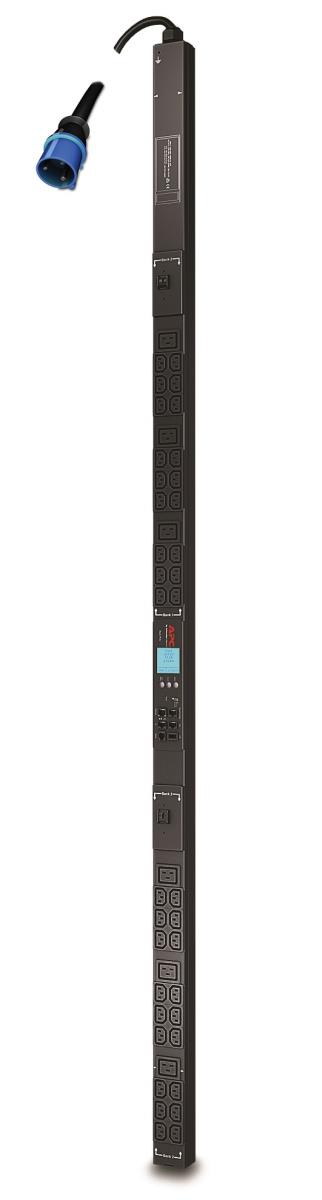

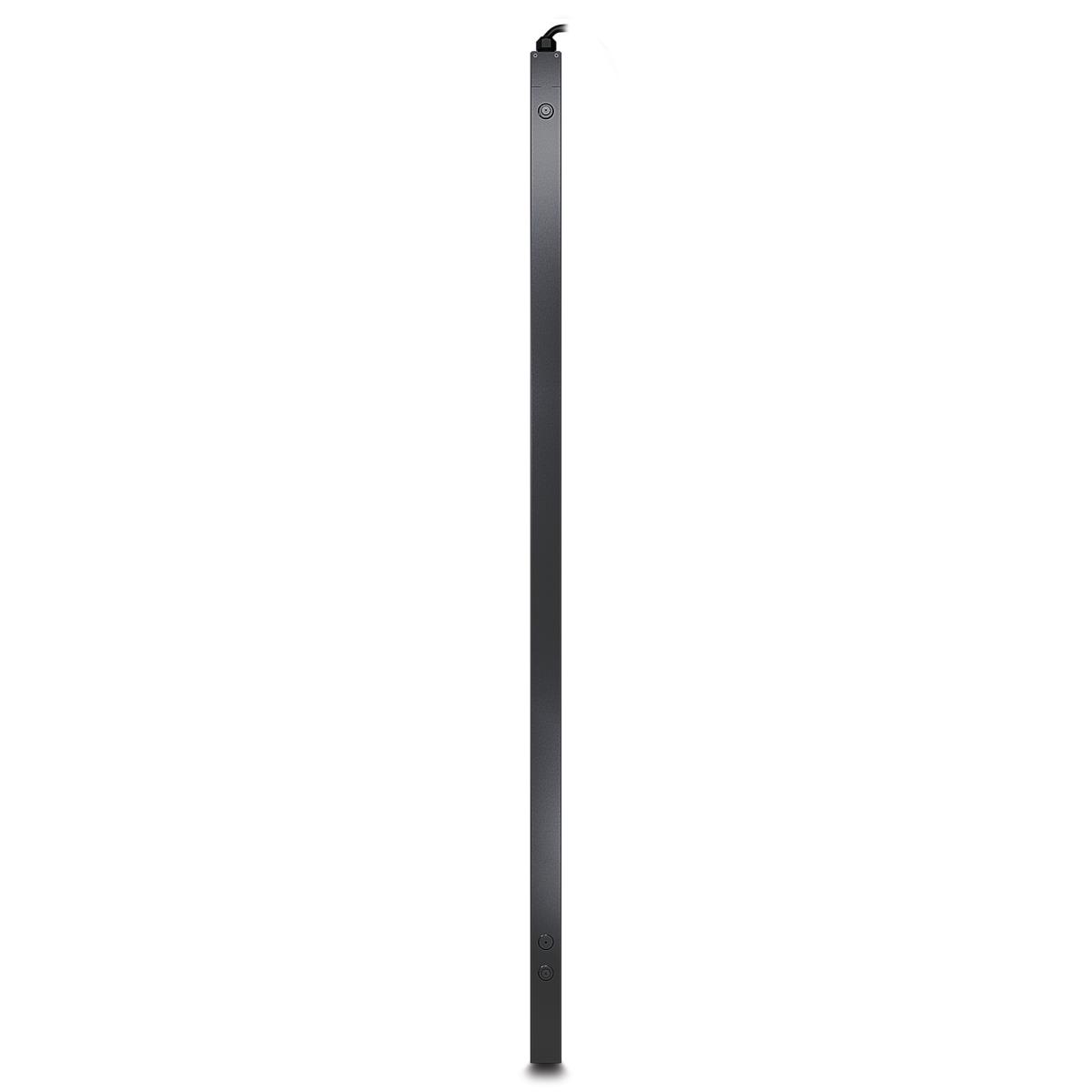

APC Rack Pdu 2g Metered Zerou 32a 230v (36) C13 And (6) C19

APC Rack Pdu 2g Metered Zerou 32a 230v (36) C13 And (6) C19

£798.87 (incl. VAT)

Qty:

Add to basket

Part Number:	AP8853
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Weight & dimensions

Width 56 mm

Depth 44 mm

Height 1791 mm

Dimensions (WxDxH) 56 x 44 x 1791 mm

Weight 6.93 kg

Logistics data

Total carbon footprint (kg of CO2e) 28921.23

Design

PDU types Metered

Type Single-phase

Rack capacity 0U

Mounting Vertical

Product colour Black

Ports & interfaces

AC outlets quantity 42 AC outlet(s)

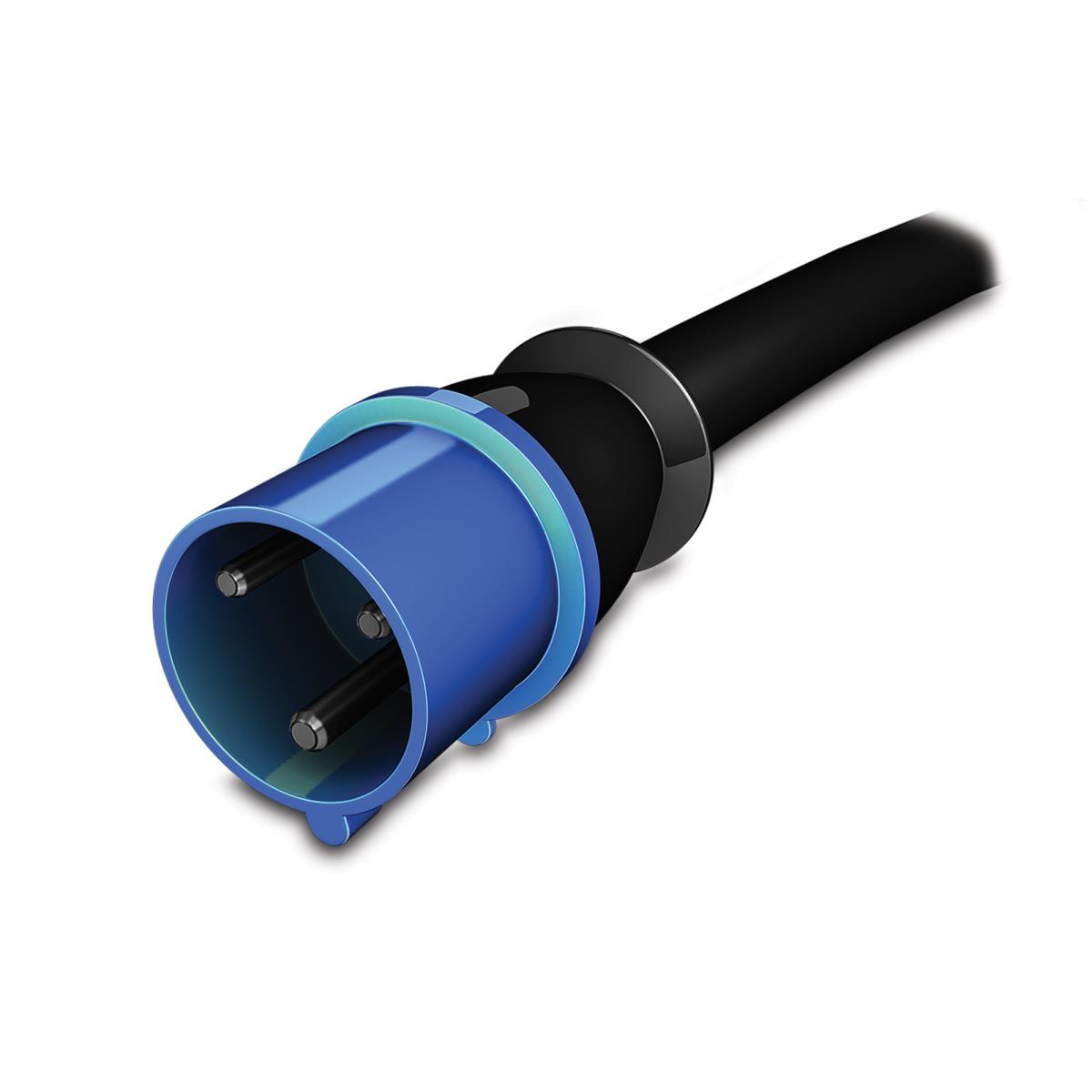

Power plug IEC309

AC outlet types C13 coupler, C19 coupler

Input connection type IEC 309 32A 2P+E

Output connections 36x IEC 320 C13 6x IEC 320 C19

Features

Cable length 3 m

Certification RoHS, REACH IEC 60950,VDE

Management features

Monitoring Current, Power, Voltage

Power

AC input frequency 50 - 60 Hz

Nominal output voltage 230 V

Load capacity 7680 VA

Maximum input current per phase 32 A

Maximum total current draw per phase 32 A

Maximum power 7680 W

Operational conditions

Operating temperature (T-T) 5 - 45 °C

Storage temperature (T-T) -25 - 65 °C

Operating relative humidity (H-H) 5 - 95%

Storage relative humidity (H-H) 5 - 95%

Information

Part Number:

AP8853
