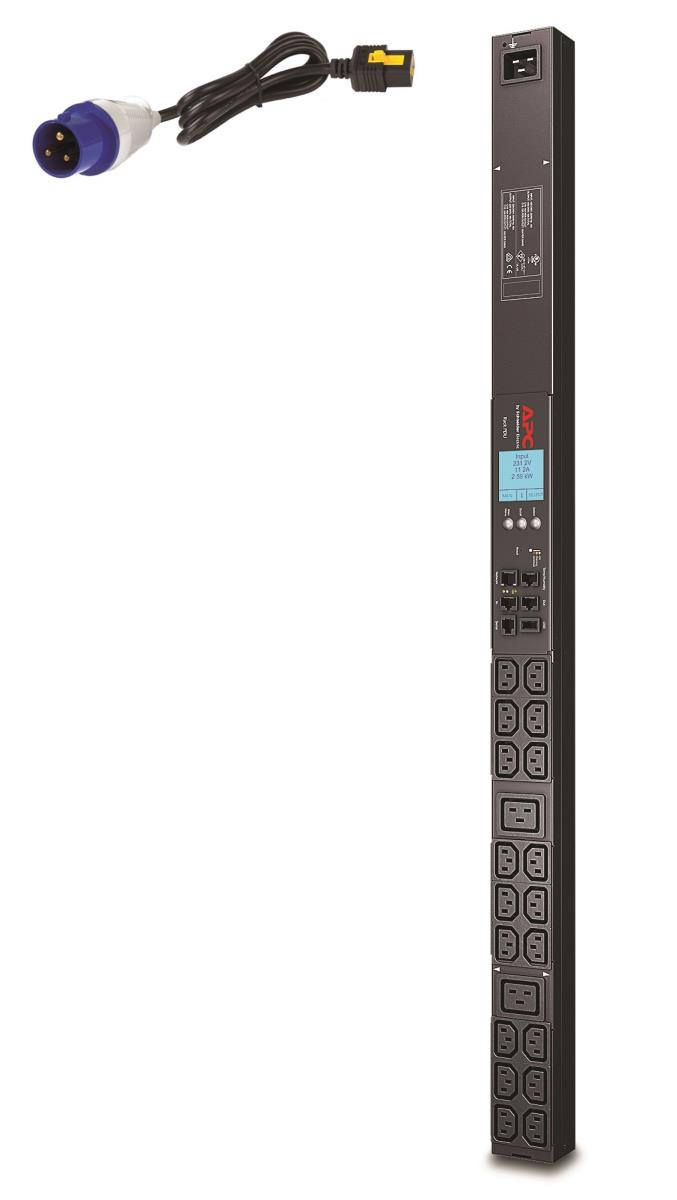

APC Rack Pdu 2g Metered Zerou 16a/230v (18) C13 (2) C19 Iec309

APC Rack Pdu 2g Metered Zerou 16a/230v (18) C13 (2) C19 Iec309

£745.38 (incl. VAT)

Qty:

Add to basket

Part Number:	AP8858EU3
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Weight & dimensions

Width 56 mm

Depth 44 mm

Height 902 mm

Dimensions (WxDxH) 56 x 44 x 902 mm

Weight 2.93 kg

Packaging data

Package width 162 mm

Package depth 107 mm

Package height 1124 mm

Package dimensions (WxDxH) 162 x 107 x 1124 mm

Package weight 4.92 kg

Logistics data

Total carbon footprint (kg of CO2e) 13349.44

Design

PDU types Metered

Rack capacity 0U

Mounting Vertical

Ports & interfaces

AC outlets quantity 20 AC outlet(s)

Power plug IEC309

AC outlet types C13 coupler, C19 coupler

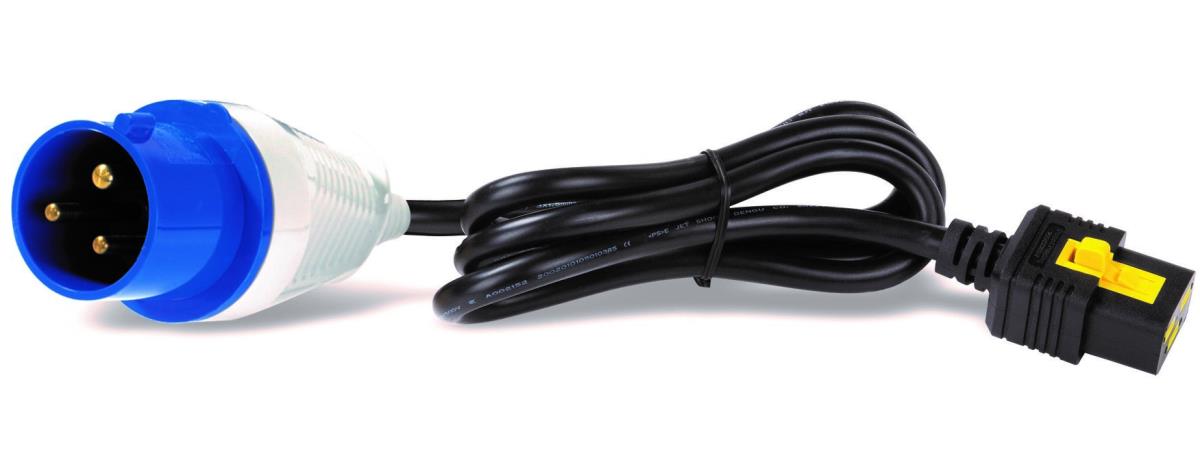

Input connection type IEC 309 16A 2P+E

Output connections 18x IEC 320 C13 2x IEC 320 C19

Features

Cable length 3 m

Certification CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH

Management features

Monitoring Current, Power, Voltage

Power

AC input frequency 50 - 60 Hz

Nominal output voltage 230 V

Load capacity 3680 VA

Maximum input current per phase 16 A

Maximum total current draw per phase 16 A

Maximum power 3680 W

Operational conditions

Operating temperature (T-T) 5 - 45 °C

Storage temperature (T-T) -25 - 65 °C

Operating relative humidity (H-H) 5 - 95%

Storage relative humidity (H-H) 5 - 95%

Information

Part Number:

AP8858EU3
