Product Details
Introduction

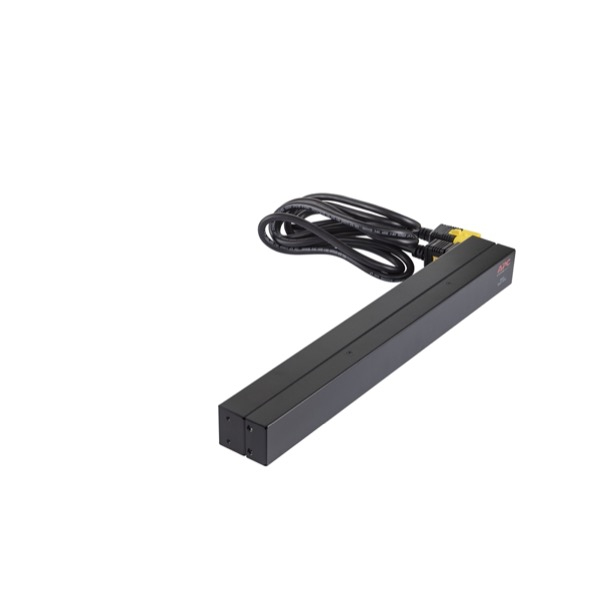

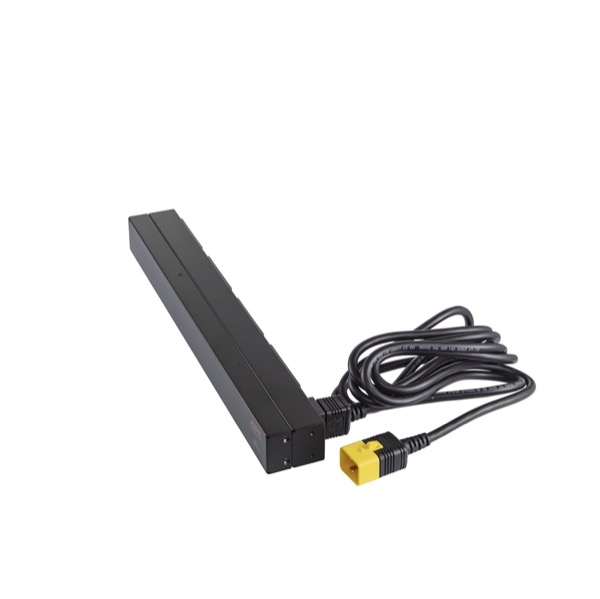

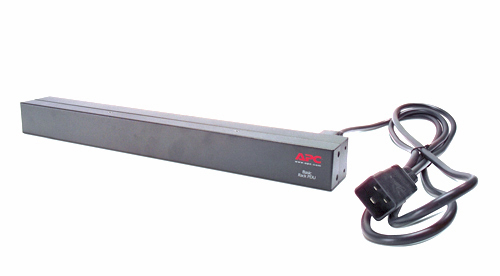

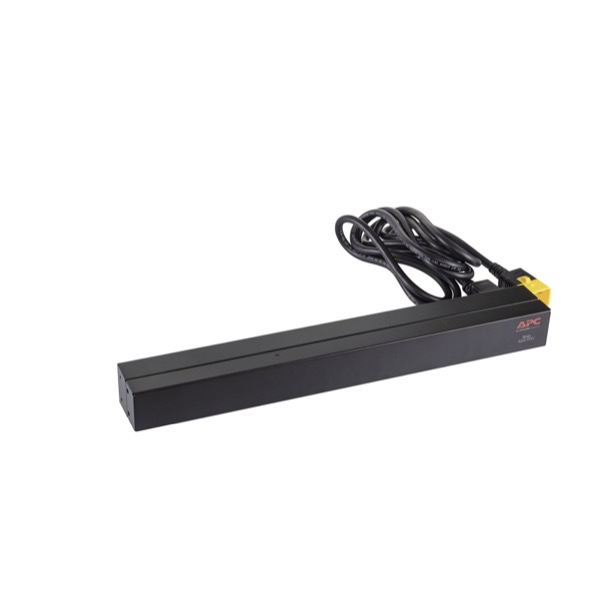

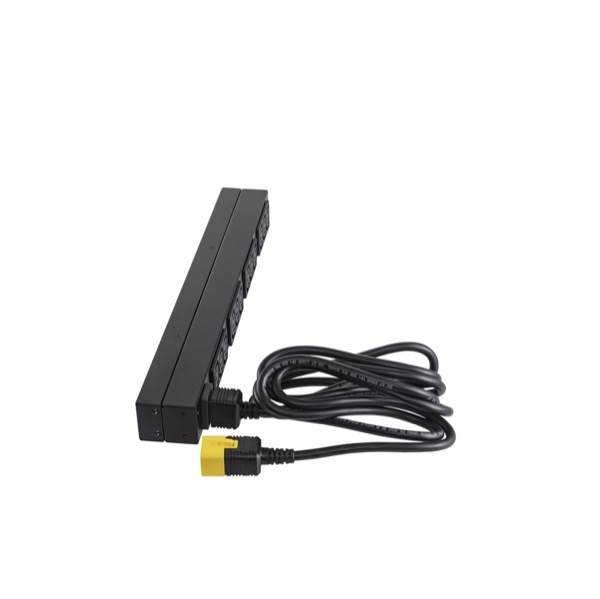

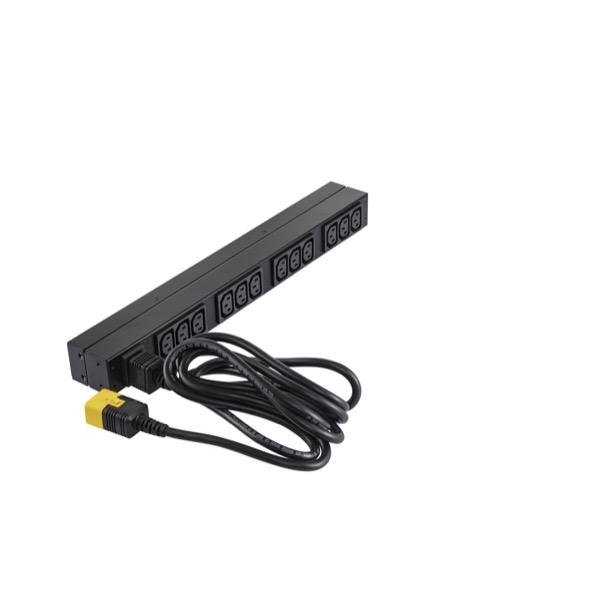

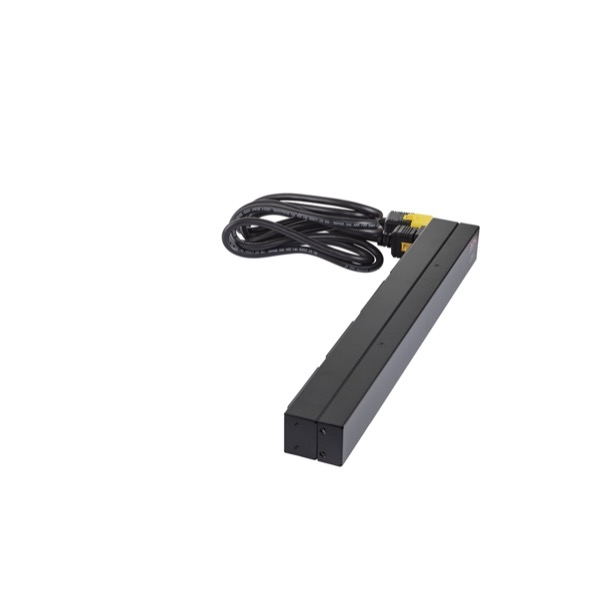

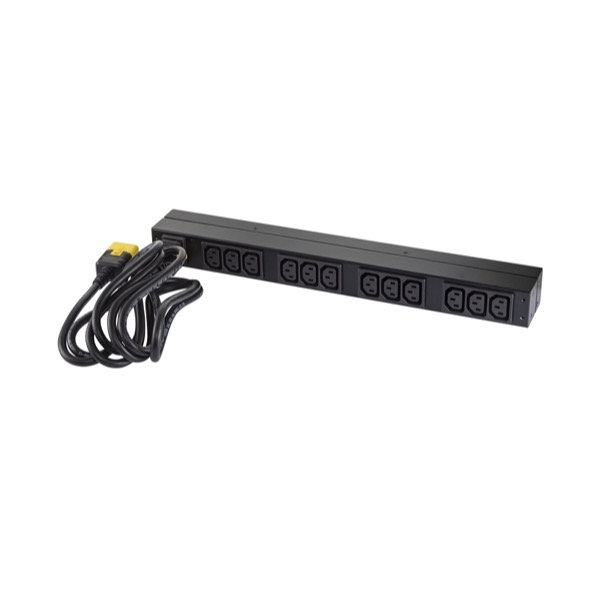

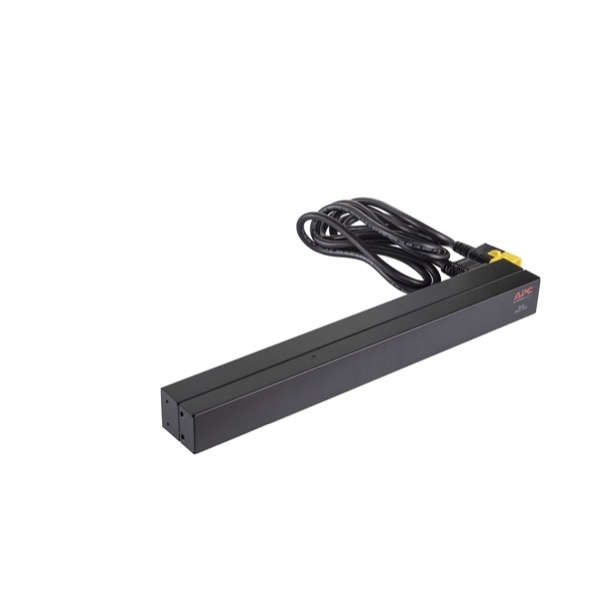

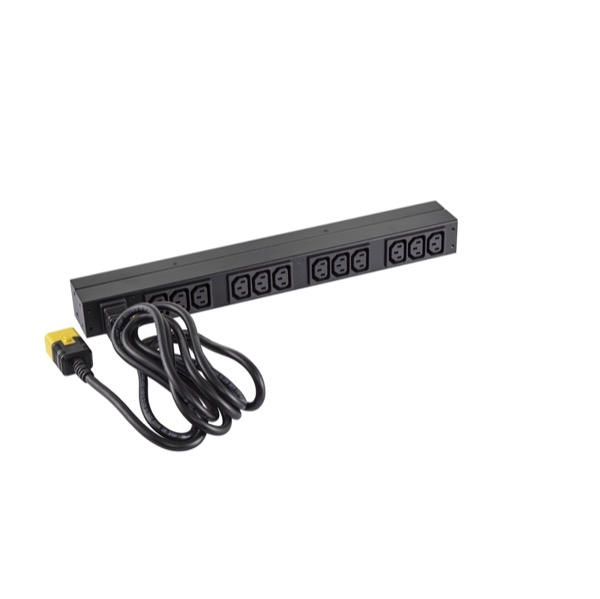

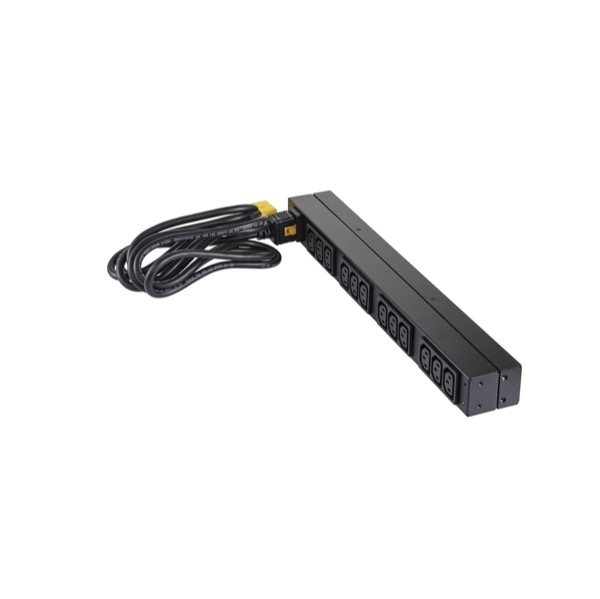

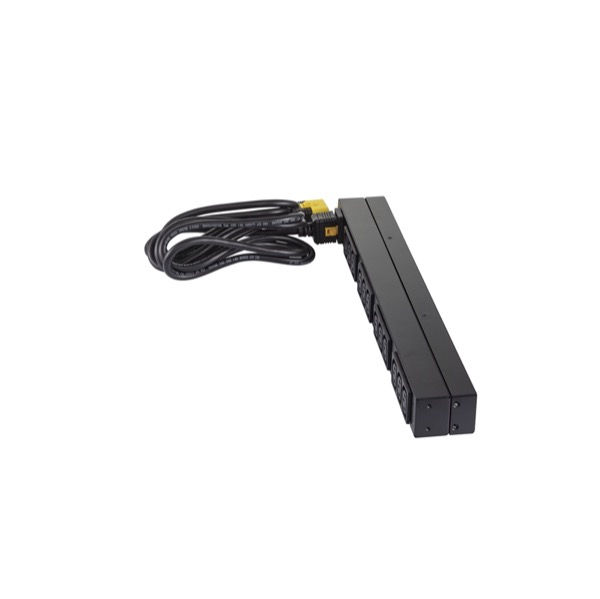

APC Basic Rack PDU , Input: 208V, 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet ( 2.5 meters ) , Output: 208V, 230V , Output Connections: IEC 320 C13.
Includes: Installation guide, Rack Mounting brackets.
Weight & dimensions
Width
447 mm
Depth
57.2 mm
Height
44.5 mm
Dimensions (WxDxH)
447 x 57.2 x 44.5 mm
Weight
2.05 kg
Packaging data
Package width
464 mm
Package depth
229 mm
Package height
70 mm
Package dimensions (WxDxH)
464 x 229 x 70 mm
Package weight
3.64 kg
Logistics data
Total carbon footprint (kg of CO2e)
55.19
Design
Type
Single-phase
PDU types
Basic
Rack capacity
0U/1U
Mounting
Horizontal/Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
12 AC outlet(s)
Power plug
C20 coupler
AC outlet types
C13 coupler
Input connection type
IEC-320 C20
Output connections
(12) IEC 320 C13
Features
Cable length
2.5 m
Certification
cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Power
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum power
3680 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Information
| Part Number: | AP9565 |
