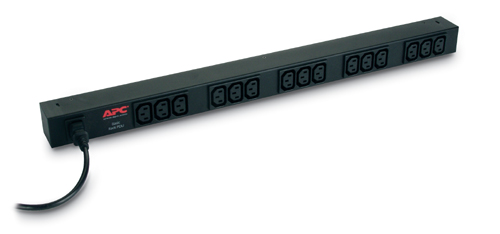

APC Rack Pdu Basic Zero 1u 10a 230v (15) C13

APC Rack Pdu Basic Zero 1u 10a 230v (15) C13

£316.88 (incl. VAT)

Qty:

Add to basket

Part Number:	AP9568
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13

Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities

Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit

Output:

Output Voltage(s) (main only) - 208, 230 V

Maximum Total Current Draw per Phase - 10 A

Output Connections - (15)IEC 320 C13

Input:

Nominal input voltage - 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C14

Cord Length - 6.5 feet ( 1.98 meters )

Acceptable Input Voltage - 200-240 VAC

Maximum Input Current per phase - 10.0 A

Load Capacity - 2300

Weight & dimensions

Width 445 mm

Depth 445 mm

Height 609.6 mm

Dimensions (WxDxH) 445 x 445 x 609.6 mm

Weight 2 kg

Design

PDU types Basic

Type Single-phase

Rack capacity 0U

Mounting Vertical

Product colour Black

Ports & interfaces

AC outlets quantity 15 AC outlet(s)

Power plug C14 coupler

AC outlet types C13 coupler

I/O ports Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14

Features

Cable length 1.98 m

Power

Load capacity 2300 VA

Maximum input current per phase 10 A

Maximum power 2300 W

Operational conditions

Operating temperature (T-T) 0 - 45 °C

Storage temperature (T-T) -25 - 65 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Information

Part Number:

AP9568
