Product Details
Introduction

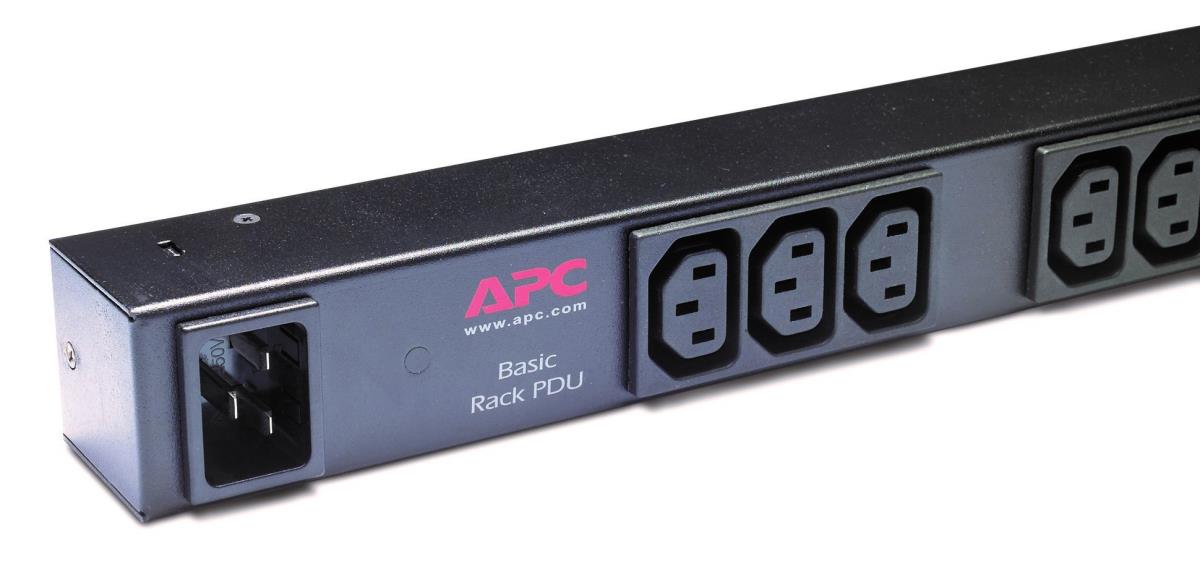

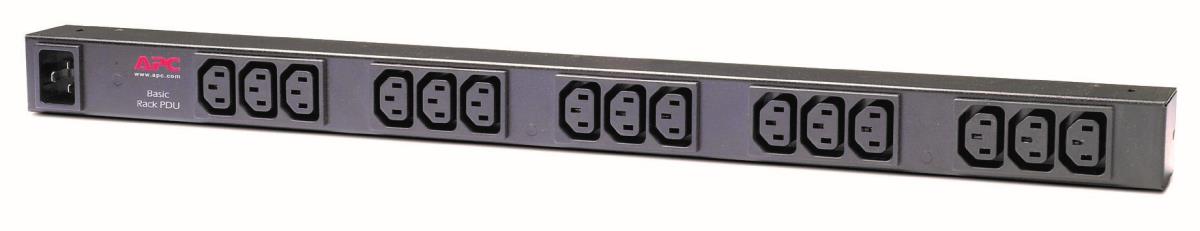

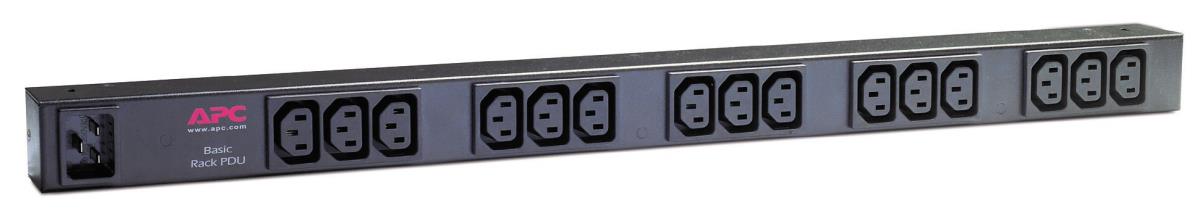

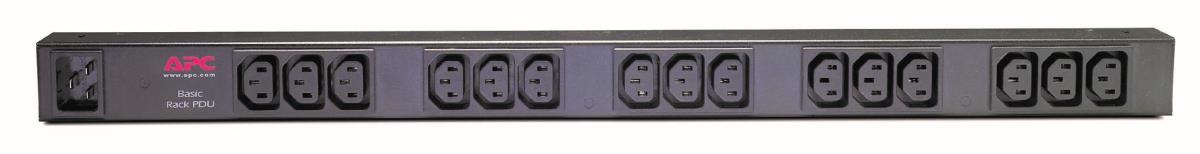

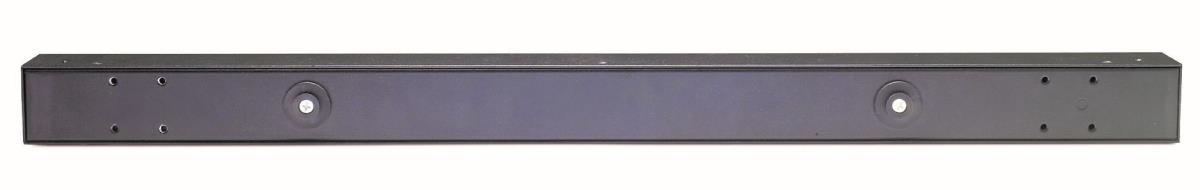

Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13.
Weight & dimensions
Width
44 mm
Depth
44 mm
Height
620 mm
Dimensions (WxDxH)
44 x 44 x 620 mm
Weight
2 kg
Design
PDU types
Basic
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
15 AC outlet(s)
Power plug
C20 coupler
AC outlet types
C13 coupler
Input connection type
IEC-320 C20
Output connections
(15) IEC 320 C13
Features
Cable length
2.5 m
Power
Nominal input voltage
23 V
Output voltage
230 V
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
3680 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Information
| Part Number: | AP9572 |
