Introduction

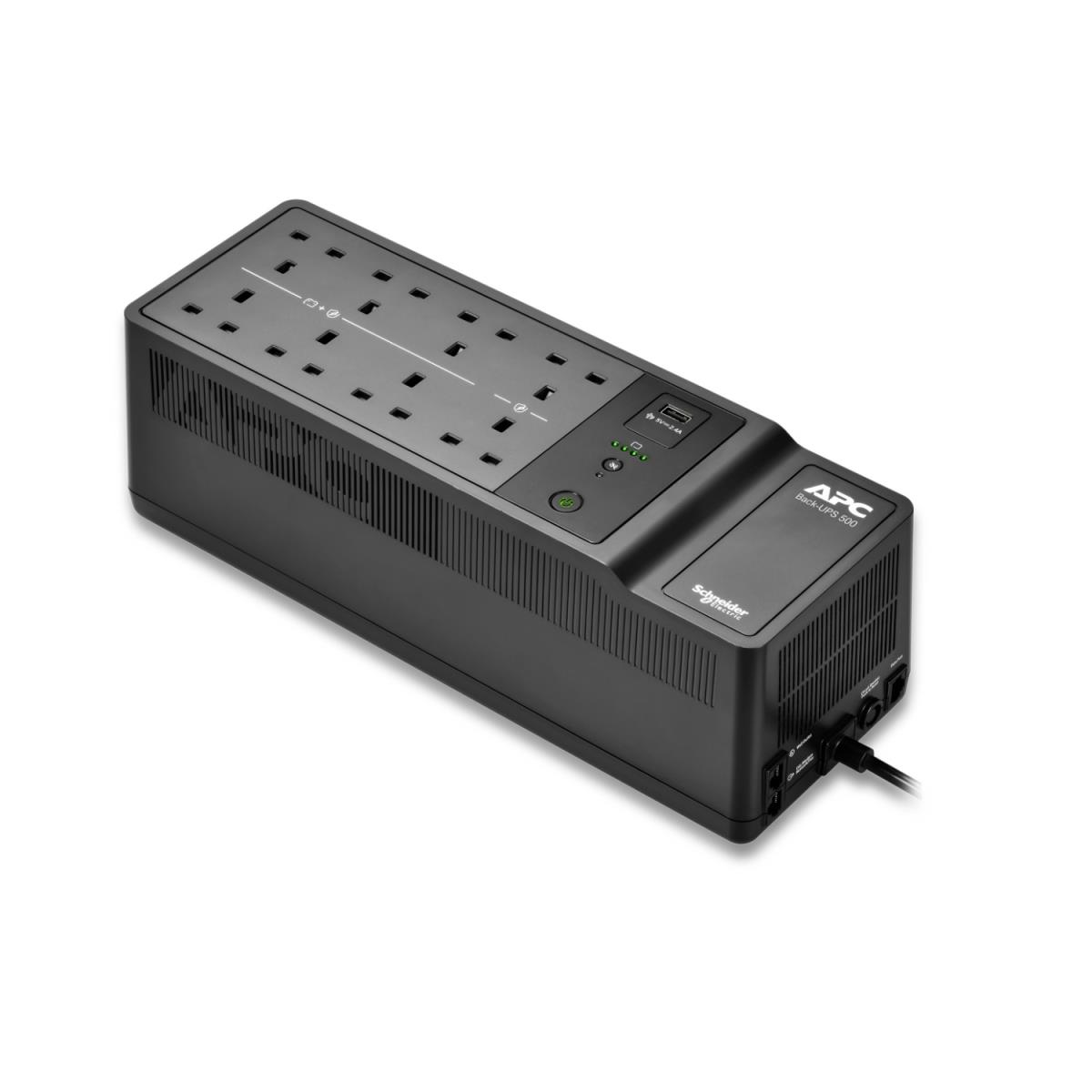

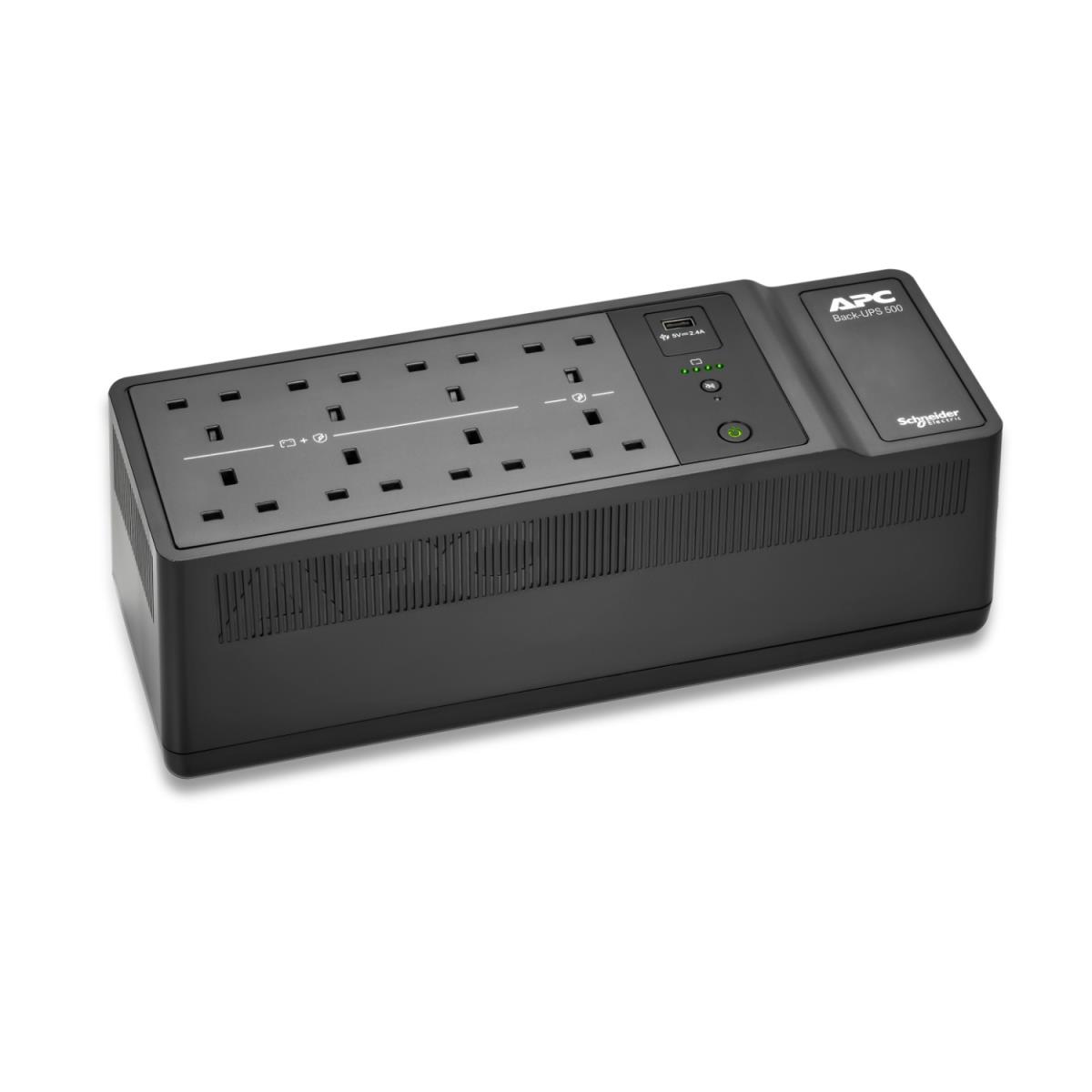

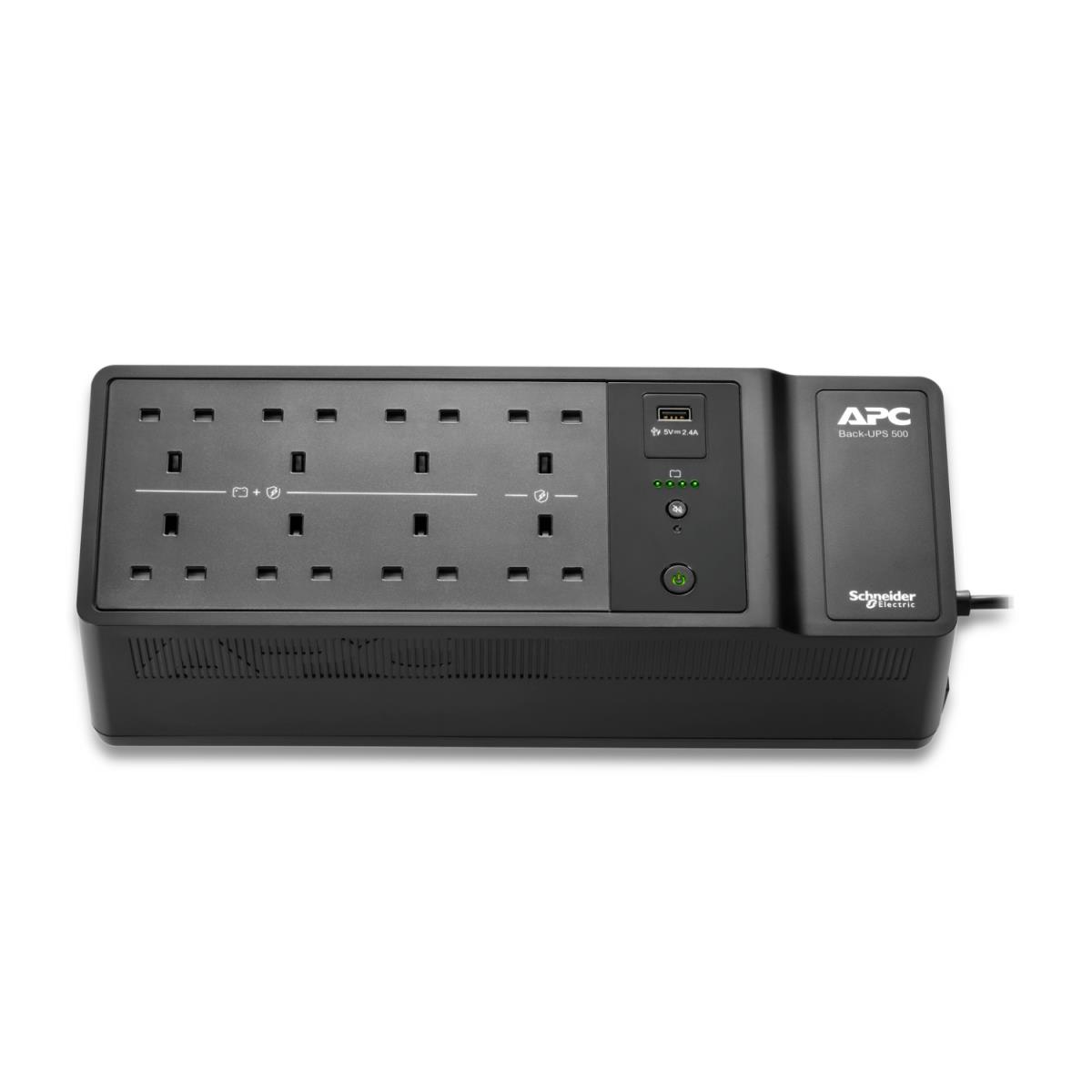

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 500VA floor/wall mount UPS has 8 total outlets, 6 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 310 Joules. It has one USB port for smart charging of personal devices. This UPS has a 2-year warranty on unit and battery. 3-year warranty, €100,000 lifetime connected equipment protection policy, and free technical support exclusive for European community countries only. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Features
UPS topology
Standby (Offline)
Output power capacity
0.5 kVA
Output power
300 W
Waveform
Stepwise
Input operation voltage (min)
180 V
Input operation voltage (max)
266 V
Input frequency
47/63 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
230 V
Maximum current
10 A
Surge energy rating
310 J
Response time
6 ms
Efficiency
80%
Noise level
45 dB
Surge protection
Yes
Number of input phases
1
Number of output phases
1
Single-phase input voltage supported
230 V
Ports & interfaces
AC outlet types
BS 1363, Type G (BS 1363)
Power plug
BS1363A
AC outlets quantity
8 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
USB port type
USB Type-A
SmartSlot
No
SmartConnect port
No
Battery
Battery technology
Lead-Acid
Battery capacity
9 Ah
Battery voltage
12 V
Battery recharge time
6 h
Battery replacement accessibility
End-user
Replacement battery cartridge
RBC46
Design
Form factor
Desktop
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 4572 m
Certificates
Compliance certificates
CE, EAC
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Certification
CE; EAC
Weight & dimensions
Width
130 mm
Depth
365 mm
Height
120 mm
Weight
3.9 kg
Packaging data
Package width
441 mm
Package depth
186 mm
Package height
190 mm
Package weight
4.1 kg
Logistics data
Warranty period
2 year(s)
Customs product code (TARIC)
8504409590
Total carbon footprint (kg of CO2e)
146.1090909090909
Packaging content
Management card included
No
Technical details
Sustainable packaging
No
Preferred mounting position
no preference
Take-back system
No
Packaging without single use plastic
No
Other features
Optimising energy efficiency
Energy efficient product
Input connection type
BS1363A British
Output connection type
6 BS 1363; 2 BS 1363surge
Output voltage
230 V
