Introduction
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

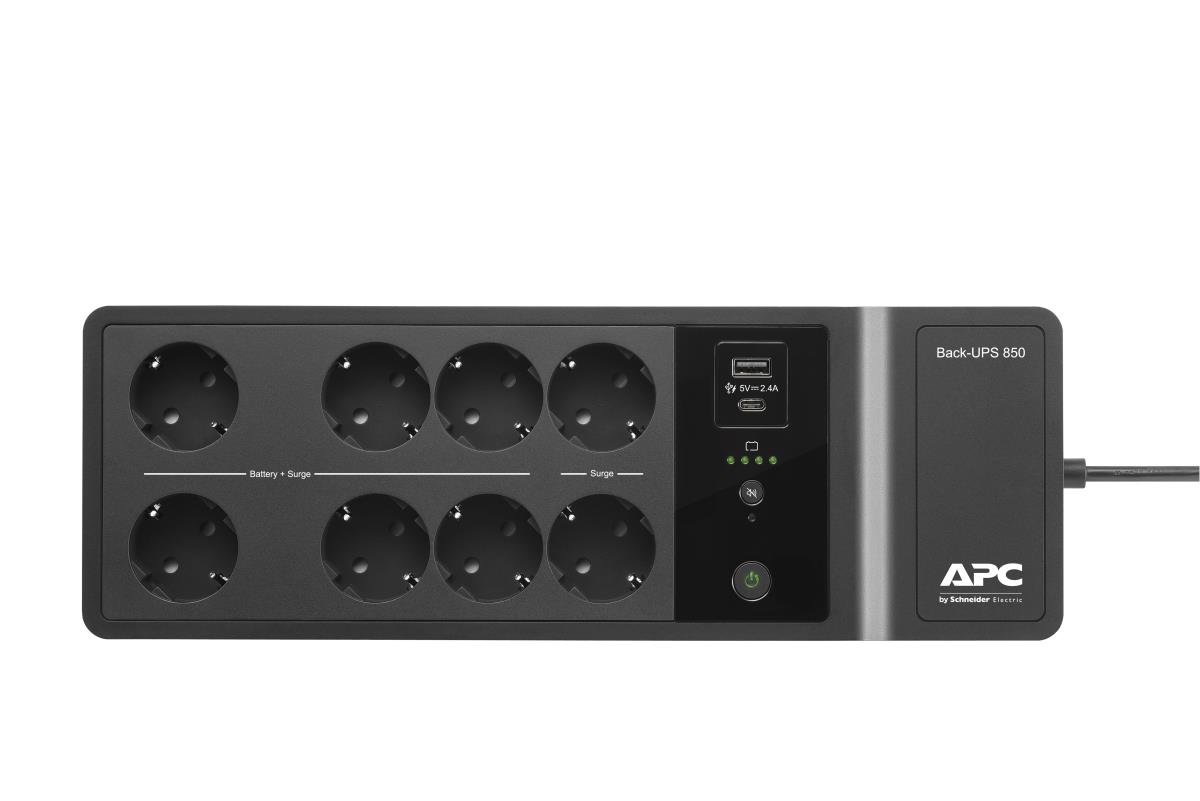

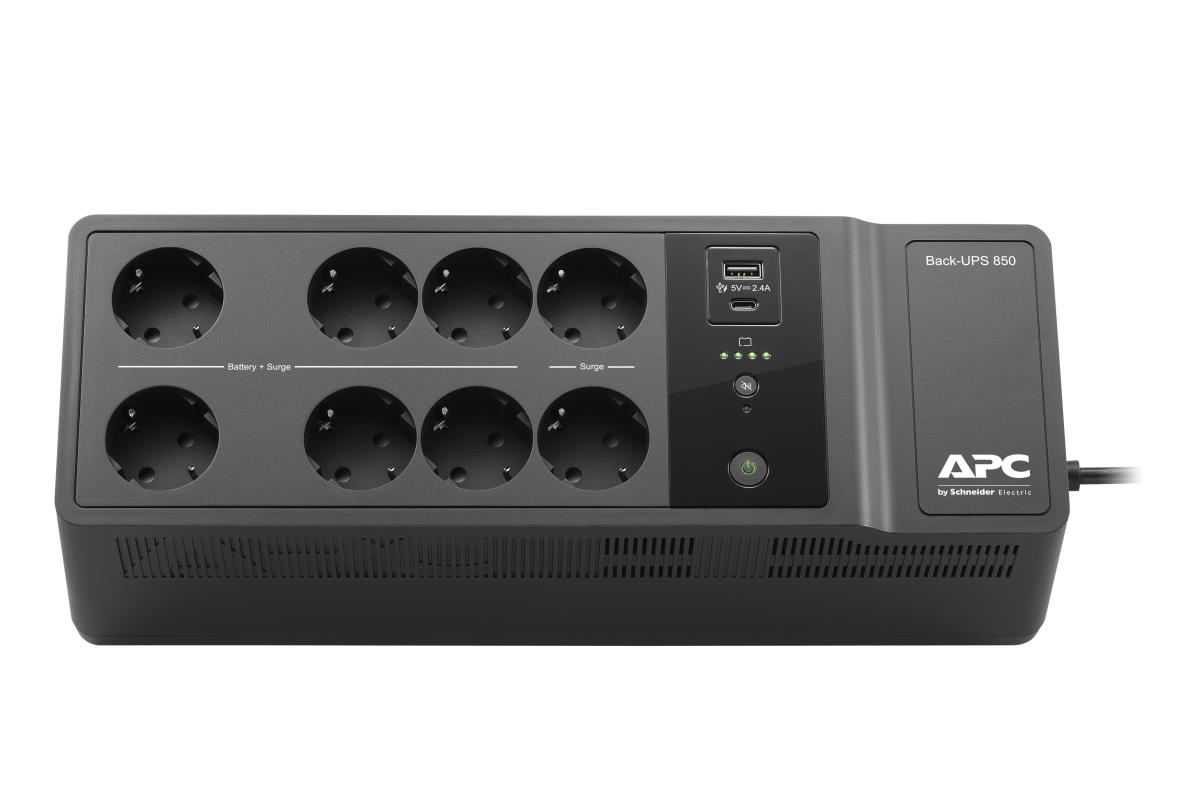

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Ports & interfaces
SmartSlot
No
SmartConnect port
No
AC outlet types
Type F
Power plug
Type F
AC outlets quantity
8 AC outlet(s)
Number of type F outputs
8

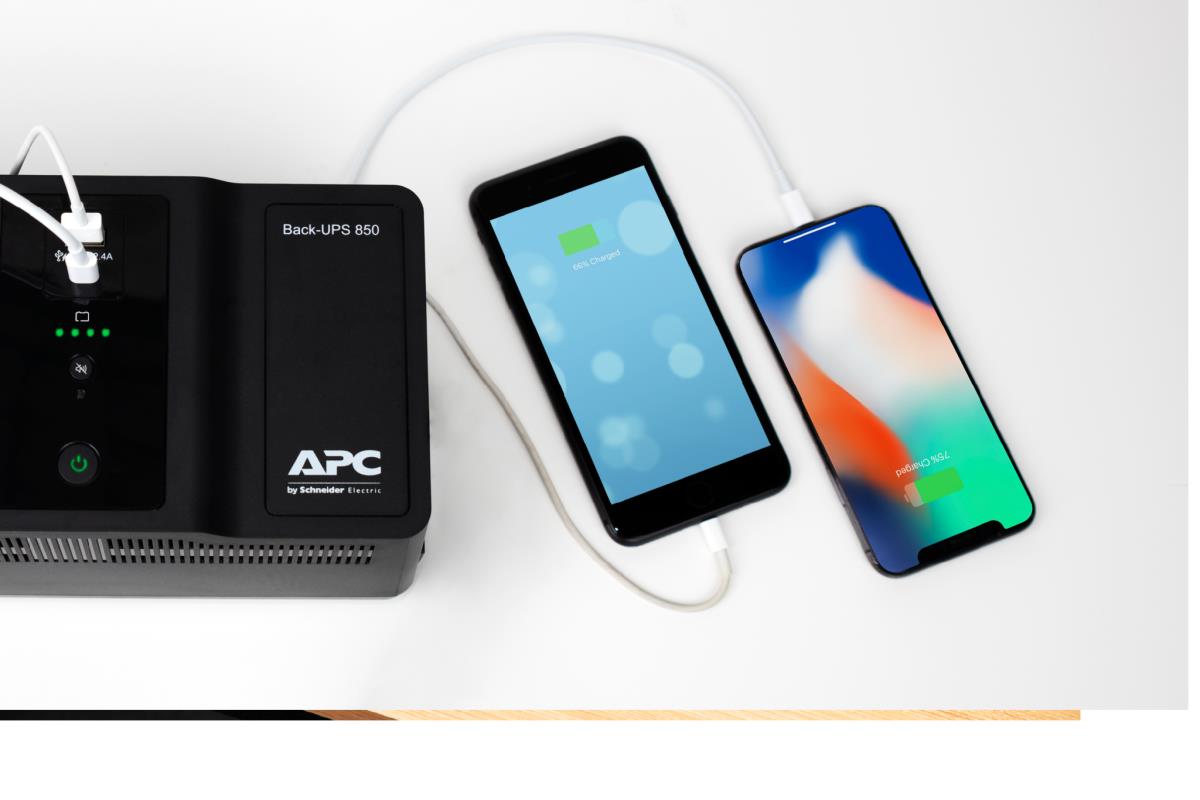

USB port
Y
USB 2.0 ports quantity
2

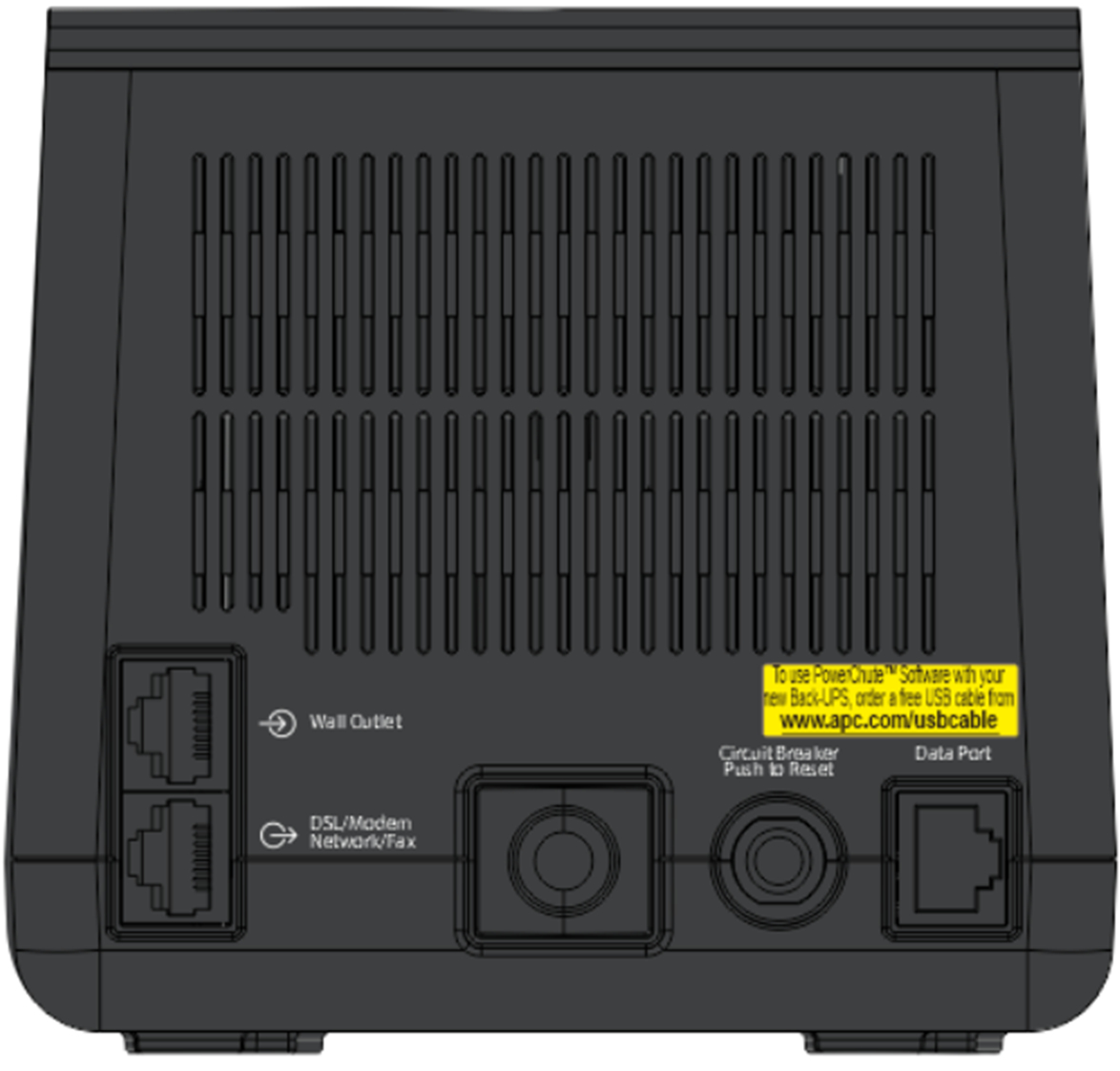

Ethernet LAN (RJ-45) ports
3
Packaging content
Management card included
No
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS
Features
UPS topology
Standby (Offline)
Output power capacity
0.85 kVA
Output power
520 W
Waveform
Sine
Input operation voltage (min)
220 V
Input operation voltage (max)
230 V
Input frequency
47/63 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
230 V
Output frequency
47/63 Hz
Automatic Voltage Regulation (AVR)
N
Maximum current
6 A
Surge energy rating
310 J
Noise level
45 dB
Surge protection
Y
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Audible alarm(s)
Y
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
93 Ah

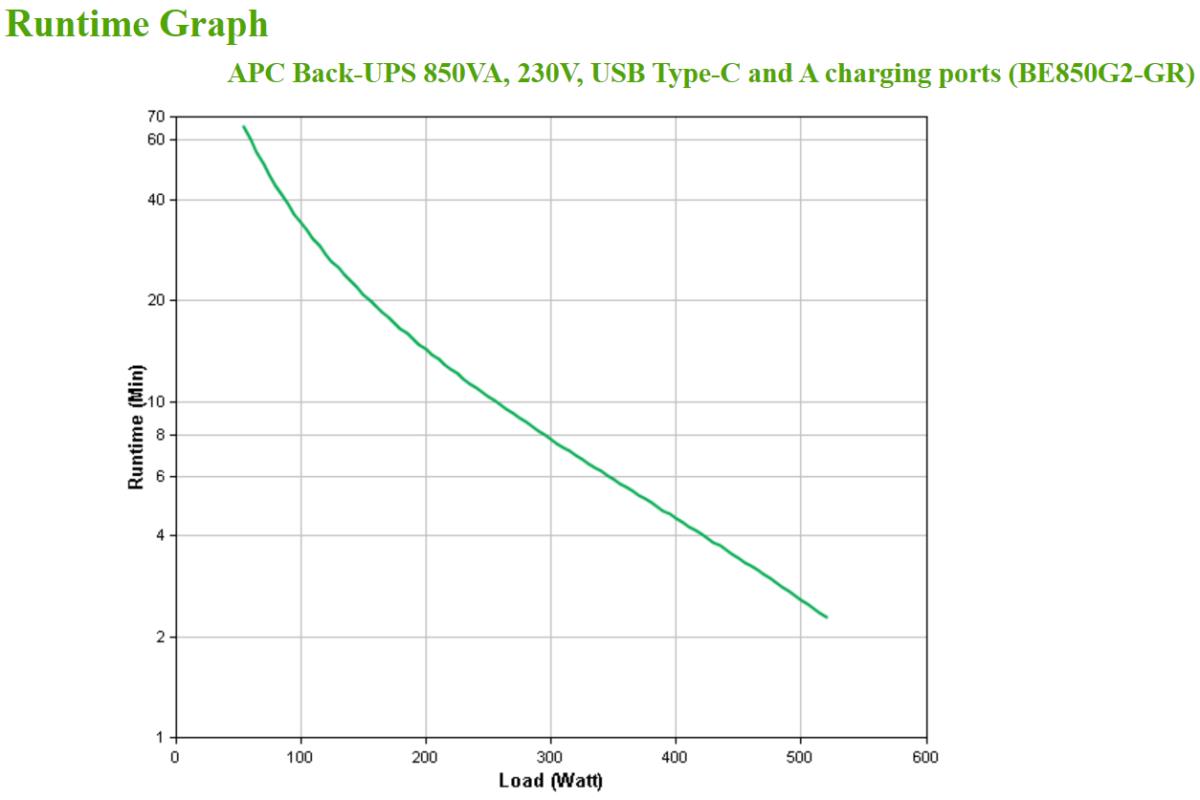

Typical backup time at full load
2 min
Typical backup time at half load
9 min
Battery life (max)
5 year(s)
Battery recharge time
16 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design

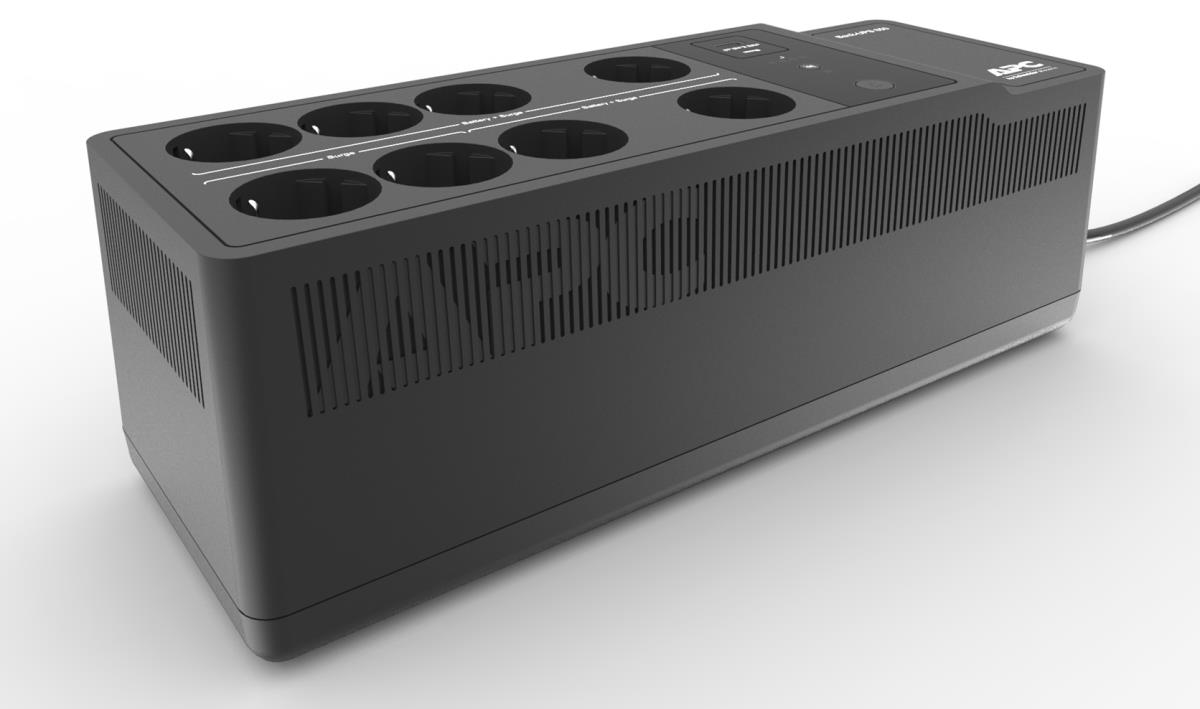

Form factor
Compact
Cable length
1.83 m
Product colour
Black
LED indicators
Y
Certification
REACH, CE, EAC
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 900 m
Non-operating altitude
0 - 4500 m
Weight & dimensions
Width
130 mm
Depth
365 mm
Height
120 mm
Weight
4.5 kg
Package width
186 mm
Package depth
441 mm
Package height
190 mm
Package weight
5 kg
Packaging data
Logistics data
Master (outer) case gross weight
16 kg
