Introduction

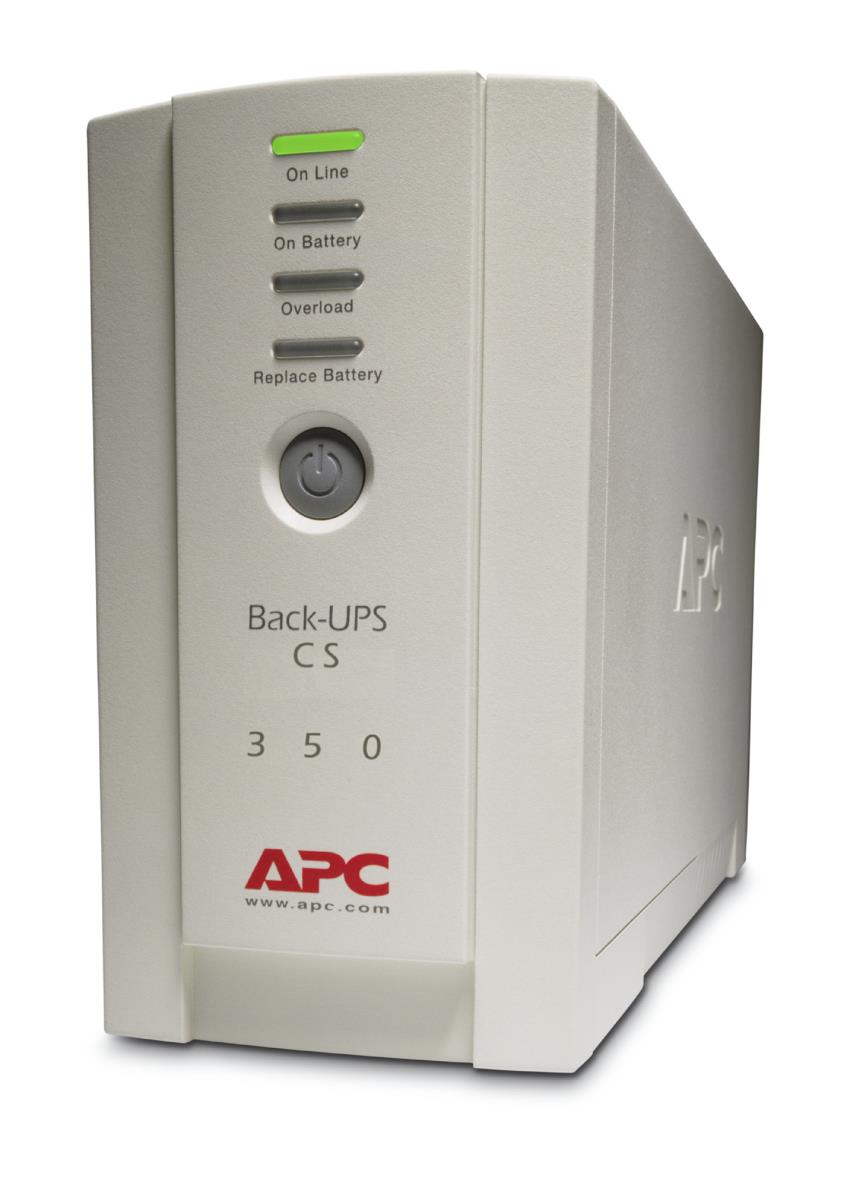

The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
Key features:
- Audible alarms
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Battery replacement without tools
- Battery-protected and surge-only outlets
- Dataline Surge Protection
- Hot-swappable batteries
- LED status indicators
- Power conditioning
- Resettable circuit breakers
- Safety-agency approved
- Transformer-block spaced outlets
- User-replaceable batteries
Ports & interfaces
SmartSlot
No
SmartConnect port
No

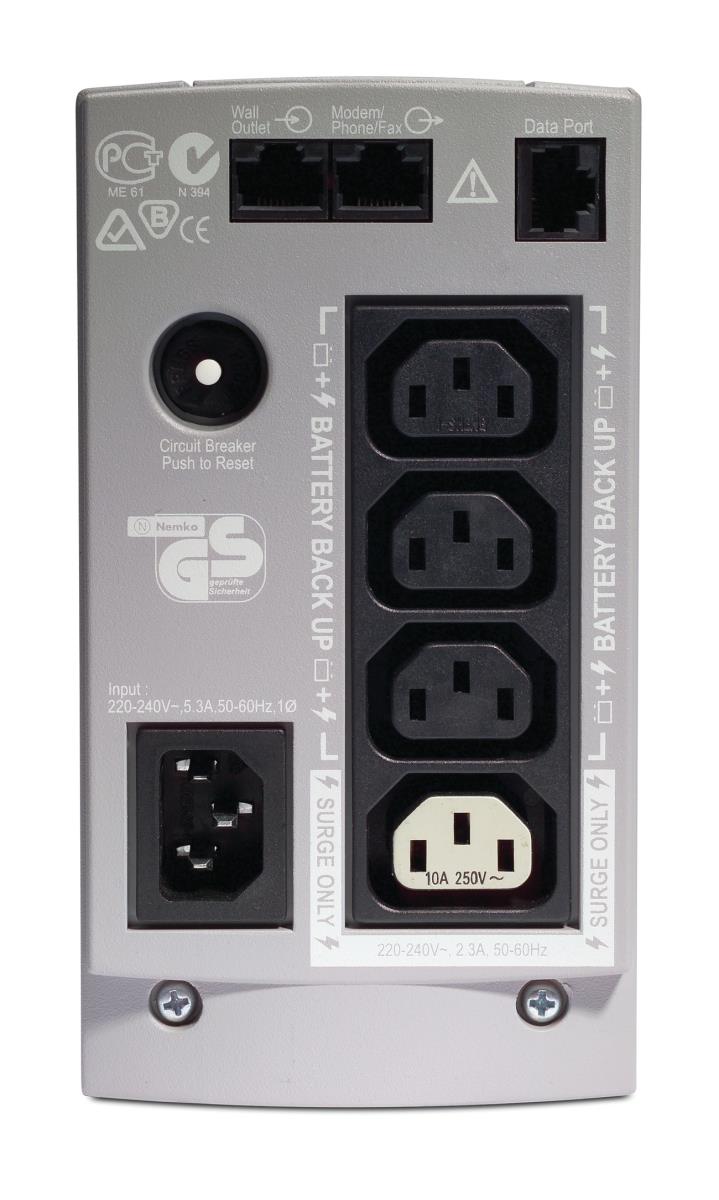

AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
4 AC outlet(s)
Number of output IEC jumpers
2
USB port
Y
Packaging content
Management card included
No
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS, ENERGY STAR
Features
UPS topology
Standby (Offline)
Output power capacity
0.35 kVA
Output power
210 W
Input operation voltage (min)
180 V
Input operation voltage (max)
266 V
Input frequency
50/60 Hz
Output frequency regulation
47 - 63 Hz
Maximum current
7 A
Surge energy rating
310 J
Hold time (min)
6 ms
Hold time (max)
10 ms
Efficiency
98.6%
Surge protection
Y
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Telephone
Power protection features
Overload
Audible alarm(s)
Y
Audible alarm modes
Low battery alarm, Overload alarm
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
7 Ah
Battery capacity
116 VAh
Battery voltage
12 V

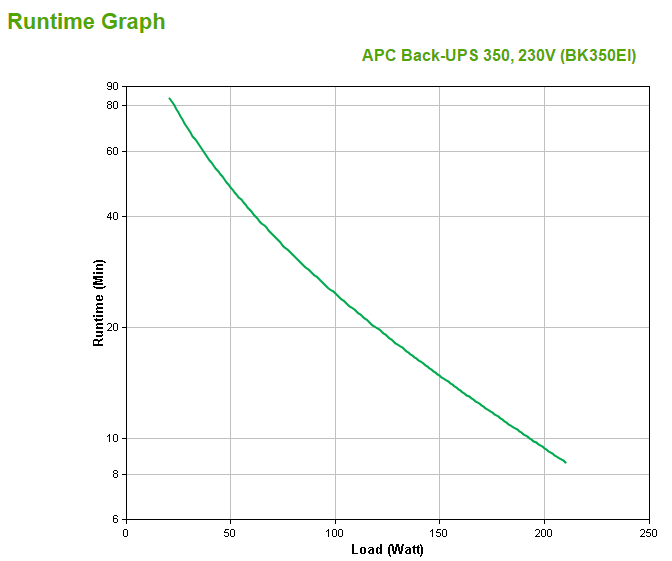

Typical backup time at full load
8.6 min
Typical backup time at half load
22.1 min
Battery life (max)
6 year(s)
Battery recharge time
6 h
Automatic battery test
Y
Design
Form factor
Tower
Cable length
1.83 m
Product colour
Beige
LED indicators
Battery replacement
Certification
C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
91 mm
Depth
284 mm
Height
165 mm
Weight
6.32 kg
Package width
241 mm
Package depth
368 mm
Package height
178 mm
Package weight
7.05 kg
Packaging data
Cables included
Phone (RJ-11), USB cable
Quick installation guide
Y
Warranty card
Y
Software CD
Y
Bundled software

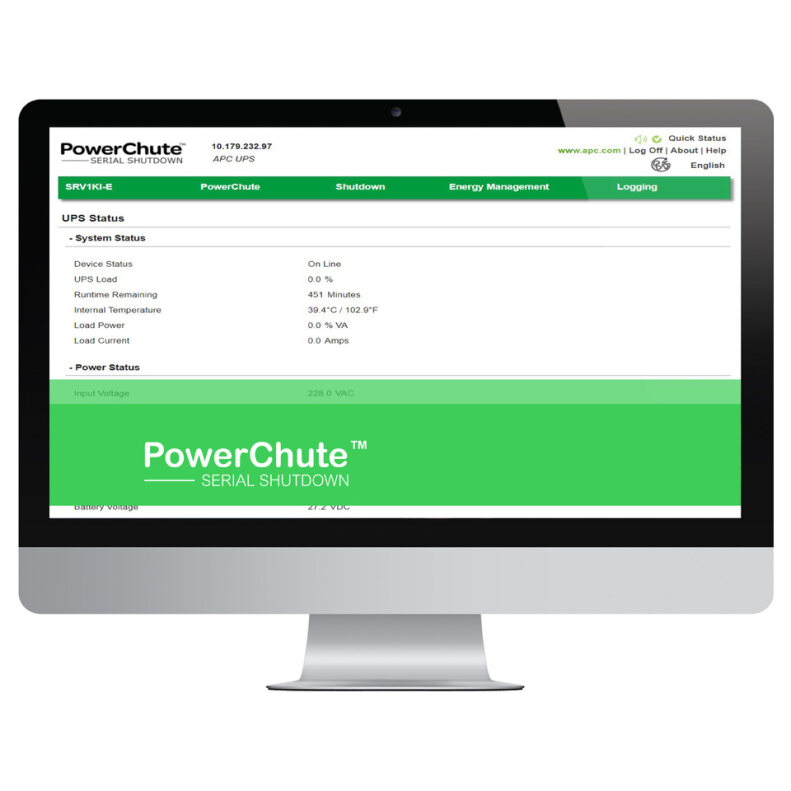

PowerChute Personal Edition
Logistics data
Products per pallet
48 pc(s)
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Filtering
Y
