Introduction

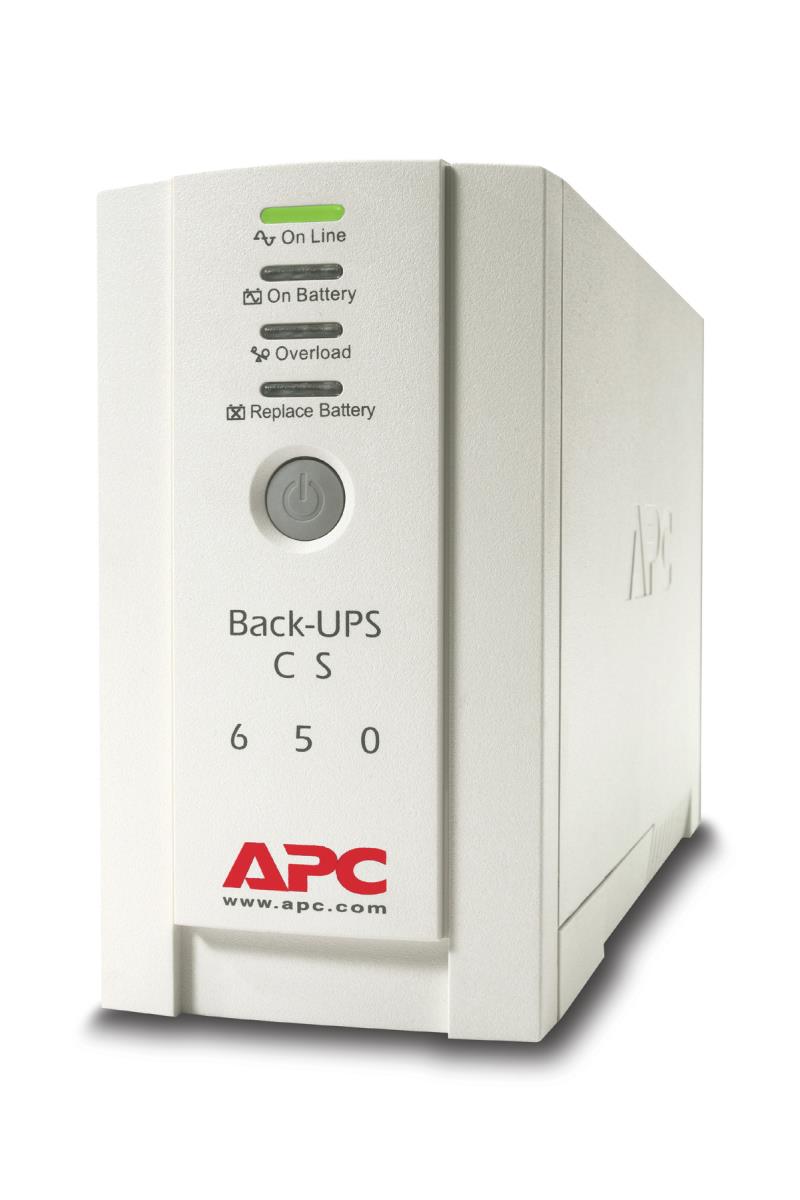

The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
Ports & interfaces
SmartSlot
No
SmartConnect port
No

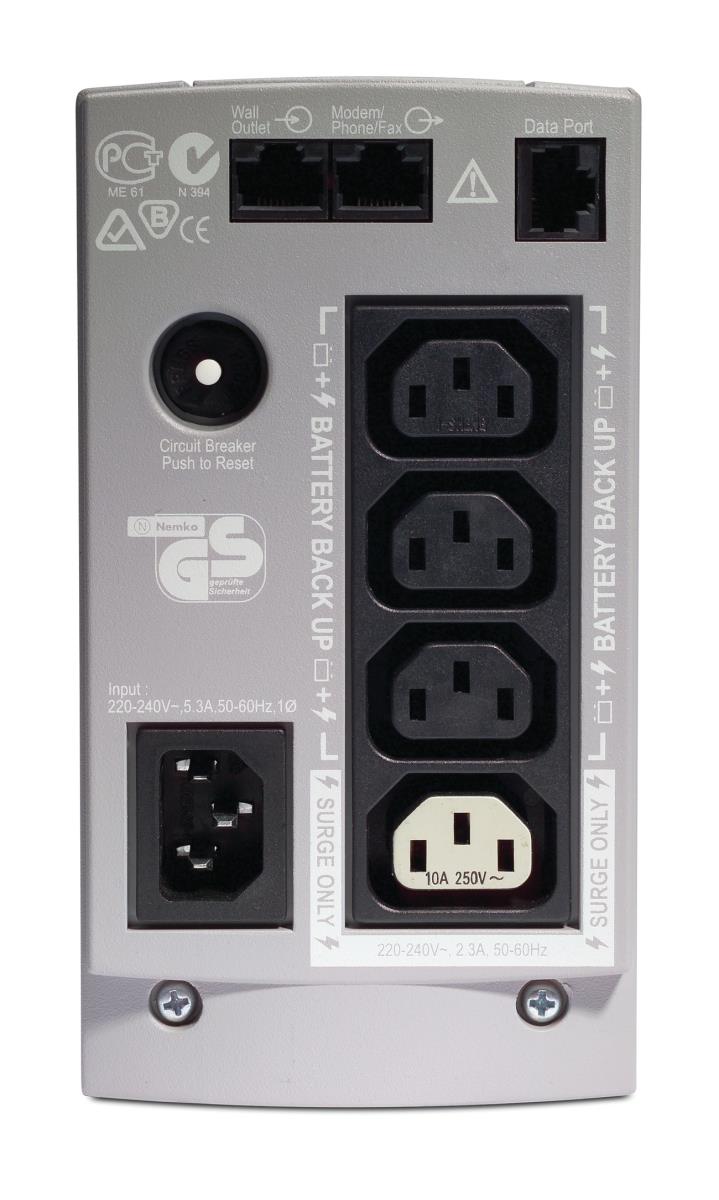

AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
4 AC outlet(s)
Number of output IEC jumpers
2
USB port
Y
Packaging content
Management card included
No
Features
Maximum current
7 A
UPS topology
Standby (Offline)
Output power capacity
0.65 kVA
Output power
400 W
Waveform
Sine
Input operation voltage (min)
160 V
Input operation voltage (max)
286 V
Input frequency
50/60 Hz
Output frequency regulation
47 - 63 Hz
Surge energy rating
310 J
Hold time (min)
6 ms
Hold time (max)
10 ms
Efficiency
98.9%
Noise level
45 dB
Surge protection
Y
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Telephone
Audible alarm(s)
Y
Audible alarm modes
Low battery alarm, Overload alarm
Battery
Replacement battery cartridge
1
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
9 Ah
Battery capacity
95 VAh
Battery voltage
12 V

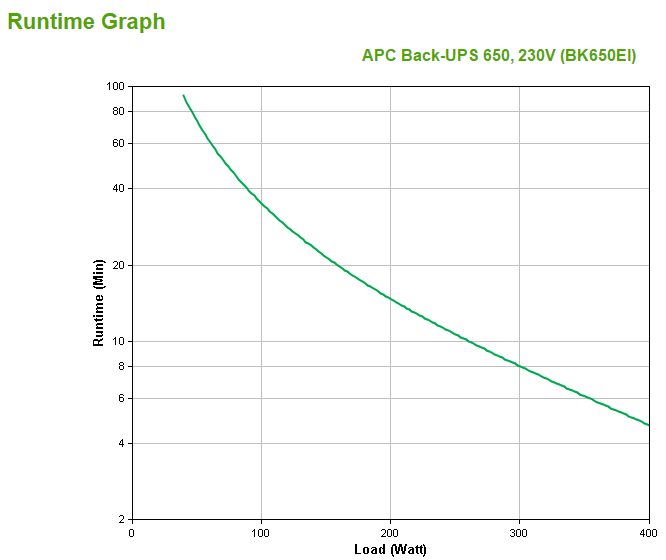

Typical backup time at full load
4.7 min
Typical backup time at half load
14.7 min
Battery life (max)
6 year(s)
Battery recharge time
8 h
Automatic battery test
Y
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS, ENERGY STAR
Design
Form factor
Tower
Cable length
2 m
Product colour
Beige
LED indicators
Y
Certification
A-tick, C-tick, CE, GOST, NEMKO
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
91 mm
Depth
284 mm
Height
165 mm
Weight
6.03 kg
Package width
185 mm
Package depth
415 mm
Package height
494 mm
Package weight
7.31 kg
Packaging data
Cables included
USB cable
Quick installation guide
Y
Software CD
Y
Bundled software

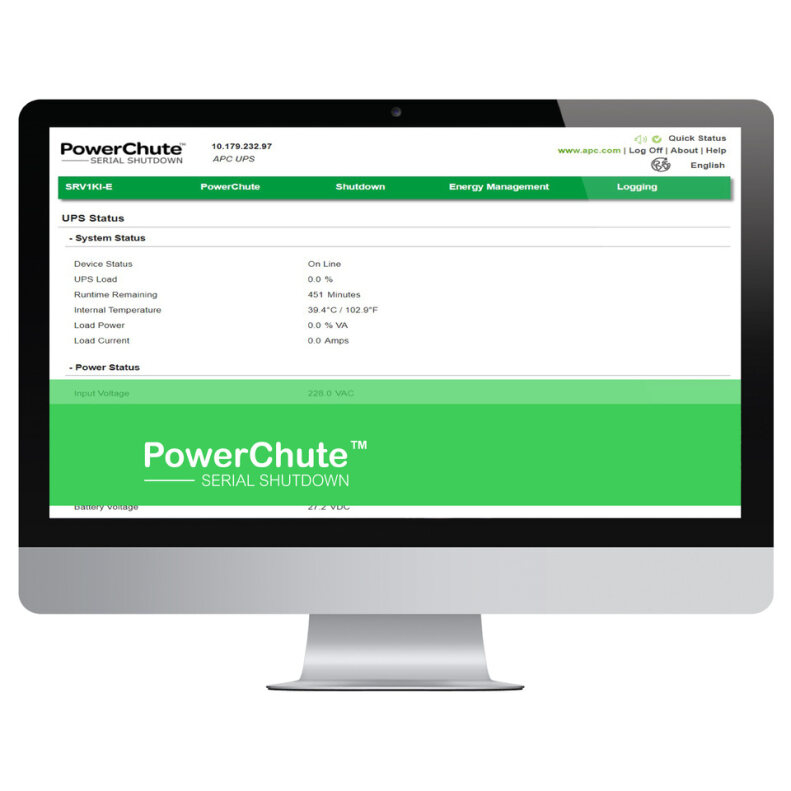

PowerChute Personal Edition
Logistics data
Products per pallet
48 pc(s)
Products per master (outer) case
1 pc(s)
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Filtering
Y
Packaging content
Detachable IEC C13 to IEC C14 power cords
