Product Details
Ports & interfaces
SmartSlot
No
SmartConnect port
No
AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
8 AC outlet(s)
USB port
Y
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
Cabling technology
10/100/1000Base-T(X)
Packaging content
Management card included
No
Technical details
Harmonized System (HS) code
85078000
Features
UPS topology
Line-Interactive
Output power capacity
1.6 kVA
Output power
960 W
Waveform
Sine
Input operation voltage (min)
176 V
Input operation voltage (max)
294 V
Input frequency
50/60 Hz
Output frequency
50/60 Hz

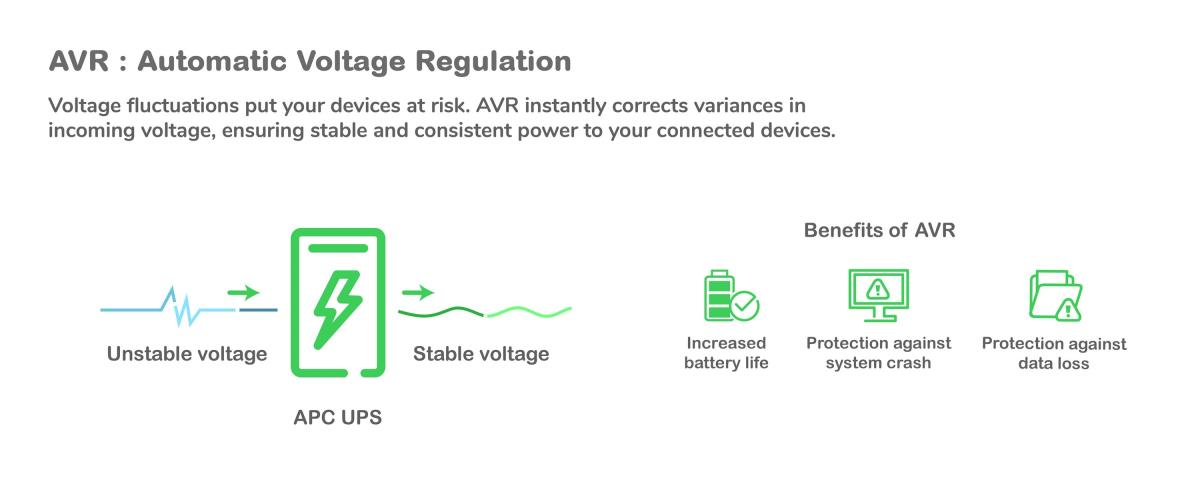

Automatic Voltage Regulation (AVR)
Y
Maximum current
10 A
Surge energy rating
509 J
ECO mode
Y
Noise level
45 dB
Surge protection
Y
Surge protection features
Network
Audible alarm(s)
Y
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery life (max)
5 year(s)
Battery recharge time
16 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor
Tower
Cable length
1.83 m
Cooling type
Passive
Product colour
Black
Display type
LCD
LED indicators
Y
Certification
A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
250 mm
Depth
382 mm
Height
100 mm
Weight
10.9 kg
Package width
485 mm
Package depth
225 mm
Package height
330 mm
Package weight
11.7 kg
Packaging data
Cables included
USB cable
Manual
Y
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Information
| Part Number: | BR1600MI |
