Product Details
Ports & interfaces
SmartSlot
No
SmartConnect port
No

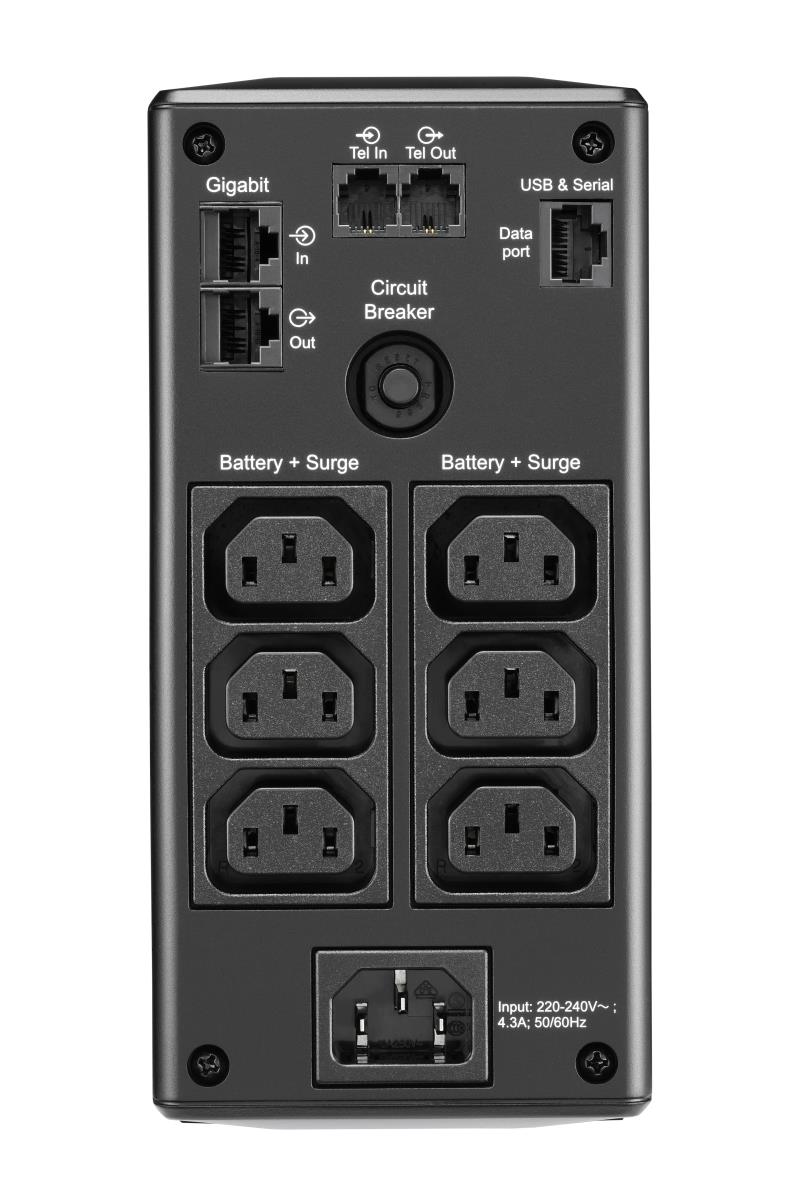

AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
6 AC outlet(s)
USB port
Y
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
Cabling technology
10/100/1000Base-T(X)
Packaging content
Management card included
No
Technical details
Sustainability certificates
Green Premium
Harmonized System (HS) code
85078000
Features
UPS topology
Line-Interactive
Output power capacity
0.65 kVA
Output power
390 W
Waveform
Sine
Input operation voltage (min)
176 V
Input operation voltage (max)
294 V
Input frequency
50/60 Hz
Output frequency
50/60 Hz
Automatic Voltage Regulation (AVR)
Y
Maximum current
10 A
Response time
12 ms
ECO mode
Y
Noise level
45 dB
Surge protection
Y
Surge protection features
Network
Audible alarm(s)
Y
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery life (max)
5 year(s)
Battery recharge time
12 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor
Tower
Cable length
1.83 m
Cooling type
Passive
Product colour
Black
Display type
LCD
LED indicators
Y
Certification
A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
91 mm
Depth
310 mm
Height
190 mm
Weight
6.4 kg
Package width
440 mm
Package depth
143 mm
Package height
255 mm
Package weight
7.4 kg
Packaging data
Cables included
USB cable
Manual
Y
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Information
| Part Number: | BR650MI |
