Product Details
Introduction
Power-saving outlets
- Automatically cuts power to idle equipment to conserve electricity.
Disconnected battery notification
- Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.

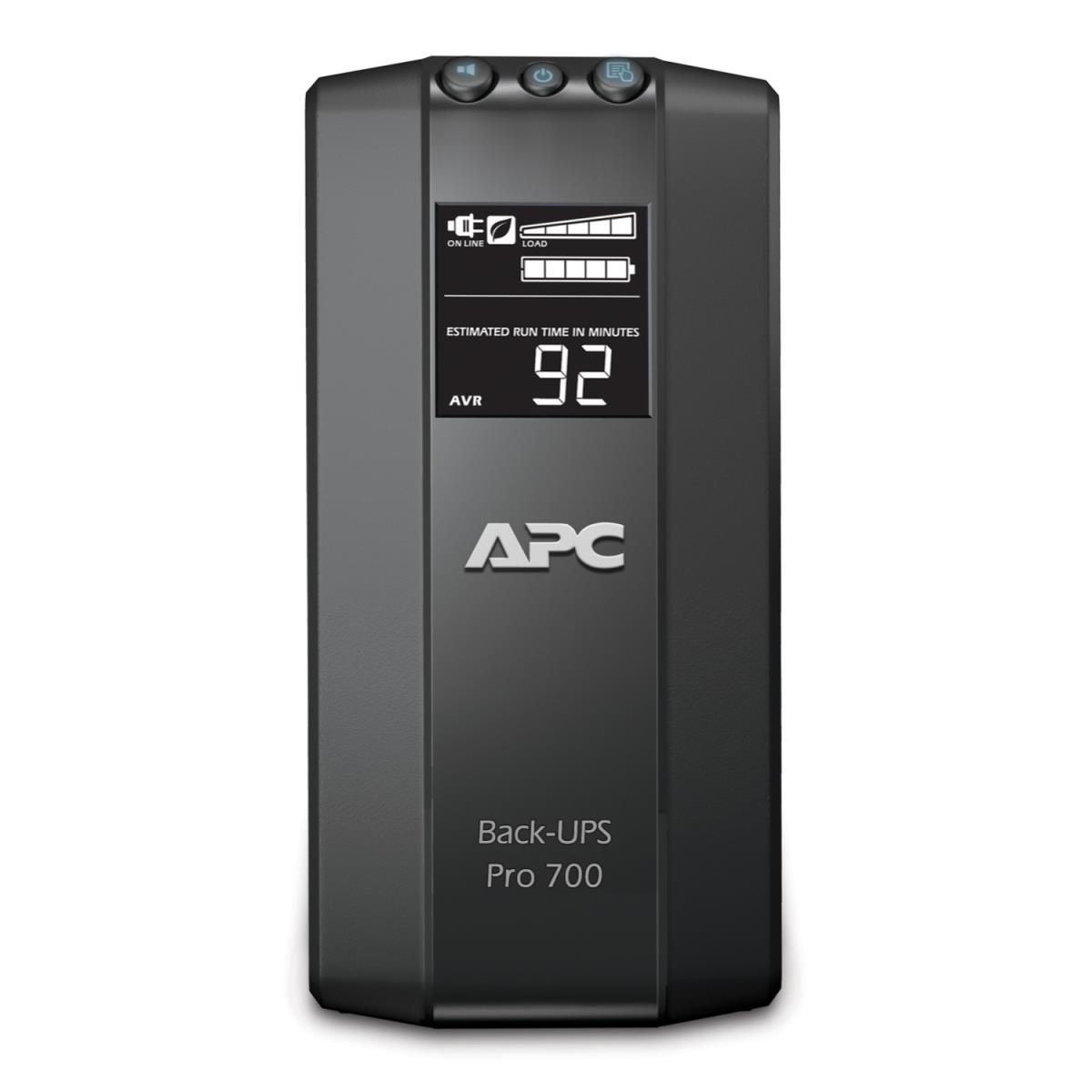

LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.

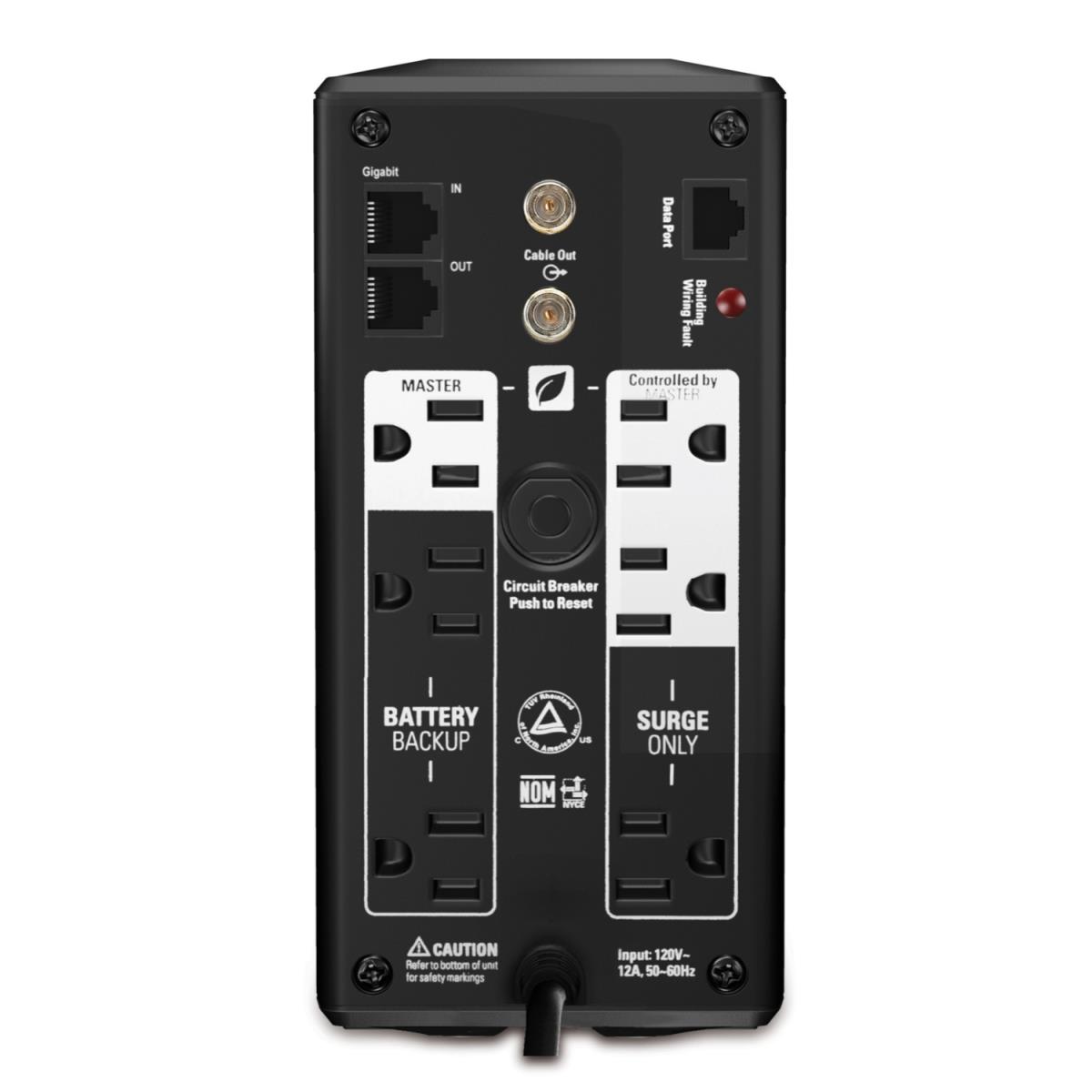

Ports & interfaces
AC outlet types
NEMA 5-15R
Power plug
NEMA 5-15P
AC outlets quantity
6 AC outlet(s)
Ethernet LAN (RJ-45) ports
2
Features
UPS topology
Line-Interactive
Waveform
Sine
Input operation voltage (min)
88 V
Input operation voltage (max)
143 V
Input frequency
50/60 Hz
Output operation voltage (max)
120 V
Response time
12 ms
Heat dissipation
48.5 BTU/h
Output power capacity
0.7 kVA
Output power
420 W
Surge energy rating
355 J
Noise level
40 dB
Audible alarm(s)
Y
Battery
Battery capacity
9 Ah
Battery voltage
12 V
Battery life (max)
5 year(s)
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
12 h
Design
Form factor
Tower
Cable length
1.83 m
Product colour
Black
LED indicators
Y
Certification
FCC Part 15 Class B, FCC Part 68, NOM, UL 1778
Weight & dimensions
Width
91 mm
Depth
310 mm
Height
190 mm
Weight
7.15 kg
Package weight
7.95 kg
Packaging data
Package width
442 mm
Package depth
138 mm
Package height
252 mm
Technical details
Harmonized System (HS) code
85078000
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-14 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 40%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Other features
Output connections
3 x NEMA 5-15R
3 x NEMA 5-15R
Dimensions (WxDxH)
91 x 310 x 190 mm
Nominal output voltage
120 V
Nominal input voltage
120 V
Filtering
Y
Package dimensions (WxDxH)
138 x 442 x 252 mm
Information
| Part Number: | BR700G |
