Product Details
Ports & interfaces
SmartSlot
No
SmartConnect port
No

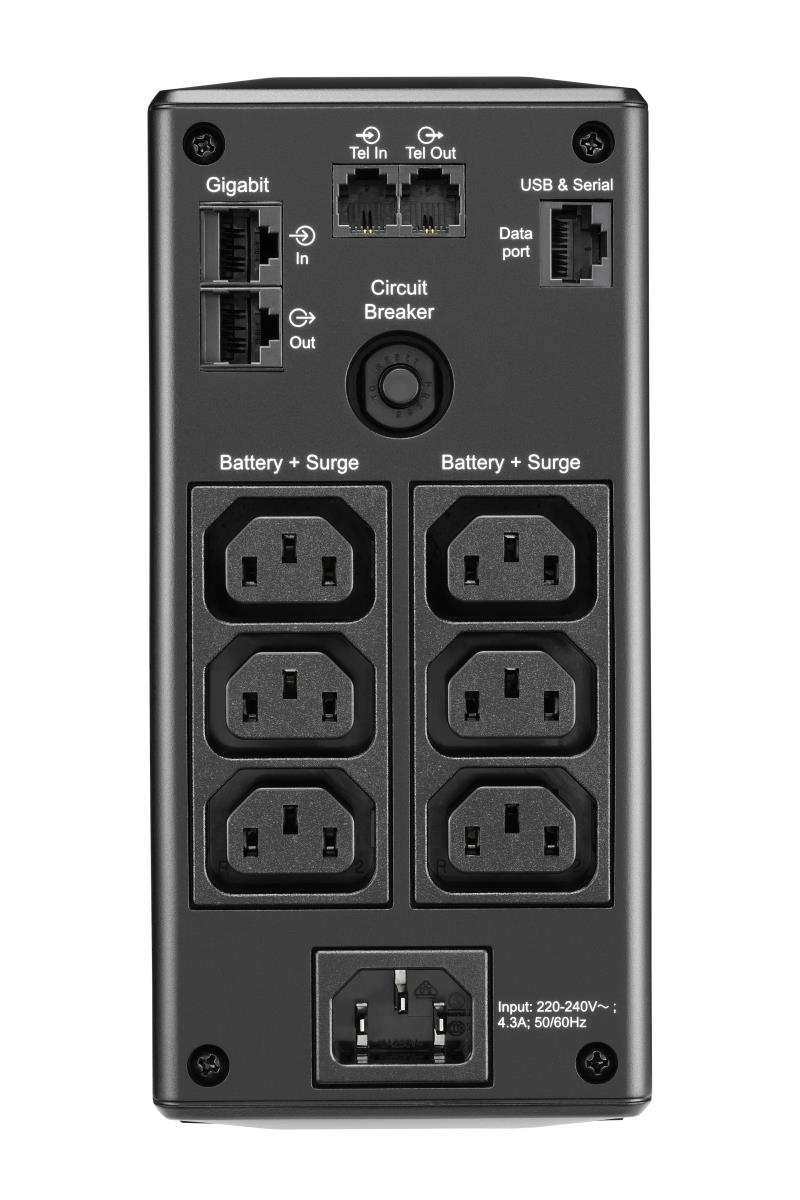

AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
6 AC outlet(s)
USB port
Y
Ethernet LAN (RJ-45) ports
2
Cabling technology
10/100/1000Base-T(X)
Packaging content
Management card included
No
Technical details
Sustainability certificates
Green Premium
Harmonized System (HS) code
85078000
Features
UPS topology
Line-Interactive
Output power capacity
0.9 kVA
Output power
540 W
Waveform
Sine
Input operation voltage (min)
176 V
Input operation voltage (max)
294 V
Input frequency
50/60 Hz
Output frequency
50/60 Hz

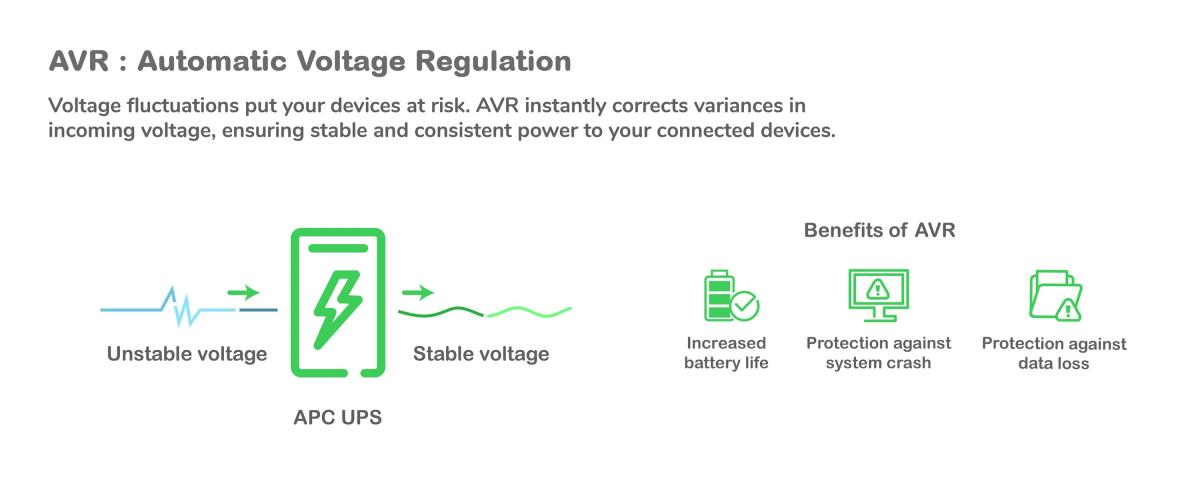

Automatic Voltage Regulation (AVR)
Y
Maximum current
10 A
Response time
12 ms
ECO mode
Y
Noise level
45 dB
Surge protection
Y
Surge protection features
Network
Audible alarm(s)
Y
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery life (max)
5 year(s)
Battery recharge time
12 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor
Tower
Cable length
1.83 m
Cooling type
Passive
Product colour
Black
Display type
LCD
LED indicators
Y
Certification
A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
91 mm
Depth
310 mm
Height
190 mm
Weight
7 kg
Package width
440 mm
Package depth
143 mm
Package height
255 mm
Package weight
8 kg
Packaging data
Cables included
USB cable
Manual
Y
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Information
| Part Number: | BR900MI |
